Samsung Introduces Artik 530 IoT Module & Development Kit with WiFi, BLE, and Zigbee/Thread

Samsung unveiled Artik 1, Artik 5, and Artik 10 IoT modules & development board families in 2015, but since then they dropped the Artik 1 family, and instead launched Artik 0, Artik 5, and Artik  7 modules and boards late last year. More recently the company canceled the more powerful Artik 1020 development board, but the Artik project is still going on, as they’ve just added Artik 530 module & development kit to their Artik 5 family.

Artik 530 Module – Click to Enlarge

Samsung ARTIK 530 module specifications:

  • SoC – Unnamed Quad core ARM Cortex A9 processor @ 1.2 GHz with a 3D graphics accelerator
  • System Memory – 512 MB DDR3
  • Storage – 4GB eMMC v4.5 flash
  • Connectivity – Dual band SISO 802.11 a/b/g/n WiFi, Bluetooth 4.2 LE + Classic, 802.15.4/Zigbee/Thread, 10/100/1000M MAC (external PHY required)
  • Other Interfaces and peripherals
    • Camera – 4-lane MIPI CSI up to 5MP (1920×1080 @ 30fps)
    • Display – 4-lane MIPI DSI and HDMI 1.4a (1920×1080 @ 60fps), or LVDS (1280×720 @ 60 fps)
    • Audio – 2x I2S audio input/output
    • Analog & digital I/O – GPIO, UART, I2C, SPI, USB host, USB OTG, HSIC, ADC, PWM, I2S, JTAG
  • Security – Secure point to point authentication and data transfer
  • Power Supply – PMIC with on-board bucks and LDO
  • Dimensions – 49x36mm

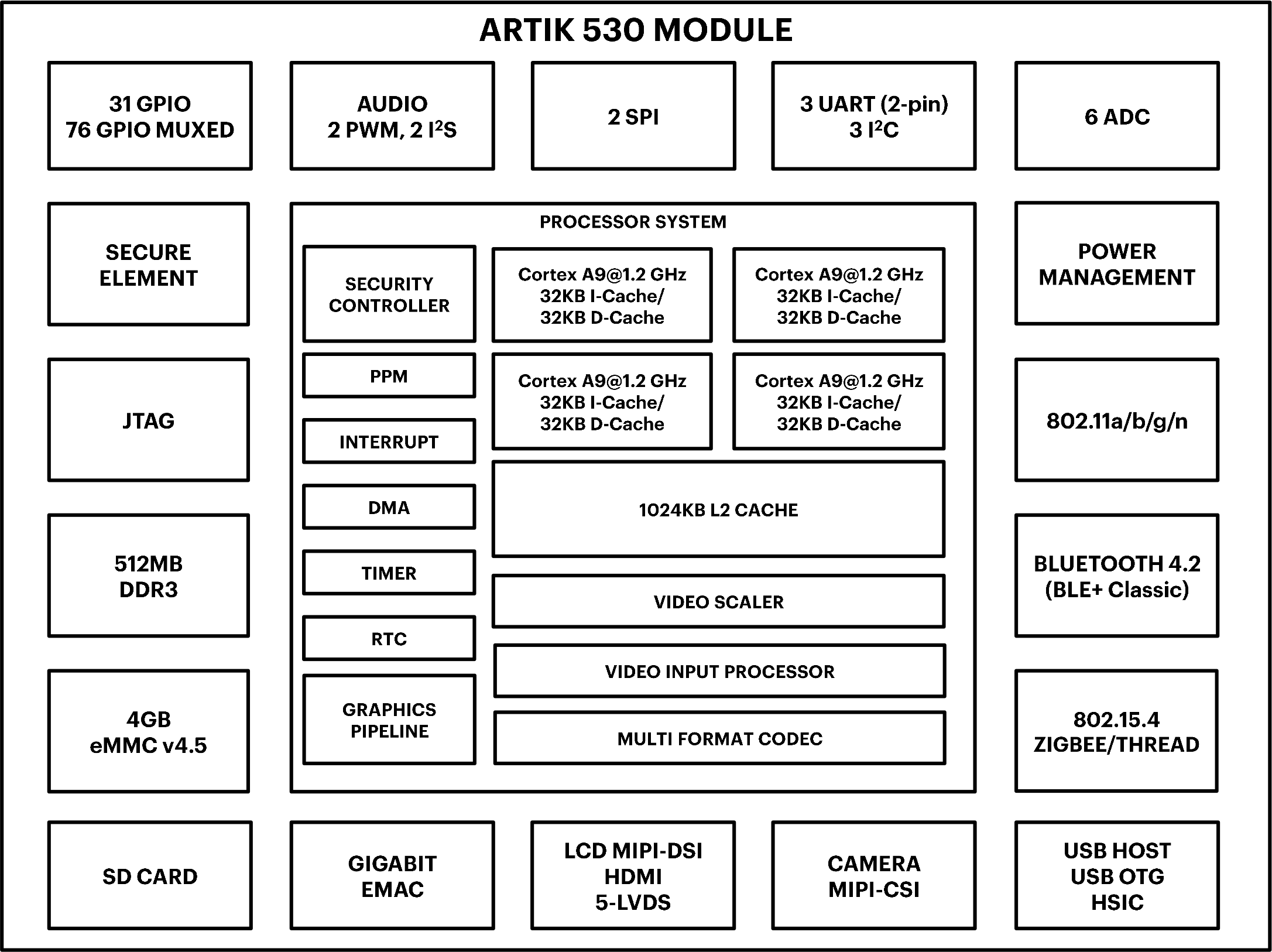

Artik 530 module block diagram – Click to enlarge

Samsung did not make it easy to find which operating system is running on their modules, but after reading a few pages in the getting started guide, I found out the module should be running Fedora. The Wiki shows Fedora 22 with Linux 3.10.93, but they have upgraded to Fedora 24 since then. The product brief however includes more details about the BSP which including drivers for wireless community, multimedia, and other systems peripherals and interface, as well as power management code and security with secure boot, Artik cloud authentication API, and a crypto library based on OpenSSL.

Click to Enlarge

Since the module is not exactly convenient to use without baseboard, most people will likely start with Artik 530 developer kit with the “Interposer board” with an ARTIK 530 module, a “Platform board” that attached under the Interposer board with extra interfaces (MPI DSI/CSI, audio jack), an “Interface Board” with two female header to easily connect external hardware, and two wireless communication antennas.

Artik 530 Development Kit

You can optionally also get a MIPI camera board and/or a sensor board. The boards are described on details in what’s in the box part of the documentation.

Artik 530 module can be purchased for as low as $42.35 in quantities on Digikey or Arrow, while the developer kit goes for $189 and up, also on Digikey or Arrow.

Via Tizen Experts
