Zidoo X10 Android & OpenWrt TV Box with 3.5″ SATA Bay Sells for $229

Zidoo has sold two TV boxes based on Realtek RTD1295 so far with Zidoo X9S and Zidoo X8, and the company has done a pretty good job based on my review of Zidoo X9S. Both models run Android 6.0 with HDMI input recording and broadcasting functions, as well as OpenWrt for NAS functions, with X8 model relying on USB 3.0 storage, and X9S adding an external SATA port. It would be nice to have a model with an internal SATA bay, and it’s exactly what Zidoo X10 brings to the table.

Zidoo X10 specifications with highlights in bold showing differences with Zidoo X9S:

  • SoC – Realtek RTD1295 quad core Cortex A53 processor with ARM Mali-T820 MP3 GPU
  • System Memory – 2GB DDR3

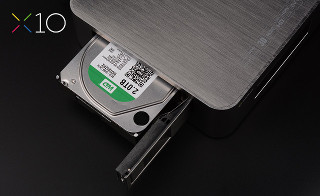

  • Storage – 16GB eMMC flash + micro SD slot up to 32GB + SATA 3.0 bay for 3.5″ hard drives
  • Video I/O – HDMI 2.0a output up to 4K @ 60 Hz (23.976 and 29.94 Hz supports) with HDCP 2.2, AV output, and HDMI 2.0 input with HDCP 2.2 input (recording and streaming up to 1080p @ 60 Hz)
  • Audio I/O – HDMI in and out, 1x S/PDIF output, AV port
  • Video Playback – HDR, 10-bit HEVC/H.265 up to 4K @ 60fps, VP9 up to 4K @ 60 fps (rather 30 fps based on my tests), H.264 up to 4K @ 24 fps, automatic frame rate switching
  • Audio Features – 7.1 channel audio pass-through
  • Connectivity – Gigabit Ethernet, 802.11ac WiFi and Bluetooth 4.0 (Realtek RTL8821 module) with two external high-gain antennas
  • USB – 1x USB 3.0, 2x USB 2.0 ports
  • Misc – IR receiver, VFD display, cooling fan
  • Power Supply – 12V/3A (more power for the 3.5″ drive)
  • Dimensions – 197 x 197 x 65 mm (aluminum alloy enclosure)

All differences are related to the SATA bay which requires a larger & heavier device, a beefier power supply, and a cooling fan. Firmware-wise I’d expect all the features I documented in Zidoo X9S review, plus new features launched since then such as Blu-ray menu navigation and a new external subtitles system with rich settings and ASS/SSA support.

Zidoo Subtitle Designer

Zidoo X10 has been officially launched, and you can purchase it on Amazon or GeekBuying for $229.00. You may find a few more details on Zidoo X10 product page.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

9 Replies to “Zidoo X10 Android & OpenWrt TV Box with 3.5″ SATA Bay Sells for $229”

  1. At that price, I’d rather buy a NUC, which is a fully capable PC – and among other things it could run live streams of flash video.

    Instead of a 3.5″ bay, a fan and a stronger power supply, it was simpler and better to just add an M2 slot – preferably one with easy access from outside of the chassis, with no need to open it.

  2. Post Brexit….not half!! $221 = £221 (I’m would buy a Nvidia shield instead for that money and I still haven’t done that neither…..)

  3. I really wish someone would come out with one of these with a legitimate version of AndroidTV instead of just slapping on a tablet version and pretending everything will work.

  4. @ben
    Yes. I think the SATA bay mechanism is not that cheap, a large aluminum case may also cost more, and on top of that it’s heavier so shipping is more expensive.

  5. @Ron
    I think the type of device is for people wanting to store and play videos locally, so an M.2 slot would not be appropriate. The largest M.2 SSD appears to be around 1TB large and costs about $300. I also found a 2TB M.2 SSD for over $1,000.
    For the same price as a 1TB M.2 SSD, if not cheaper, you can get an 8TB 3.5″ HDD.

  6. Just saw it at geekbuying, I’m not sure why it doesn’t cost less. Probably the NAS functionality bumps up the price.
