GIGABYTE GA-J3455N-D3H Apollo Lake Mini-ITX Motherboard Comes with 2x Gigabit Ethernet Interfaces, 4x SATA Ports

GIGABYTE has introduced an update to Bay Trail based GA-J1900-D3V and Braswell based GA-N3150N-D3V motherboards with the launch of GIGABYTE GA-J3455N-D3H mini-ITX motherboard powered by an Intel Celeron J3455 Apollo Lake processor, and equipped with two Gigabit Ethernet ports, four SATA interfaces, and support for up to 16GB RAM.

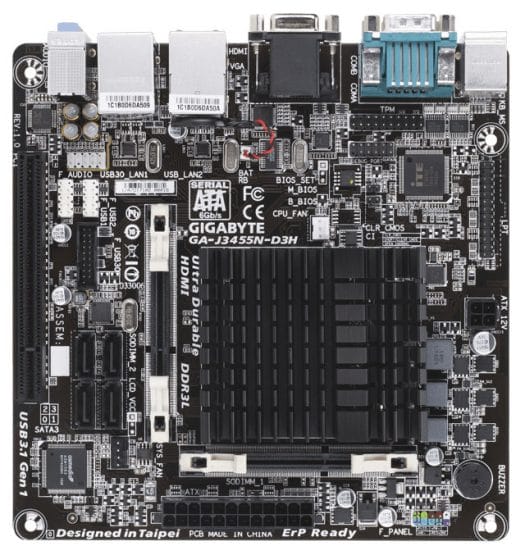

Click to Enlarge

GA-J3455N-D3H specifications:

  • SoC – Intel Celeron J3455 quad core processor @ 1.50 / 2.3 GHz with 12EU Intel HD Graphics 500, 2 MB Cache; 10W TDP
  • System Memory – 2x DDR3L SO-DIMM sockets supporting up to 16 GB RAM; Dual channel; DDR3L 1866/1600/1333 MHz non-ECC memory modules supported
  • Storage
    • 2x SATA 6Gb/s connectors (SATA3 0 & 1) via SoC, 2x SATA 6Gb/s connectors (SATA3 2 & 3) via ASMedia ASM1061 chip
    • 1x 64 Mbit flash for licensed AMI UEFI BIOS with PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Video Output
    • 1x D-Sub port (VGA) supporting a maximum resolution of 1920×1200@60 Hz
    • 1x HDMI port supporting a maximum resolution of 3840×2160@30 Hz
  • Audio
    • Realtek ALC887 codec; 2/4/5.1/7.1-channel (to configure 7.1-channel audio, you have to use an HD front panel audio module)
    • 3x audio jacks (Line In, Line Out, Mic In)
  • Connectivity – 2x Realtek GbE LAN chips (10/100/1000 Mbit)
  • Expansion Slots – 1x PCI slot
  • USB – 4x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) via SoC, 6x USB 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) via SoC + GENESYS LOGIC USB 2.0 Hub
  • Other internal I/O Connectors
    • 1x 24-pin ATX main power connector; 1x 4-pin ATX 12V power connector
    • 1x CPU fan header; 1x system fan header
    • 1x front panel header; 1x front panel audio header
    • 1x USB 3.1 Gen 1 header; 2  USB 2.0/1.1 headers
    • 1x parallel port header
    • 1x Clear CMOS jumper
    • 1x chassis intrusion header
  • Misc – 1x PS/2 keyboard port, 1x PS/2 mouse port, 2x serial ports (DB9), H/W Monitoring (voltage, temperature, fan speed detection & control)
  • Power Supply – ATX
  • Dimensions – 17 x 17 cm (mini-ITX form factor)

If two Gigabit Ethernet ports are not enough for your application,  you could also add a PCI network card. The company only claims Windows 10 64-bit support for the motherboard, but Linux distributions are likely to work too, provided it is not somehow locked by the BIOS/UEFI.

It does not appear to be for sale just yet, and we do not know the price either, but it could be in the $100 range for the barebone motherboard. More details may be available on the product page.

Thanks to Paul for the tip.
