GIGABYTE EL-30 Apollo Lake Fanless IoT Gateway Powered by Intel Pentium N4200 to Launch in Q2 2017

Orange Pi Development Boards

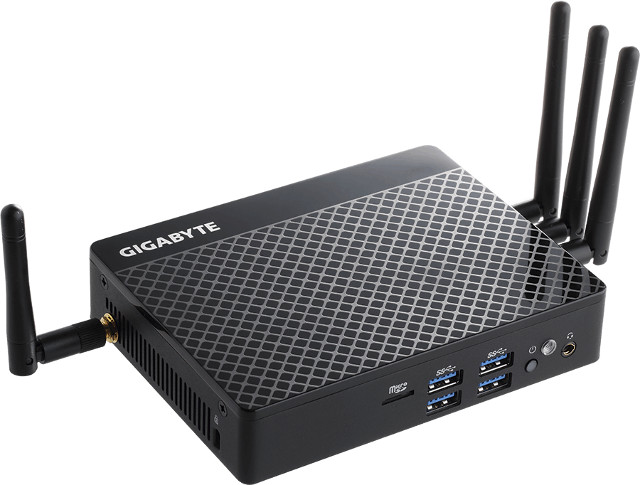

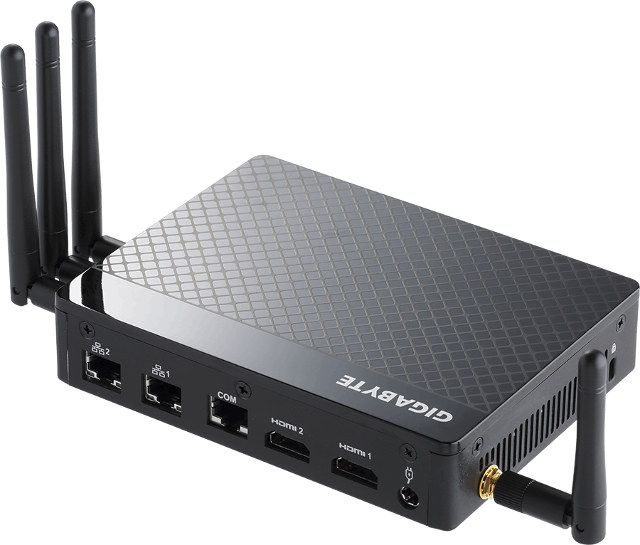

GIGABYTE will soon introduce their EL-30 “Intel Apollo Lake IoT Gateway Solution” powered by a quad core Intel Pentium N4200 with 32GB storage, dual Gigabit Ethernet ports, dual HDMI ports, WiFi and Bluetooth connectivity, as well as a mini PCIe slot for 3G module or mSATA storage, and an optional Zigbee module.

GIGABYTE EL-30 specifications:

  • SoC – Intel Pentium processor N4200 with 4 cores, 4 threads @ 1.10 – 2.50 GHz with 2MB L2 cache, 18EU Intel HD Graphics 505 (6W TDP)
  • System Memory – 2x SO-DIMM slots for DDR3L 1600/1866MHz memory up to 8GB
  • Storage -32GB eMMC flash + 1x SD card slot + optional mSATA module
  • Video Output – 2x HDMI 1.4b ports up to 3840×[email protected] Hz
  • Audio – Via HDMI ports, 3.5mm audio jack (headphone + mic), Realtek ALC255 audio codec
  • Connectivity
    • 2x GbE LAN ports (Realtek RTL8111HS)
    • Pre-installed WiFi + Bluetooth module in half-size mini PCIe slot
    • 1x Zigbee module (optional)
  • USB – 4x USB 3.0 ports + 1x internal USB 2.0 header
  • Serial – 1x COM port (RJ45), 1x micro USB 5-pin RS232 full-duplex port (TxD, RxD, CTS, RTS, GND)
  • Expansion
    • 1x Full-size Mini-PCIe slot for 3G module or mSATA storage
    • 1 x Half-size Mini-PCIe slot used by pre-installed WiFi+BT module
    • 10-pin GPIO header, SPI-SMB header, RS232 header, and “80H” LPC port on motherboard
  • Misc – Power button with LED, HDD/SSD activity LED, 1x TPM header, Kensington lock slot
  • Power Supply – 19V (65W) DC / 100~240V AC
  • Dimensions – 140.8 x 107.5 x 29.5 mm
  • Weight – 560 grams
  • Temperature Range – Operating: 0°C to 40°C; storage: -20°C to 60°C

The fanless IoT gateway will run Windows 10 64-bit, Windows 10 IoT, Ubuntu 16.04 LTS, or Android N. It will ship with a quick start guide, a 19V power adapter and a US power cord.

Pricing is unknown, but we do know production is scheduled for Q2 2017. More details – including the Quick Start Guide – can be found on the product page.

Thanks to Paul for the tip.
