Samsung ARTIK 053 WiFi IoT Module Runs Tizen RT on an ARM Cortex R4 MCU

Samsung has just introduced the latest member of its Artik family at IoT World 2017. ARTIK 053 is a WiFi module powered by an ARM Cortex R4 wireless micro-controller @ 320 MHz with hardware based security, GPIO, SPI, and I2C ports, and running Tizen RT real-time operating system.

Artik 053 module specifications:

  • MCU – 32-bit ARM Cortex R4 @ 320MHz with 1280 KB RAM for general use, 128 KB RAM for global IPC data (likely Samsung Exynos i T200, or a variant without an ARM Cortex M0+ core)
  • Storage – 8 MB flash
  • Connectivity – 802.11 b/g/n WiFi @ 2.4 GHz
  • Expansion – 29 dedicated GPIO ports, 2x SPI, 4x UART (2-pin), 4x ADC, 1x JTAG, 2x I2C
  • Security – AES/DES/TDES, SHA-1/SHA-2, PKA (Public Key Accelerator), PRNG/DTRNG (Random Number Generators), Secure key storage, Physical Unclonable Function (PUF)
  • Power Supply – 5 to 12VDC input voltage
  • Dimensions – 40 x 15 x 3 mm
  • Certifications – FCC (U.S), IC (Canada), CE (EU), KC (Korea), SRRC (China)

The module runs Tizen RT operating system with WiFi and network middleware, support for LWM2M (Lightweight Machine to Machine) for device management, IoTivity, and JerryScript/IoT.js.

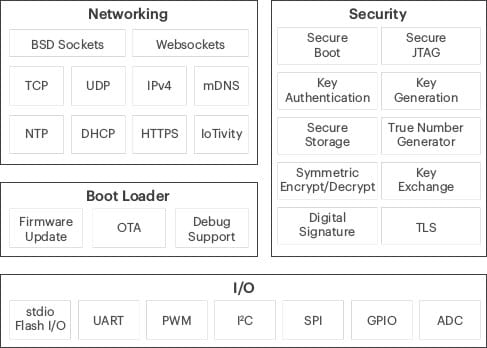

Tizen RT Block Diagram

You can develop on ARTIK 053 using ARTIK IDE, as well as open source tools like Eclipse Classic Desktop (CDT), gcc, and OpenOCD. A “Developer Reference Mobile App” working with Samsung ARTIK Cloud is also provided, and Samsung collaborated with VMWare to support Little IoT Agent (Liota) open source software development kit (SDK) developed by VMware on ARTIK 053.

ARTIK 053 starter kit – pictured below – will help you evaluation the module, and get started as soon as possible.

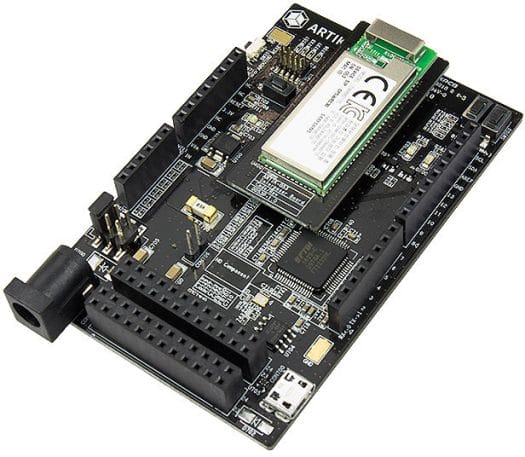

Artik 053 Module on Development Board

The ARTIK starter board includes Arduino-form factor interface headers, expanded GPIO headers with exposed SPI and UARTs, on-board reset and Arduino reset buttons, 2x test buttons and 2x LEDs, a micro USB connector for power and programming, a JTAG header (1.27mm pitch), and a power barrel.

ARTIK 053 sells for as low as $6.65 for 300 unit orders on Digikey, while the starter kit goes for $35 on either Mouser or Digikey. You’ll more more details, including software and hardware documentation, on Artik.io website.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

2 Replies to “Samsung ARTIK 053 WiFi IoT Module Runs Tizen RT on an ARM Cortex R4 MCU”

  1. Seems like an intresting board for 3D printing, realtime, wifi, and might just have enough gpio’s
