Allwinner A63 2K “Flat Panel” SoC Unveiled at APC 2017 Conference

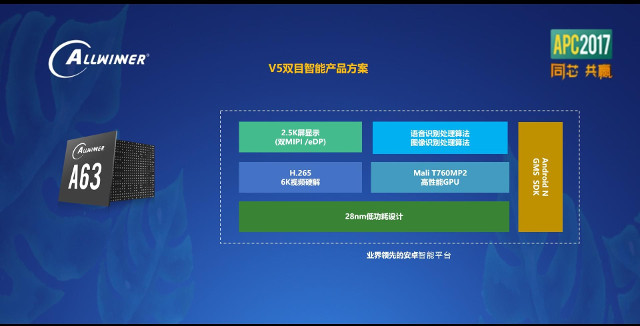

Allwinner unveiled their latest A63 quad core Cortex A53 SoC for tablet at the APC 2017 conference in Zhuhai, Shenzhen, last week. The processor will be an upgrade to Allwinner A64 with a Mali-T760MP2 GPU, support for 2560 x 1600 displays, and a 6K H.265/VP9 video processing unit.

Some of Allwinner A63 key features:

  • CPU- Quad core Cortex A53 processor with 32KB L1 I-cache, 32KB L1 D-cache, shared 512KB L2 cache
  • GPU – ARM Mali-T760MP2 “high performance” GPU with OpenGL ES 3.2 support
  • VPU – 4K/6K VP9, H.265, and H.264 4K @ 30fps video decoder; Smartcolor 3.0 “video quality enhancement engine”
  • Memory I/F – DDR3, DDR3L, LPDDR3, LPDDR2
  • Storage I/F – eMMC 5.0; TLC/MLC/SLC/EF NAND flash with 80-bit ECC
  • Display I/F – Dual MIPI and eDP interfaces up to 2560 x 1600 resolution
  • Audio – Support for multi-microphone array, multi-channel analog voice signal input and stereo ADC, DAC
  • Package – 15 x 15 mm
  • Manufacturing Process – 28nm

Allwinner will provide an Android N GMS SDK for the processor, which beside tablets, is also expected to be used in point of sales, and digital signage applications. The processor also comes with audio capabilities to support voice commands / APIs like Amazon Alexa. The company has not setup a product page on their website yet, and I got most of the info from an article on Sohu.

Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.

Support CNX Software - Donate via PayPal, become a Patron on Patreon, or buy review samples
Subscribe
Notify of
guest
7 Comments
oldest
newest most voted
jernej
jernej
3 years ago

I wonder if VP9 will be really supported in HW this time. They said that H5 supports VP9 too, but obviously it was meant that CPU is fast enough to SW decode it.

TLS
TLS
3 years ago
jacky
jacky
3 years ago

No GMAC, no HDMI, no DDR4, just better GPU and VPU, it seen that this is not a upgrade of A64.
H6 is more interesting.

tkaiser
tkaiser
3 years ago

@jacky From Allwinner’s perspective this is an A64 upgrade (hence the lower number 😉 ) since GMAC is of no interest (was already pinmuxed with LCD on A64 that’s why we see no A64 laptops/tablets with Ethernet), HDMI got replaced with eDP which is the only reasonable choice for thin tablets or 2-in-1 thingies anyway and DDR4 is uninteresting since they target the lowest end of the tablet/2-in-1 market. For me personally H6 is not just more interesting but the only interesting new SoC from Allwinner at all. But let’s look at software situation first and if Allwinner again partners… Read more »

Jon Smirl
3 years ago

Is it for sure there is no Ethernet on A63? I am fine with it being multiplexed with the LCD pins. We have switched over to MIPI based panels so we don’t need the parallel interface. 100Mb is fine for our needs. I have not seen a complete block diagram for A63 yet.

Might have to switch back to parallel LCD to use with H6.

tkaiser
tkaiser
3 years ago

@Jon Smirl
I only remember that there’s no [R]GMII (so maybe EMAC + internal PHY — don’t know). But at least H6 is said to come with PMIC support so there’s not much need to think about A63 anyway 😉

Jon Smirl
3 years ago

Has we seen any prices for A63/H6? If they aren’t close to $5 they aren’t interesting. $10 is too much.
