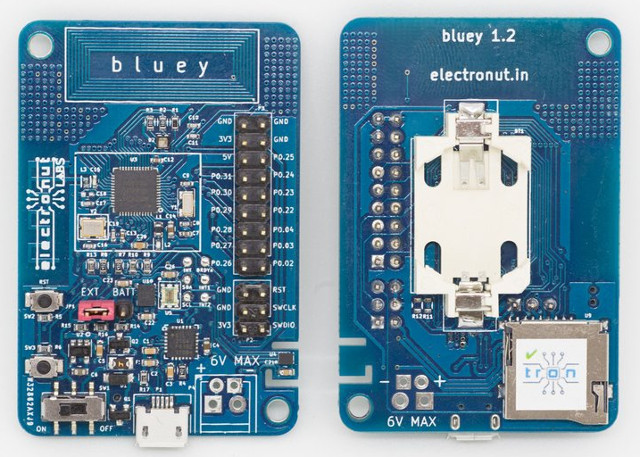

Electronut Labs, a startup based in Bangalore, India, has designed Bluey board powered by Nordic Semi nRF52832 Bluetooth LE SoC, and equipped with 3 sensor chips reporting temperature, humidity, light intensity, and acceleration data.
- SoC – Nordic Semi nRF52832 ANT + BLE ARM Cortex-M4 @ 64 MHz processor with 512kB flash, 64kB RAM
- Storage – Micro SD slot
- Connectivity – Bluetooth 4.2/5 LE and other proprietary 2.4 GHz wireless standards via PCB Antenna, NFC via PCB antenna
- TI HDC1010 Temperature/Humidity sensor
- APDS-9300-020 ambient light sensor
- ST Micro LSM6DS3 accelerometer
- Expansion Header – 18-pin header with GPIO, 5V, 3.3V, and GND
- Debugging – CP2104 USB interface; 6-pin SWD header
- Misc – CREE RGB LED; 2 push buttons; coin cell holder; on/off witch; external / battery power jumper
- Power Supply – 5V via micro USB port, up to 6V battery voltage via 4-pin header

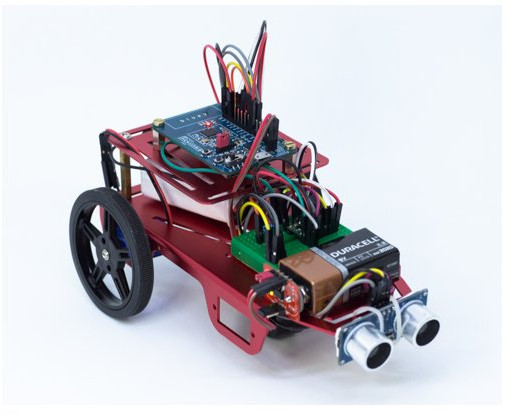

The board is partially open source hardware with KiCad & PDF schematics (v1.1 PCB) released in Github, but not the Gerber files nor the BoM released on Github, where you’ll find some documentation, and various samples relying on Nordic nRF5 SDK to play with Bluetooth LE and sensors, as well as sample code for a 2 wheeldrive ultrasonic robot.
