CCC Air Stick 4K TV Stick Runs Android TV, Supports HDR10, aptX HD Bluetooth Audio (Japan)

Orange Pi Development Boards

It’s been a while since I have seen an Amlogic S912 TV stick, and so far none of them would run Android TV operating system. But CCC Air Stick 4K does, meaning it supports Google Cast like a ChromeCast, as well as Voice Commands through a remote control.

The company also claims support for aptX and aptX HD Bluetooth audio, as well as online services such as Hulu, Netflix, Spotify, and some Japanese specific services, since the TV stick only targets the Japanese market.

Air Stick 4K specifications:

  • SoC – Amlogic S912J 64-bit octa core Arm Cortex A53 @ up to 1.5GHz with Arm Mali GPU
  • System Memory – 2 GB
  • Storage – 16 GB flash
  • Video Output – HDMI 2.0a up to 4K @ 60 Hz with HDR10, CEC support
  • Audio – HDMI audio output, aptX / aptX audio over Bluetooth
  • Connectivity
    • Dual band (2.4 GHz/5 GHz) 802.11b/g/n/ac WiFi
    • Bluetooth 4.1
    • Ethernet via power adapter
  • USB – 1x USB 2.0 port via power adapter
  • Power Supply – 5V via micro USB port
  • Dimensions – 70.0 mm × 30.0 mm × 11.0 mm
  • Weight – 30g

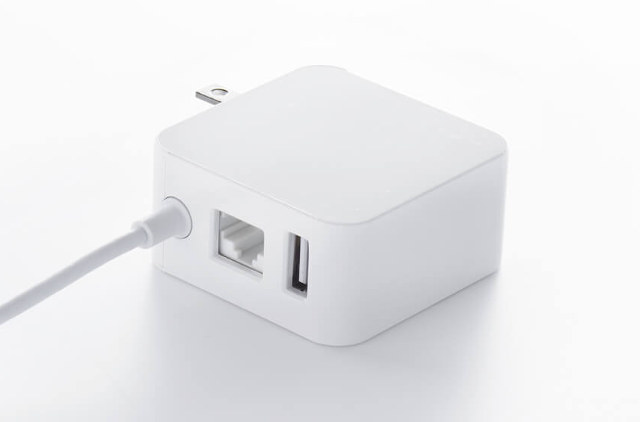

The dongle runs Android TV 7.1.2 Nougat, and should be upgrade to Android 8.x Oreo in the future. It ships with a remote control with a microphone for voice commands, a short HDMI male to female adapter, and an interesting power adapter with Ethernet (RJ45), and a USB type A port. The Ethernet port allows the TV stick to be used as a WiFi hotspot for up to 8 devices.

I had never heard about S912J, and web searches all point to the stick discussed in this post, so either it somehow got inserted by mistake, or there’s somehow a special version of Amlogic S912 processor for Japan, or TV sticks.

CCC Air Stick 4K is sold for 9,800 Yen(or 10,584 Yen with VAT), or the equivalent of $88.6 US on shops such as Rakuten or Yahoo Shopping Japan. More details can be found in the product page (in Japanese)

Via Android Police and thanks to Dave for the tip.

  1. lvrp16
    January 19th, 2018 at 17:40 | #1

    That almost have to be a multi-chip package unless the wireless is in the power adapter.

  2. theguyuk
    January 19th, 2018 at 19:50 | #2

    Could the J just be away for the maker to recognise the chip is solely for the Japan market, ie is it pre firmware flashed?

  3. karlkloss
    January 19th, 2018 at 20:02 | #3

    Interesting that it is advertised for Netflix, because it is said that Netflix doesn’t run on S912.
    So, is it really the official Netflix app playing 4K, or just some stone old version with only 720p, as usual?

  4. TC
    January 19th, 2018 at 21:40 | #4

    If µUSB, the Ethernet-plug could be interesting for other devices, too.

  5. tkaiser
    January 19th, 2018 at 22:44 | #5

    TC :
    If µUSB, the Ethernet-plug could be interesting for other devices, too.

    There’s obvisouly an USB hub inside providing one type A receptacle and using an el cheapo USB Ethernet chip (eg. RTL8152 or AX88772) to provide Fast Ethernet. Nothing entirely new, search for eg. ‘UGREEN Ethernet Adapter for Chromecast and Micro USB TV Sticks, Micro USB to RJ45 Ethernet Adapter with USB Power Supply ( 3.3ft )’ (quite expensive though)

  6. Tim B.
    January 20th, 2018 at 00:27 | #6

    @lvrp16
    I think the idea is that if Ethernet is used, the wireless built in to the stick can be in AP mode….

  7. paul zamon taraneh
    January 22nd, 2018 at 04:17 | #7

    日本国内にお住いの方のみへの販売。
    Restricted to Japan residents only.

    Thats unfortunate.

  8. OldPoem
    February 2nd, 2018 at 16:17 | #8

    My friend sent me one from Japan. No Netflix and Golf Plus channel yet (They stated on webpage that both will come with firmware update)

    Bit faster than MiBox (which I also had). The adapter works as ethernet port which automatically switch wifi to access point mode when cable is connected.

    Looks forward to Netflix update and I think would be good choice for Mi Box replacement.

    Also power adapter is 100-240V which works well in Thailand where I live. No need for step down transformer.

  9. OldPoem
    February 8th, 2018 at 07:07 | #9

    Update : On Tuesday latest firmware arrived via OTA. And included netflix hd , after brief test it is working flawlessly like on Nvidia Shield. The Android version is still 7.1.2 anbd security patch is October. So it can be considered as very good alternative to chromecast / firetv stick. A little upgrade over MiBox.

  10. February 8th, 2018 at 09:05 | #10

    @OldPoem
    Thanks for the useful feedback.

    Just to make sure, can the interface be switched to English (or another language) easily, or do you have to know Japanese to use the stick?

  11. OldPoem
    February 8th, 2018 at 17:17 | #11

    @cnxsoft
    Gui canbe selected between Japanese and English (No other language available). The setup can be done in english, you need no japanese language knowledge to use the stick.
