Gumstix Chatterbox is a Customizable, AVS-Ready Development Platform based on Toradex Colibri i.MX7 SoM

There are several official Amazon Voice Service (AVS) development kits, and we’ve already covered a few of them with the likes of Allwinner 3-Mic Far Field AVS Development Kit or Intel Speech Enabling Developer Kit, but you can also design your own board conformant to Amazon’s Alexa Voice Service functional design guide.

That’s exactly what Gumstix has done with Chatterbox carrier board for Toradex Colibri i.MX7 system-on-module powered by NXP i.MX7 Arm Cortex A7 processor. Designed in Geppeto, the board includes a 2.5-Watt speaker driver, an on-board microphone, and Line IN and headphone jacks, as well as WiFi, Bluetooth and Ethernet for connectivity.

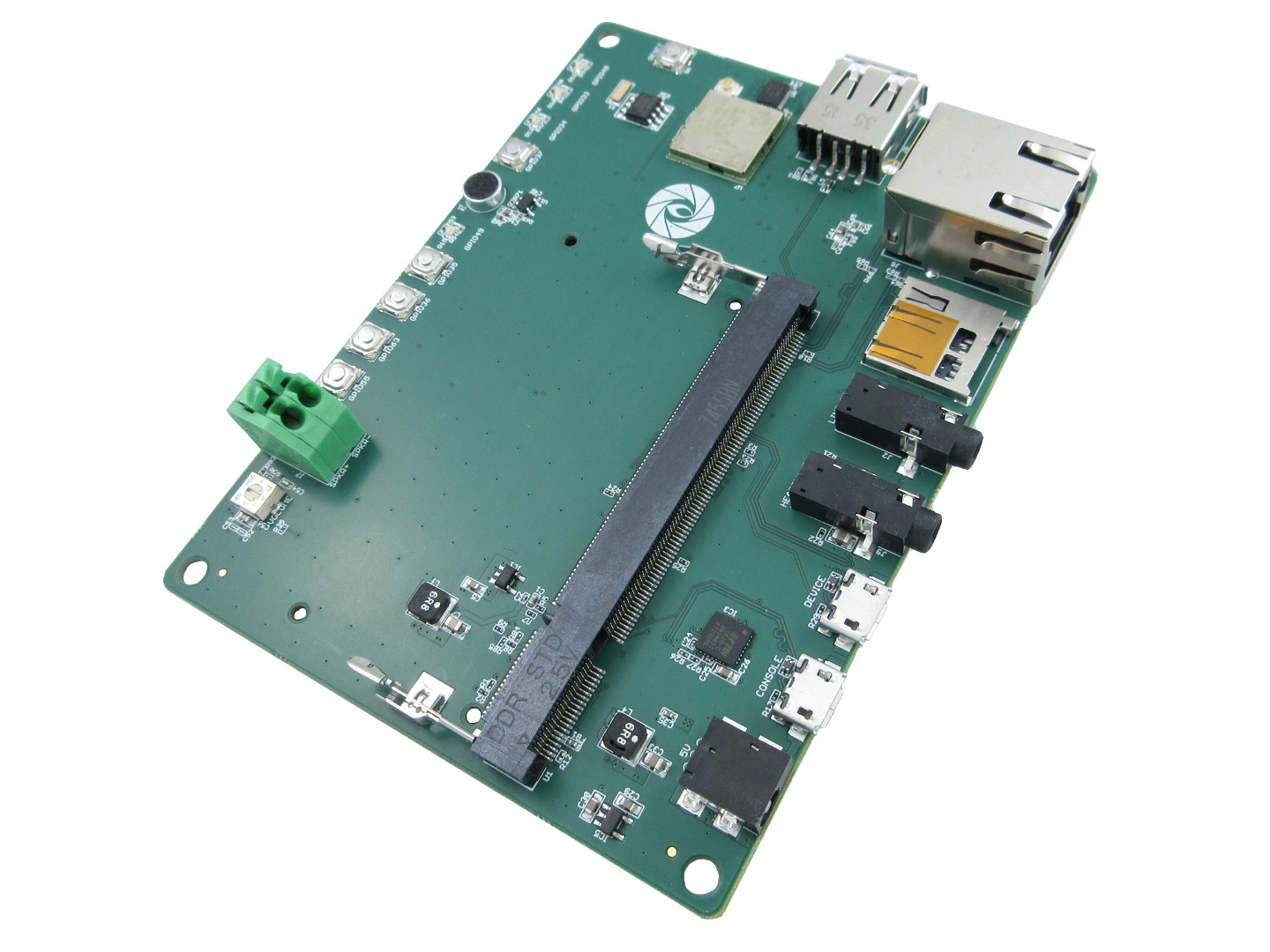

Click to Enlarge

Gumstix Chatterbox specifications:

  • Colibri iMX7 SO-DIMM socket
  • Storage – microSD card slot
  • Audio – On-board microphone; 2.5W speaker driver; Line-in & headphone jacks
  • Connectivity – Gigabit Ethernet, 802.11 b/g/n WiFi & Bluetooth 4.1 LE (TI WiLink8 WL1831) with u.FL antenna connector
  • USB – 1x micro USB port, 1x USB host port
  • Debugging – 1x micro USB port for serial console
  • Misc – RTC Battery Holder, 5 user push buttons, 4 user LEDs
  • Power Supply  – 5V DC connector

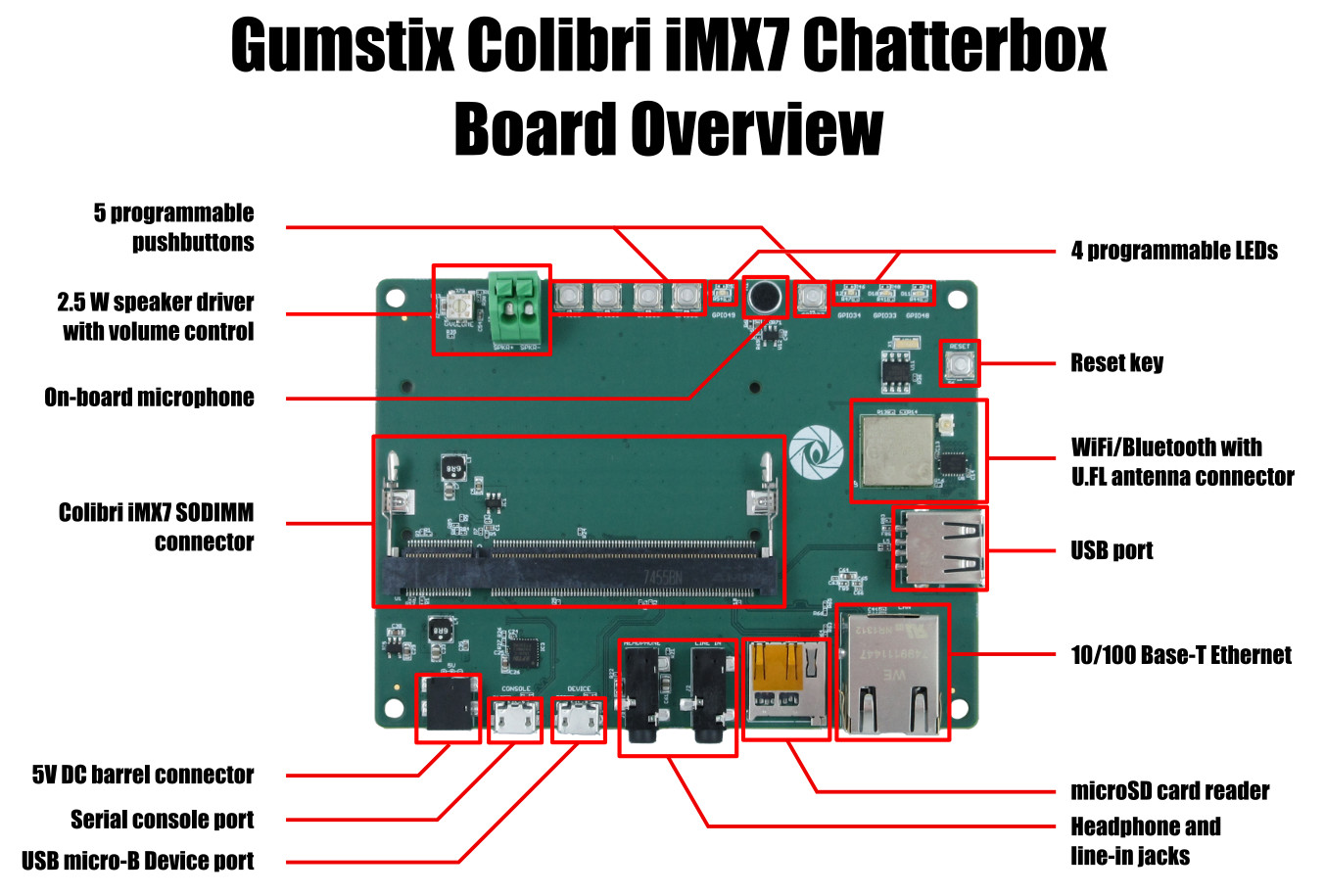

Click to Enlarge – (10/100M Ethernet should be 10/100/1000M Ethernet)

Gumstix ChatterBox can be purchased for $140  as it is (Colibri Som sold separately), but you could also customize it online with Geppetto adding or remove your own features. The board was also made to promote/demonstrate of use of the new Toradex Colibri iMX7 SO-DIMM connector inside Geppetto that enable people to easily design and order a carrier board for the Toradex module.
