Looking for Inspiration for a 3D Printed Project

Hello CNX readers. Karl here. I am looking for some inspiration on a practical project to design and print from scratch. I am hoping someone might come up with an idea. I will share on Thingiverse, and I will ship it to you if you live in the continental United States. I will only do the plastic part.

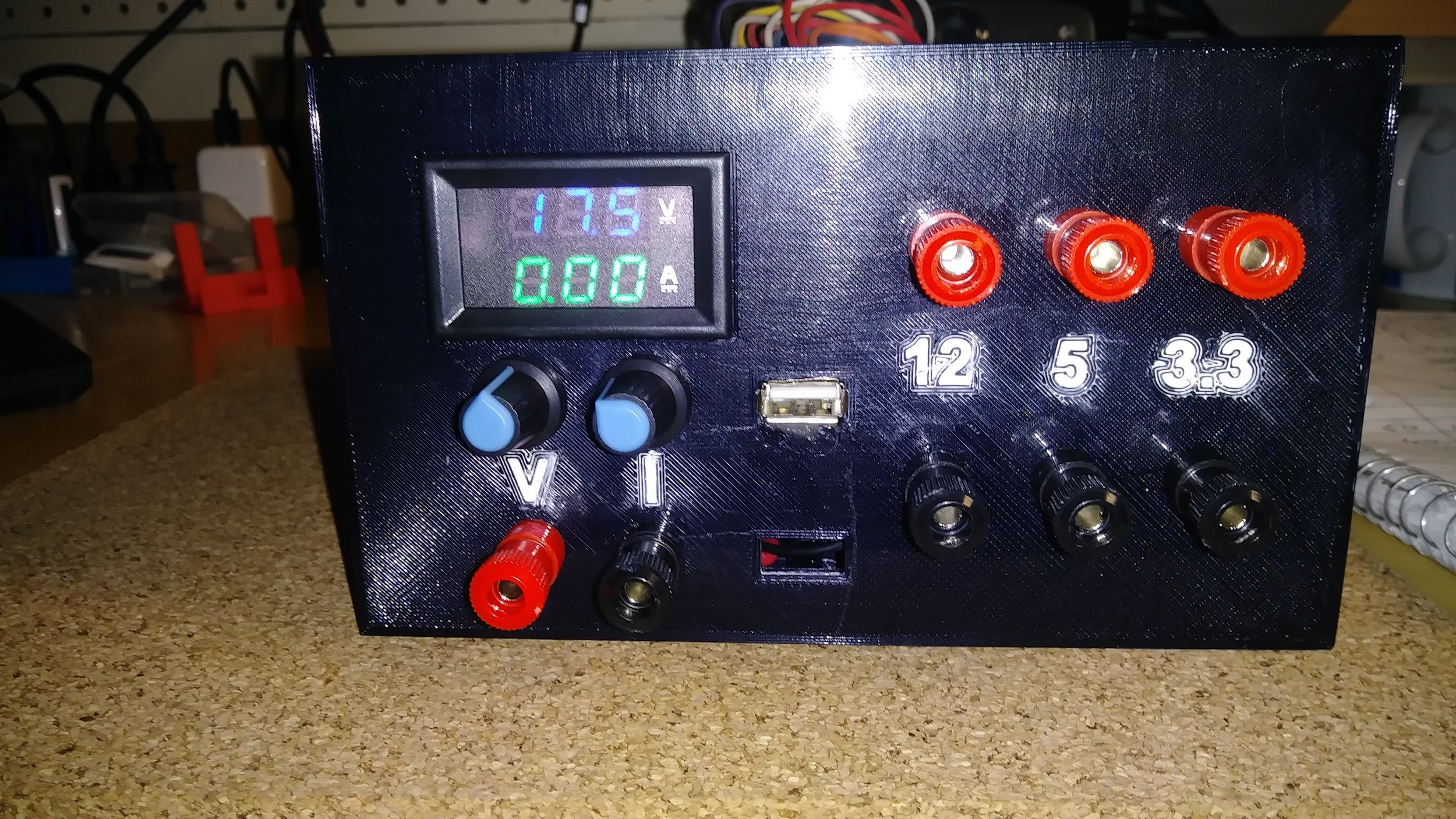

For example I just finished a bench power supply from an old PC power supply with the standard voltages and variable one from 2 to 30 volts. This has been done a million times already so just did it for personal use.

Click to Enlarge

It will be designed in Fusion 360. I can screen capture the build process, and speed up and put on YouTube if interested. Leave feedback in the comments below. Thank you for your help.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 Comments
oldest
newest
Harley
Harley
3 years ago

Micro or mini-arcade maybe, perhaps based on Raspberry Pi Zero W and a small OLED display. Preferably using a relativly cheap board and display plus s microswitches. In such a project I think that the tricky part would be to design the actual mechanical joystick and buttons as I don’t believe that you can buy a very small ardace joystick or buttons. Perhaps use the needed springs from ball-point pens. Not even sure how small microswitches there are available at a low cost but they need to be fast and durable enough to last a while so that you don’t… Read more »

Jean-Marc Delaplace
Jean-Marc Delaplace
3 years ago

Another idea would be an electric actuator to turn the key of a regular door lock. I have designed one for 3D printing using Sketchup, but did not go any further mainly because of the cost of having the parts printed.

Karl Johnson
Karl Johnson
3 years ago

I like this idea. Couple hurdles to overcome is power and still maintain normal usage. It can’t stick out far either. Esp comes to mind but is power hungry maybe get a month on batteries at most. I will look into this.

Fred
Fred
3 years ago

Maybe a case for UPSide – design and implementation of an open-hardware/open-source UPS https://gitlab.com/esr/upside

Karl Johnson
Karl Johnson
3 years ago

I’m in once the hardware is settled on.
