Huawei P20 Pro Smartphone Comes with Three Rear Cameras: Main, Monochrome, and Telephoto

We’ve all seen smartphone with dual camera system for better field of depth, better clarity, and the ability to create effects (bokeh) to blur the background of an image. But three rear system? I had not seen any so far, and that’s exactly what Huawei P20 Pro offers with a  main camera (40MP), a telephoto camera (8MP), and a monochrome camera (20 MP).

Let’s go through the whole specifications first:
Display

  • SoC – HUAWEI Kirin 970 CPU octa-core processor with 4x Cortex A73 @ 2.36 GHz, four Cortex A53 @ 1.8 GHz, Arm Mali-G72MP12, Kirin NPU (Neural Processing Unit)
  • System Memory – 6 GB RAM
  • Storage – 128 GB ROM
  • Display – 6.1″ OLED display with 1080 x 2240 resolution
  • Cellular Connectivity
    • Single SIM Card (CLT-L09C model) or dual SIM Card (CLT-L29C model)
    • LTE TDD / LTE FDD / WCDMA / EDGE / GPRS
  • Wireless Connectivity – 802.11ac 2×2 MIMO, Bluetooth?, NFC
  • Location – GPS / AGPS / Glonass / BeiDou Navigation Satellite System
  • Camera
    • Rear camera

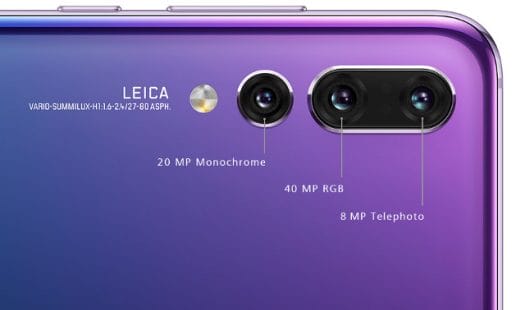

      • Triple lens system – 40 MP (RGB, f/1.8 aperture) + 20 MP (Monochrome, f/1.6 aperture) + 8 MP (Telephoto, f/2.4 aperture)
      • Supports autofocus (laser focus, deep focus, phase focus, contrast focus)
      • 5x Hybrid Zoom
    • Front-facing camera – 24 MP, f/2.0 aperture, supports fixed focal length
  • USB – USB type-C port
  • Sensors – Gravity sensor, ambient light sensor, proximity sensor, front fingerprint sensor, hall-sensor, gyroscope, compass, color temperature sensor
  • Battery – 4,000 mAh with HUAWEI SuperCharge fast charging support
  • Dimensions – 155 x73.9  x 7.8 mm
  • Weight – About 180 grams
  • IP Rating – IP67

The phone will run Android 8.1 with EMUI 8.1, and ship with USB-C earphones, a charger, a USB-C cable, a USB-C to 3.5 mm headphone jack adapter, a protective case, a Quick Start Guide, an eject tool, and a warranty card.

Let’s try to find out what this triple lens camera system is all about. That’s what the press release mentions about the triple camera:

The HUAWEI P20 Pro features a Leica triple camera with the highest total pixel count on a smartphone available in the market – the camera configuration is comprised of a 40 MP RGB sensor, a 20 MP monochrome sensor and an 8 MP sensor with telephoto lens. It also features a color temperature sensor for better color reproduction. With f/1.8, f/1.6 and f/2.4 wide aperture to capture crisp, clear details, the HUAWEI P20 Pro also includes a brand new Leica 3x telephoto (VARIO-SUMMILUX-H 1:1.6 – 2.4/27-80ASPH) lens for long-range photography of up to 5x Hybrid Zoom. The HUAWEI P20 Pro’s highly sensitive image sensor captures low light photos with up to ISO 102400.

That does not explain that much, but if we look at a dual camera phone like HUAWEI Mate 9, is comes with a 12MP main RGB camera, and 20MP monochrome camera with support for 2x hybrid zoom, so it looks like the company added the telephoto lens to increase the level of zoom up to 5x.

DxOMark tested the phone  – which obtained a 109 points score – and Popular Science tried to explain how the triple camera system works, and basically all 3 cameras work together to provide better photos,  with the main camera taking “standard” photo, the monochrone camera being used to create  effects leveraging A.I., and the telephoto enabling zooming up to 5 times.

HUAWEI P20 Pro will sell for 899 Euros starting on April 6, 2018. Visit the product page for further information.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

6
Leave a Reply

avatar
2 Comment threads
4 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
6 Comment authors
mi7chynoublucrashoverrideFransM Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Tesla
Guest
Tesla

Why not put two identical cameras on both ends of the phone and shoot “3D” stereo?

FransM
Guest
FransM

@Tesla, this could be a cost issue but is quite likely also a memory bandwidth issue.
The 20 MP camera probably only produces 1/8th of the data that the 40 MP color one produces (double amount of pictures and color sensors typically provide 4 times as much data as monochrome ones (assuming the same #bits per pixel).

The monochrome camera can still be used to determine depth information.

BTW: 40 MP is not necessarily better than 20. What happens is that the sensor cells become smaller (or the sensor bigger, but in a phone room is limited), so they catch less light per cell so less vulnerable to noise.
I expect that this camera does not do too well under low light conditions.

That is probably also why they have a separate zoom camera. Digital zoom on the 40 MP could also give a 5x zoom factor and an 8 MP image, but that would probably be too noisy.

crashoverride
Guest
crashoverride

Is there a law that requires phone makers to copy Apple?

blu
Guest
blu

Well, Huawei have clearly moved forward a notch.

nou
Guest
mi7chy
Guest
mi7chy

You mean Essential Phone since it came out before iPhone X?
