4K ATV Stick Looks like the Offspring of ChromeCast and FireTV Stick 2017 with a Big “G” Logo

A new Android TV device has shown up on the FCC website, and generated quite a lot of buzz last time online with the source of the story originating from Reddit or Ausdroid, and picked up by many blogs because the device comes with a “G” logo that looks like the one Google might use…

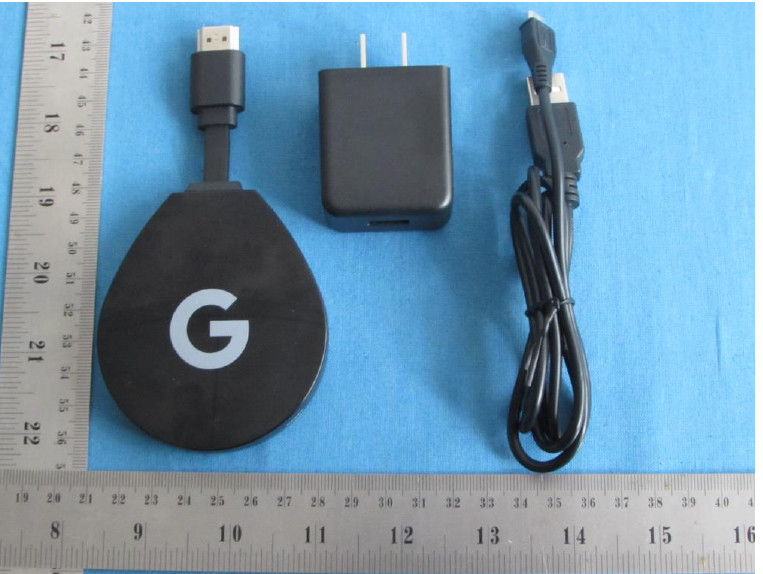

But in all likelihood it should just be another TV stick running Android TV OS, and the FCC listing has been submitted by Shenzhen SEI Robotics, an Android TV box manufacturer. The device is based on Amlogic S905X processor with 2GB RAM, and looks like a mix between the ChromeCast and Amazon FireTV 2017 with its short built-in HDMI cable and rounded shape.

Hardware specifications:

  • SoC- Amlogic S905X quad core Cortex A53 processor with Arm Mali-450MP GPU
  • System Memory – 2GB RAM
  • Storage – 8GB eMMC flash
  • Video & Audio Output – HDMI 2.0a with HDCP 2.2 support
  • Video Decoding – VP9 Profile-2 up to 4K2K @ 60 fps, H.265/HEVC MP10 up to 4K2K @ 60 fps, H.264/AVC up to 4K2K @ 30 fps, H.264/MVC up to 1080p60, MPEG-4, MPEG-2, MPEG-1, AVS, etc.. up to 1080p60
  • Connectivity – Dual band 802.11 b/g/n/ac WiFi and Bluetooth 4.2 LE
  • Power Supply – 5V/2A via micro USB port

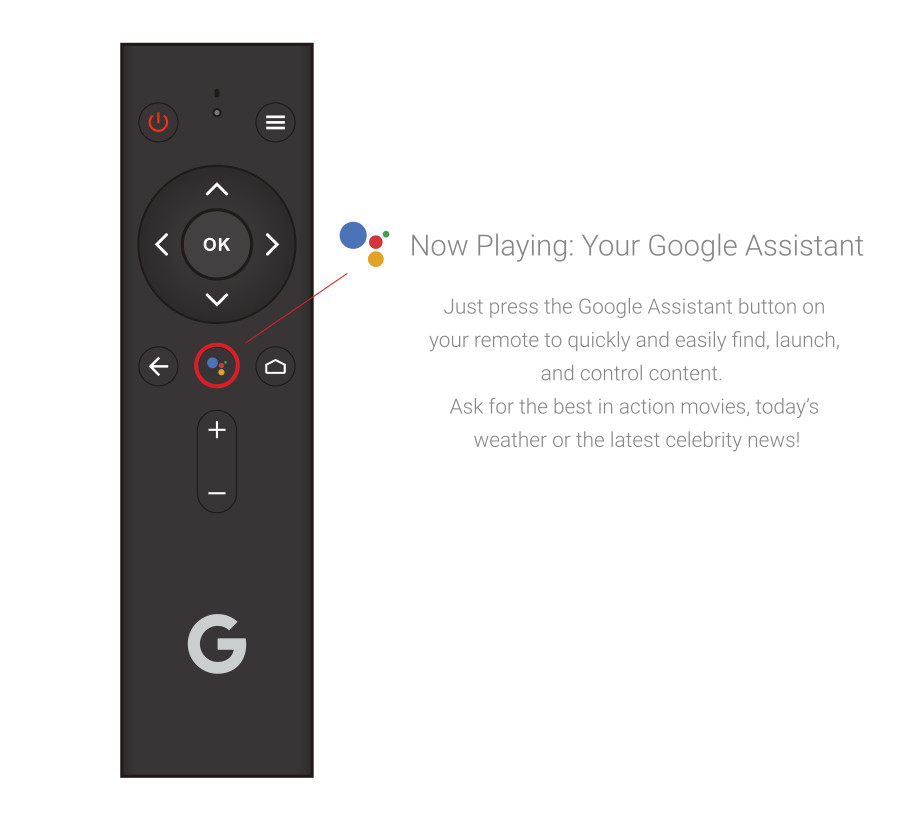

Beside the 5V/2A power supply shown above, the dongle also ships with a voice enabled Bluetooth remote control, accompanying batteries, and a user guide.

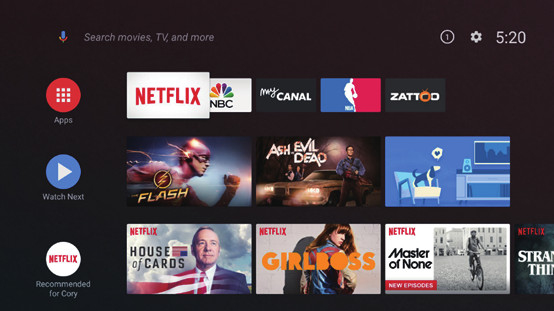

Some claim it runs the latest version of Android TV (8.x Oreo), and it’s likely it’s running Android TV instead of just Android since it works with Google Assistant, but I could not find specific information about the version. We really just have the screenshot below from the user manual.

While I really doubt it will ever become a Google product like some have speculated, we should eventually start seeing it on Alibaba, and then Aliexpress and other Chinese e-retailers.

Thanks to TLS for the tip.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

7
Leave a Reply

avatar
6 Comment threads
1 Thread replies
3 Followers

Most reacted comment
Hottest comment thread
6 Comment authors
Ray KnightbenTheguyukStane1983 Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Jeroen
Guest

Might be nice if it is cheap and can run libreelec.

Stane1983
Member

If it’s ATV licensed device, it won’t be that cheap in my opinion. They have to be profitable, cover licensing costs (ATV, Widevine, HDCP, Netflix maybe…)

Stane1983
Member

AFAIK Amlogic doesn’t support GMS anymore (officially) and they are focused on Oreo for quiet some time now. Also they do have cpl SDK releases based on Oreo 8.0 so I wouldn’t be surprised to see Oreo ATV.

Member
Christoph Marschall

Looking at the spec it’s like a almost direct refresh of Xiaomi’s Mi TV MDZ-16-AB box, the first (and only?) box from Xiaomi running Android TV.
It’s the same memory, same SoC, just a redesigned PCB to operate as a dongle and a refresh of the Remote control (same physical design, but with IR added and an additional button).

Begs the question if SEI Robotics wasn’t also the ODM of the Mi TV box (at least it would explain why Xiaomi completely abandoned any maintenance of the device), and now just refreshed the design for a direct deal with Google.

Overall I would expect a sales-price below ~60USD (considering that Xiaomi’s box was aggressively priced 60USD, but with a slightly larger BOM).

Theguyuk
Guest
Theguyuk

I still think Amlogic are really failing by not making more of their SoC fully Linux compatible as possible. The TV box market has a finite size. Their SoC can have more uses.

ben
Guest
ben

How does this compare to similar hdmi dongles? like the H96 Pro Mini ?

Ray Knight
Guest
Ray Knight

See https://arstechnica.com/gadgets/2018/04/mysterious-google-branded-4k-android-tv-dongle-shows-up-at-the-fcc/ for more on this. And note the update where the FCC listing was changed to Long Term Confidentiality, so this may in fact be a future Google branded device.
