WeTek Unveils Hyperion 4G LTE Set-Top Box & Nix OTT TV Box Running Android TV OS

When Geniatech announced Android TV certification for their ATV598Max set-top box with digital TV tuners compliant with DVB-T2, DVB-C, ATSC, or ISDB standards earlier this week, we noticed how few official Android TV STB there was on the market.

But more may be coming, as Wetek will showcase two Android TV products at CABSAT in Dubai on January 14-16 with Wetek Hyperion Amlogic S905D 4G LTE set-top box, as well as WeTek Nix OTT box powered by Amlogic S905X processor.

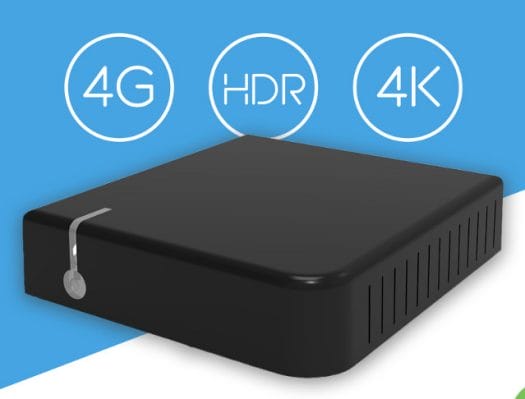

WeTek Hyperion

Specifications:

  • SoC – Amlogic S905D quad core ARM Cortex-A53 SoC up to 1.5 GHz, with penta-core ARM Mali-450 GPU
  • System Memory – 2GB DDR3 RAM
  • Storage – 16GB eMMC 5.0 flash
  • Video & Audio Output – HDMI 2.0a (CEC, HDR, HDCP 1.4/2.2), mini jack analog AV output
  • Connectivity
    • Gigabit Ethernet
    • Dual band 802.11 ac/b/g/n WiFi (optional 802.11ac MiMo)
    • Bluetooth 4.0
    • 4G LTE modem – LTE-FDD: B2/B4/B5/B12/B13/B17/B25/B26; LTE-TDD: B41; Download up to 150 (Mbps). Upload up to 50 (Mbps)
  • Power Supply –  5V/2A

Hyperion does not appear to come with tuner, so we’ll have to see since S905D processor is well-suited for tuners. I think 4G LTE is popular in the Middle East since that’s how many people get their broadband Internet, so it’s possible this model mostly targets the MENA market. The device is promoted as a “complete home hub capable of providing the best video quality, user’s favorite Android applications and routing all Internet traffic at home”.

The set-top box currently runs Android TV 7.1.2, but Oreo 8.0 will also be supported, and DRM is enabled using ARM TrustZone SecureOS with Google Widevine Level 1 and Microsoft PlayReady 2.5 & 3.0 for secured, premium content playback. It will ship with a power supply, a 1.2m HDMI cable, and an optional one meter IR extender cable.

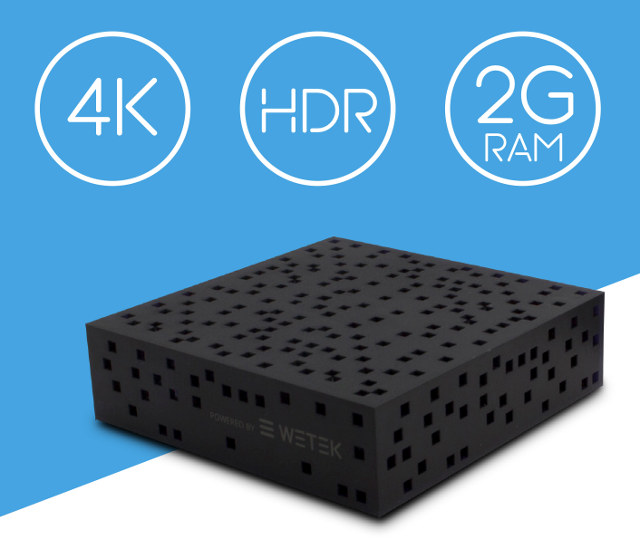

WeTek Nix

The second device appears to include lots of ventilation holes, and is a more traditional OTT TV box with the following specifications:

  • SoC – Amlogic S905X quad core ARM Cortex-A53 SoC up to 1.5 GHz, with penta-core ARM Mali-450 GPU
  • System Memory – 2GB DDR3 RAM
  • Storage – 16 GB eMMC 5.0 flash
  • Video & Audio Output – HDMI 2.0a (CEC, HDR, HDCP 1.4/2.2) up to 4K @ 60 Hz, mini jack analog AV output
  • Connectivity – 100 Mbit Ethernet, dual band 802.11 ac/b/g/n WiFi (optional 8902.11ac MiMo), Bluetooth 4.0
  • Power Supply – 5V/2A

Like Hyperion, Nix support Android TV 7.1.2 / 8.0, as well as Widewine L1 and PlayReady 2.5/3.0, but also adds Verimatrix VCAS for IPTV. The TV box with also ship with a power adapter, HDMI cable, and optional IR extender cable.

Both device seem to be targeted to OEM partners, and it’s unclear whether those models will be sold direct to end users like previous models such as Wetek Hub or WeTek Play 2. We’ll probably find out more in a few days.

Thanks to Ron for the tip

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
6 Comments
oldest
newest
Ron
Ron
6 years ago

Thanks!

Yes, Wetek started offering boxes for TV operators, and not just end-consumers.

I do hope that the Hyperion (or a similar future Android TV product by Wetek) would feature a tuner.

Stane1983 claims that future TV boxes would be with Android TV and not just with a modified Android like until now.

Jay
6 years ago

That WeTek Nix box looks like it was used for target practise; OMG!

max
max
6 years ago

S905D with Gigabiet Ethernet? How?

Zbigzbig20
Zbigzbig20
6 years ago

Any informations about something new with built-in dvb tuner from wetek?
