ESP8266 RGB LED Strip Control with ANAVI Light Controller, Arduino, MQTT, and HTML5

Orange Pi Development Boards

A few months ago I reviewed ANAVI Light pHat for Raspberry Pi which allows you to control an LED RGB strip from the popular development board. However, if all you need is to switch the RGB LED light on and off, or change the color, the hardware is clearly overpowered for the tasks.

So Leon ANAVI designed another board based on ESP8266 – ANAVI Light Controller – which does the same thing with lower cost and more power efficient hardware. Leon sent me a sample for review, so let’s see what we’ve got.

ANAVI Light Controller Start Kit Unboxing

I received a package for the Starter kit that’s offered for $39 on CrowdSupply.

Anavi-Starter-Kit-PackageWe’ve got the main board, a USB debugging, an acrylic enclosure with screws and spacers, a one meter RGB LED strip, and some stickers inside the package.

Click to Enlarge

If we have a close look at the board we have from right to left: a 12V power jack, SW1 button connected to GPIO0, an ESP8266 module (ESP-12E), D1 user LED, three I2C headers for sensor, a 3-pin serial header for programming, and the 12V + RGB terminal block, where we’ll connect our LED RGB strip.

Click to Enlarge

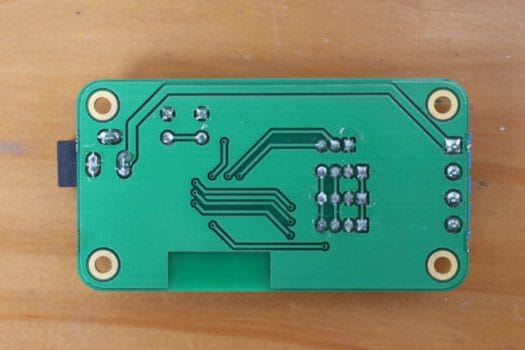

The back of the board is pretty bare.

ANAVI Light Controller Starter Kit Assembly

I won’t go into much details here, since everything is straightforward. Start by adding the space, then fit the acrylic case on top, before using a precision screw driver to connect the LED RGB light strip.

ESP8266 RGB LED Strip Controller
Click to Enlarge

We can also connect the USB to serial board using Tx, Rx and GND pins. However, I found some of the light strip wires would easily move out, so I stripped the wires a little more.

RGB-LED-Cable-StrippingI inserted the wires once again, tightened the screws, and it looks like everything holds firmly into place.

You’ll also need to find your own 12V power supply. I did not remember having any, so instead I used a 12V power bank (MAXOAK K2 laptop power bank), and you see the the strip light up with white color upon connecting the power.

Click to Enlarge

ANAVI Light Controller Arduino Demo

The board ships with a default Arduino sketch that can receive MQTT commands to control the light strip.  The sample is supposed to create a access point called “ANAVI Light Controller”, but either I could not see it, or my phone would only detect it a very short period of time, and I’d have to hurry to complete configuration. Yet after it would still not work. It turns out the board does not draw enough power from the 12V output, so the power bank thinks the “computer/laptop” connected to it is turned off, and automatically turns itself off.

But then I remember I purchase a 5V/8A – 12V5A switch mode power supply (SMPS) a few years ago, and once I switched to it instead of the power bank, everything went smoothly.

ANAVI Light Controller Web Interface
Click to Enlarge

First connect ANAVI Light Controller SSID, and you should soon be asked to login which will bring out the WiFi Manager web interface. If you select the Info button, you’ll see some details about your board including the chip and flash chip IDs, flash size, and MAC addresses.

ANAVI Light Demo
Click to Enlarge

But you can safely skip that part, and instead tap/click on Configure WiFi, which will scan for your access points, and allow you to optionally change the MQTT server parameters. I left that part unchanged and use server. Make sure you copy the Machine ID before clicking on save, as we’ll need it for the next step.

Now you can open a web browser, and go to where you can past your Machine ID, and modified the MQTT server settings using the Advanced options in case you changed those in the previous step. Now click on connect to get the user interface with the button to turn on and off the light, and change color to red, green or blue.

Leon shot a video to demo the whole initial setup for his demo app.

I also connected the serial console (/dev/ttyUSB0 with 115200 8N1) to show some of the output for reference. That’s the output while booting the board after having setup the connection to my WiFi router.

And the MQTT messages, once we start pressing the buttons in the demo website:

If you want to reset to access point mode, simply press SW1 button for 10 seconds until the red LED light becomes solid.

ANAVI Light Controller is Open Source – Let’s Customize it!

One advantage of the solution is that everything is open source from the hardware (KiCad) to the firmware (Arduino) and the cloud software (HTML5), so let’s try to make some simple changes starting with the Arduino sketch. I’ll assume you have already installed Arduino Core for ESP8266.

ANAVI Light Controller Arduino Sketch
Click to Enlarge

I found the Machine ID string to be a little complicated, and if we look at the code, it’s because it’s taking ESP8266 chipId (last three digit of the MAC address in decimal form) through an MD5 checksum. It’s done for better security, but considering it’s not salted, there’s only an illusion of security, as it would be easy enough to create a lookup table.

So instead, for the purpose of this demo ,I decided to simply the code, and just use the hex version of the chip ID as the machine ID. The function is then much simplified.

When I first try to build the sample, I have some errors, simply because we need to install some libraries first, by going to Sketch->Include Library->Manage Libraries, and search for the ones we need.

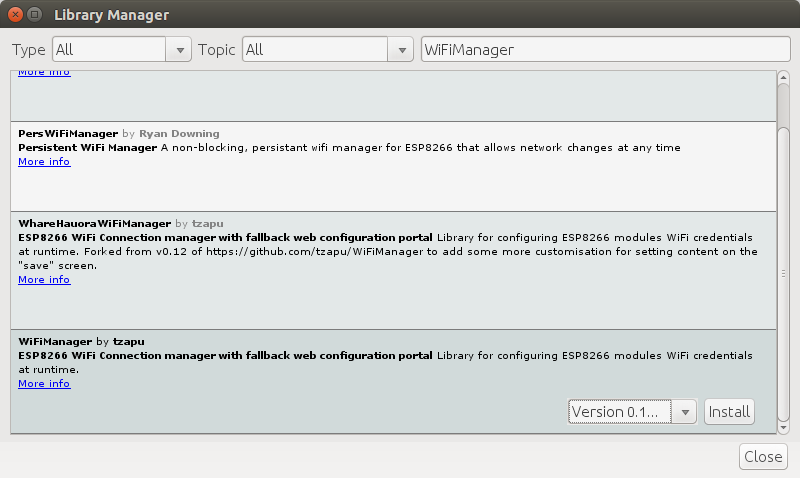

WiFiManager by tzapu

I had to install the 5 libraries below:

  • WiFiManager by tzapu – ESP8266 WiFi connection manager with fallback web configuration portal
  • ArduinoJson – A JSON library for Arduino (Important: Install version 5.13.1, not the latest beta version selected by default).
  • PubSubClient – Arduino Client for MQTT
  • Adafruit HTU21DF Library – Arduino library for the HTU21D-F sensors in the Adafruit shop
  • Adafruit APDS9960 Library – Arduino drivers for APDS9960 gesture sensor

Now we can click on the Verify button to make sure it compiles, and then Upload it using /dev/ttyUSB0 with 115200 baurate, and select NodeMCU (ESP-12E). However, I kept getting the following error message

That means a connection issue with ESP8266 board. I tried to play with SW1 switch, but nothing did the trick, Finally I was made aware of the exact procedure to follow:

  1. Select Tools > Generic ESP8266 Module with Flash mode: DIO, Flash frequency: 40MHz, CPU frequency: 80MHz, Flash size: 512K (64K SPIFFS), Debug port: Disabled, Debug level: None, Reset method: ck, Upload speed: 115200, Port: /dev/ttyUSB0
  2. Click on Upload or press Ctrl+U
  3. Press and hold SW1 button, and connect the 12V power supply, and only release SW1 once the upload has started.

I could finally upload my modify Sketch to the board, and was able to control the LED strip using the new Machine ID (i.e. chip ID) for my board: 5e4ef4.


All good, but let’s not stop there, as Leon also released the source code for the web interface written in HML5 and leveraging Bootstrap 4.1.1, jQuery 3.3.1, Popper.js 1.14.3, and Paho (paho.mqtt.javascript) v1.0.3 libraries.

I first retrieve the code from github:

and setup a new subdmain to control the lights:

I decided to add a new pink button. So I just looked for the code for the red button, and modified three files:

  • index.html:

  • css/styles.css:

  • js/demo.js

Now I can go to my own website to connect to 5e4ef4 board, and click on that brand new Pink button…

Cloud-Based-Software-Control-Light… in order to change the lights color to pink. Success! I also gained a color picker in the process, which was added by Leon, but the code was not updated on his live demo website.

ANAVI-Light-Demo-Color-PickerThe only downside is that any of you guys can now easily control my RGB LED strip since you can just access my test domain, or anavi demo web page, input my chip ID, and change the color or turn it off at will. So this works as a demo, but some better access control is needed, unless you plan to run this in your own LAN instead.

Finally, I’ve shot a short demo to show the board in action with my custom Arduino firmware and cloud software.

If you already own an RGB LED strip, you can also get ANAVI Light Controller board only for $25 plus shipping, instead of the complete starter kit.
