Semtech SX1261/SX1262 LoRa Development Kit Now Available for $305

Semtech announced SX1261, SX1262 and SX1268 LoRa chips in January as updates to their current LoRa solutions with a lower footprint, better efficiency, and even longer range.

Mass production and development kits were expected in March 2018, and today I found out Semtech SX1261/SX1262 development kit is sold on Mouser for $305.

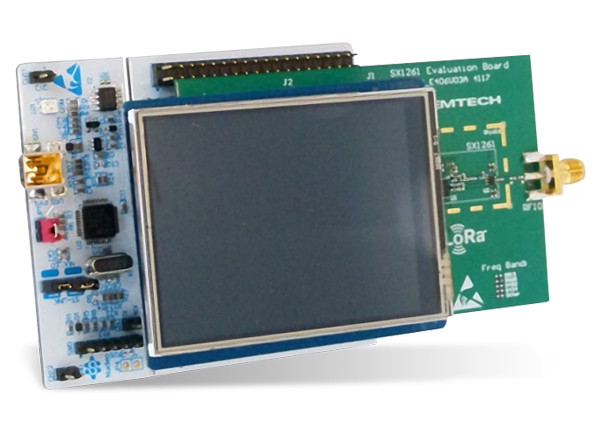

SX1261 Evaluation BoardThe SX126xDVK1CAS kit comes with the following items:

  • 2x SX126xMB1xAS RF modules including an  ST Nucleo Mbed board and a touchscreen
  • 2x Mini-USB / USB connection cables
  • 2x 868/915MHz antennas
  • 2x Mini-USB cables
  • 2x touchscreen styluses
  • Read-Me Note

The SX1261/SX1262 LoRa Transceivers offer continuous frequency coverage from 150MHz to 960MHz.

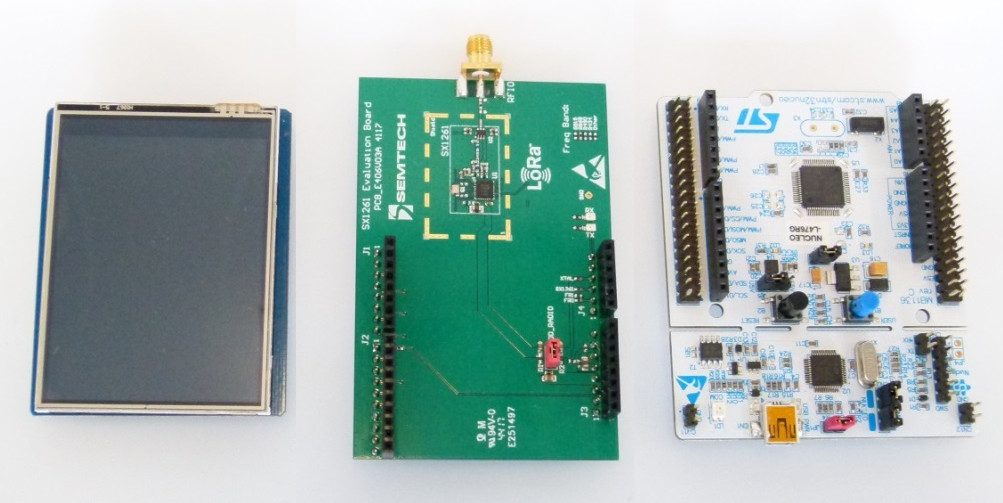

SX1261 STM32 mBed Board
Touchscreen, RF module, and Mbed board – Click to Enlarge

You’ll find information to get started in the user guide. Basically, the two boards will show a menu on the touchscreen with radio test modes, settings and utilities (e.g. firmware update) as well as two demos:

  • DEMO Ping Pong performs a bidirectional range test between the two radio units.
  • DEMO PER performs a unidirectional packet error rate test between user-defined Master and Slave units.

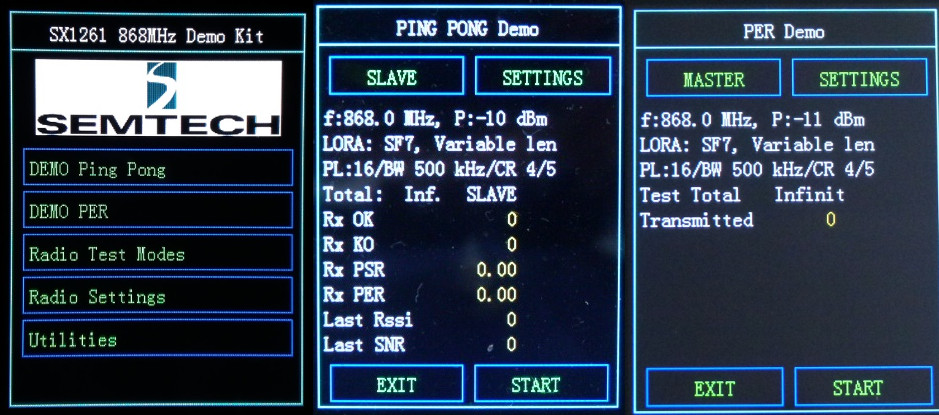

SX1261 Demo Programs
Click to Enlarge

But uf you want to customize the board firmware, you’ll have to checkout Mbed documentation instead with include Hello World sample and a library.

It appears only the SX1262 kit (SX1262DVK1CAS) is for sale right now on Mouser, but you can find the SX1261 kit (SX1261DVK1BAS) on AVNet Europe for 353 Euros.
