Wio LTE GPS Tracker Board Gets a Cat M1/NB1 Version for $59

Seeed Studio launched a family of GPS tracker boards staring with Wio GPS with 2G cellular connectivity, followed by Wio LTE board offering 4G connectivity several months later.

The company is taking pre-order for an LTE Cat M1/NB1 version with NB-IoT / eMTC connectivity, and going for $59 plus shipping. The board is expected to start shipping on July 25th.

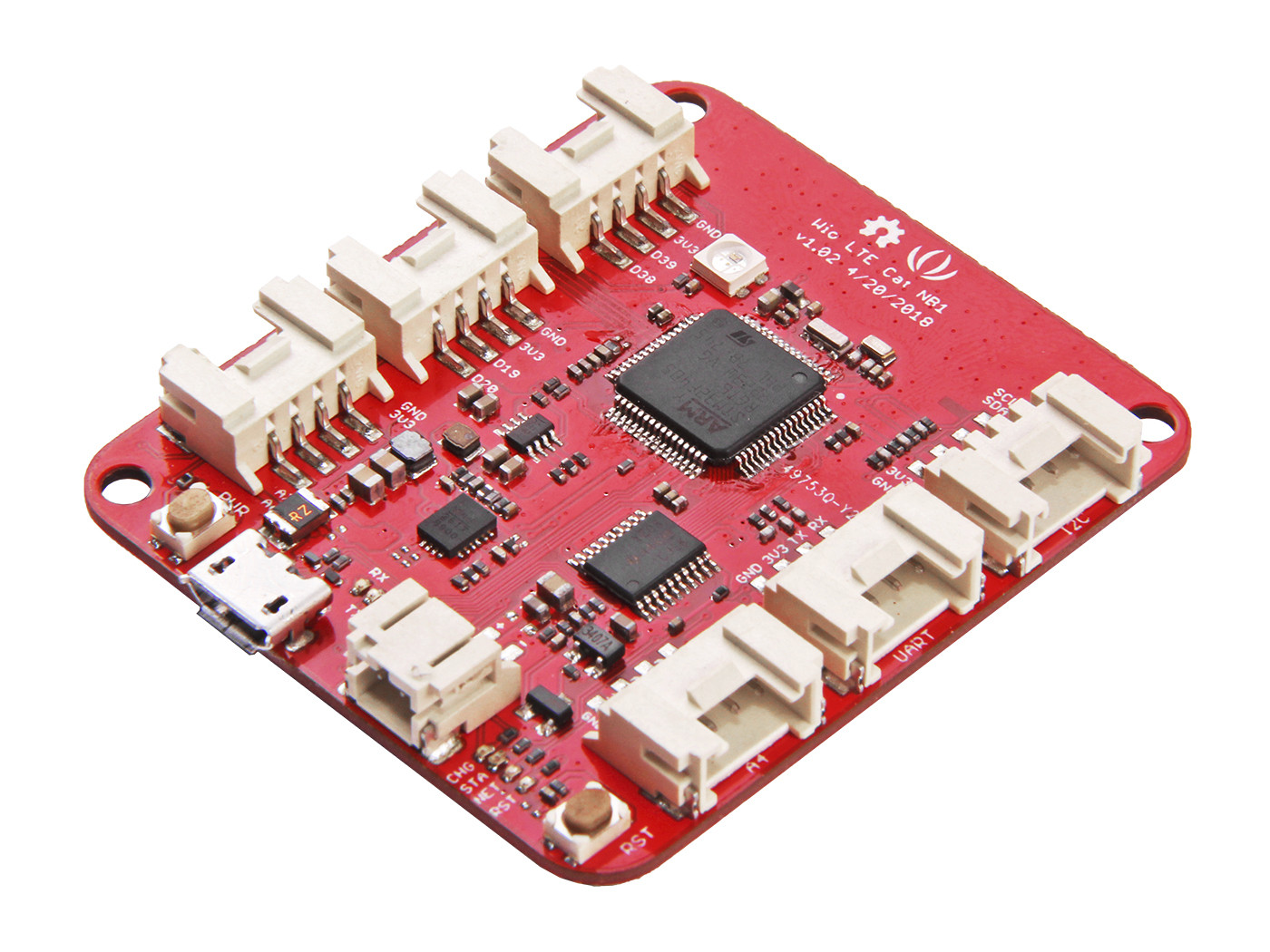

Wio LTE Cat M1/NB1 Version
Click to Enlarge

Wio LTE Cat M1/NB1 board specifications:

  • MCU – STMicro STM32F405RG Arm Cortex-M4 @ 168MHZ
    with 1M Flash, 192+4KB RAM
  • Connectivity
    • LTE
      • uBlox SARA-R410M module
      • LTE CAT M1 and NB-IoT
      • Cat M1 Half-duplex (375 kb/s DL and
        UL)
      • Cat NB1 Half-duplex (27.2 kb/s DL, 62.5 UL)
      • Nano SIM and micro SD card 2-in-1 socket
    • GNSS
      • uBlox MAX-M8Q module
      • PS, BeiDou, GLONASS, and Galileo
      • 2.5m CEP(GPS), 4.0m CEP(GLONASS)
  • USB – 1x micro USB port for power supply and DFU
  • Expansions – Grove headers: 2x digital, 2x analog, 1x UART, 1x I2C
  • Misc – Reset, user, and upload buttons
  • Power Supply
    • 5V via micro USB port
    • JST 1.0 connector for battery
    • Operating voltage – 3.3V
    • Low power: Sleep / Standby modes / Stop
  • Dimensions – 54.8 x 48 mm

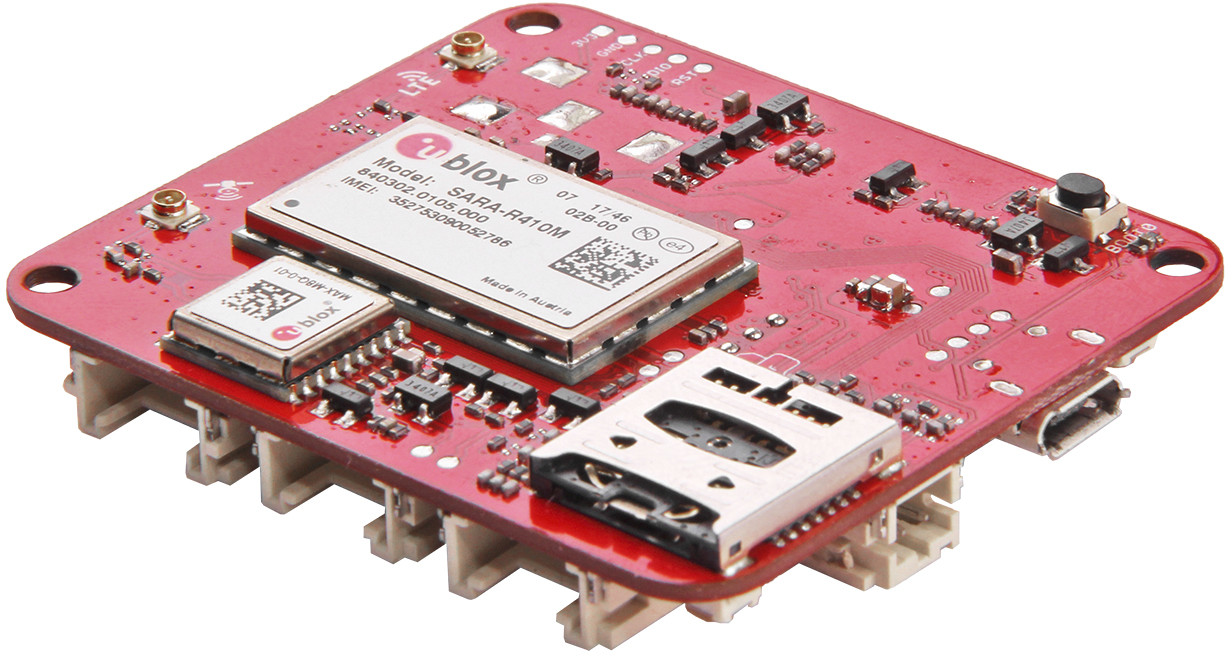

Wio LTE uBlox LTE IoT + GNSS
Click to Enlarge

The board can be programmed with Arduino, Mbed, and Espruino, but for now the dedicated Wiki mostly has information about hardware. I’d expect that as we move closer to the shipping date software documentation will be updated as they did for their other Wio GPS tracker board. The micro SD card slot is mostly used for data logging.

It’s unclear whether the cellular and GNSS antennas are included with the board or need to be purchased separately. Seeed Studio also promotes the $5 Twilio SIM card to use with the board. Twilio appears to be a global cellular IoT services similar to Hologram.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
1 Comment
oldest
newest
Tkroenert
Tkroenert
6 years ago

Since it is supposed to run on battery a good powermanagement is necessary (low quiescent current LDOs, power switch for sensors/modem/..).
I had my troubles with seeedstudios previous GPRS shields ):

Does anyone have long-term experiences with these wio boards?
