Intrinsyc Open-Q 605 SBC is Powered by Qualcomm QCS605 IoT Processor

Qualcomm QCS603 / QCS605 “Internet of Things” processors were announced last spring as the first “Qualcomm Vision Intelligence Platforms” from the company and designed for artificial intelligence and computer vision applications. Both SoCs are octa-core processor with two performance Kryo 300 Gold cores, and six efficiency Kryo 300 Silver cores, but QCS605’s big cores are clocked at a higher 2.5 GHz frequency, and the processor comes with better 802.11ac Wave2 WiFi, support for up to 32MB camera, and 4K video capture.

However so far, there was no development platform publicly available, and this has just changed with Intrinsyc announcing Open-Q 605 single board computer (SBC) and development kit featuring Qualcomm QCS605 vision intelligence platform.

Qualcomm QCS605 Development Board

Open-Q™ 605 SBC Specifications

  • SoC – Qualcomm QCS605 octa-core processor with 2x high-performance Kryo 300 Gold cores up to 2.5 GHz, 6x low-power Kryo 300 Silver cores up to 1.7 GHz, Hexagon 685 DSP with Hexagon vector extensions (HVX), Adreno 615 GPU
  • Neural Processing – Qualcomm AI Engine featuring Qualcomm Neural Processing Engine SDK with support for Tensorflow, Caffe/Caffe2, ONNX
  • Memory/Storage – Combo eMCP chip with 4GB LPDDR4X SDRAM and 32GB eMMC Flash storage, micro SD card slot
  • Connectivity
    • Wi-Fi 802.11b/g/n/ac 2×2 MIMO (WCN3990) + Bluetooth 5 with FL antenna connectors
    • Location Services – Integrated support for GPS, GLONASS, Beidou, Galileo, QZSS, SBAS, with FL antenna connector
  • LCD/Touchscreen Interface – 4-lane MIPI DSI display + I2C touch interface on flex cable connector to support optional LCD panel up to 1080p at 30fps
  • Camera Interface
    • 2x 4-lane MIPI CSI to micro camera module connectors
    • 2x Qualcomm Spectra 270 14-bit image signal processors
  • Video – Video Capture and playback up to 4K Ultra HD at 60fps, H.264 (AVC) and H.265 (HEVC)
  • Audio
    • Integrated audio codec with speaker amp provides 2x analog mic I/Ps, 1x speaker O/P, headset I/O
    • I2S/SLIMBus digital audio interface + 2x DMIC ports on expansion header for other audio I/O options
  • USB – 1x USB3.0 Type-C with DisplayPort video output and Qualcomm Quick Charge capability
  • Expansion Header
    • SPI, I2C, UART, GPIO, and sensor I/O interfaces
    • Digital and analog audio I/O
    • LED flash O/P, haptic O/P, power input and output rails
  • Power Supply – 5V to 15V DC external power or single-cell Lithium Ion battery (not included), charged by USB Type-C
  • Dimensions –  68 x 50mm with four mounting holes
  • Temperature Range – -25°C to +60°C

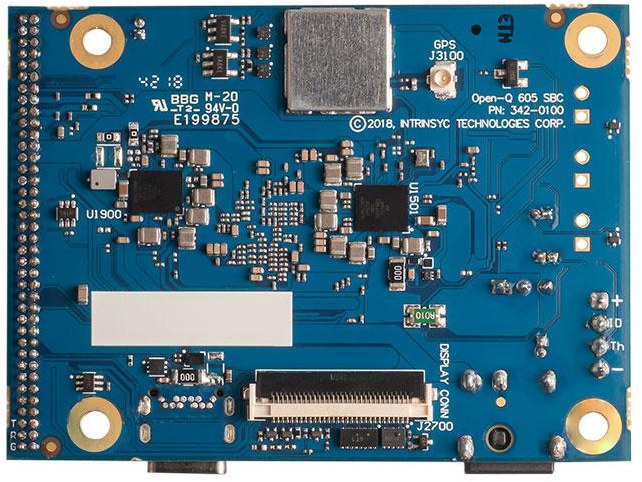

Intrinsyc Open-Q 605 SBC

The company provides Android 8.1 Oreo support for the board, and expect it to be used in a “wide range of smart, embedded, vision applications requiring advanced, low-power on-device processing”.

Intrinsyc Open-Q 605 is up for pre-order with two versions available

  • $425 for the development kit with Open-Q 605 SBC with stand-offs, 2x  WiFi/BT antennas, a 12V power supply, a Quick Start Guide, access to full documentation, SW updates, and basic Dev Kit support.
  • $359 for the board only

Delivery is scheduled for December 2018. Visit the product page for more information.

Via LinuxGizmos

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
Jon Smirl
5 years ago

And how much is a QCS605 SOC? No published price that I can see. No place offering it for sale. I would not be surprised if it is $100 chip.

BTW, the Allwinner V5 has 90% of the same capability and it’s an $8 part. Normal people can actually buy the V5 chip.

Jerry
Jerry
5 years ago

There’s also the rpi camera. For Astro photography a special non-ir filtered version is available. Good enough for most, great support and community.

TLS
TLS
5 years ago

I would also like to know where to get hold of these. It seems you can only get them for Qualcomm distributors. $100 is too steep for this, but it might be close to $50.

JPA
JPA
5 years ago

Hi, Did you manage to get a quote for the Qualcomm or V5 chip?

JPA
JPA
5 years ago

Did anyone manage to get a quote for the V5 chip? I’ve contacted AllWinners but to no avail…

JPA
JPA
5 years ago

Did you manage to get a quote + MOQ for the V5 chip?
