Raytac MDBT50Q-RX Bluetooth 5 LE USB Adapter Features nRF52840 WiSoC

Bluetooth 5 has been around for a while, but apart from MakerSpot CC2640 Bluetooth 5 USB dongle and Nordic Semi nRF52840 USB Dongle both for developers (and without case), it’s been hard to find Bluetooth 5 USB adapters.

So far the only proper BT 5.0 USB adapter for consumers that’s easily purchasable I know of has been Fanstel USB840F available for about $18 plus shipping. Soon enough there should at least another alternative with Raytac MDBT50Q-RX Bluetooth 5 USB adapter- also based on Nordic Semi nRF52840 WiSoC – that the company very recently announced.

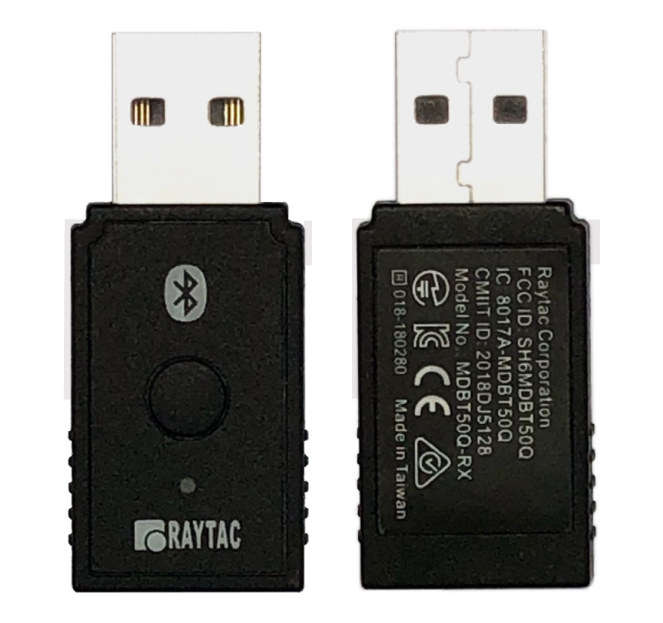

Raytac Bluetooth 5 USB Adapter

Raytac MDBT50Q-RX BT 5 dongle main features and specifications:

  • Bluetooth 5 Module – Raytac MDBT50Q-P1M
    • Nordic nRF52840 SoC Arm Cortex-M4F MCU with 1MB Flash memory, 256kB RAM
    • Connectivity – Bluetooth 5 Certified, supports BT5 Long Range Feature
    • Bluetooth Low Energy, ANT+, Zigbee, Thread (802.15.4)
    • Certifications – FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
  • Bluetooth 5 details
    • Bitrate / Range
      • 1Mbps up to 250 meters in open space.
      • 2Mbps up to 120 meters in open space
    • -95dBm sensitivity in 1Mbps Bluetooth low energy (BLE) mode
    • -103dBm sensitivity in 125Kbps BLE mode (long range)
    • +8 dBm TX power (down to -20 dBm in 4 dB steps)
    • On-air compatible with nRF52, nRF51, nRF24L and nRF24AP Series
    • Programmable output power from +8dBm to -20dBm
  • USB – 1x USB 2.0 port
  • Misc – 1x switch and up to 2 LEDs, programmable peripheral interconnect (PPI)
  • Low Power
    • 0.4uA at 3V in System OFF mode, no RAM retention
    • 1.5uA at 3V in System ON mode, no RAM retention, wake on RTC
  • Dimensions – 43.1 x 18 x 9.3 mm
  • Weight – 5.8 grams with case

You’ll find detailed specifications in the “approval sheet“.

The downside is that it’s not available for sale to individuals just yet. However, the company offers the Bluetooth 5 USB adapter with either Raytac logo or no logo to resellers, so I imagine it will come to market soon. So far, I could only find MDBT50Q-P1M module  on eBay for about $9 plus shipping.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
8 Comments
oldest
newest
Ivo
Ivo
5 years ago

There is USB module already available on aliexpress for 10€ plus 3,25€ shipping. And modules for 6,77€ (CDSENET nRF52840)

Ivo
Ivo
5 years ago

That is the one, yes. The problem is, that this one does not have any IO-s exposed, so module is preferred option for me. Just received two modules, so i will dive into ZIGBEE/Thread/BT5.

rkantos
rkantos
5 years ago

Any news on the Zigbee support? Are there firmwares available?

RobBrownNZ
RobBrownNZ
5 years ago

What are people going to use these for? (Not a rhetorical question, I really want to know). Since this can’t do classic Bluetooth, it won’t connect to people’s headphones, keyboards etc. which will lead to a poor user experience for many (most?) people.

Jay
5 years ago

Yup. I was wondering the same. I was looking for a small dongle that would do Apt-X HD over BT5 for use on PCs/laptops that don’t have the hardware.

rkantos
rkantos
5 years ago

Probably the cheapest way to (if there’d be firmware available) determine heart rate (ANT+) and then switch on the Philips hue lights (Zigbee) to red :D… Ok you could still do it with BTLE and a cc2531 stick for around the same price.

animtakhnet
animtakhnet
5 years ago

This module is very handy if you want to avoid BLE driver stuff in Windows. Just load a firmware with all BLE settings and software with a cdc layer and some with some AT magic (or something else) and presto chango no more driver stuff.
