ANAVI Thermometer WiFi Board is Designed for Home Automation (Crowdfunding)

ANAVI Technology launched several open source hardware boards for the Raspberry Pi and ESP8266 maker communities in the past, starting with RabbitMax Flex home automation HAT for Raspberry Pi, and several others including ANAVI Light Controller ESP8266 board to control LED strips.

All boards are designed with KiCad opensource EDA software, and I’ve tested several already such as ANAVI Infrared pHAT or ANAVI Light Controller, and found documentation to be very good and easy to follow. The company has now launched another ESP8266 board with ANAVI Thermometer that allows you to monitor temperature and humidity, effectively acting as a thermostat for home automation.

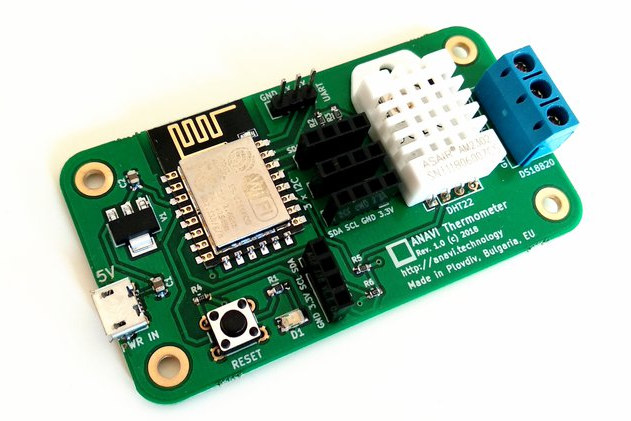

ANAVI ThermometerANAVI Thermometer specifications:

  • SoC –  Espressif Systems ESP8266 Tensilica L106 32-bit processor
  • Connectivity – WiFi 802.11 b/g/n
  • Display – Mini OLED display
  • Build-in sensor – AM2302 (DHT22) temperature and humidity sensor
  • Expansion
    • Terminal block for DS18B20 waterproof temperature sensor
    • UART pins
    • 3x slots for I2C sensors
  • Misc – Button
  • Dimensions – 75 mm x 40 mm
  • Certification – Open Source Hardware Association (OSHWA) BG000017

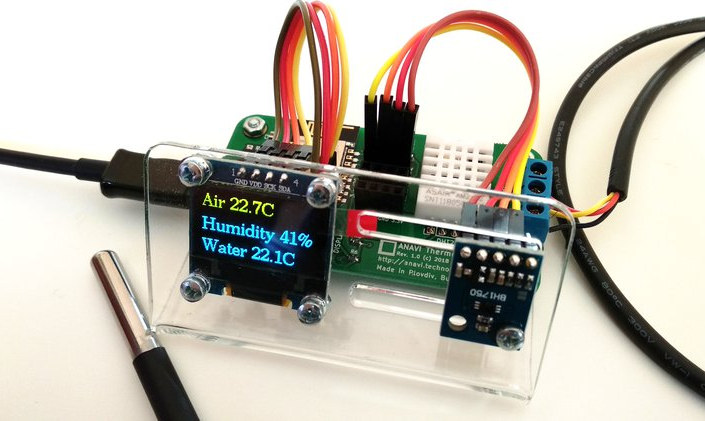

ESP8266 Thermostat

The board can be programmed or controlled with the Arduino IDE, PlatformIO, Home Assistant, MQTT, and any modern web browser.

Beside supports for the OLED display, and the two temperature sensors listed above, software has been written to support the following I2C sensors:

  • BH1750 I2Csensor for light
  • BMP180 I2Csensor for temperature and barometric pressure
  • APDS-9960 I2C sensor for RGB color and gesture detection

Any other I2C sensor would also work, but you’d have to take care of software integration yourself.  The key selling point of ANAVI Thermometer is that it is designed to be easy to use since it does not require any soldering, nor breadboard and accompanying jumper cables mess, and proper documentation & Arduino code sample will be made available. Video tutorials will also be uploaded to YouTube if the crowdfunding campaign raises more than $2,500.

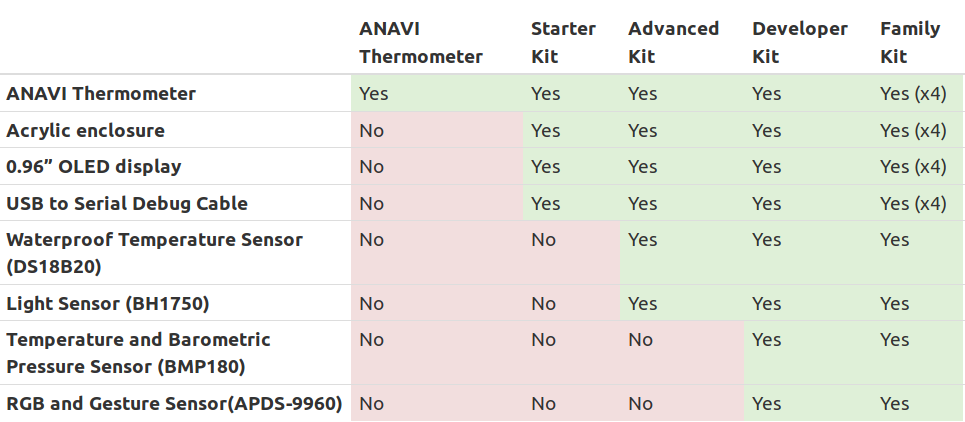

ANAVI Thermometer Kits

As with all other ANAVI board, ANAVI Thermometer has been launched on Crowd Supply where you can pledge $25 for the board only, but other kits are also offered with the OLED display, an enclosure, and various sensors from the $39 starter kit to the $59 developer kit. Shipping is free, and delivery is expected for April 25,  2019.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

2 Replies to “ANAVI Thermometer WiFi Board is Designed for Home Automation (Crowdfunding)”

    1. ANAVI Thermometer is quite versatile as it supports a huge variety of sensors. Although DHT22/AM2302 is the only built-in sensor, I have designed the board with numerous connectors. You can easily attach DS18B20, including its waterproof version which is very convenient for fish tanks, or several I2C sensor modules such HTU21D (for temperature and humidity), BMP180/280 (for temperature and barometric pressure), BH1750 (for ligth), APDS-9960 (for color and gesture recognition), etc.
