F&S Elektronik PicoCore MX8MM System-on-Module Features NXP i.MX 8M Mini Processor

Embedded World 2019 will take place at the end of this month on February 26-28 in Nuremberg, Germany, and we can expect plenty of news related to embedded systems. It’s very likely NXP i.MX 8M Mini processor will officially be launched, and we’ll see several modules and boards announced with the lower cost 14-nm processor.

F&S Elektronik Systeme has already been promoting their upcoming PicoCore MX8MM system-on-module based on NXP i.MX 8M in their newsletter ahead of Embedded World, where they’ll showcase their solutions at booth 621 in hall 2.

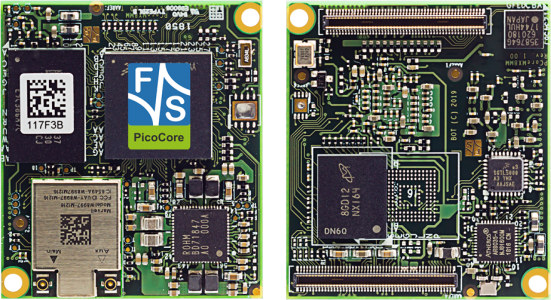

FS PicoCore MX8MM i.MX 8M Mini SoM

PicoCore MX8MM specifications:

  • SoC – NXP i.MX 8M Mini single, dual, quad core Arm Cortex-A53 @ 1.8 GHz processor, Cortex-M4 real-time core @ 400 MHz, 512KB L2-Cache, 2D/3D GPU
  • System Memory – Up to 8GB LPDDR4
  • Storage – Up to 512MB SLC NAND flash or up to 32GB eMMC flash
  • Video Decode – 1080p60 HEVC H.265, VP9, H.264, VP8
  • Connectivity
    • 802.11ac + Bluetooth 5.0 module
    • Atheros AR8035 Gigabit Ethernet transceiver
  • Interfaces via 2x 100-pin board to board connectors
    • 1x external SD Card
    • 10/100/1000Mb Ethernet
    • USB – 1x USB host, 1x USB 2.0 OTG
    • Up to 4x UART, up to 4x I2C, up to 2x SPI
    • Audio – Line In, Line Out, Mic, Headphone,I2S, SPDIF, ESAI, SAI, SSI ADR/ DATA Bus
    • Display
      • LVDS up to Full HD
      • Up to 4-lane MIPI DSI
      • Touch Panel – analog resistive and PCAP touch ext. via I2C
    • Camera analog/digital – MIPI CSI
    • PCIe
    • Up to 8x PWM, Watchdog
  • Supply Voltage – +3.8V bis 5.5VDC
  • Power Consumption – 3W typ.
  • Dimensions – 40 x 35 mm
  • Weight – 10 grams
  • Operating Temperature – 0°C – +70°C; opt. -40°C – +85°C

The company will provide Linux Buildroot/ Yocto with uboot for the module, as well as Windows Embedded 10 IoT Core (later this year), and FreeRTOS real-time operating system. There will be a starter kit with baseboard and accessories, but the company has yet to publish information.

There’s no availability nor pricing information, except the module will have long term availability until 2029. A few more details may be found on the product page.

Beside the i.MX 8M Mini SoM above, the company will also showcase their ArmStone MXM8 Pico-ITX board based on the NXP i.MX 8M processor, as well as eFus MX8X SoM equipped with i.MX 8X Cortex A35/M4 SoC, and expected to launch in Q3 2019.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

3 Replies to “F&S Elektronik PicoCore MX8MM System-on-Module Features NXP i.MX 8M Mini Processor”

  1. So the 3W is for the single, dual or the quad configs? Also 8GB LPDDR4 option is nice but a corresponding price point would be apt : )

  2. Does anyone know if the imx8 is able to run blob free incl. all its peripherals? If not, what are blobs needed for? Graphics? Video engine?

    1. Vivante GPUs are covered by etnaviv FOSS driver, though I don’t know if the latest Vega architecture is supported as well (a sidenote, as imx8M does not have that). Everything else is very well documented by Freescale, who are a staple of documentation in our e-waste world.
