OrangeCrab is an Open Source Hardware, Feather-Compatible Lattice ECP5 FPGA Board

Lattice ECP5 FPGA powered OrangeCrab is the work of Greg Davill who designed the Adafruit Feather-compatible board in KiCAD, crowdsourced schematics/PCB checking and published his progress on Twitter, and published the files  of the open source hardware board on Github.

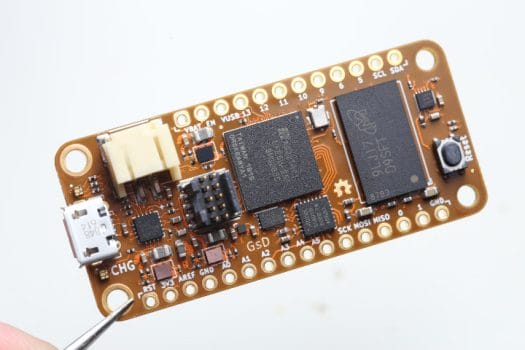

Lattice ECP5 Feather board
Click to Enlarge

OrangeCrab board hardware specifications:

  • FPGA – Lattice ECP5 25/45/85 variants
  • System Memory – Up  to 8Gbit DDR3 Memory (x16)
  • Storage – 128Mbit QSPI FLASH Memory (Bitstream + User storage), 4-bit MicroSD socket
  • USB – Micro USB connector, full-speed direct USB connection to FPGA
  • Programming – 10-pin FPGA programming header
  • Expansion – I/O’s broken out via 30 through holes: GPIO, SPI, I2C, Analog, … 7x diff pairs, 1x single ended only
  • Misc – Reset Button, charge LED (Green:  external power, Yellow: when charging, No color: when running off battery), 48MHz Oscillator
  • Power Supply – 5V via USB port, battery header for LiPo battery + battery charger chip
  • Dimensions – Adafruit Feather form factor

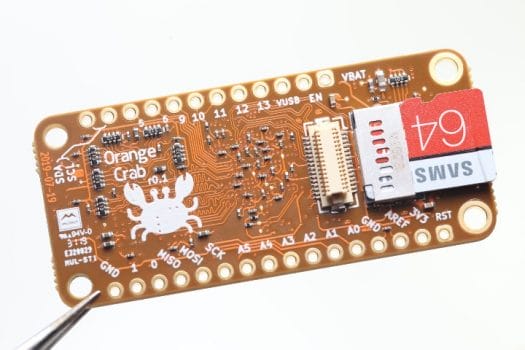

OrangeCrab Board
Click to Enlarge

There aren’t any sample FPGA bitstream on Github yet, but Hackster.io reports Lattice ECP5 FPGA is supported by Project Trellis open source toolchain, and the FPGA is capable of running a RISC-V softcore.

The project is “still in development “, and it’s unclear if/when it will be available, but all KiCAD design files are there if you feel you’d like join the fun.

Via Electronics Lab

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

2 Replies to “OrangeCrab is an Open Source Hardware, Feather-Compatible Lattice ECP5 FPGA Board”

  1. The photos on his twitter feed are truely impressive. Not many people work with 0201 passives and CSP for hobby projects.

    1. I thought exactly the same. Some friends like to have fun of me when I make small circuits using 0603 or occasionally 0402 with my soldering iron, but here it’s way beyond that. And the result is perfect!
