FreeMesh WiFi 5 Mesh Network Router Runs OpenWrt

Orange Pi Development Boards

FreeMesh W1326 LTE Router Mesh Network Access

FreeMesh has launched an open-source mesh router, the WE1326 LTE FreeMesh Router (included are two nodes) that runs OpenWrt open-source operating system.

Open Source and “Hackable” Mesh System

FreeMesh enters the mesh market with source code posted on Gitlab, a user-hackable/customizable mesh in other words.  FreeMesh uses OpenWrt – the OpenWrt project is a Linux operating system aimed at embedded systems. The focus is on removing the need for a static firmware, where there is only one option for software for the hardware being purchased.

The Offerings and Markets

The company is targeting the residential market, where most mesh systems are almost double the $150.00 price tag of the FreeMesh. It is reported that there are other ZBT WE826-WD based mesh routers on the market, check out the LinuxGizmos.com article for more information.

FreeMesh Specifications

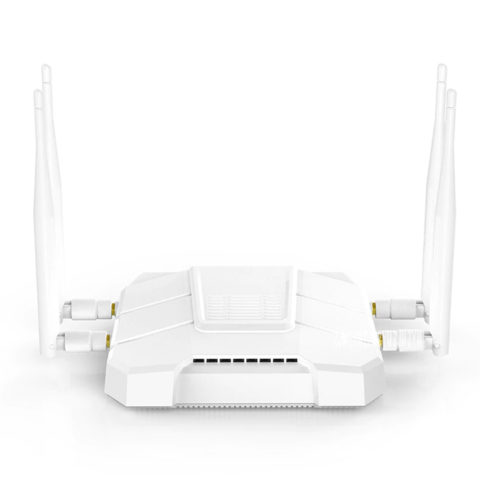

FreeMesh Router

      • CPU Dual Core 880MHz MediaTek MT7621AT
      • ROM SPI 16MB
      • RAM DDR3 512MB
      • Antenna 2x 5dBi 2.4GHz, 2x 5dBi 5GHz, 2x 3dBi 3G/4G (built in)
      • Protocol 802.11a/b/g/n/ac dual band (2.4/5 GHz)
      • Interfaces 1x 10/100/1000Mbps WAN (Auto MDI/MDIX), 4x 10/100/1000Mbps LAN (Auto MDI/MDIX), 1x USB 2.0 ports, 1x Micro SD Card Slot, 1x SIM Card Slot
      • Button Reset
      • LED Power, 2.4GHz, 5GHz, WAN, LAN1, LAN2, LAN3, LAN4
      • Power DC 12V 2A
      • Size 28 x 22.6 x 7.6 cm

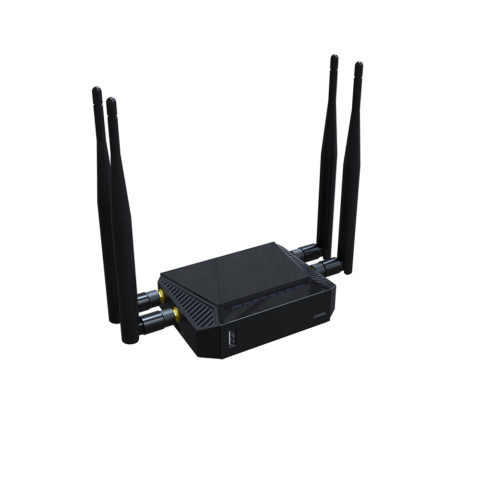

FreeMesh Node (based on ZBT WE826-16M)

      • CPU Single Core 580MHz MediaTek MT7620A
      • ROM 16MB
      • RAM DDR2 128MB
      • Antenna 2x 5dBi 2.4GHz, 2x 5dBi 5GHz
      • Protocol 802.11a/b/g/n dual-band (2.4/5 GHz)
      • Interface 1x 10/100Mbps WAN (Auto MDI/MDIX), 4x 10/100Mbps LAN (Auto MDI/MDIX)
      • Button Reset
      • LED Power, 2.4GHz, 5GHz, WAN, LAN1, LAN2, LAN3, LAN4
      • Power DC 12V 2A
      • Size 5.1 x 7.6 x 2.5 cm

The FreeMesh Router Pricing

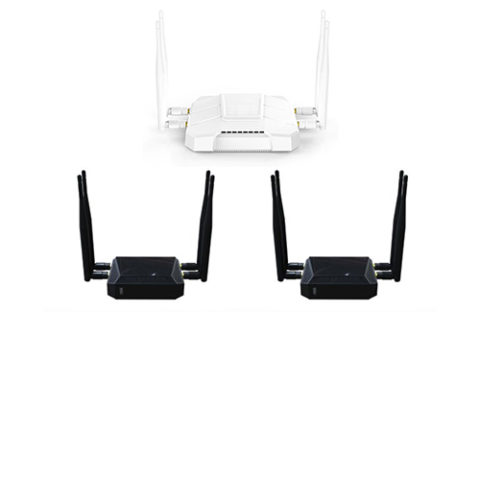

1 FreeMesh Router and 2 Nodes are ready for shipping at $149.99 USD. The system is in the Beta stage.

The kit can be pre-ordered on FreeMesh website.

The solution is built on 802.11r & 802.11s technology which are extensions to IEEE 802.11 standard better known as “WiFi”, and used to implement roaming and mesh networking. We shortly describe each extension purpose below.

IEEE 802.11r-2008  – Amendment 2008

The fast BSS transition (FT) amendment of 2008 was targeted at handoffs of wireless devices in motion, such as smartphones in moving vehicles. The protocol developed a way for transitions to be made seamlessly and consistently between access points. This was the result of a redefining of the security key negotiation protocol. The access points could then negotiate and request wireless resources and services in parallel.

Further background on the 802.11r Amendment can be found on Wikipedia.

IEEE 802.11s – Amendment 2011

The 802.11s Protocol is the 2011 amendment to the IEEE 802.11 standard for a mesh networking protocol.  The 802.11 standards have grown and developed into the need for the system to include incorporated and interconnected APs. The main focus of the protocol is to set out standards for a Wi-Fi network to discover related APs within the original network, which is not always the internet but can include the internet. This protocol is now being seen in the residential and SOHO markets.

More information can be found in a CWNP White paper on 802.11s Mesh Networks.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

12
Leave a Reply

avatar
6 Comment threads
6 Thread replies
1 Followers

Most reacted comment
Hottest comment thread
10 Comment authors
capcodingFreeMeshWireless teamTimDanielMark Birss Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Greg
Guest
Greg

Hi,

I would love to see some initial tests of this device. I have 600mb fiber so I am wondering how does it handle routing at that speed. Plus: do you know if nodes can be connected with wire ? Or only using Wifi ?

Thanks and have a nice day

Jean-Luc Aufranc (CNXSoft)
Admin

600 Mbps over Gigabit Ethernet should not be a problem, as long as you don’t start using encryption for things like VPN.
The nodes have Ethernet ports too albeit limited to Fast Ethernet (100Mbps), so I don’t see why you would not be able to connect them to the router over Ethernet.

Greg
Guest
Greg

Hi,

Not always. I wonder about LAN-to-WAN routing speed. As you can see for example here: https://www.smallnetbuilder.com/old-tools/charts/router/bar/74-wan-to-lan sometimes performance of a router in access point is far less than Gigabit.

Thanks and have a nice day

FransM
Guest
FransM

Interesting, but….

“WE ARE ONLY SHIPPING IN THE US (PLEASE NO INTERNATIONAL REQUESTS”

FreeMeshWireless team
Guest

Sorry – ATM it is just too complicated to ship internationally. Plus, the cost to ship something international would be as much as the product.

theguyuk
Guest
theguyuk

There is a e-waste issue that does need a answer but not at this price range. In the country where I live you normally get a new router each time you move to another internet service provider. So more e-waste builds up.

Agustín Alexander
Guest
Agustín Alexander

What mesh routing protocol does it use?

Mark Birss
Guest
Mark Birss

Batman-adv

Daniel
Guest
Daniel

Is the main unit (the white one) available on AliExpress?

Tim
Guest
Tim

I’m surprised the ROM memory is so small, they could have went with 32MB for a bit of future proofing. 16MB in almost 2020 seems a bit limited.

FreeMeshWireless team
Guest

16MB is pretty standard for OpenWRT. There is a slot for an microSD card, and USB ports if you want to hook up network storage (or run larger things like Snort for intrusion protection).

capcoding
Guest
capcoding

as far as I can tell that router does not give stable wireless connection sometimes, I bought a dozen and did intensive testing with them, and eventually gave up on them. openwrt forum has long threads about it as well, either the 2.4G or the 5G won’t sustain well over long period of testing for certain test cases.
