CloverPI Clusters Up to 4 Raspberry Pi Boards (Crowdfunding)

We’ve seen Raspberry Pi cluster boards before, and most of them either use Raspberry Pi Zero boards or Raspberry Pi Compute Modules. Some examples include Turing Pi Clusterboard for up to 7 RPi CM3 modules, Cluster HAT board taking up to 4 Pi Zero board, and Mininodes Raspberry Pi 3 COM Carrier Board.

But some other solutions like Bitscope rely instead on full-sized Raspberry Pi 2/3/4 Model B boards. Another such option is IPTerra CloverPI board allowing up to 4 Raspberry Pi or compatible boards with 40-pin header to be clustered into a single unit powered by one power supply and connected via a 5-port Gigabit Ethernet switch.

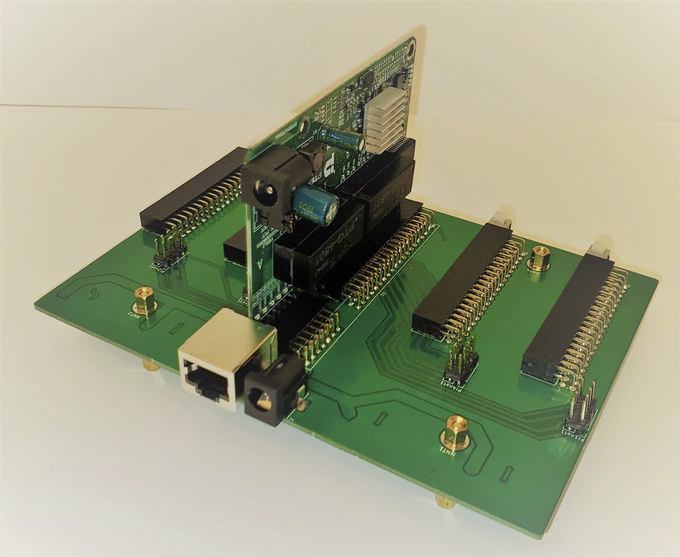

CloverPi Raspberry Pi Cluster Board

CloverPI is shown above without RPi boards. The mainboard includes four 40-pin headers, four 6-pin Ethernet headers for SBC’s, as well as one Gigabit Ethernet port, and one power jack. There’s also a board/card fitted in the middle of the latest version of the board that can take 12 or 19V power supply to power all four SBCs and comes with a 5-port Gigabit Ethernet switch.

This is what the setup looks like with four Raspberry Pi 4 boards and Ethernet cables plugged into CloverPI 1.4.

Raspberry Pi 4 Cluster
Click to Enlarge

I can’t quite figure out why there needs to be not one but two power barrel jacks for power.

Features highlighted by the company:

  • Backplane compatible with any Raspberry Pis containing the standardized GPIO pins
  • Integrated power for four Raspberry Pi boards
  • Individual power switches for each SBC
  • Individually addressable RGB LED and link LED for each board
  • Ethernet/Network header for each raspberry pi
  • 5-port Gigabit switch – 4x ports for Raspberry Pi boards, and one for uplink

Some of the potential use cases for CloverPI include K8s, Docker swarm, full-stack development via OpenStack, small office server stack, and Open Flickr stack. The good point of the solution is that it greatly reduces cable mess. No need for USB power supply for each board, short Ethernet cable, and no external Ethernet switch/hub required to interconnect the boards.

CloverPI has recently launched on Kickstarter with a $15,000 funding goal that is so far about 60% funded. Rewards start at $90 for the backplane, power & switch board, and four Ethernet cables. Shipping adds $8 to the US, and $20 to the rest of the world with backers expected to receive their reward(s) in November 2020. The retail price will allegedly be $149.90. A few more details may also be found on the official website.

Via LinuxGizmos and Geeky Gadgets

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

12 Replies to “CloverPI Clusters Up to 4 Raspberry Pi Boards (Crowdfunding)”

  1. I wanted to do something similar to make a cluster board for Pi Zero boards. My design incorporated a USB hub instead of a GbE switch, obviously, as well as a USB-multiport serial interface to get console access.
    I think it is very clever to use the 40-pin header for mounting, power and console, and just running an Ethernet (or USB cable) from a header on the board to reach the other ports. I had been trying to come up with a board mounted Micro-USB connector, which would have been exceptionally fragile.
    This also makes it easy to toggle power to the board if required (although designing the USB hub to implement power control was also an option).
    The other fun part is that the Pi Zero can boot from USB, making it possible to drive from a single controller PC. I guess this a really very similar to what the Cluster Hat did . . .

  2. What is it with these things? Is there an excess of PCB materials that needs to be used up with big useless boards?

    1. What is it with these people? Is there an excess of ASCII characters that needs to be used up with big useless comments?

        1. Wrong… What about the fuel spent to power your useless posts to be?

          As for the other device, it’s a clean setup that doesn’t have a bunch of cabling, etc. lurking around. e-waste? Hardly. It produces less e-waste than the longer ethernet cables, power bricks, etc. you’d need to make a cluster- and these are much, much more useful than one’d think there.

          1. >Wrong… What about the fuel spent to power your useless posts to be?

            The fuel expended on my “useless posts” is probably more than made up for by the fuel saved by my browser not fetching ads and tracking widgets from google and friends (TL;DR; adblock).
            IMHO someone that only appears to wave their e-ween about (usually after misunderstanding something) like yourself shouldn’t really be the one in charge of classifying posts as useless or not. 😉

            >As for the other device, it’s a clean setup that doesn’t have a bunch of cabling, etc.

            Look at the picture with all the boards mounted. It’s literally got cables sticking out of it. It’s not really any cleaner than getting a regular switch with enough surface area for the pi’s, drilling holes in the top and mounting the pis to the holes… or going really ghetto and getting a cutting board from a dollar store and mounting the pis on that. A clean solution would be integrating the systems right onto the main PCB (maybe using solder down SoMs if doing a complete board design like that isn’t viable) or you know using the rpi compute modules.. I think I could actually get about 16 single core A7 systems into that board area.

            >than the longer ethernet cables, power bricks, etc

            Cabling exists already and is reusable. What do you really need to build a “cluster” like this? A bunch of ethernet cables, an old switch, a multi-port usb charger and a cutting board from the dollar store. While you’re at the dollar store get yourself some cable ties so you can make it pretty. If your local junk shop is like mine you can get used cables, switches and chargers so the e-waste cost is zero. On the other hand with this you have a custom board that is hard to recycle or reuse once you realise that 4 crappy SBCs and a switch isn’t really a cluster.

  3. Unfortunately no ‘master node’ attempt you could log into to power cycle individual nodes, get serial console access and so on…

  4. “The retail price will allegedly be $149.90”

    That’s uber expensive for what it is.

    Which SOC is below the heatsink on the central board?

    1. Very likely whatever el-cheapo GbE switch as found in most 5-port devices.

      There are good ideas in this design. I also wondered about the ability to use the 40-pin connector to hold them in place and power them, and it’s used here, proving it’s possible. The switch on a slot like this is an excellent idea, just like the short RJ45 cables ending on an HE10 connector. They also thought about implementing the power switches for each board, which is definitely necessary. There is still a big issue with the thermal dissipation, which is more caused by the RPi board itself than the carrier board.

      This design allows for future improvements like implementing centralized serial console. It would require to replace the switch board by a smart one, like the MT7621 that equips the EdgeRouter-X, which runs linux and is connected to its 5-port switch. With a few extra I/Os or even a USB hub + some CH330N it would then be possible to get a serial console on each board.

      The board is quite expensive for what it is, but if you factor in the amount of work required to build this yourself, it becomes obvious that it doesn’t stand if you have to make more than one.

      I suspect the power in connector is 5V since it seems to go to a large copper track around the board. If so, it’s a very bad idea as you absolutely want to use on-board DC-DC regulation and use an unregulated 12V input instead (or even USB-C these days). Still it can be a first step to build small clusters.

    2. Someone’s either a smidge greedy or they don’t have good suppliers for fabrication, etc.
