Ryzen Embedded SBC is Made for Real-time AI Vision, Conveyor Belt Tracking

Axiomtek just recently introduced CAPA13R AMD Ryzen Embedded V1605B/V1807B SBC in 3.5″ embedded SBC form factor, and the company is now back with another, larger Ryzen Embedded SBC: Axiomtek MIRU130.

Why would they launch yet another Ryzne Embedded board two weeks later? Different applications. While CAPA13R targets various graphics-intensive applications ranging from medical imaging to smart digital signage, MIRU130 appears to be especially focused on real-time vision-based AI applications with PoE and USB ports for cameras, and integrated “real-time vision I/Os” such as trigger inputs, LED lighting controllers, camera trigger outputs and an encoder input designed for conveyor tracking.

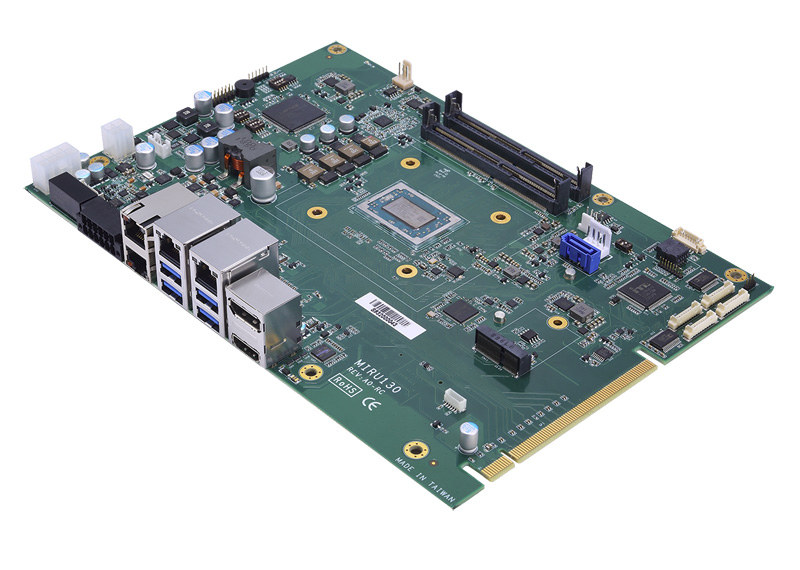

MIRU130 Ryzen Embedded-SBC Real-time AI Vision Conveyor BeltsMIRU130 SBC specifications:

  • SoC (One or the other) – AMD Ryzen Embedded V1807B or V1605B quad-core processor with Radeon Vega 8 graphics; V1807B: 35-54W TDP; V1605B: 12-25W TDP
  • System Memory – 2x 240-pin DDR4-2400 SO-DIMM, up to 16GB RAM
  • Storage
    • 1x SATA-600
    • 1x M.2 Key B (SATA, USB 2.0, PCIe x2 optional) in 22×42, 22×80 or 30×42
    • BIOS AMI
  • Display – 1x DisplayPort, 1x HDMI
  • Camera Interfaces – 4x USB 3.1 Gen2 and 2x PoE ports (see USB and Networking sections)
  • Networking
    • 2x Gigabit Ethernet via Realtek RTL8111G with support for Wake-on-LAN, PXE Boot ROM
    • 2x Gigabit PoE ports via Realtek RTL8111G with support for Wake-on-LAN, PXE Boot ROM, and 30W IEEE 802.3at PoE
  • USB – 4x USB 3.1 Gen2
  • Vision I/O
    • 1x Incremental quadrature encoder (A/B/Z)
    • 2x LED lighting control (24V/max 0.5A)
    • 2x Trigger in (response time <1us, sink type @ 0-30V, source type)
    • 2x Trigger out for camera (response time <1us, @ 12V)
    • 2x Isolated digital in (sink type @ 0-30V, sink/source type)
    • 2x Isolated digital out (sink type, open collector @ 5-30V, 200mA max each)
  • Serial – 1x RS-232/422/485, 3x RS-232
  • Expansion
    • 1x M.2 Key E (PCIe x1, USB 2.0) in 22×30
    • 1x PCIe x16 golden finger (PCIe x8 signal)
  • Security – SPI interface for TPM module
  • Misc – Watchdog Timer, hardware monitor
  • Power Supply
    • +12V DC-in via 4x 2-pin connector
    • Optional +24V DC-in power board
    • AT Auto Power On function supported
    • Power Requirements
      • AMD V1807B @ 3.35GHz + 16GB DDR4 – Max RMS: +12V @ 6.4A
      • AMD V1605B @ 2.0GHz + 16GB DDR4 – Max RMS: +12V @2.8A
  • Dimensions – 244 x 170 mm
  • Temperature Range – -20°C to +60°C
  • Relative Humidity – 10% – 95% relative humidity, non-condensing
  • Certifications – CE
Conveyor Tracking SBC
Click to Enlarge

There’s no specific information about officially supported operating systems. Axiomtek MIRU130 is available now for purchase, but the price has not been made public. For more information or pricing inquiries, visit the product page.

Via LinuxGizmos
