T-bao MN22 Mini PC Features AMD Ryzen 3 2200U Mobile Processor

AMD Ryzen 3 2200U Mini PC

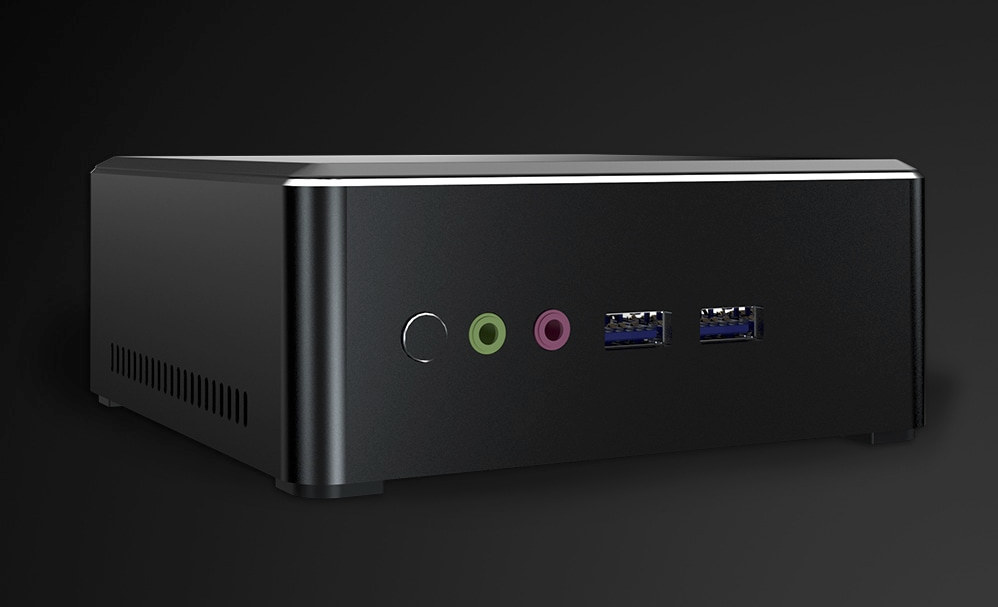

T-bao MN22 is an NUC-like mini PC powered by an AMD Ryzen 3 2200U mobile processor with a 12 to 25W TDP, coupled with up to 16GB RAM and  512GB NVMe SSD storage, as well as dual 4K video output thanks to HDMI 2.0 and DisplayPort video outputs.

T-bao MN22 specifications:

  • SoC – AMD Ryzen 3 2200U dual-core/quad-thread mobile processor @ 2.5GHx / 3.4 Ghz (Turbo Bosst) with Vega 3 Graphic; TDP: 12 to 25 Watts (Default: 15W)
  • System Memory – 2x SO-DIMM DDR4 slots fitted with 8GB or 16GB RAM by default
  • Storage – M.2 NVMe/SATA SSD socket with 128GB or 512GB NVMe SSD by default, SATA port for 2.5″ drive up to 7mm thick
  • Video Output – DisplayPort, HDMI 2.0
  • Audio – 3.5mm audio output jack, 3.5mm mic-in jack
  • Networking – Gigabit Ethernet, dual-band 802.11b/g/n/ac WiFi 5 and Bluetooth
  • USB – 4x USB 3.0, 2x USB 2.0
  • Misc – Power button
  • Power Supply – TBD V via DC jack
  • Dimensions – 12.8 x 12.8 x 5.5 cm
  • Weight – TBD

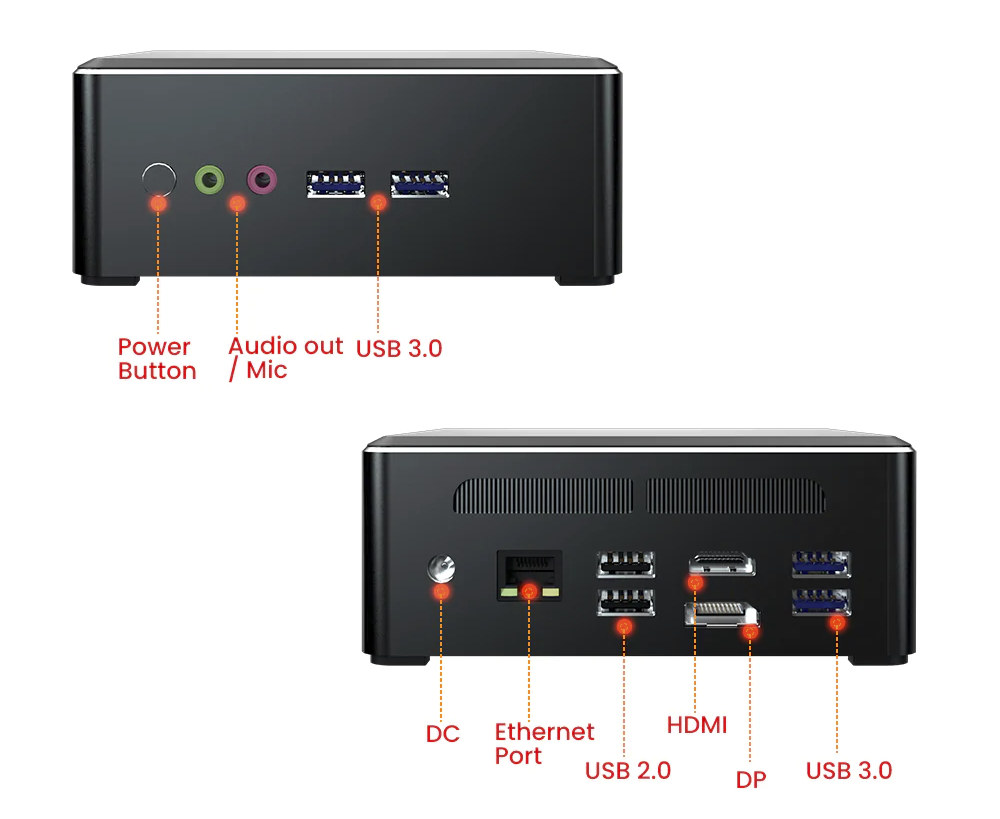

T-bao MN22 Ryzen 3 Mini PCThe mini PC appears to be actively cooled based on the ventilation holes on the photo, ships pre-loaded with Windows 10 64-bit, and a power adapter and power cord.

Right now, I can only find T-bao MN22 on GeatBest where it is sold for $368 with 8GB RAM and 128GB NVMe SSD,  $538 in 8GB/512GB configuration, and $588 with 16GB RAM, and a 512GB SSD. You may want to change plug type if it shows “discontinued”. I’d expect the mini PC to soon show up on Aliexpress and other websites, but the price seems probably right, as this type of mini PC competes against Intel Whiskey Lake systems. [Update: T-bao MN25 with AMD Ryzen 5 2500U processor has been around for a while, and is cheaper for $350 on Banggood]

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 Comments
oldest
newest
Dimitris C
Dimitris C
4 years ago

Probably the lower spec version of this one https://www.youtube.com/watch?v=2Oq-Ag28MwE which is also cheaper.

nobitakun
nobitakun
4 years ago

Too expensive, not worth it. Ryzen NUC’s should be availabe for around $200+ or there won’t be any significant changes in that PC range ever. People want mini computers to do specific tasks, not general use like a complete PC, and ARM can’t cover many needs, so x86 needs to cover them, but not with shitty Cherry Trail or Celeron CPU’s. A Ryzen paired with 4GB of RAM and a M2 or NVMe interface should suffice 99% of the needs, along with media streamers/players or retro game boxes / steam boxes. Stop thinking about using Windows and make it even… Read more »

Anonymous
Anonymous
4 years ago

Yes, the price is clearly nonsense.

6-8 GB RAM should be doable considering RasPi can do 8 GB at $75. But I would prefer 2x empty SO-DIMM slots so one could decide whether they want 8 GB, 16 GB, 32 GB, or even 64 GB if the CPU supports it.

I think AMD could be better positioned in this space as Renoir (which is cheap to make) falls in price and they release Van Gogh APUs likely targeting a 9 Watt TDP.

Radek
4 years ago

I am always wondering how such mini computers would cope with compiling for example after Gentoo or with an Armbian compilation. CPU 100% for a longer time and what? We have a speed drop under load. PSU goes trail from load? Inside a small case 100 degrees Celsius?

charliebrownau
4 years ago

These AMD Ryzen nucs will have to come down to 250 dollars to be on par with Intel Nucs
