Intel powered 2.4-inch Mini PC’s Show up as Alternatives to CHUWI LarkBox

Leaving HDMI PC sticks aside, we started to see really small, pocket-sized Intel mini-PCs last year with ECS LIVA Q2 micro PC with a dual-core N4100 Gemini Lake processor and measuring 70x70x33.4 mm.

CHUWI managed to design an even smaller Gemini Lake Mini PC with Larkbox mini PC powered by a Celeron J4115 quad-core processor and measuring 61x61x43mm (2.4″ x 2.4″ x 1.7″). It looks like they may have launched a new 2.4-inch Mini PC form factor, as at least two other models with pretty much the same dimensions, but different specifications, have come to our attention.

XCY X51 2.4-inch Mini PC

2.4-inch mini pcSpecifications:

  • SoC – Intel Celeron N4100 quad-core Gemini Lake processor @ 1.1 / 2.4 GHz with Intel UHD Graphics 600; 6W TDP
  • System Memory – 8GB LPDDR4
  • Storage – 128GB M.2 2242 SSD, MicroSD card slot
  • Video Output – HDMI 2.0 up to 4K @ 60 Hz
  • Audio – 3.5mm audio jack, digital audio via HDMI
  • Connectivity – Dual-band 802.11 b/g/n/ac WiFi 5 and Bluetooth 4.2
  • USB – 2x USB 3.0 ports, 1x USB Type-C port for power
  • Misc – Power button, cooling fan with “almost no noise”
  • Power Supply – TBD via USB-C port
  • Dimensions – 62 x 62 x 42 mm
  • Weight – 121 grams

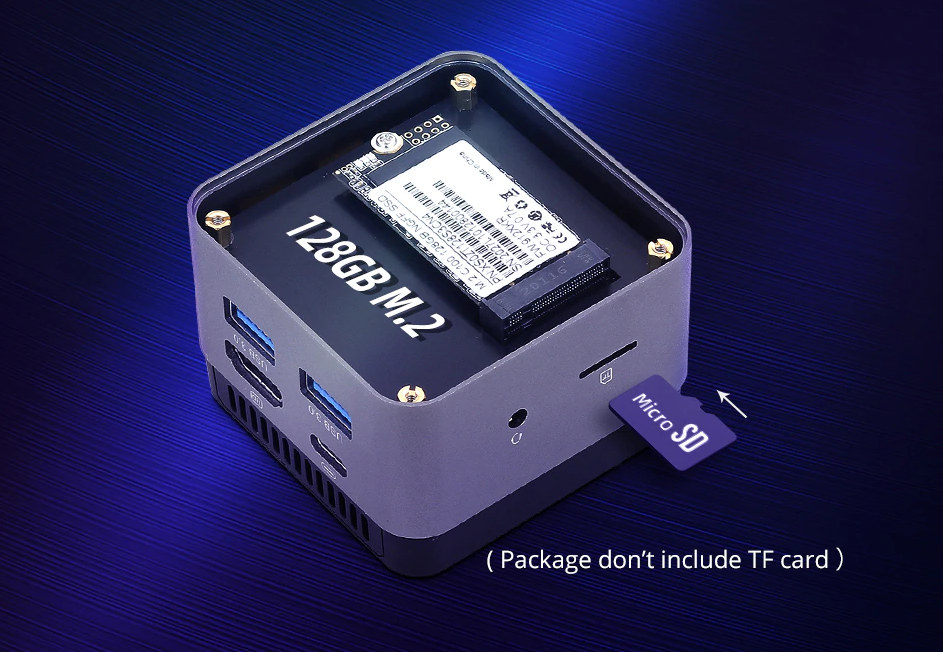

XCY-X51 2.4-inch Micro PC

Compared to Chuwi Larkbox, XCY X51 mini PC has a slightly slower 6W Celeron N4100 processor instead of a 10W Celeron J4115 processor, more RAM (8GB vs 6GB), and a 128GB M.2 SSD instead of 128GB eMMC flash + an empty M.2 SSD socket. So the out-of-the-box performance may end up being faster thanks to the built-in SSD.

There’s no information about the power supply [Update: It’s the same 12V/2A power adapter as used in CHUWI Larkbox], and as a reminder, Chuwi used a non-standard 12V power adapter connected to the USB-C port. The ports arrangement is really similar so they may have sourced the enclosure from the same manufacturer.

XCY X51 2.4-inch mini PC is available now for $179 including DHL shipping, or $30 more than CHUWI Larkbox (Indiegogo), but for that price you’d get extra memory and faster storage, and would not need to wait for a crowdfunding campaign to end before getting your device shipped.

GMK mini PC

GMK 2.4-inch mini PC
Click to Enlarge

GMK 2.4-inch mini PC has the exact same external design as XCY X51 model above but slightly different specifications:

  • SoC – Intel Celeron J4125 quad-core Gemini Lake processor @ 2.5 / 2.7 GHz with Intel UHD Graphics 600; 10W TDP
  • System Memory – 8GB LPDDR4
  • Storage – 128GB M.2 2242 SSD, MicroSD card slot
  • Video Output – HDMI 2.0 up to 4K @ 60 Hz
  • Audio – 3.5mm audio jack, digital audio via HDMI
  • Connectivity – Dual-band 802.11 b/g/n/ac WiFi 5 2×2 MIMO and Bluetooth 4.2
  • USB – 2x USB 3.0 ports, 1x USB Type-C port for power
  • Misc – Power button, cooling fan with “almost no noise”
  • Power Supply – TBD via USB-C port
  • Dimensions – 62 x 62 x 42 mm
  • Weight – 125 grams

It’s unclear whether the 2×2 MIMO is an extra feature compared to XCY model or the latter forgot to mention it, but the only real difference looks to be the faster Celeron J4125 processors. Users interested in getting Ethernet may be out of luck with this form factor.

At this point, it’s likely there’s one manufacturer offering an ODM design, and their customers can make some adjustments on request like changing the processor. memory, storage, and the enclosure’s marking/color.

GMK website shows it’s a fairly new company (June 2019) comprised of R&D and production team coming from Meizu, Teclast, Chuwi, and Alldocube. GMK mini PC is not available yet, and the company plans to launch the device on a crowdfunding platform in August/September.

Via Liliputing and AndroidPC.es
