Comfile Launches 15-inch Industrial Raspberry Pi Touch Panel PC Powered by RPi CM3 Module

Three years ago, we noted Comfile has made 7-inch and 10.2-inch touch panel PC’s powered by Raspberry Pi 3 Compute Module. The company has recently introduced a new model with a very similar design except for a larger 15-inch touchscreen display with 1024×768 resolution.

ComfilePi CPi-A150WR 15-inch industrial Raspberry Pi touch panel PC still features the CM3 module, and the same ports including Ethernet, USB ports, RS232, RS485, and I2C interfaces accessible via terminal blocks, and a 40-pin I/O header.

15-inch Raspberry Pi Touch Panel PC
Click to Enlarge

ComfilePi CPi-A150WR specifications:

  • SoM – Raspberry Pi Compute Module 3 Lite (CM3L) with Broadcom BCM2837 quad-core Arm Cortex-A53 processor @ 1.2 GHz with VideoCore IV GPU, and 1GB RAM
  • Display – 15″ LCD with 1024 × 768 resolution, 16.7 million colors, pressure-sensitive touch screen (resistive type)
  • Audio – Stereo Audio Output
  • Connectivity – 10/100M Ethernet, optional WiFi via USB dongle
  • USB – 3x USB 2.0 ports
  • Serial – 1x RS232C terminal block, 1x RS485 terminal block
  • Expansion
    • 40-pin header socket with 22x GPIO including ESD protection circuit
    • 1x I2C terminal block
  • Misc – Built-in RTC, piezo buzzer
  • Power Supply – 12 ~ 24V DC input via 3-pin terminal block
  • Dimensions – 376 x 300 x 61.3 mm
  • Weight – 3.26 kg
  • Temperature Range – Operating: 0°C ~ 70°C;
    storage: -20°C ~ 80°C
  • IP Rating – IP65 (front panel only)

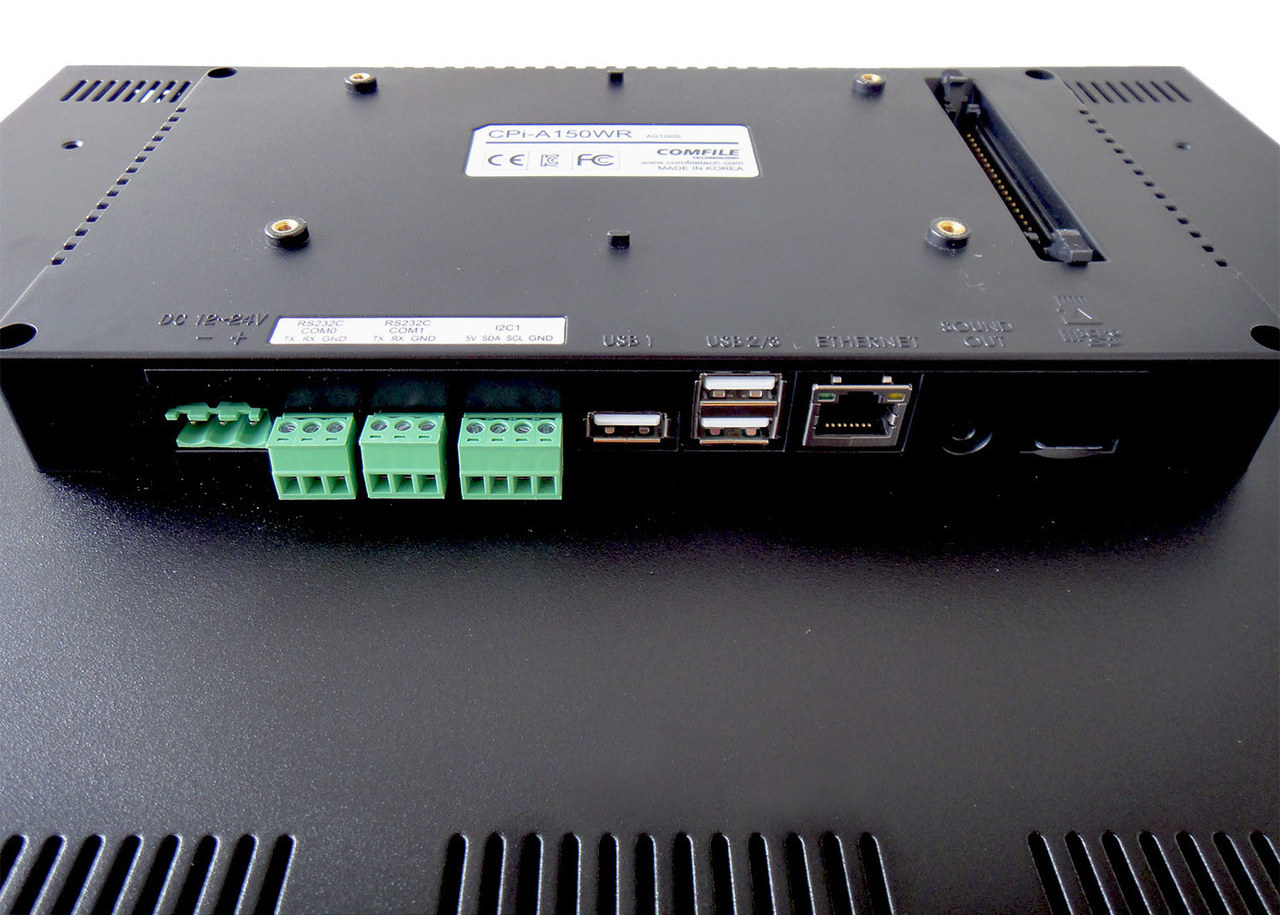

CPi-A150WT Touch Panel PC Ports

Comfile CPi-A150WR panel PC ships with an 8GB SD card preloaded with Raspbian, or Raspberry Pi OS, if they’ve updated their image. Just like its 7-inch (CPi-A070WR) and 10.2-inch (CPi-A102WR) predecessors, the system supports AdvancedHMI software based on the .NET framework and relying on  Microsoft Visual Studio. It’s also possible to develop software for the panel PC using all sorts of programming languages including C, C++, Java, JavaFX, Javascript, Python, C#, Rust, D, and Nim. .Net Core 2.0 runtime is another option. Note the Panel PC only supports Linux, and Android and Windows 10 IoT operating systems for Raspberry Pi 3 board are not supported. More details can be found in the Wiki.

ComfilePi CPi-A150WR Raspberry Pi touch panel PC is available now for $499 from Comfile Technology in Korea or $537 from Saelig in the US.

Via LinuxGizmos
