The quest for a blob-free WiFi & Bluetooth stack for BL602 WiSoC

I thought I was done writing about Bouffalo Lab BL602 WiFI & Bluetooth RISC-V SoC for a while after first covering the chip itself, and then an inexpensive BL602 development board this weekend.

But the BL602 SDK has shown up in various Github repositories, including Bouffalo Lab’s own bl_iot_sdk repository, and as more people are looking into it, there’s now an effort to develop a fully open-source blob-free WiFi & Bluetooth stack for BL602, and other Bouffalo Lab WiFi and/or Bluetooth wireless chips.

First, Sipeed says the code is mostly open-source except for three libraries: ibblecontroller.a, libatcmd.a, libbl602_wifi.a, all of which are un-obfuscated, and easy to disassemble.

Then we have Pine64 that offers free BL602 “PineCone” development boards to anyone that submits a pull request to help the community obtaining an open-source, blob-free WiFi and BLE stack as part of their Nutcracker Challenge. I find the initiative interesting, but a bit backward, as they ask people to commit code before having the hardware to play with. Hopefully, they’ll find a better way to distribute hardware to developers especially they have 1,000 samples on hand.

PineCone BL602 blob-free WiFi Board

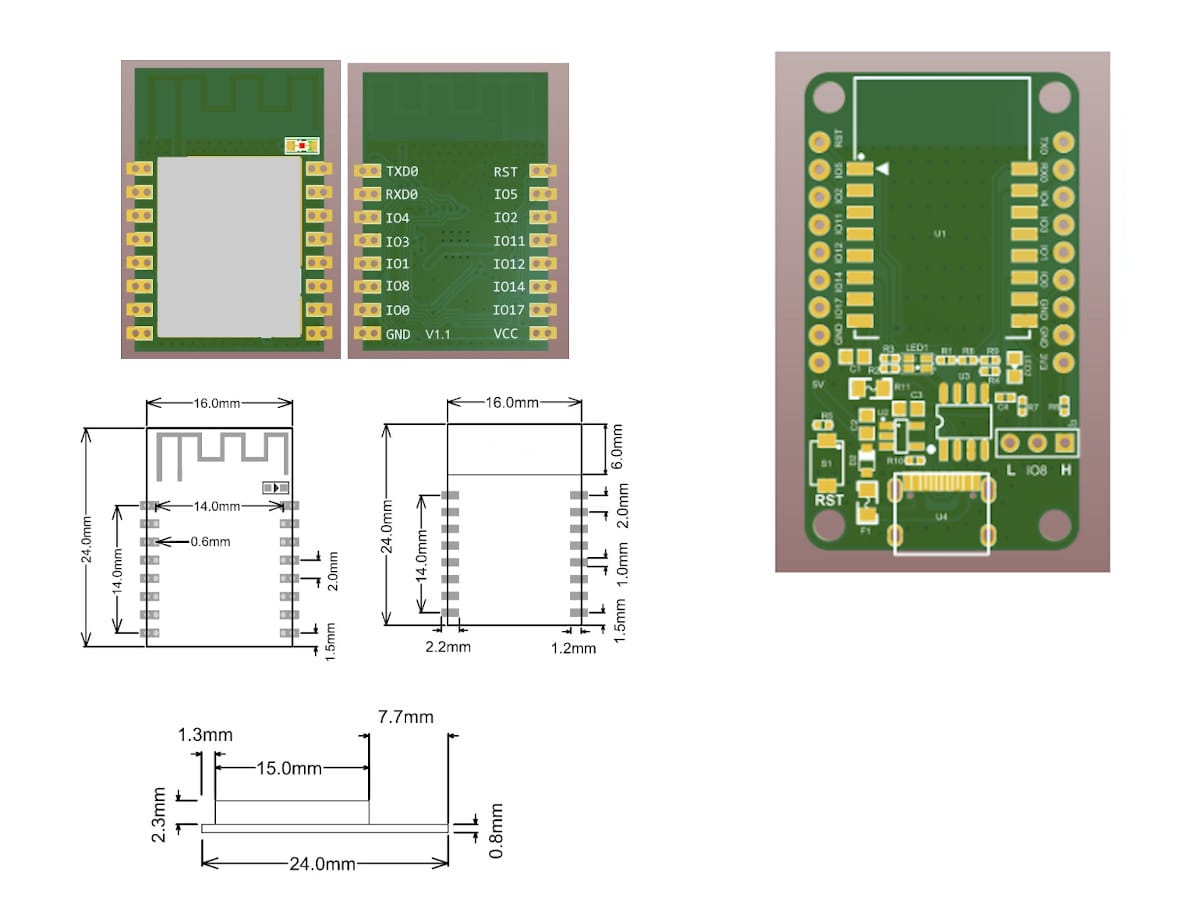

PineCone BL602 Board

I don’t have photos of the PineCone board but only renders. It’s comprised of a breakout board and a BL602 module with the same form factor as the Pine64 PADI IoT stamp.

The company is not yet fully committed to selling the board and module, but if they do they plan to sell the module for $1.99 and PineCone EVB for $3.99.

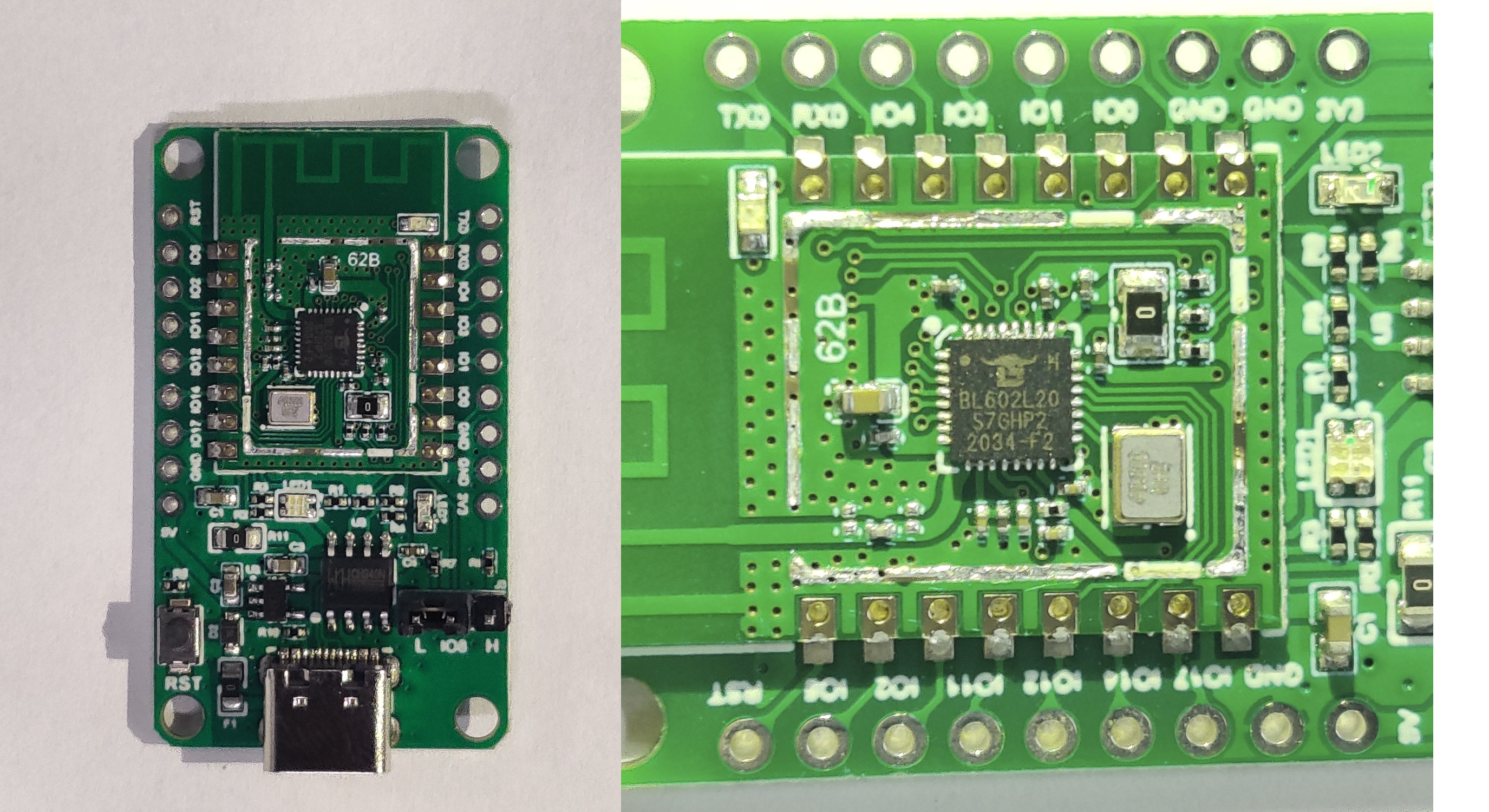

[Update: photos and schematics

PineCone BL602

]

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
33 Comments
oldest
newest
geokon
4 years ago

I don’t know if this was the real intention, but it actually seems quite clever: they can get pseudo anonymous people online to do the disassembling and rewriting of the code while keeping their hands clean legally

If they did the reverse engineering themselves they could get into some trouble

itchy n scratchy
itchy n scratchy
4 years ago

As far as I understand pine has no substantial SW know how in-house, they always cooperate with “the community”.

Also reverse engineering is not per se illegal, if done correctly.

dgp
dgp
4 years ago

>As far as I understand pine has no substantial SW know >how in-house, they always cooperate with “the community”. That might explain why they seem to release interesting boards that end up to not be that useful because the software is crappy. >Also reverse engineering is not per se illegal, if done correctly. Taking apart the binary is probably fine. The thing is that just taking apart the binary doesn’t explain totally how the hardware works and it might take a lot of work to actually get it to do anything. The best you can hope for is that it… Read more »

Philipp Blum
4 years ago

It probably is something off the shelf. They even copied the nordic SDK. They are avoiding to do any additional work. So, it might be a good idea to compare the binary to other known SDKs.

tkaiser
tkaiser
4 years ago

> they always cooperate with “the community”

Exactly. I would go even further and call some of their devices simply ‘a hardware service for a software community’.

Occam
Occam
4 years ago

It needs to be blind…group one disassembles code to determine the functionality. They write a detailed spec describing the functionality but not the code. They hand that spec to developers who have never worked with that hardware develop code to implement functionality and test it. The result will be object code different than the original so it does not infringe on copyright.

itchy n scratchy
itchy n scratchy
4 years ago

Yepp that’s exactly what I meant with my lazy “if done right”…

itchy n scratchy
itchy n scratchy
4 years ago

That will be very interesting, especially if the BLE radio gets properly reversed and documented. I’d love to have direct access to the registers to use the radio for proprietary RF modes similar to i.e. an NRF24L01, while profiting of the quite reasonable BLE radio (I hope theirs is as good as Nordic’s).

Unfortunately Espressif seems to keep their BT/BLE quite hidden AFAICT.

xnc-hardware
xnc-hardware
4 years ago

Reverse engineering is not illegal in Europe|an union.
lib-ble-controller.a,
lib-at-cmd.a,
lib-bl602-wifi.a
So Good luck!

Amazed
Amazed
4 years ago

Yes, that’s it. Espressif semi-officially states that. Because, you know, most haxxors cannot resist the 12 year old hooligan in them…

Willy
Willy
4 years ago

I think they don’t want to be liable. In many places it’s forbidden to distribute hardware, software, or even howtos that may be used to disrupt radio communications. And in this sense, a source file that explains how to reconfigure the radio to use it beyond regulations could be seen as a way to disrupt radio communications. To be honest I don’t think there’s any risk at all, but when you have lawyers, any sentence starts with “imagine if…”.

eas
eas
4 years ago

You don’t think there is any risk of people reconfiguring the radio beyond regulations?

Some end-users using third-party firmware seem quite happy to run WiFi access points on channels that aren’t approved for the use in their jurisdictions. Some are just ignorant, others seem to think they are special.

Philipp Blum
4 years ago

So, you are telling me people are doing illegal things and even protections against it are not stopping them? What a surprise 😀 It is just very helpful to have open source software, even though some people may misuse it. If someone sees this, they get punished accordingly.

Frank Earl
4 years ago

Tell that to the varying Gooberments they have to be responsible to and deal with that this is the case… X-D

I’ve been dealing with the stuff for the better part of a decade plus and had to deal with the Homologation aspects of things when I worked for an Industrial Wireless Comms company

Frank Earl
4 years ago

Not patent control. RF emissions control. It’s considerably harder to get homologation (FCC, etc. approval on the RF emitters on the device) when it’s fully open sourced. The factory floor calibration software for most chips is restricted similarly- you end up with a 2.4 GHz jamming device as a result of this access, even if you don’t misuse it that way.

Anton Fosselius
4 years ago

from BuffaloLabs: “Hi All, thanks for your enthusiasm. After discussion, we decided to move one step further towards open source. We plan to provide one set of low level APIs on mac layer some time later, with that BL602 can work well as one high performance raw packet tranceiver. These APIs will cover HW encryption & deencryption/HW retransmission/HW packet filter/HW DateRate control/HW PowerTable/TSF/Qos/HW Backoff/HW Aggreation. We think these are powerful enough to import Mac80211 and supplicant to implement one open source stack. Things under this layer are related to the HW(RF/PHY) register settings, which can not be open. BTW, the… Read more »

Philipp Blum
4 years ago

Sounds interesting. Thanks for the update. So it really sounds like they don’t want to open source, because you could increase the power on the RF transmitter. I hope we get eventually something similar to Nimble. A Nimble fork would be also good, I think. Quite simple to integrate into existing infrastructure. The best would be, if they just get it merged into Nimble.

dgp
dgp
4 years ago

>So it really sounds like they don’t want to open source,
>because you could increase the power on the RF transmitter.

I think that’s maybe one of the reasons.
The other reason I can think of is that a lot of open source licences have effects on patents i.e. the license doesn’t just grant access to the code but also any patents involved. That might expose their own patents and on the other hand it might expose that they are using stuff that is covered by someone else’s patents.

Frank Earl
4 years ago

Exposing patents is not a concern. By definition, a Patent is explicitly exposed publicly and worldwide wherever it’s given unless it’s classified- which would preclude them selling the device in the first place to anyone OTHER than the Government.

Trade secrets have to not be disclosed.

Trust me…it’s about Homologation concerns. Purely so.

dgp
dgp
4 years ago

Exposing a patent by applying for it != granting a licence to it. Many OSS licenses have implied and explicit patent grants.

itchy n scratchy
itchy n scratchy
4 years ago

Understandable from a radio regulatory/liability perspective, but sad this surely very capable radio can’t be used for such things: http://www.rowetel.com/?p=7467

Philipp Blum
4 years ago

I mean you can also argue that people who are able to change it know what they are doing. So, set the default parameter according to the ISM band standards and this should be fine. I also think it would be beneficial for them as a company. Open source will lead to more adoption. Especially considering all the other, especially Chinese, competitors. A well supported and open source library will increase their market shares.

itchy n scratchy
itchy n scratchy
4 years ago

Sure, I’m a bit torn apart, between I want it as open as possible, open source is not enough, I want the register definitions in their entirety. And otoh I see the ignorance by some Arduino tinkerers when it comes to radio regulations…

Of course with my legal car I can speed, so what is the conclusion?

Philipp Blum
4 years ago

Yes, but these Arduino tinkerers will never change the register. They normally don’t change the library itself. They just want to use BLE or WiFi with their routers. The people who want to go against regulations are also able to do so. They can just use a SDR or something else. There are enough ways.

eas
eas
4 years ago

Give tinkerers a knob they can twiddle to operate in unauthorized spectrum and some of them will twiddle the knob out of ignorance or self-centeredness. Most of them would never bother getting an SDR rig.

eas
eas
4 years ago

I’m not commenting on whether or not the knob should be open-sourced, I just think its naive to think that adding it won’t make it available to more people who will abuse it by making it available at an Arduino-like price point rather than an SDR price-point.

Philipp Blum
4 years ago

SDRs are available for what? 20 or 30 bucks. So that doesn’t stop them. There are enough people buying these unauthorized walkie-takies. That is a bigger deal than this IC. I also don’t think you can adapt this IC to a wide range of frequencies. It only supports WiFi and Bluetooth. Therefore something in the 2.4 and 5 Ghz area. The only parameter you are probably able to change is the output power. If your neighbor is disrupting your WiFi, eventually some technicians of some ISP will see that and this person get punished for it.

dgp
dgp
4 years ago

>to more people who will abuse it by making it available
>at an Arduino-like price point rather than an SDR price-point.

This is like saying the price of sports cars means the people that drive them always keep to the speed limit even though their car can accelerate well beyond it but on the other hand people that drive low cost cars really want to break the speed limit and only don’t do so because their car can’t physically do it.

Philipp Blum
4 years ago

I like the sports car analogy. You also don’t restrict cars, just because some people might drive too fast. You punish these people who do.

Frank Earl
4 years ago

In RF Homologation circles, they don’t think/work that way. Even though they should.

Frank Earl
4 years ago

That’s still not open source, gang. It’s better than most everyone else- but it’s still telling fibs about what it is.
