BL602 IoT SDK and $5 DT-BL10 WiFi & BLE RISC-V development board

Yesterday, we wrote about Bouffalo BL602 32-bit RISC-V WiFI and Bluetooth LE wireless SoC that should eventually compete with ESP8266 in terms of price but with more features, higher performance. and more resources like memory and storage.

At the time, I noted I could not find any tools for the processor, but I was informed a BL602 SDK (Doiting_BL) and documentation had already been released on Github. The basic readme and a user manual are already available in English, but the main documentation is still in Chinese with various examples to configure GPIO, YART, WiFi, and Bluetooth.

BL602 IoT SDK

You’ll find the documentation in Github, as I could not find a website yet:

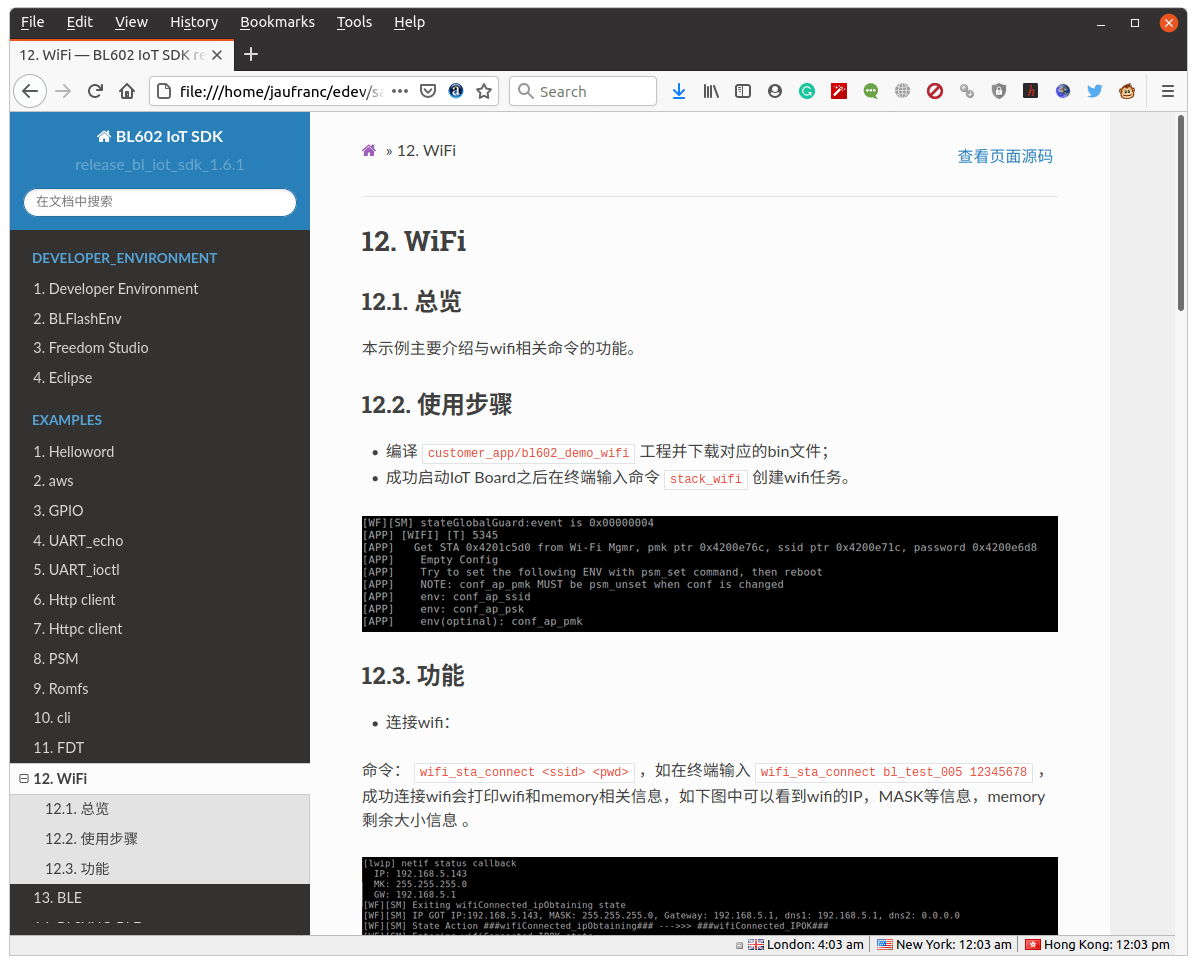

Go to Doiting_BL/docs/html folder and then open index.html in your browser to access the documentation. The SDK works both in Windows and Linux and relies on either Eclipse & OpenOCD or Freedom Studio & OpenOCD. A graphical software called Dev Cube is used for flashing the board.

The documentation is made for a specific board Doit.am DT-BL10 development board powered by BL602 WiSoC that sells for $5 plus shipping on Aliexpress or 19.99 RMB on Taobao (about $3). We’re not at ESP8266 board price level ($2+) yet, but still affordable and interesting for evaluation.

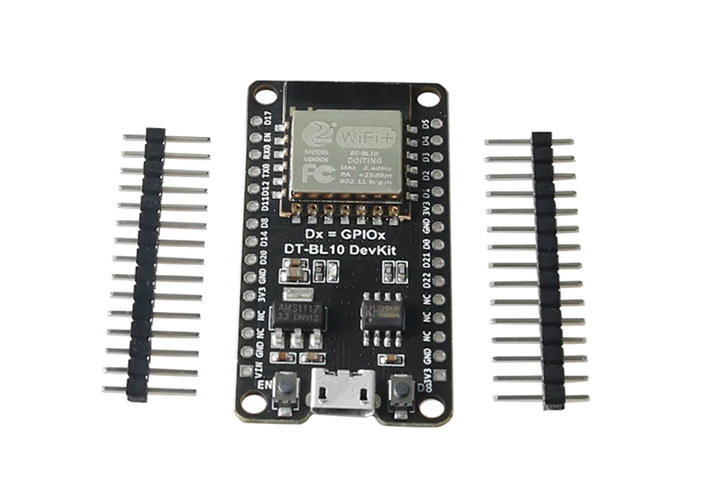

DT-BL10 BL602 Development BoardDT-BL10 module specifications:

  • SoC – Bouffalo BL602 RISC-V processor @ up to 192 Mhz with 276KB RAM, 128KB ROM with WiFi and Bluetooth
  • Wireless
    • 2.4GHz 802.11b/g/n WiFI 4 up to 65 Mbps (802.11n) or 26 Mbps (802.11g)
    • Bluetooth LE 5.0
    • PCB antenna
  • 19x pin around module with
    • Up to 16x GPIO
    • 2x UART, 1x I2C, 1x SPI, 5x PWM
    • 10-bit DAC, 12-bit ADC
    • 1x EN
    • 1x SDIO
    • 3.3V and GND
  • Supply Voltage – 3.0 to 3.6V
  • Power consumption – Deep sleep mode: 22mA;  deep standby mode: 2mA
  • Dimensions – 20 x 16 x 3mm
  • Temperature Range – -20°C to +85°C
DT-BL10 Block Diagram
Block Diagram

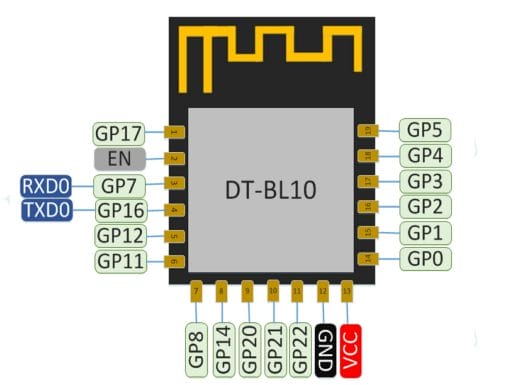

DT-BL10 Pinout Diagram
Pinout Diagram

The module is placed on a breakout board with two 15-pin 2.54mm pitch headers, EN and D8 buttons for flashing, as well as a micro USB port for power and programming.

Now that there are a public BL602 SDK and a cheap development board, we’ll have to see if it gains traction in the maker community, or whether it’s just not worth the effort since ESP8266 and ESP32 solutions are already cheap and well supported.

Thanks to fan for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
12 Comments
oldest
newest
Willy
3 years ago

Such modules could possibly find their place into small devices like smartplugs or weather stations. They’re smaller than the ESPxx equivalent and seem easier to connect, and provide sufficient I/O for most use cases. Look at any nodemcu board, half of the components are used for the logic needed to program/reset/run the device (pull-ups, level shifters, en/gpio0, etc). In addition, by providing I2C/UART/PWM natively, it further simplifies deployments. I found a tiny W600-based TW-02 module in a smartplug that seems easy to use as well, which makes me think the device above could follow the same tracks. But before being… Read more »

dgp
dgp
3 years ago

From a quick skim through the code it doesn’t look insanely smelly but it’s yet another lump the usual stuff like FreeRTOS, lwip etc.

Jeroen
3 years ago

I can find 3 on ali, but they all ask more then 28$ shipping

Andreas
Andreas
3 years ago

Might be better than ESP for Bluetooth to WiFi bridge and BT tracking for home automation

David Willmore
David Willmore
3 years ago

At this price they compete more with the ESP32 and they come out on the losing side. If the price comes down to ESP8266 levels, there may be a reason to look at these parts. Until then, not really.

Noloqoq
Noloqoq
3 years ago

Sipeed anounced on their channel <1$ price for their own board based on this chip.

Anton Fosselius
3 years ago

Thanks, ordered 2 dev boards. if chip price is low, then this might be really interesting.

Peter
Peter
3 years ago

Thanks for the heads up on these. Have also bought two to give them a try. Hopefully they won’t end up in the drawer with all the the other ‘potential next things’ 😉 Given it is early days, and the information is still slim pickings, I have high hopes. Since pine64 is evaluating this, it will be interesting to see how much interest and support this MCU generates. If it gets support in IDEs like PlatformIO, and sits inbetween the ESP8266 and ESP32 in features, but at an ESP8266 price point, I can see the potential for it displacing the… Read more »

Anton Fosselius
3 years ago

official SDK is now up here:
https://github.com/bouffalolab/bl_iot_sdk

Phil
Phil
3 years ago

Just received 3 of these boards ($15 for 3 on Banggood – same one pictured above) – has anyone succeeded in getting the tools to work? Instructions in chinese and they don’t seem to match the directory structure you get from cloning that git repo above (https://github.com/SmartArduino/Doiting_BL)
