Pebble Tracker nRF9160 GPS & cellular IoT platform connects to IoTeX blockchain (Crowdfunding)

Nordic Semi nRF91-series of Cortex-M33 SoCs with NB-IoT and LTE-M (eMTC) cellular IoT connectivity was first unveiled in 2018. The first member of the family is nRF9160 System-in-Package (SiP) which also comes with GPS, and we’ve found it Nordic’s own Thingy:91 devkit, as well as in various modules and development boards from third parties.

There’s now a new kit called Pebble Tracker that features Nordic Semi nRF9160 with NB-IoT, LTE-M, and GPS connectivity, as well as environmental, motion, and light sensors. The cellular IoT prototyping platform works with the IoTeX blockchain to design decentralized IoT solutions with higher security.

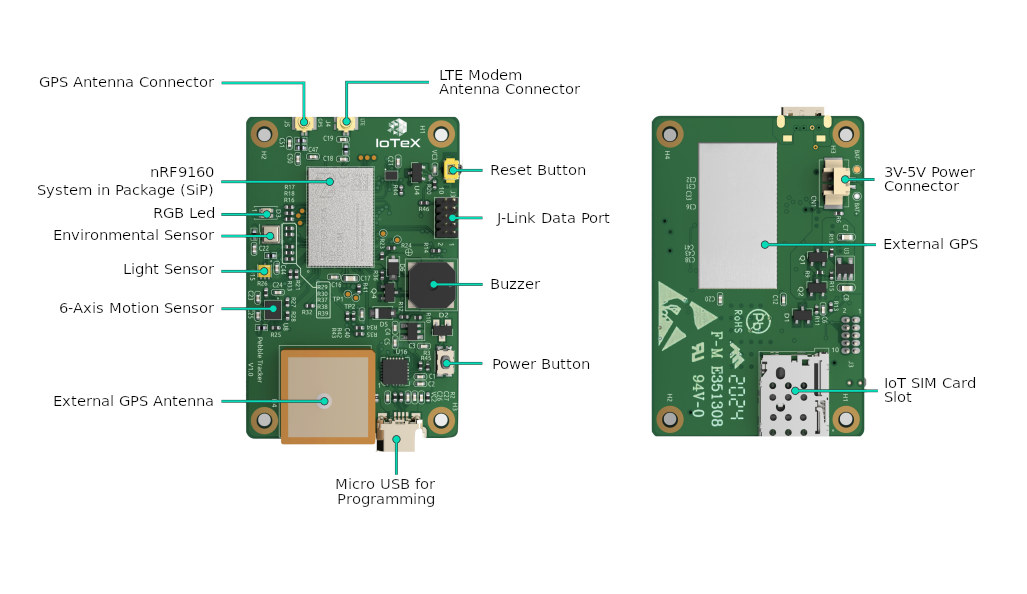

Pebble Tracker nRF9160 boardPebble Tracker hardware specifications:

  • Wireless module – Nordic Semi nRF9610 SiP
    • MCU Core -​ Arm Cortex-M33 @ 64 MHz
    • Storage & Memory – 1 MB flash, 256 KB SRAM
    • Connectivity – LTE-M / NB-IoT modem with support for bands from 700 MHz to 2.2 GHz)
    • Security – Arm TrustZone
  • IoT SIM card slot
  • GNSS – TD1030 GPS receiver (time-multiplexed with LTE modem) with 3-meter position accuracy, 0.1 m/s speed accuracy, plus external antenna
  • Sensors
    • Bosch BME680 Environmental Sensor for humidity, pressure, temperature, and air quality (VOCs) measurements
    • ICM-42605 Motion Sensor with 3-axis gyroscope, 3-axis accelerometer
    • AMS TSL2572 Ambient Light Sensor
  • Programming/Debugging – 1x Micro USB port for programming, J-Link data port
  • Misc – 2700 Hz buzzer, RGB LED, Power & Reset buttons
  • Supply Voltage – 3 V to 5.5 V via a power connector
  • Dimensions – 5.3 x 3.5 cm
  • Weight – ~10 g

Pebble Tracker specificationsIt’s interesting to note that the board relies on an external GPS instead of the built-in GPS found in (some?) nRF9160 SiP. Maybe the need for a higher position and speed accuracy drove the move.

Pebble Tracker firmware is open-source with the code available on Github and can be used with ThingsBoard open-source IoT platform to manage the devices, process and visualize data for the sensors as pictured in the above screenshot, or other IoT solutions.

ThingsBoard Pebble Tracker
Pebble Tracker data in ThingsBoard u

Pebble Tracker specifically offers either hosted or custom backend configurations:

  • The hosted backend utilizes open-source software including hmq (MQTT broker), minIO (K8S storage), and ThingsBoard (data visualization) that typically used for prototyping and development
  • The custom backend is used for production/deployment with, for instance, AWS IoT Core (device management), AWS S3 (object storage), and ThingsBoard (data visualization) with support for SSL/TLS client certificates.

Check out the documentation to get started with Pebble.

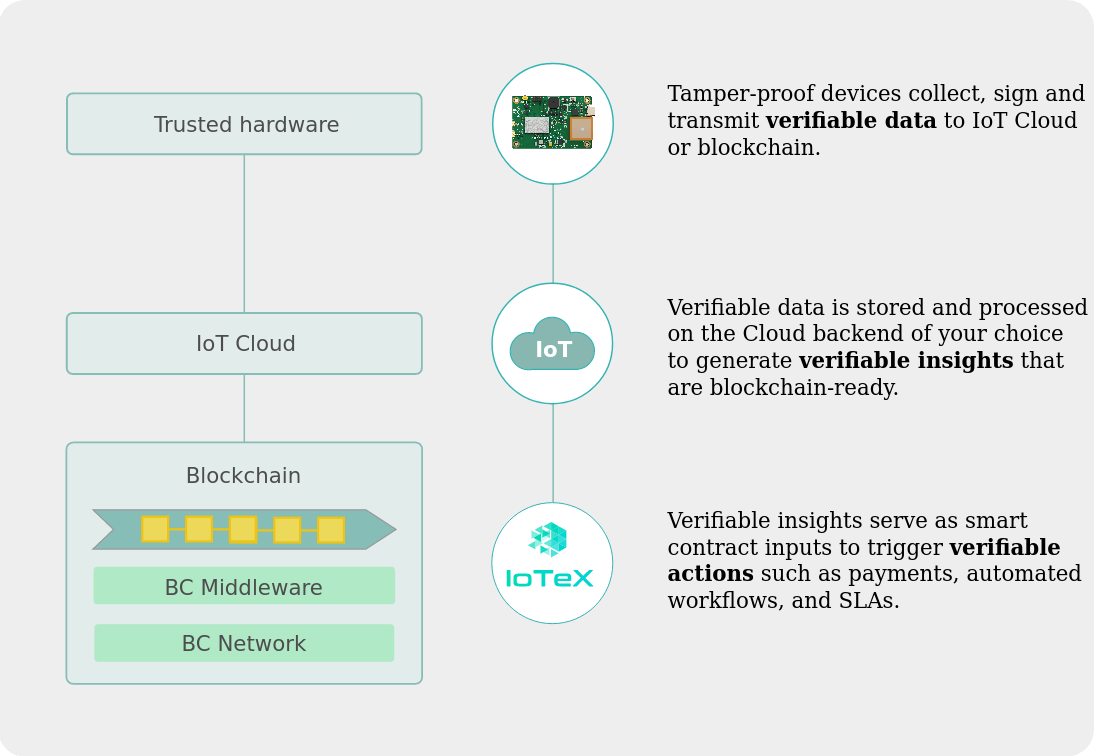

IoTeX Blockchain

Since the board is made by IoTeX, and the company highlights its blockchain solution which is said to improve node to cloud security:

Pebble Tracker integrates seamlessly with the IoTeX blockchain to empower decentralized IoT solutions with end-to-end trust. The combination of blockchain and secure hardware is incredibly powerful, allowing verifiable data from trusted devices to enforce the execution of verifiable smart contracts on the blockchain. While tamper-proof hardware like Pebble Tracker offers trusted data, tamper-proof software like blockchain offers trusted execution of code. When combined, blockchain + IoT ensures both the provenance/authenticity of data and the verifiability of data processing without the need for centralized, error-prone intermediaries.

The higher trust enabled by blockchain technology is supposed to enable new IoT applications with smart contracts being used for payments, automated workflows, and SLAs.

IoTeX has just launched the Pebble Tracker on Crowd Supply, where you can pledge $99 for the board, a plastic enclosure, an LTE antenna, a Micro USB-to-USB-Type-A cable, and a label with the board’s IMEI number which makes it competitive with other nRF9160 boards as we can see from the table below. Shipping adds $8 to the US and a bit more to the rest of the world, and rewards are scheduled to start shipping in mid-June 2021.

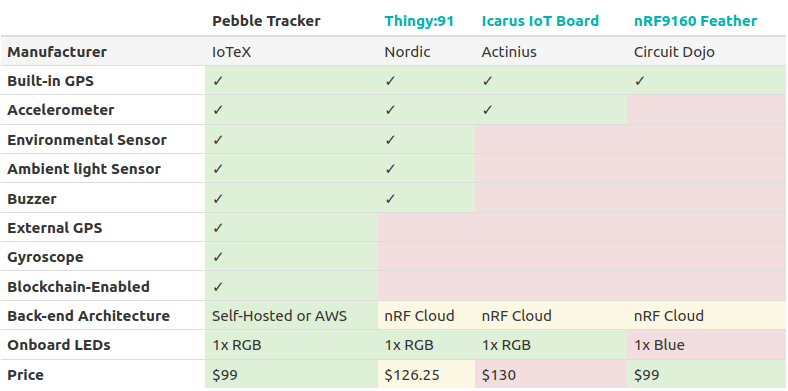

Pebble Tracker vs Thingy:91, Icarus, nRF9160 Feather

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

6 Replies to “Pebble Tracker nRF9160 GPS & cellular IoT platform connects to IoTeX blockchain (Crowdfunding)”

      1. Maybe I should have called it a token as it’s not only a crypto currency, but each IoTeX token has a monetary value attached to it.

        I don’t really understand very well anything related to blockchain and cryptocurrency.

        1. Каждый аппарат подключеный к сети влияет на эмиссию данной криптовалюты, чем больше подключено тем меньше монет данной криптовалюты а значит и дороже она стоновится. По сути первая криптовалюта обеспеченная хоть чем то, а не просто из воздуха

          1. Translation:

            Each device connected to the network affects the emission of a given cryptocurrency, the more connected, the fewer coins of this cryptocurrency, which means it becomes more expensive. In fact, the first cryptocurrency backed by at least something, and not just out of thin air

        2. Well to be honest once I had the impression I got my head around the concept of the Blockchain, but more and more I’m thinking those applying it in products do so just because the CEO/marketing dept./product manager found that it is modern and would boost sales figures.

          Maybe I’m getting old? Lacking creativity? Who knows
