Windows Performance on an Intel NUC 11 Enthusiast Phantom Canyon NUC11PHKi7C

nuc11phki7c review

The Enthusiast Phantom Canyon is Intel’s flagship product from its latest NUC 11 range of mini PCs. Specifically targeting gamers it includes an NVIDIA RTX 2060 GPU. In this article, I take a brief look at the performance under Windows and compare it against Intel’s previous NUC with a discrete GPU: the NUC 9 Extreme Ghost Canyon.

Hardware Overview

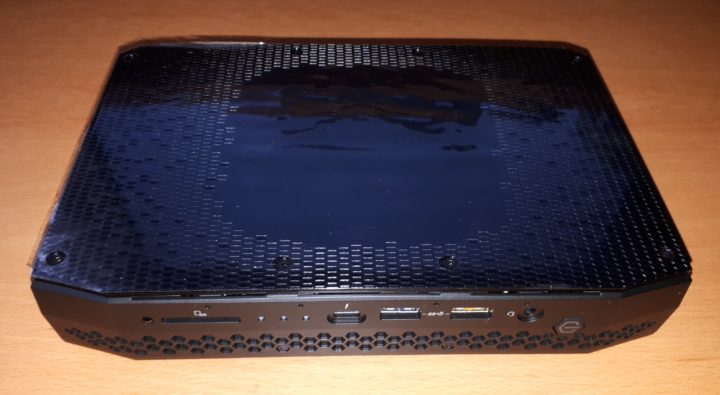

The NUC11PHKi7C physically consists of a 221 x 142 x 42 mm (8.70 x 5.59 x 1.65 inches) rectangular plastic case which is remarkable because of its size and is similar to just a graphics card like NVIDIA’s GeForce RTX 2060 Founders Edition (229 x 113 x 35 mm). It is an actively cooled mini PC and uses Intel’s 10 nm Core i7-1165G7 Tiger Lake processor which is a quad-core 8-thread 2.80 GHz processor boosting to 4.70 GHz with Intel’s Iris Xe Graphics. But it also includes NVIDIA’s N18E-G1-B notebook graphics card which is a GeForce RTX 2060 mobile GPU. As a Max-P (max-performance) card, its power is limited to 115W as opposed to 160W for the desktop equivalent and consequently has lower clock and memory speeds.

As I purchased the NUC11PHKi7C barebones model I added a 2TB M.2 2280 NVMe drive from addlink (S70), 32GB (2 x 16GB) DDR4 2400MHz of memory from Samsung, and then installed Windows 10 Pro. For the comparison, the NUC 9 Extreme I used was NUC9i7QNX which has a 2TB M.2 2280 NVMe drive from ADATA (XPG 8200 Pro), 64GB (2 x 32GB) of Team Group’s Team Elite DDR4 3200MHz memory, an EVGA GeForce RTX 2060 KO ULTRA GAMING GPU together with Windows 10 Pro.

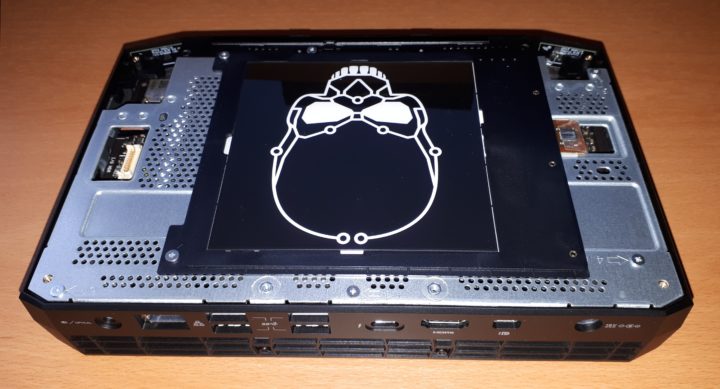

On booting the NUC11PHKi7C the most striking feature is that the top lights up with a blue skull. This can be changed either physically by modifying/replacing the ‘silhouette’ inside the device:

NUC11PHKi7C skull

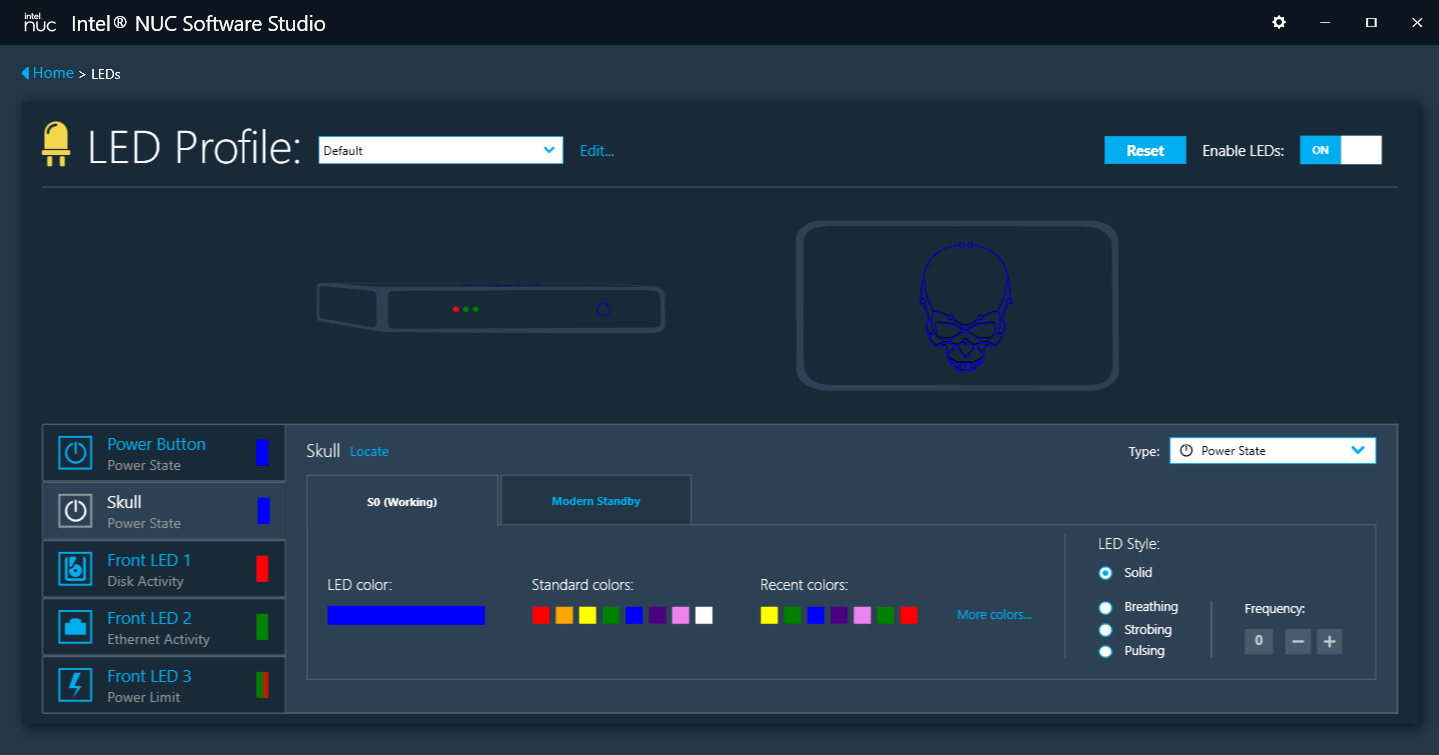

or with settings in the BIOS or through running the Windows ‘Intel NUC Software Studio’ application:

led management

Installation Issues

Originally I intended to use the two 32GB sticks of Team Group’s memory from my NUC9i7QNX in my new NUC11PHKi7C. However, after installing the memory, booting resulted in the power light flashing three times indicating a memory issue. As a result, I had to use some Samsung memory as it booted without issue.

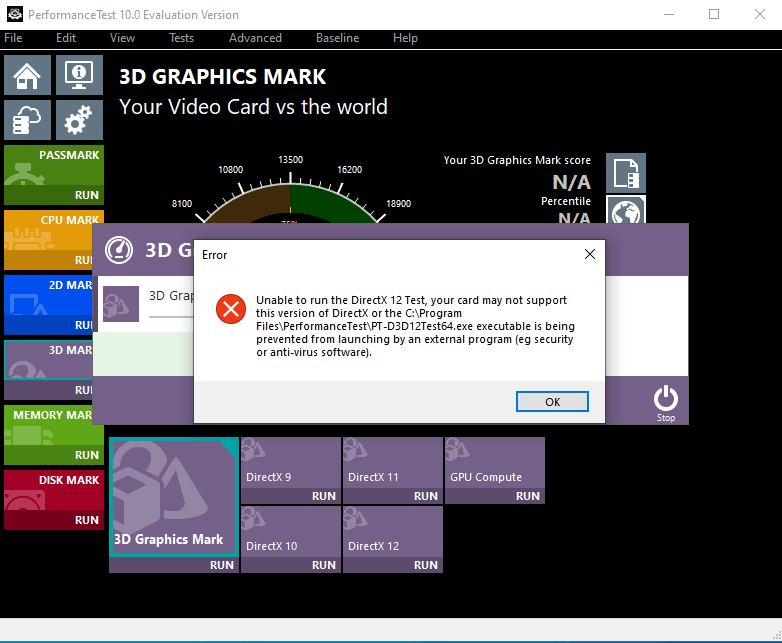

During testing using 1080p monitors I found that DirectX12 refused to run:

directx12 issue

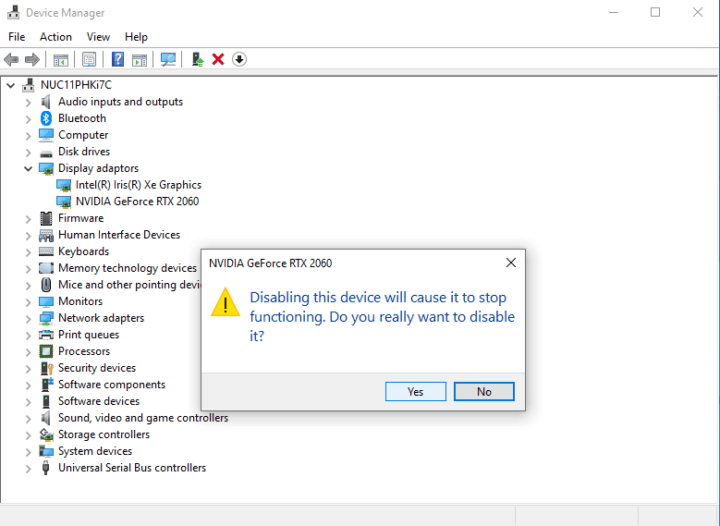

whereas there were no problems when using a 1440p monitor even at 1080p resolution. After much experimentation I found that disabling and then enabling the NVIDIA display adapter fixed the issue until a reboot:

directx12 workaround

I also had intermittent HDMI audio using 1080p monitors which could be fixed by unplugging and replugging the HDMI cable so it appears there are some initial driver issues.

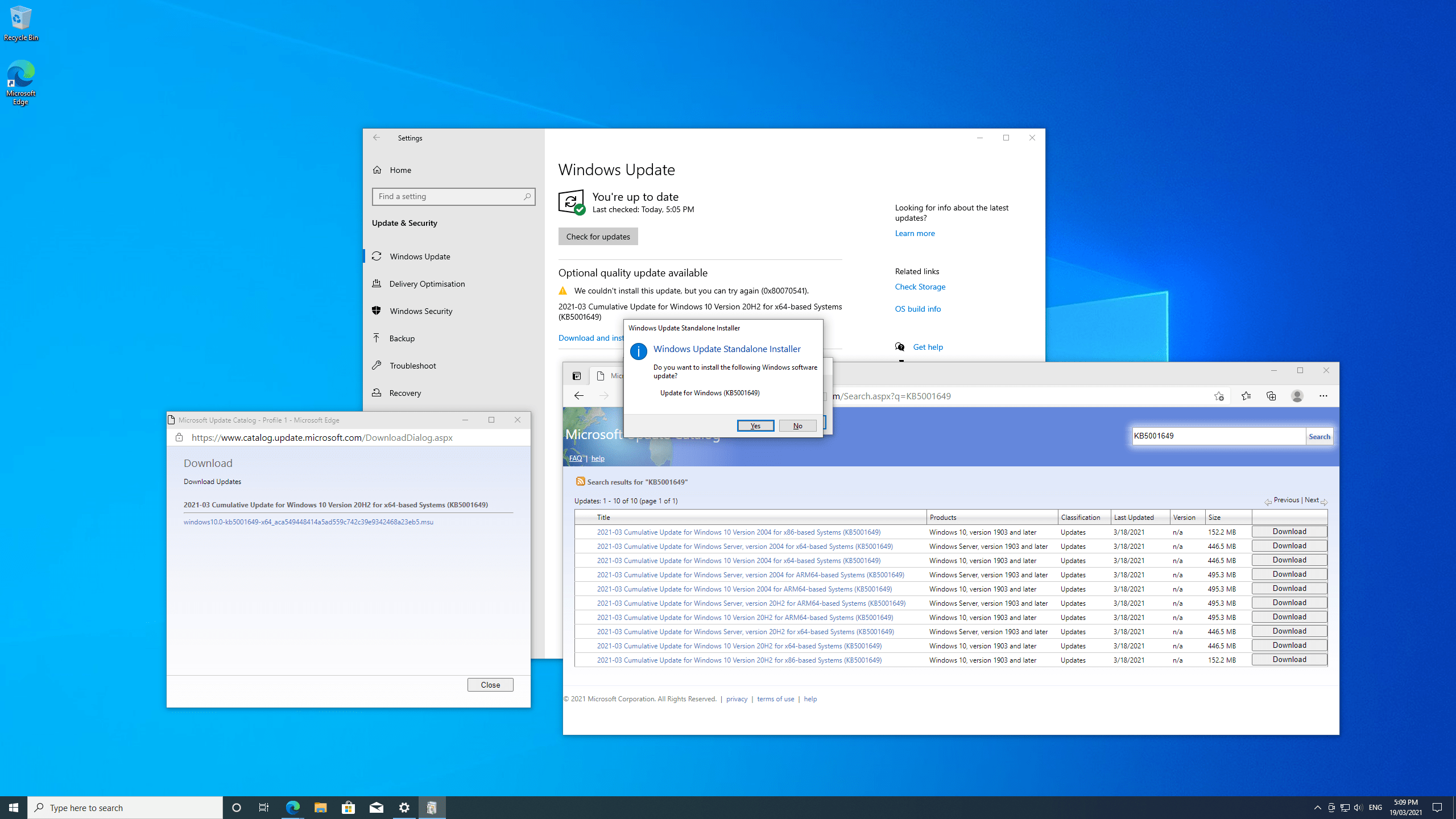

Originally, I performed a clean Windows installation on both NUC. However, because of investigating the above issues I had to repeat the installation on the NUC11PHKi7C prior to benchmarking but when doing so encountered the issue of update KB5001649 failing to install so resorted to installing it manually:

NUC11 Windows 10 update issue

This resulted in a slight difference of Windows versions between both NUC: on the NUC 9 Extreme the OS build was 19042.868 after applying all updates but now on the NUC 11 Enthusiast it became 19042.870.

Windows Performance

Prior to running any benchmarks, I set the performance to maximum. On both the NUC 9 Extreme and NUC 11 Enthusiast this can be set in the BIOS:

nuc9-bios

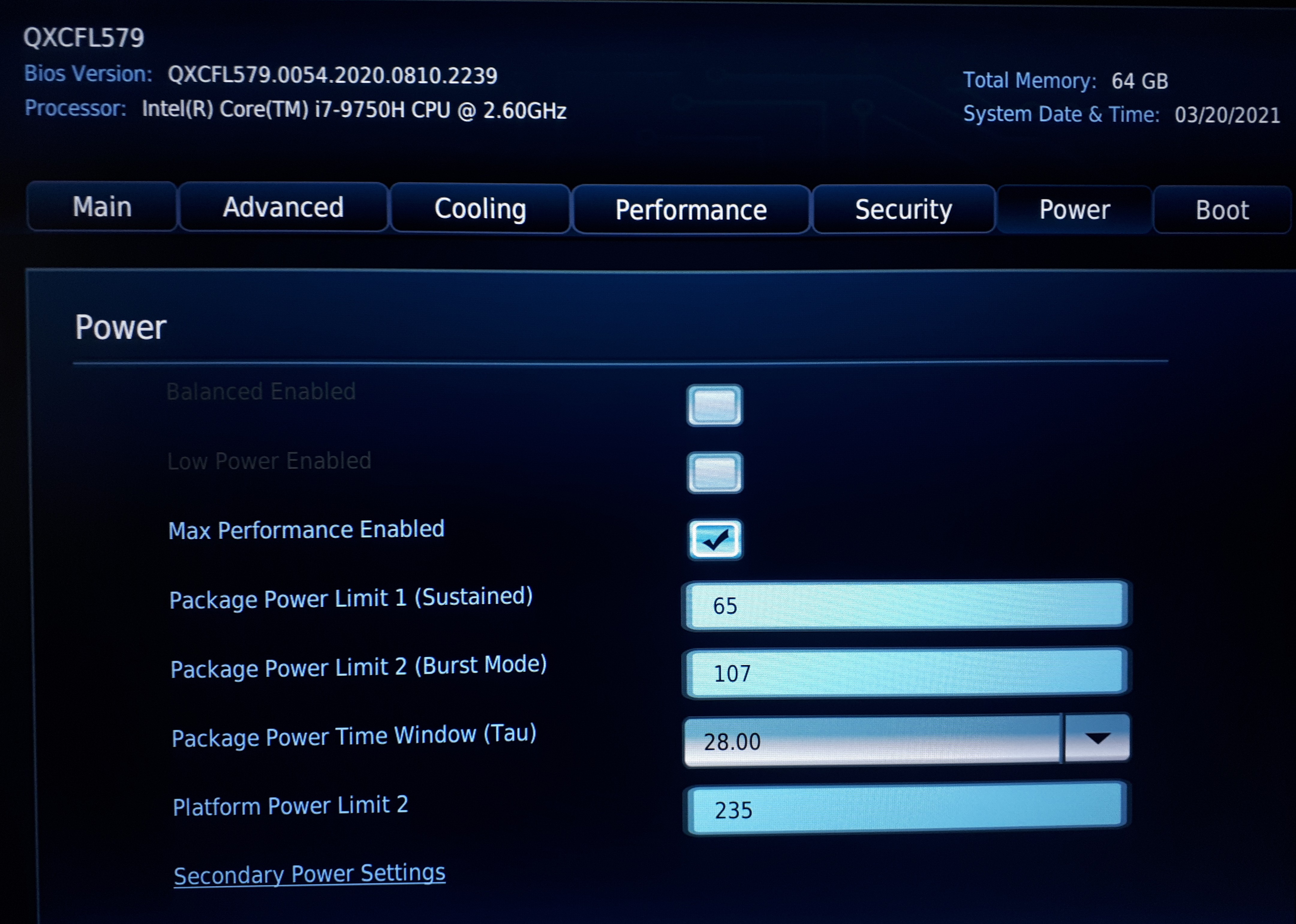

NUC9 BIOS

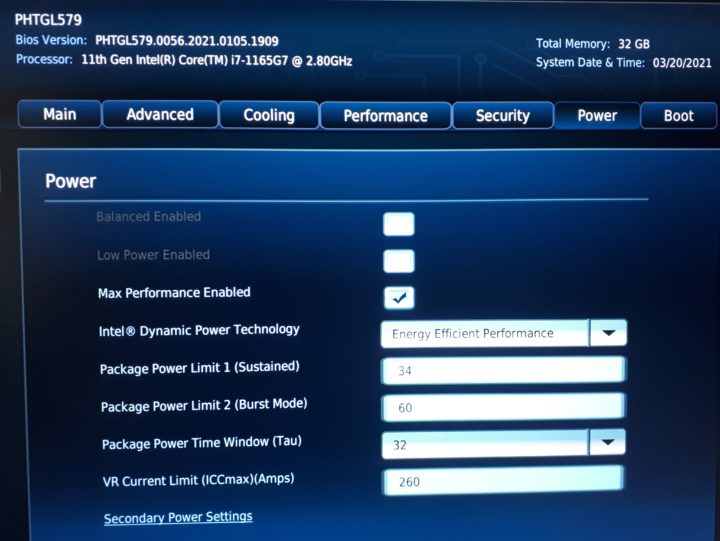

NUC11 BIOS

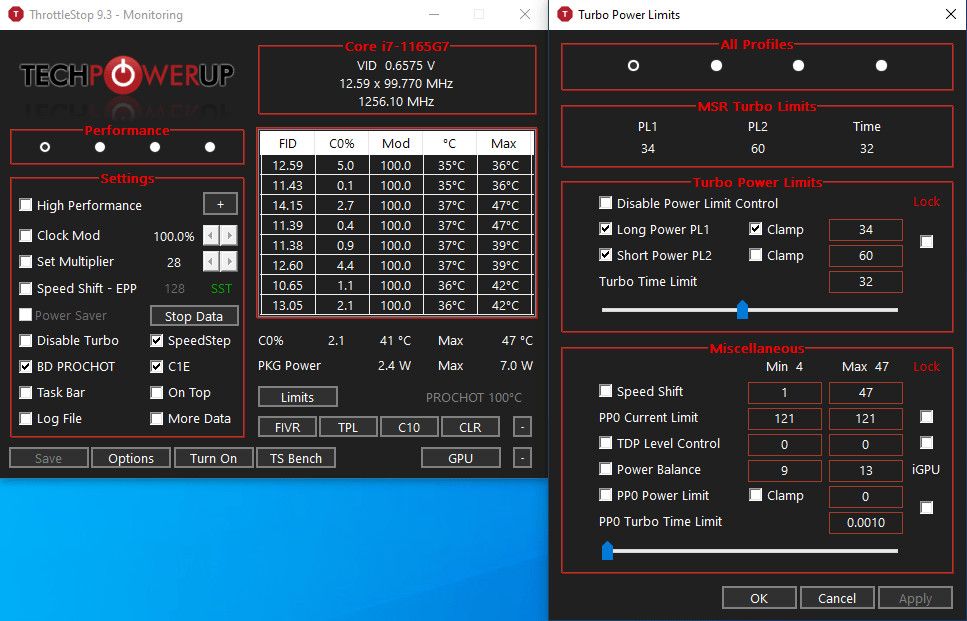

and this can be checked by using Throttlestop although I did not attempt to change the PL values manually:

throttlestop

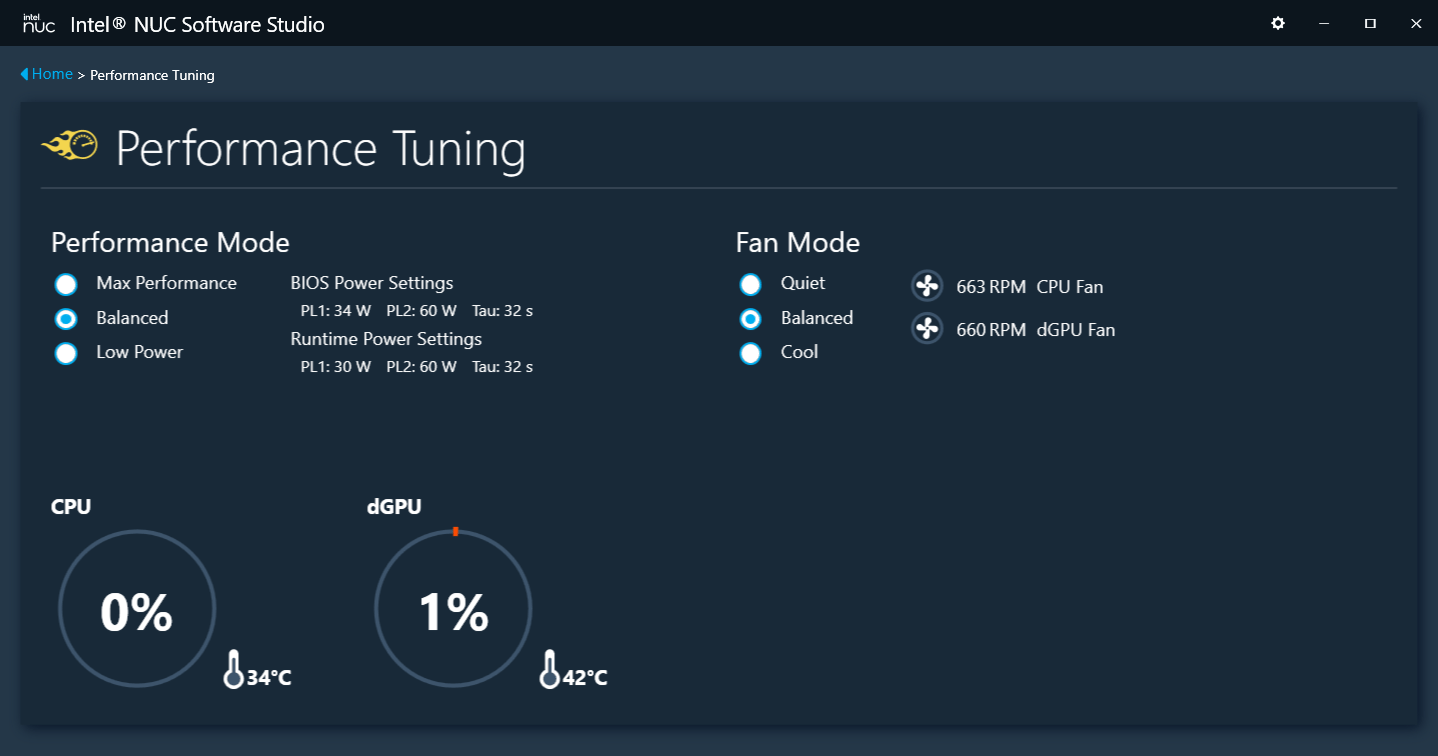

Interestingly the ‘Intel NUC Software Studio’ application also includes the ability to set the performance mode and works by changing the value for PL1 dynamically at runtime:

performance mode

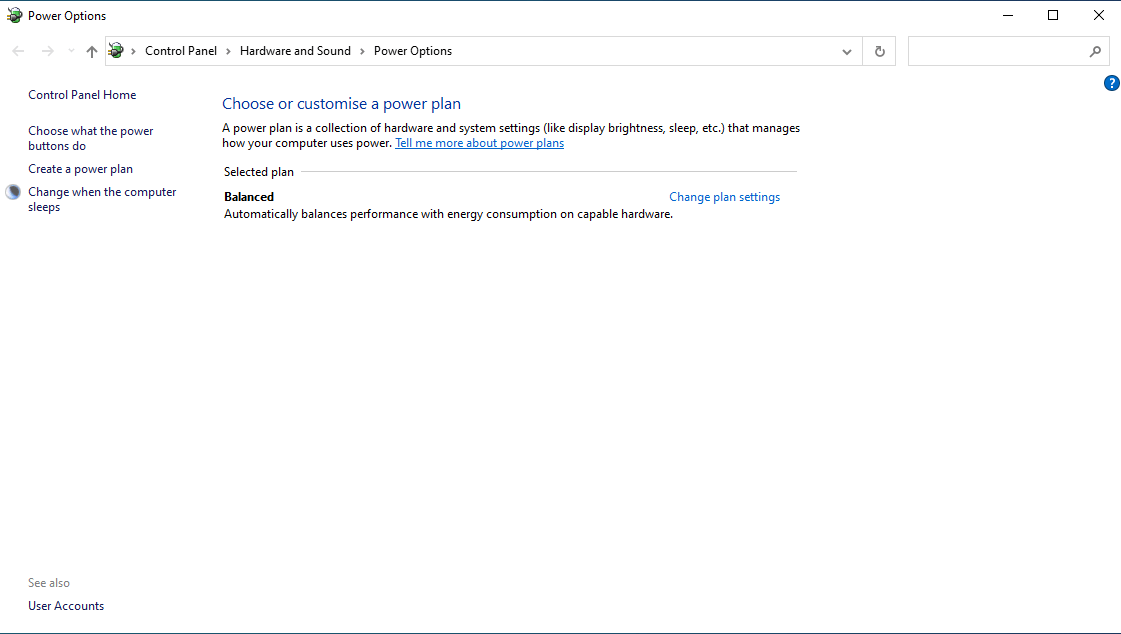

Typically I also change the power plan to ‘High performance’ however on the NUC 11 Enthusiast this option is not available:

power plans

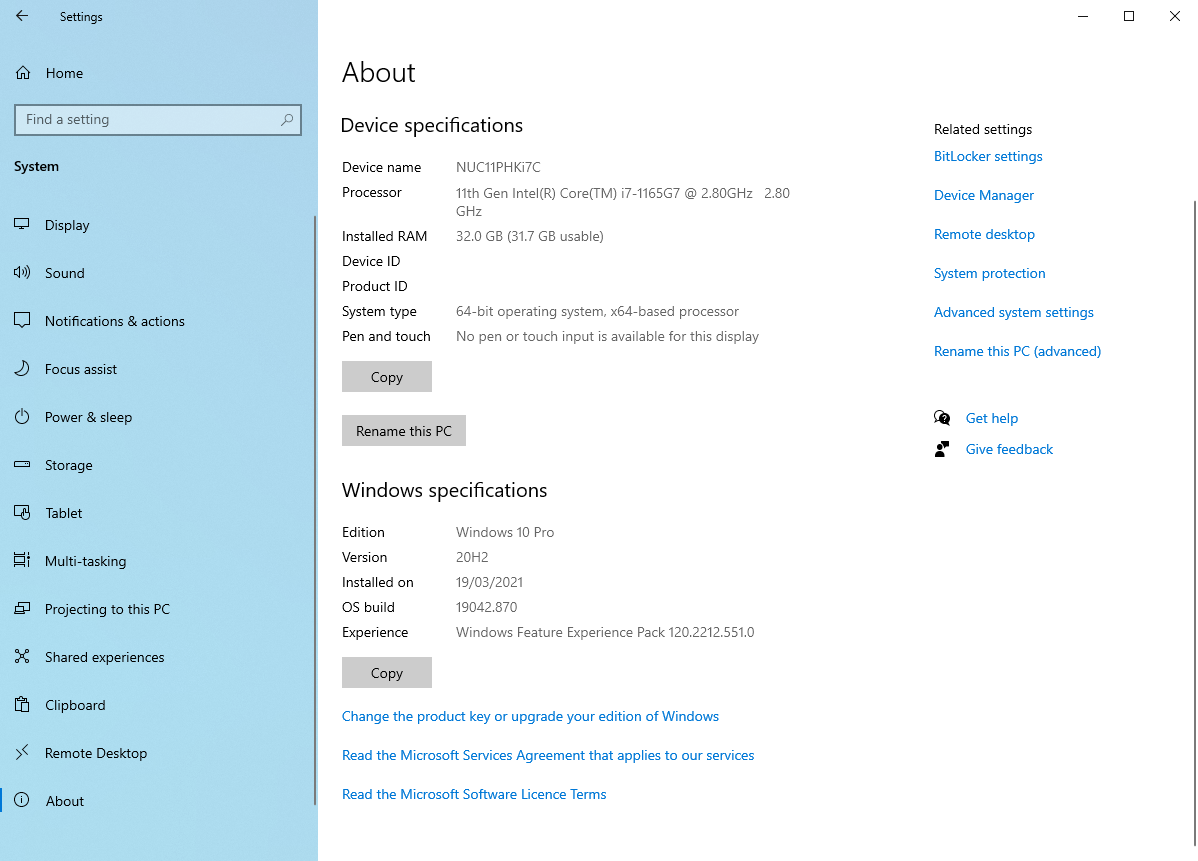

First a quick look at the hardware information:

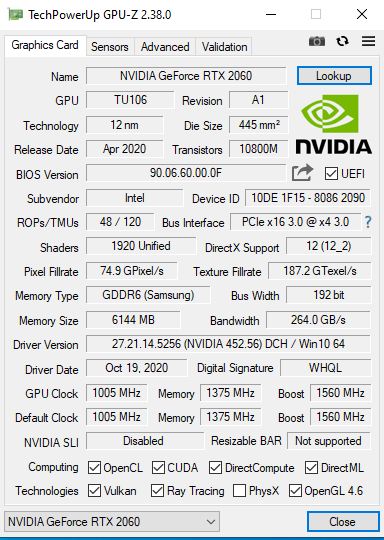

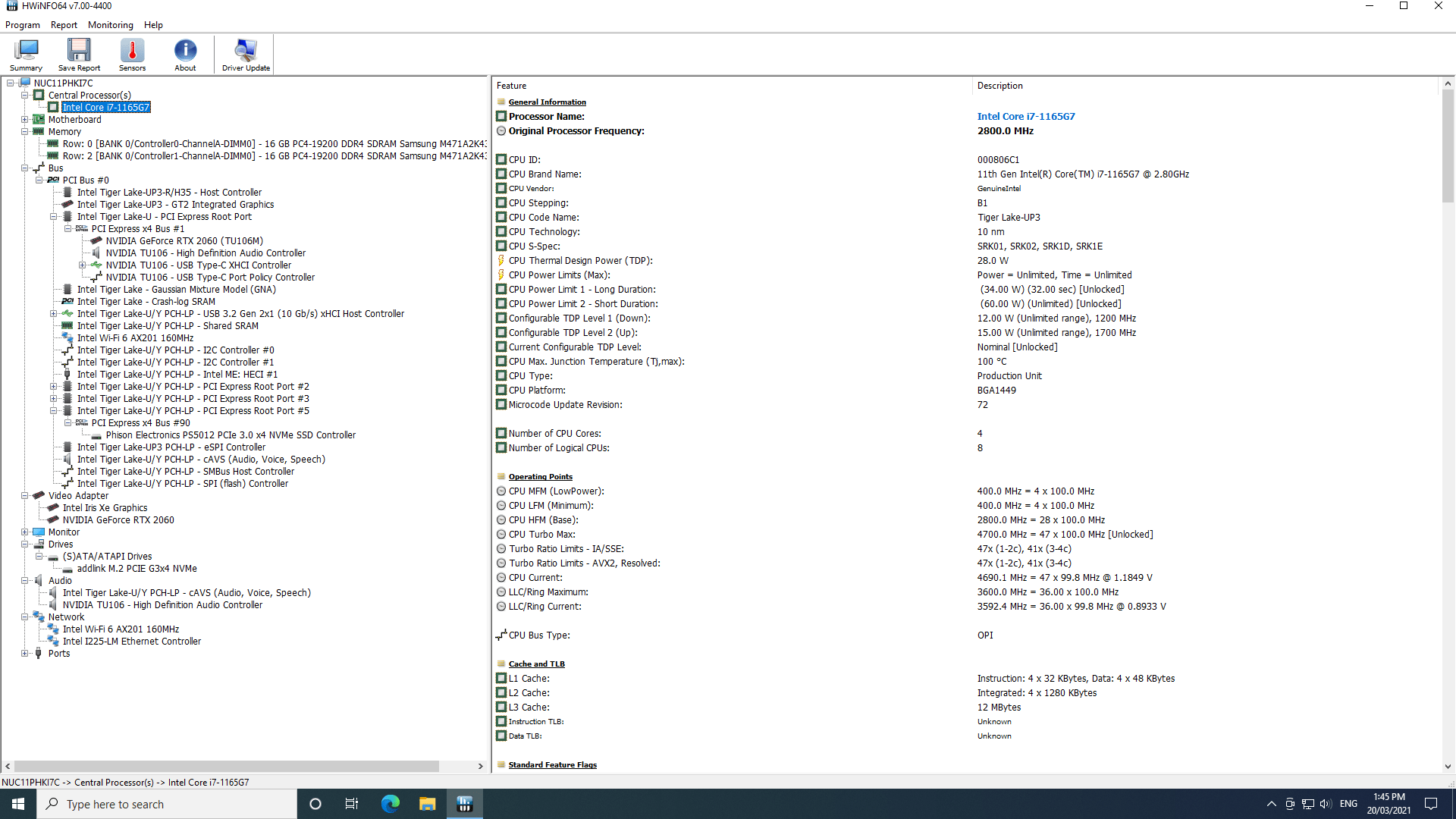

NUC11 windows configuration windows 10 info windows 10 hwinfo tiger lake windows gpu-z

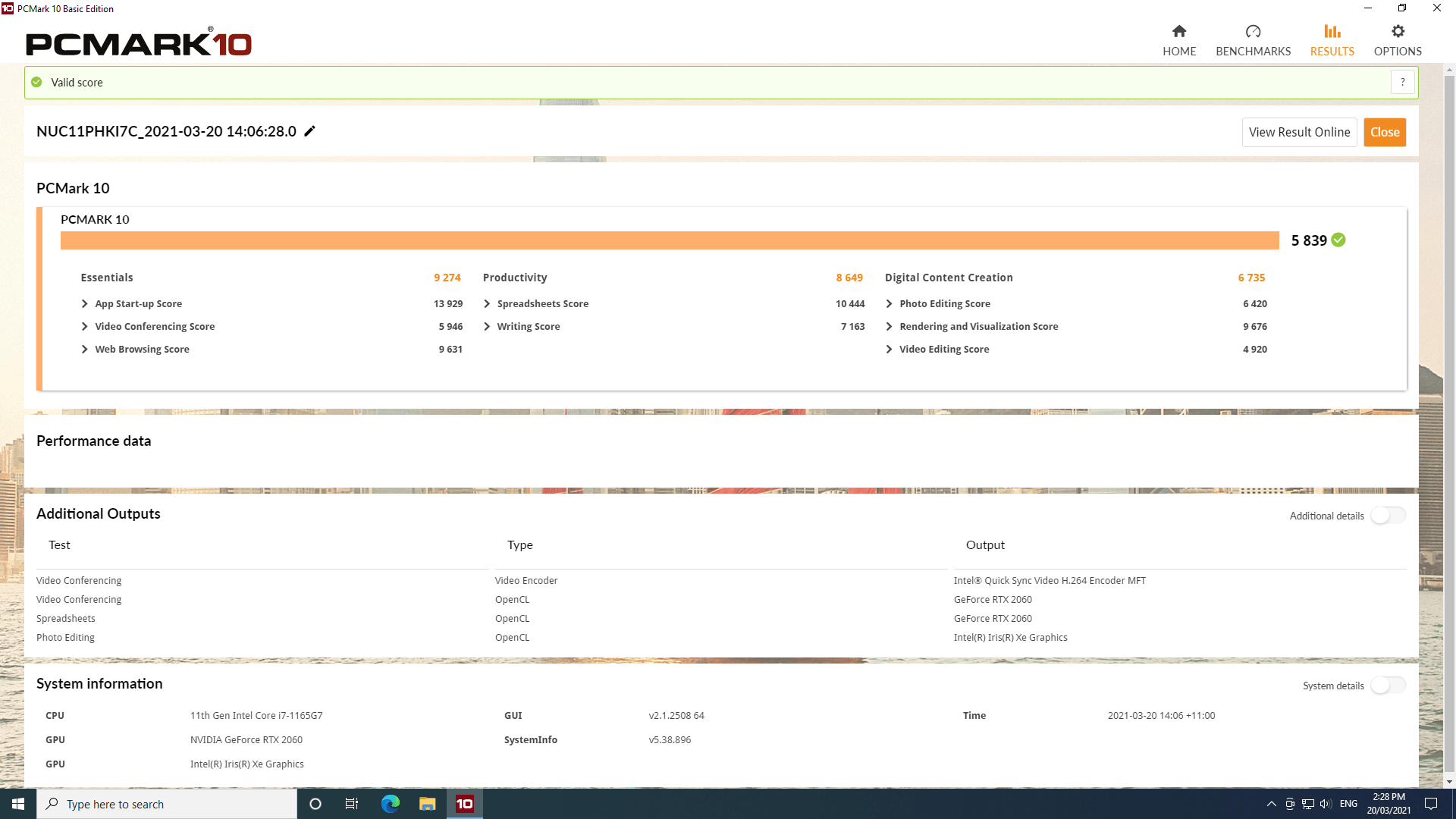

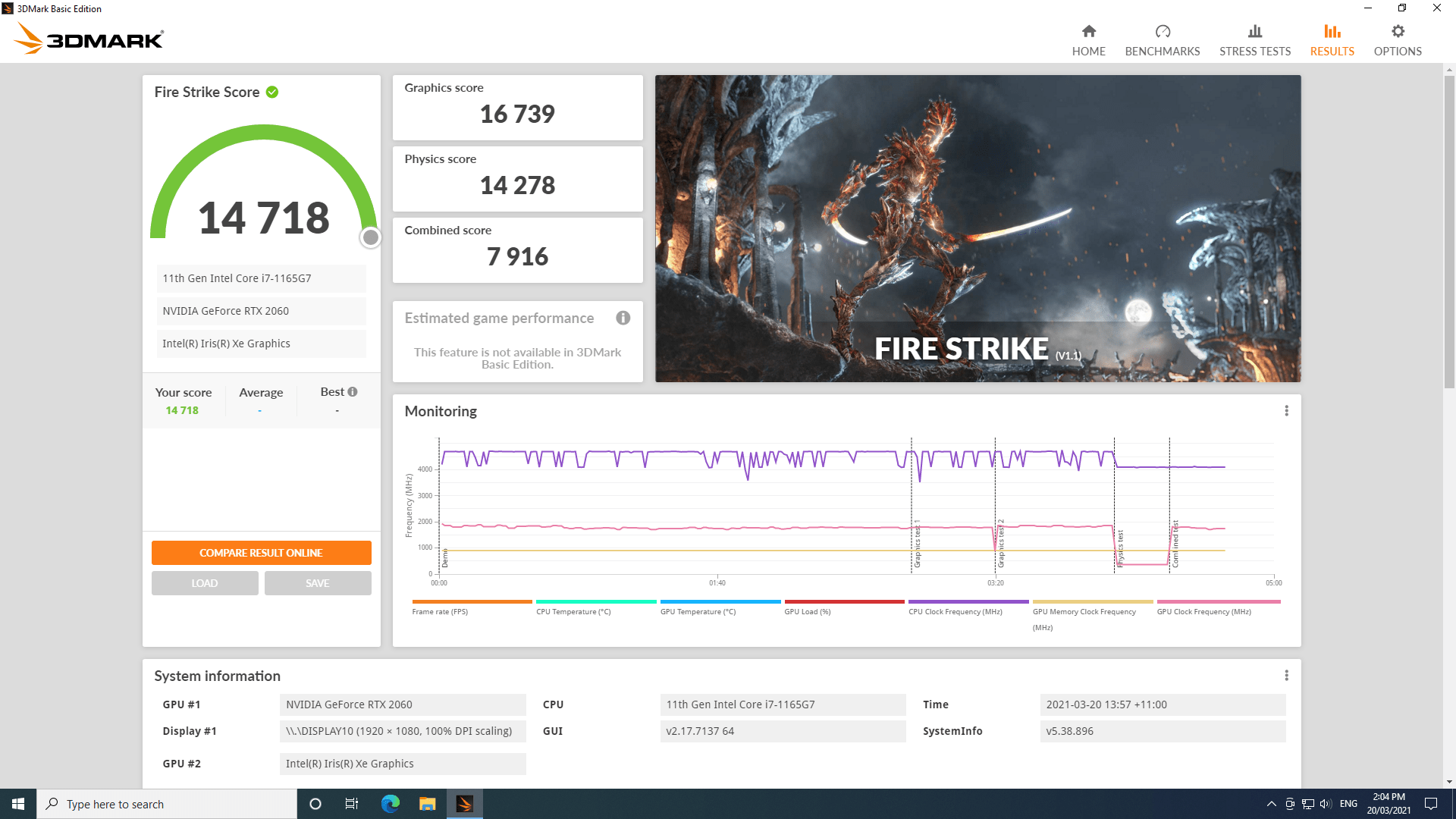

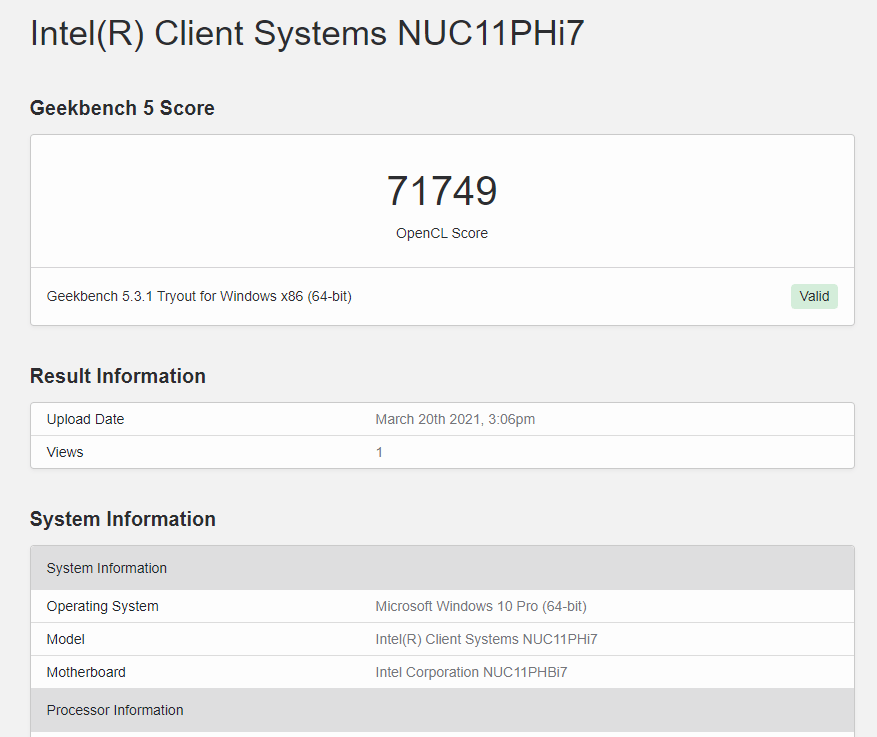

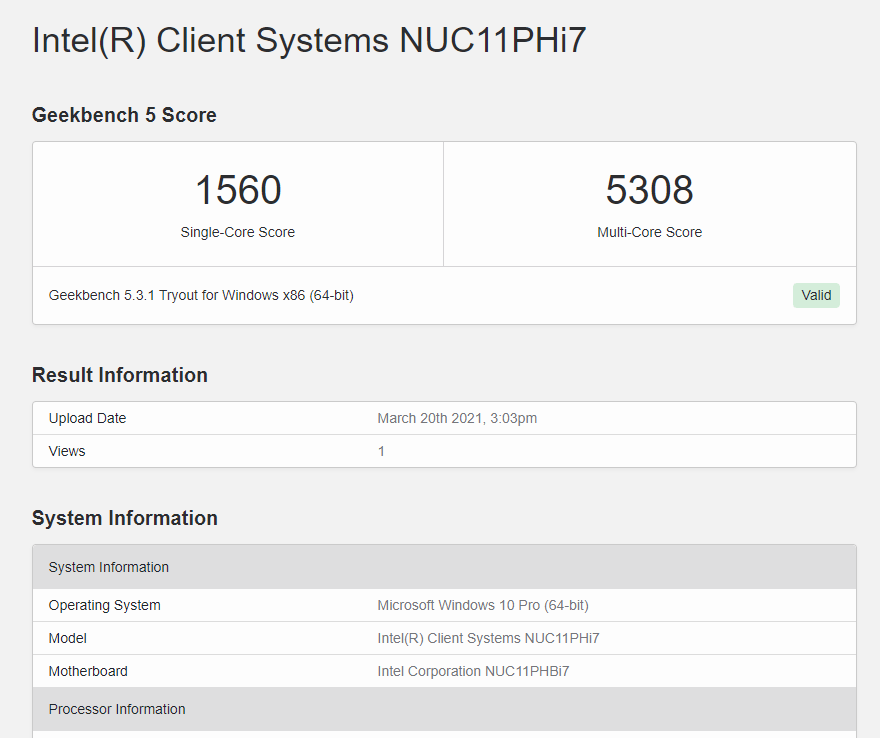

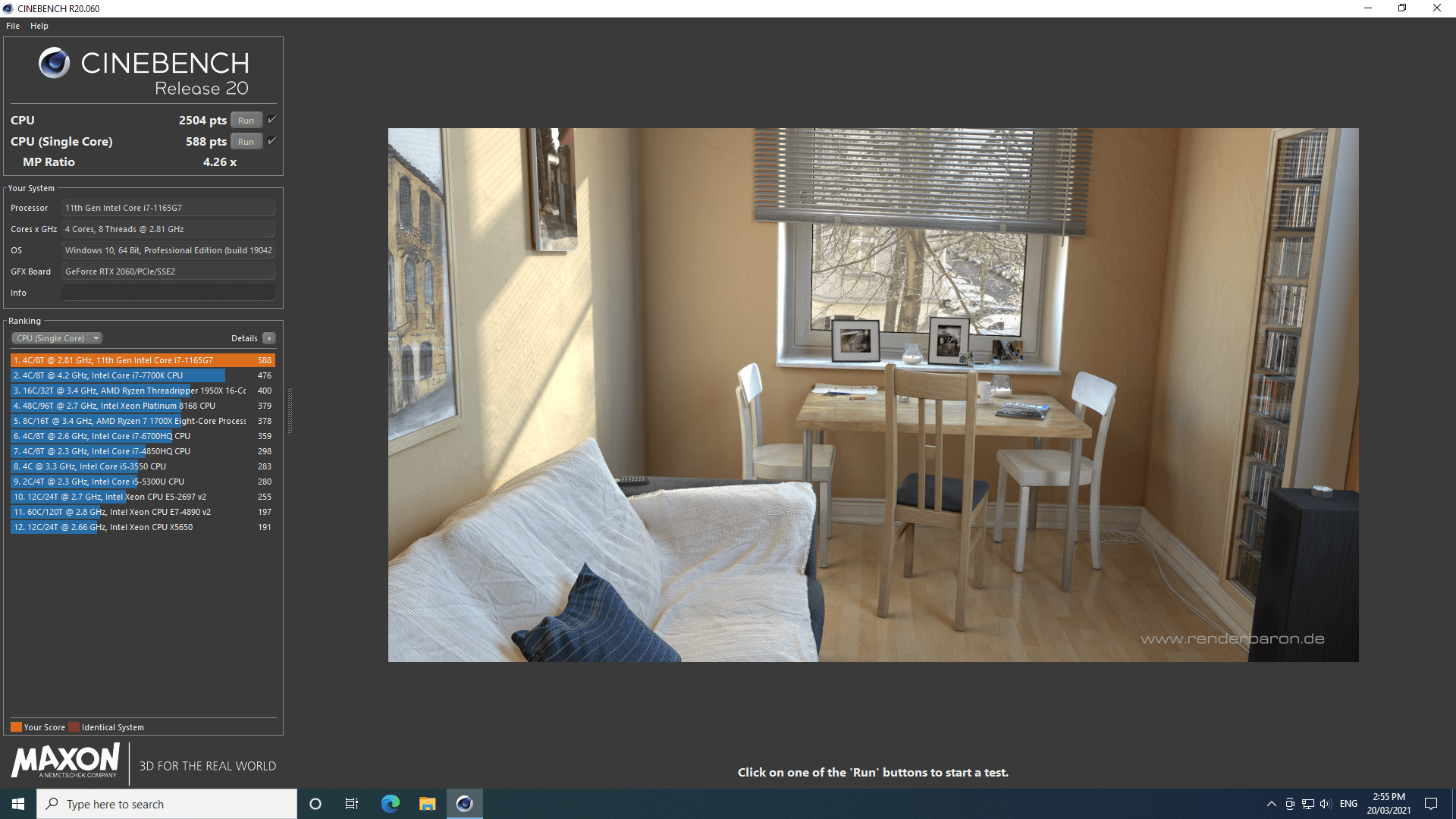

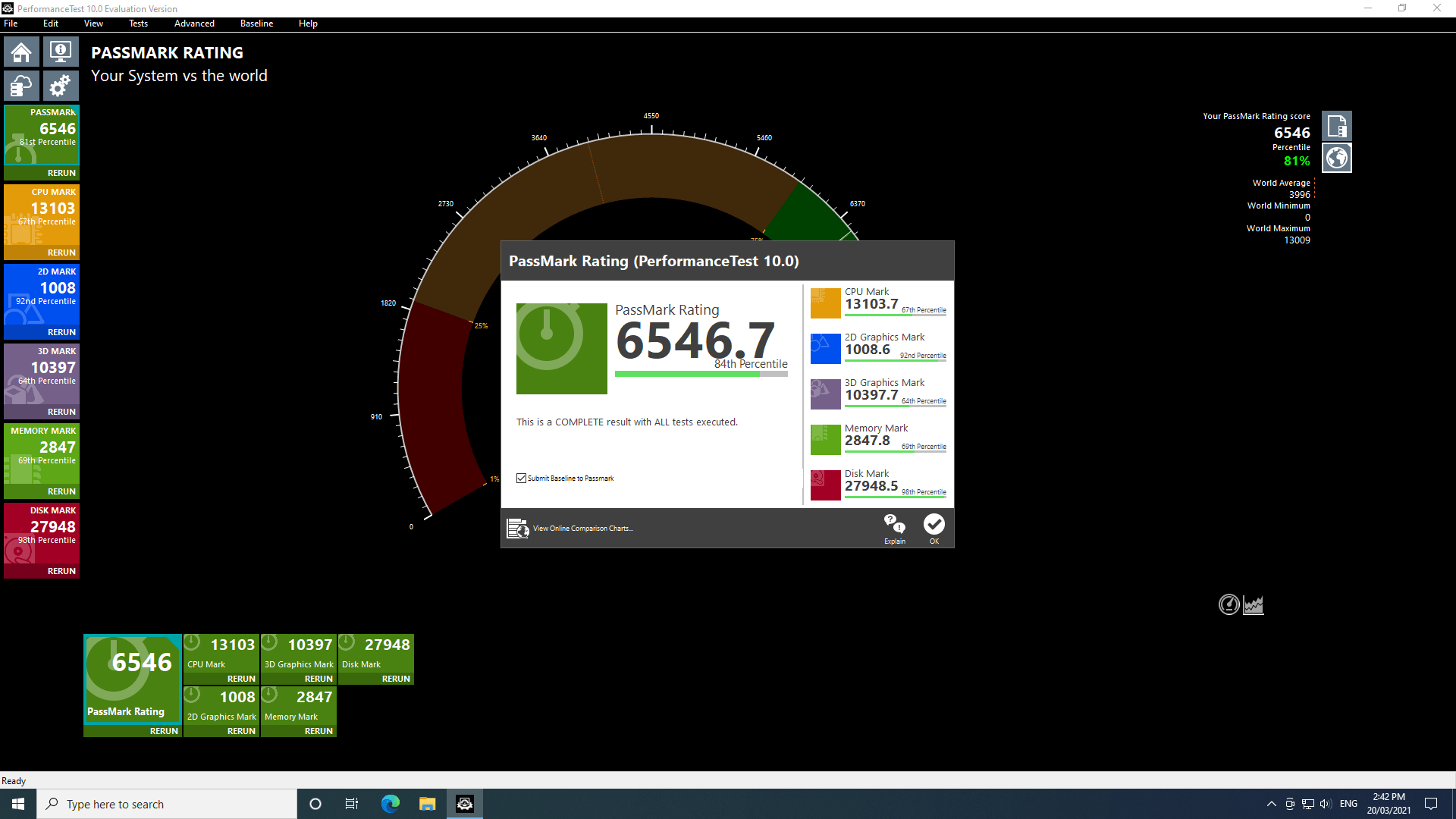

I then ran my standard set of mini PC benchmarking tools including:

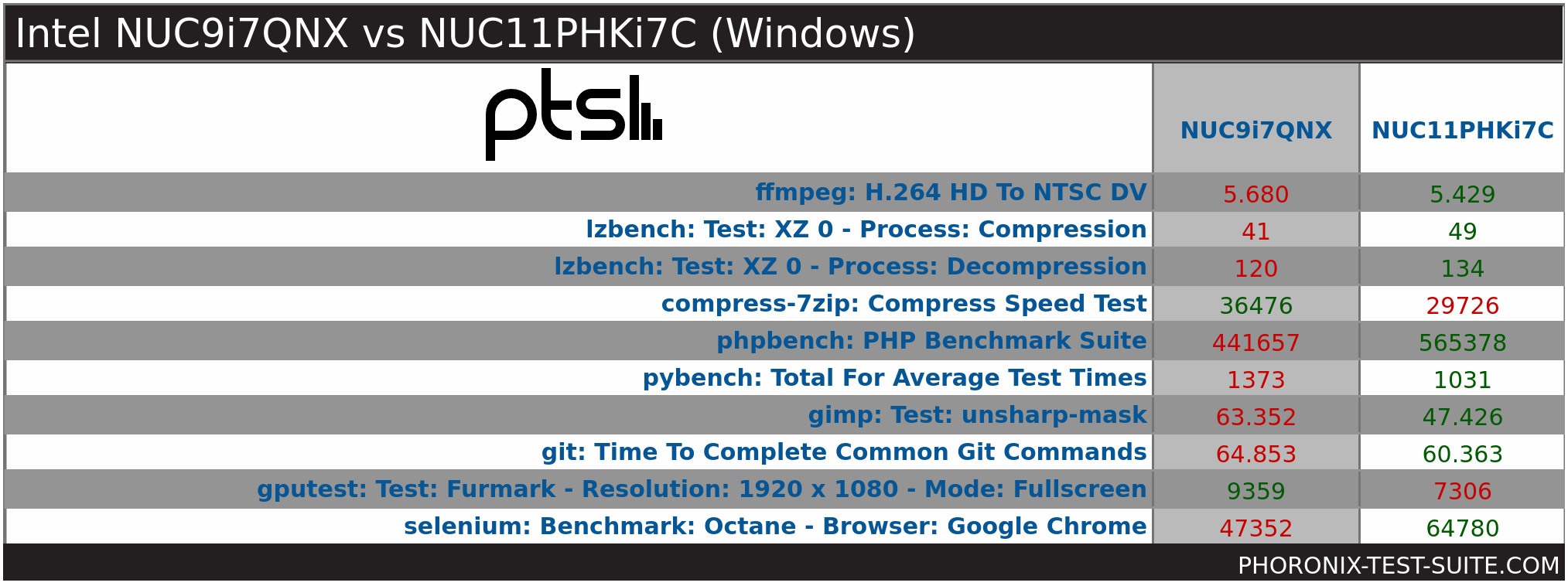

and also my specific set of Phoronix Test Suite tests:

windows 10 pts overview

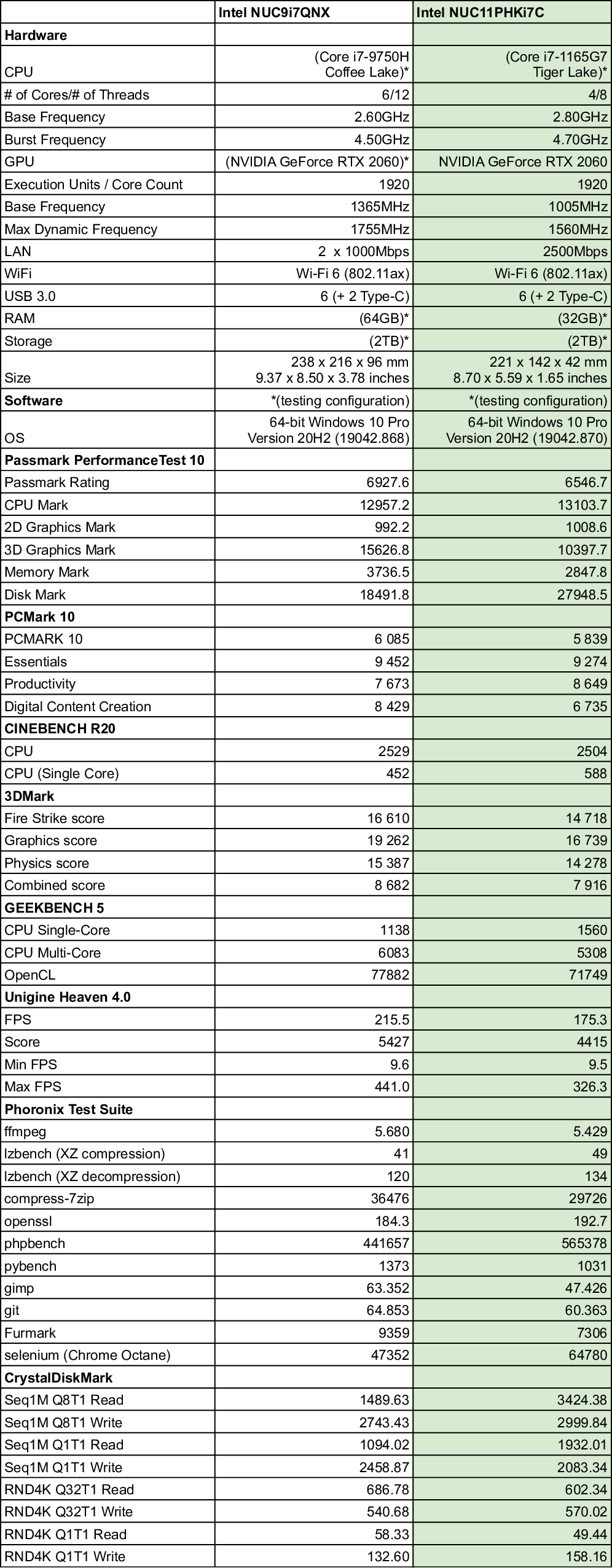

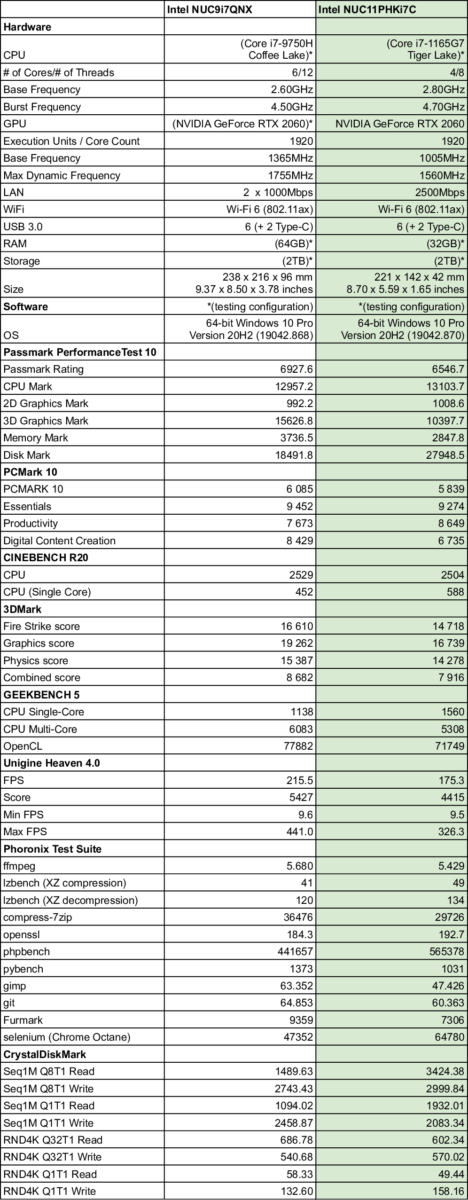

The results allow the NUC 11 Enthusiast to be compared to the NUC 9 Extreme:

windows nuc comparison

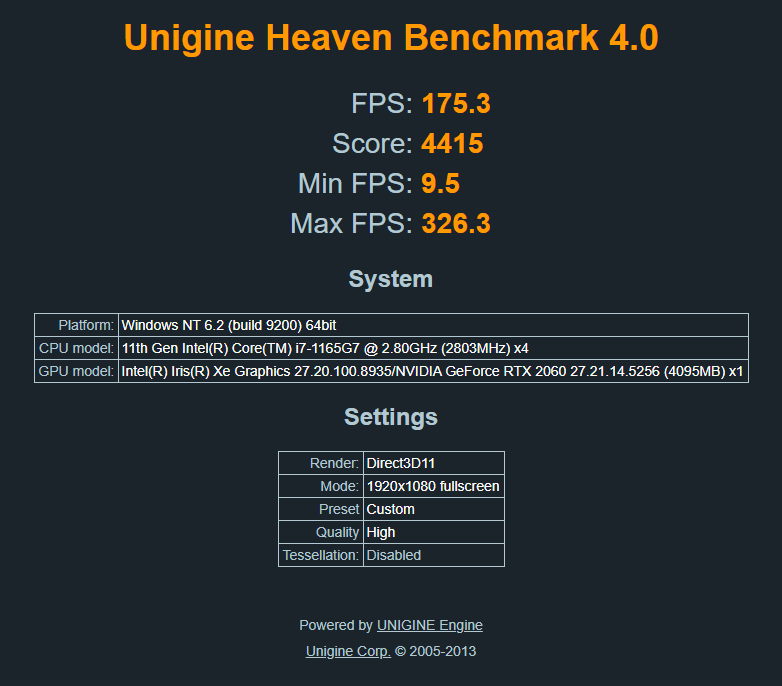

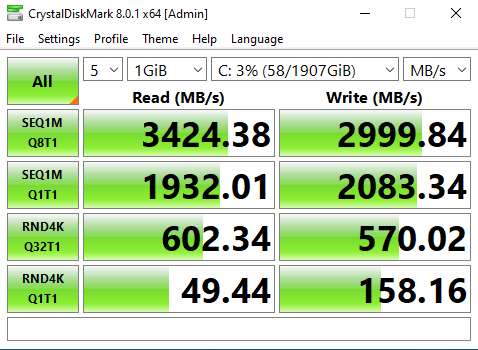

One of the issues with the NUC 9 Extreme is slow read performance for NVMe drives connected via the Compute Element compared to when connected via the baseboard. Fortunately, the performance seen with the NUC 11 Extreme is aligned with the manufacturer’s specification. Also, the impact of using a mobile RTX 2060 can clearly be seen when compared to the desktop version with, for example, Heaven showing a 19% loss.

Gaming

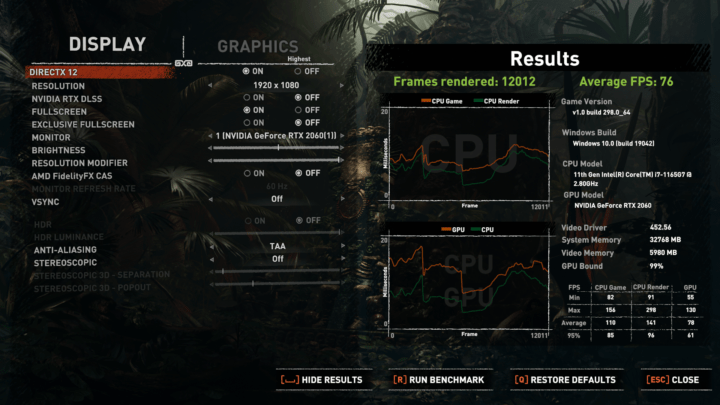

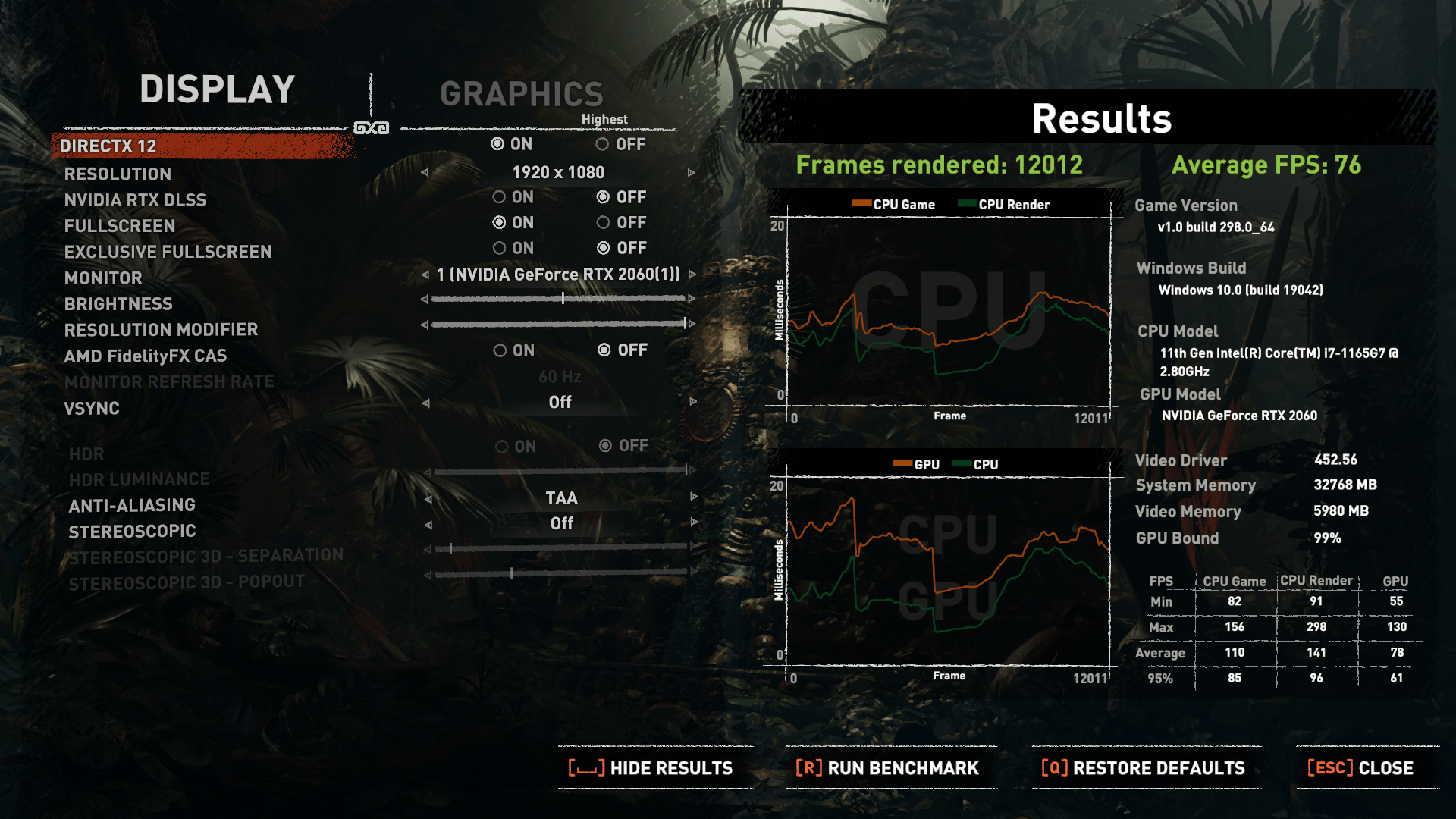

For both NUC I also performed a quick test of three games under Steam in Windows (Counter-Strike: Global Offensive, Grand Theft Auto V and Shadow Of The Tomb Raider) at 1920×1080 resolution. I used the default settings for CS:GO and GTA V together with each of the graphic presets in SOTTR:

sottr highest graphics settings

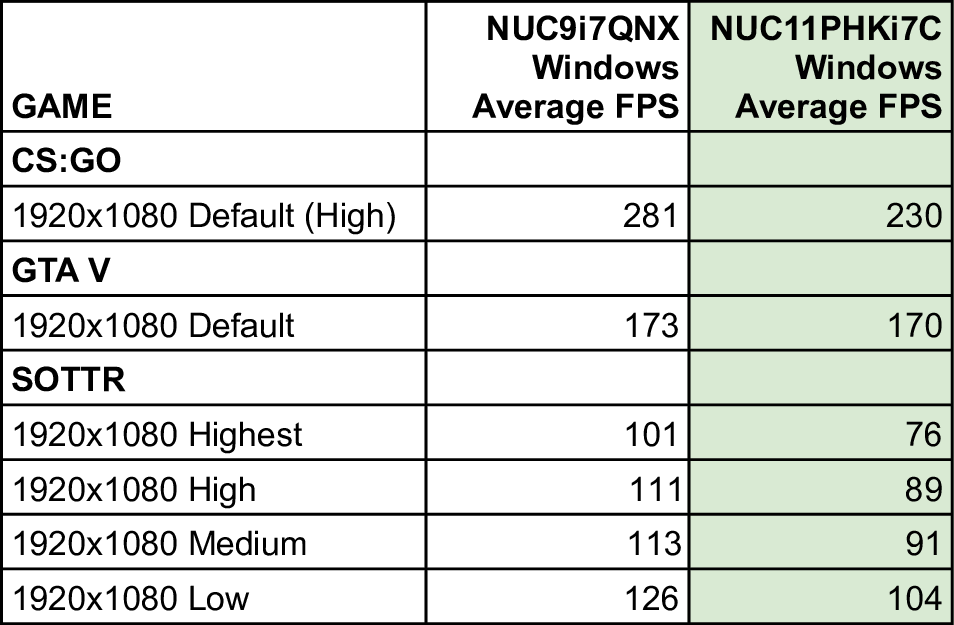

Again the impact of the mobile GPU was evident:

gaming comparison

Ubuntu Taster

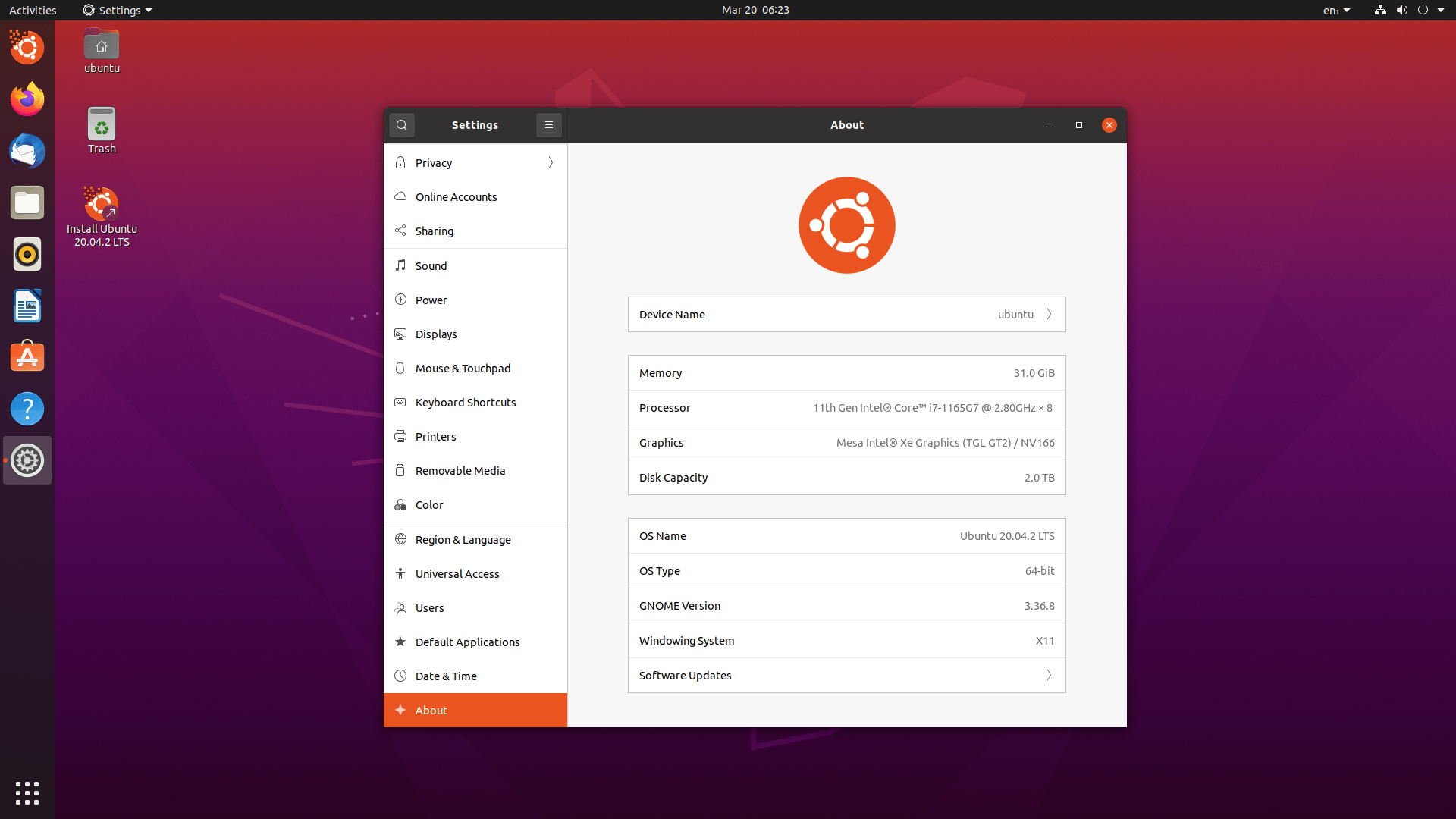

As a follow-up, I intend to look at the performance under Ubuntu. I’ve already tried to boot from a LiveUSB created from the Ubuntu 20.04.2 ISO:

NUC 11 ubuntu liveusb

which was successful with working ethernet and wifi was also detected so that is a good start.

Initial Observations

As a gaming mini PC, it meets the brief but with a caveat given its limitations due to its size. Because it uses a mobile GPU the gaming performance can be lower than a desktop GPU. In the few games I tested, this could be as much as 25% with an average of 17%. There is still a lot of further testing to be completed including network performance, thermals, power usage, investigating overclocking/underclocking capabilities as well as performance under Ubuntu. However, the initial performance results are favorable for an albeit pricey mini PC.
