AI-Thinker introduces 5 ESP32-C3 modules pin compatible with ESP8266 & ESP32 modules

ESP32-C3 is the first RISC-V wireless SoC from Espressif Systems, and at the time of the initial announcement promised to cost about the same as ESP8266 but adds support for Bluetooth 5.0 LE besides 2.4 GHz WiFi, and retain software compatibility through the ESP-IDF framework.

We were also told the goal was to provide ESP8266 compatible modules, and AI-Thinker has just announced five new ESP32-C3 modules compatible with earlier ESP8266 & ESP32 modules as shown in the table below.

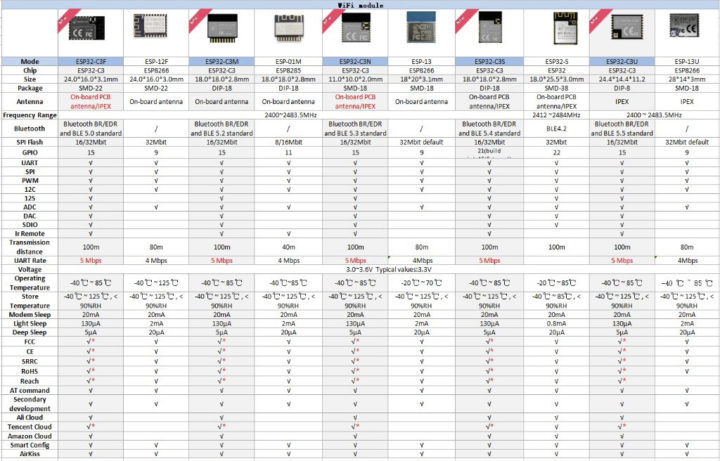

ESP32-C3 and ESP8266 modules

The table above is quite low resolution but that’s the best I could obtain from the company… It’s also a complete mess, not showing all alternative ESP8266 or mistaken in board sizes. So I’ll try to give a short summary of differentiating features and equivalent ESP8266/ESP32 modules:

  • ESP32-C3F is meant to replace ESP-12F with a 24 x 16 mm form factor. It does add an IPEX connector, besides the PCB antenna.
  • ESP32-C3M is compatible with ESP-01M with an 18 x 18 mm form factor. Both boards come with a PCB antenna only.
  • ESP32-C3N is a drop-in replacement for ESP-WROOM-02 with an 11 x 10 mm form factor, IPEX and PCB antennas.
  • ESP32-C3S can be used instead of ESP32-S / ESP32-WROOM-32D with an 18 x 18 mm form factor, on-board PCB antenna and IPEX connector.
  • ESP32-C3U can replace ESP-WROOM-02U with a 24.4 x 14.4mm form factor, and an IPEX antenna connector.

All ESP32-C3 modules are offered with 16 or 32Mbit SPI flash, support 5 Mbps UART (instead of 4 Mbps for ESP8266), come with a range of up to 100 meters.

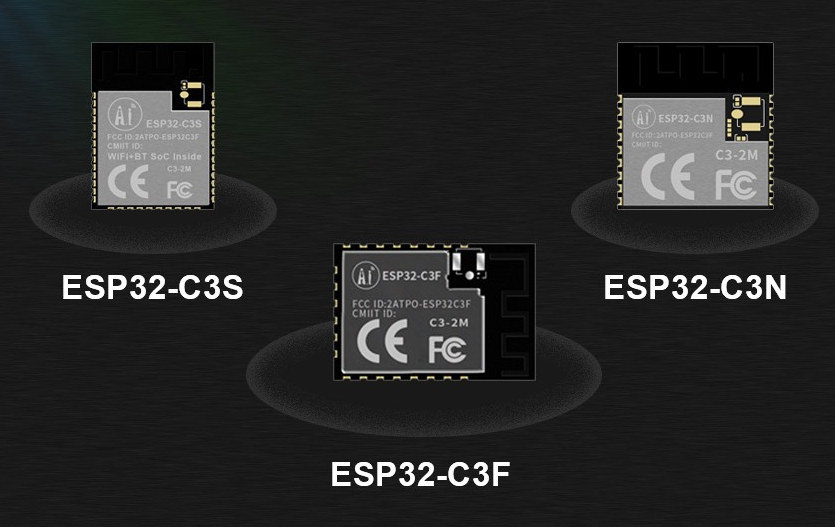

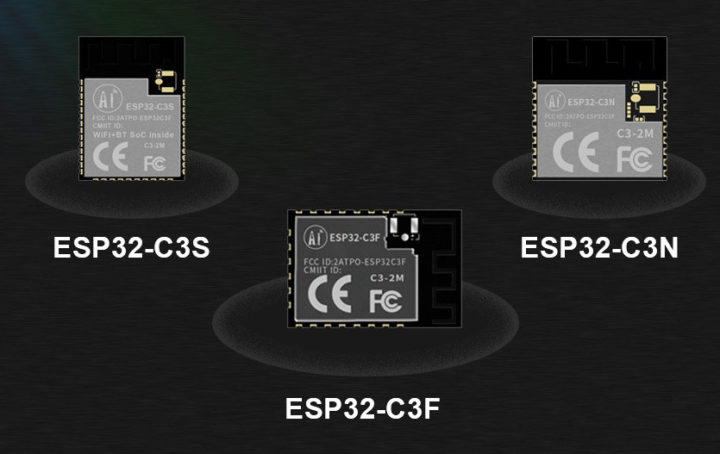

ESP32-C3 modules

The new ESP32-C3 modules also offer more GPIO, and some new interfaces like I2S, DAC, SDIO, and “IR remote”. Another benefit will be longer battery life thanks to much lower power consumption in sleep modes:

  • Light sleep mode
    • ESP8266 – 2,000 uA
    • ESP32 – 800 uA
    • ESP32-C3 – 130 uA
  • Deep sleep mode
    • ESP8266 – 20 uA
    • ESP32 – 20 uA
    • ESP32-C3 – 5 uA

The company also lists supports for cloud services such as Alicloud, Tencent Cloud, and AWS. ESP32-C3S is the only one from the list designed as a substitute for an ESP32 module, namely ESP32-WROOM-32D, and has basically the same features, except for the use of a single RISC-V core, the addition of an IR transmitter, a wider temperature range (-40 to +85°C), and the lower power consumption as discussed above. You’ll find the datasheet for each module on the documentation website.

AI Thinker is currently taking orders for the modules on Alibaba, with the price for the modules being $1.79 for 100 to 999 pieces, and as low as $1.38 per unit for 10k or greater orders.
