AIO-CM4-101 “All-in-One Pi” is a Raspberry Pi CM4 based 10.1-inch industrial PC

We’ve previously written about Chipsee CM4-70 Industrial Pi  7-inch Panel PC based on Raspberry Pi CM4 module that is offered either as an embedded model to be integrated into the customer enclosure or as a fully integrated panel ready to be mounted into a wall or machine.

The company has now launched another model with AIO-CM4-101 “All-in-One Pi” industrial PC offering a 10-inch touchscreen display that can be mounted by using 75x75mm VESA holes, for example on a display stand.

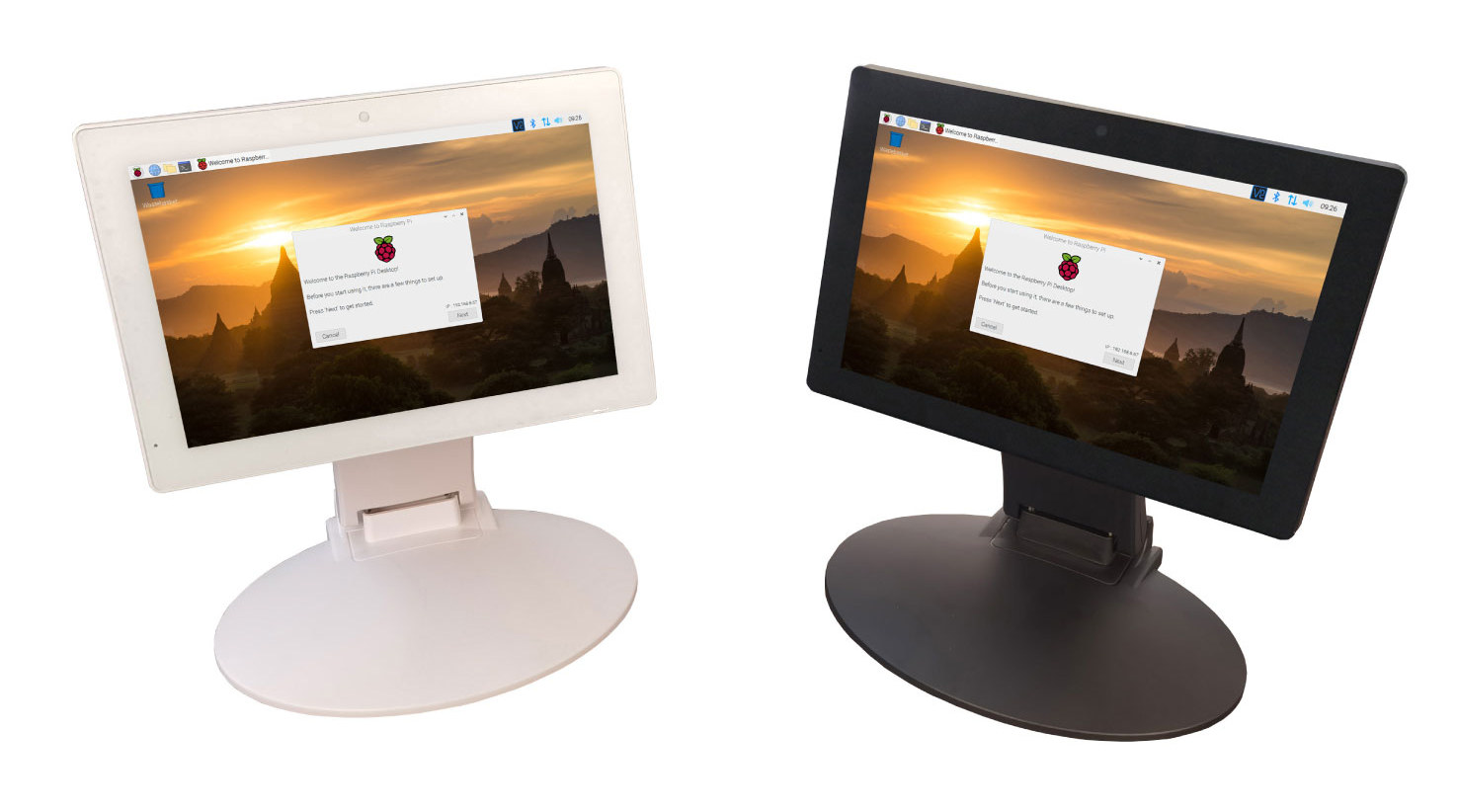

AIO-CM4-101 All-in-One Pi industrial PCAIO-CM4-101 All-in-One Pi specifications:

  • SoM – Raspberry Pi CM4 with Broadcom BCM2711 quad-core Cortex-A72 processor at 1.5 GHz, up to 8GB RAM, up to 32GB eMMC flash
  • Storage – MicroSD card slot for storage expansion
  • Display – 10.1-inch IPS LCD with 1280×800 resolution, 10-point capacitive touchscreen, 350 nit brightness:
  • Camera – Optional front-facing camera
  • Audio – Mic input on the front panel, 2W internal stereo speaker, 3.5mm audio In/Out connector, buzzer
  • Connectivity
    • Gigabit Ethernet port
    • Optional WiFi & Bluetooth on CM4 module
    • Optional Zigbee module
    • SIM card slot and optional 4G LTE module
  • USB – 2x USB 2.0 Host ports, 1 mini-USB OTG connector
  • Expansion – 2x 5V general purpose outputs, 2x RS232, up to 2x RS485, and relay via a 10-pin terminal block
  • Misc – RTC, LED, Volume and boot mode buttons
  • Power Supply – 9V~36V DC via DC jack
  • Power Consumption – 500mA max @ 12V (6W)
  • Temperature Range – 0°C to +50°C
  • Dimensions – 260.54 x 178.54 x 26.9 mm
  • Weight – 620 grams
  • Certifications – CE, ROHS

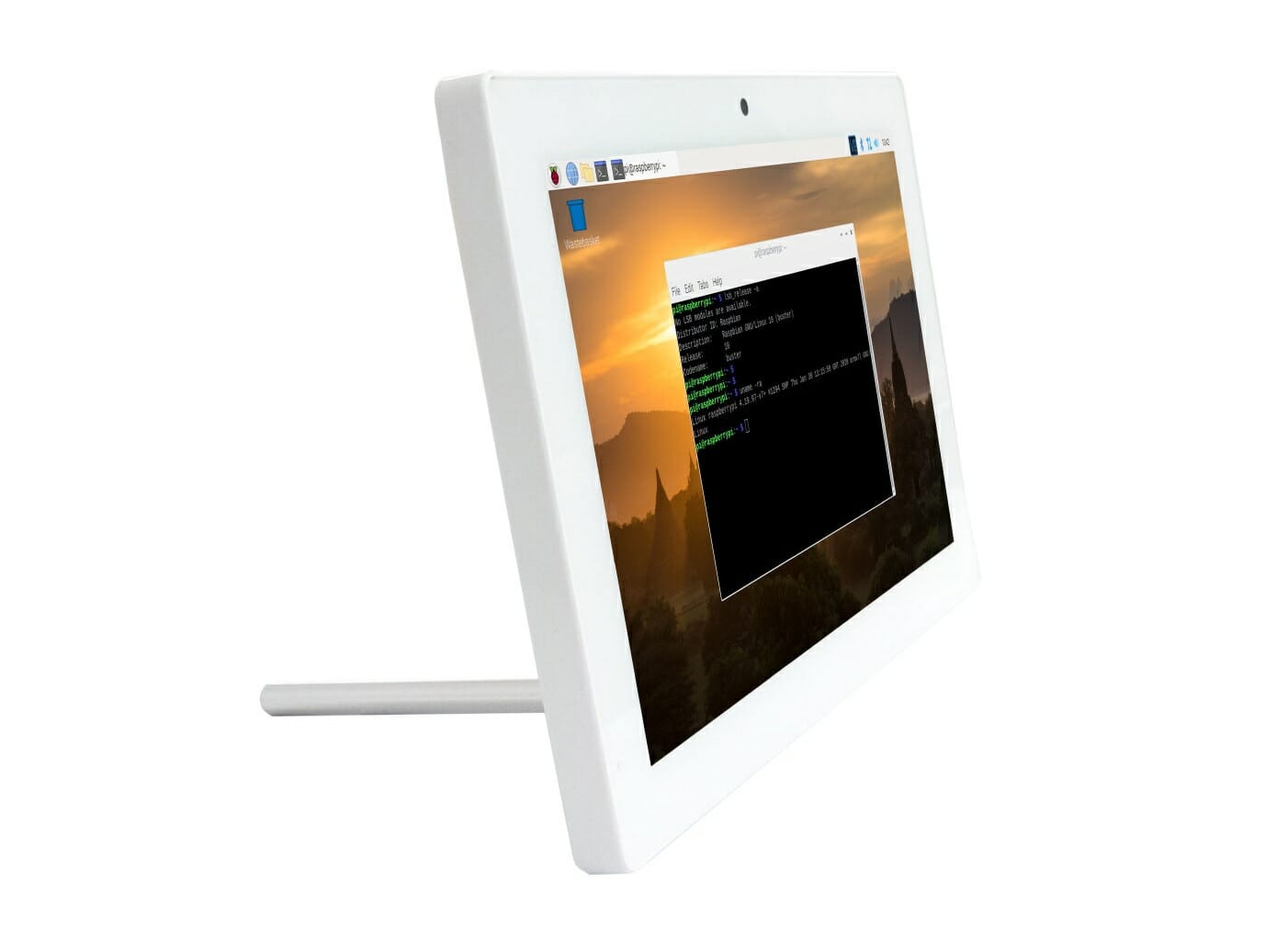

AIO-CM4-101 tablet mode
With metal stand (included by default)

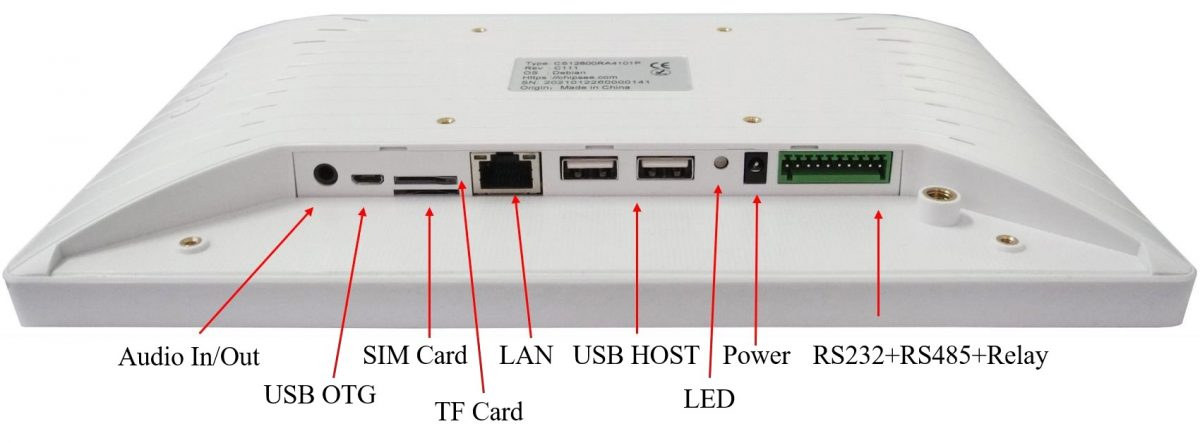

Raspberry Pi Industrial panel PC with RS232 RS485

Chipsee supports Debian (Raspberry Pi OS + hardware drivers specific to the All-in-one Pi PC) as well as Ubuntu, and designed the Raspberry Pi CM4 based PC for industrial and smart home applications. You’ll find the Debian image on Github. and more detailed hardware documentation on Chipsee website.

AIO-CM4-101 All-In-One Pi industrial PC can be purchased for $239 on Chipsee store, but you can also find it on distributors like Mouser ($228.58) using product number CS12800RA4101A-C111.
