SigmaStar SSC33x Camera SoCs are pin-to-pin compatible with Hisilicon Hi3516/Hi3518 processors

We’ve been writing a fair amount of posts about SigmaStar SSD201/SSD202D processors for smart displays in recent times. But the company also has various camera SoC’s with SSC333, SSC335, SSC336, SSC337, SS338, and SSC339 parts.

Those processors feature one or two Cortex-A7 core, embedded RAM, as well as an optional AI accelerator called DLA (Deep Learning Accelerator). The chips manufactured using a 28nm or 22nm process, with the latter being used for parts with the AI accelerator. Most of the Sigmastar SCC33x processors also happen to be pin-to-pin compatible with HiSilicon Hi3516 or Hi3518 SoC that are found in a wide range of IP cameras.

Sigmastar ssc336d ssc336q processor

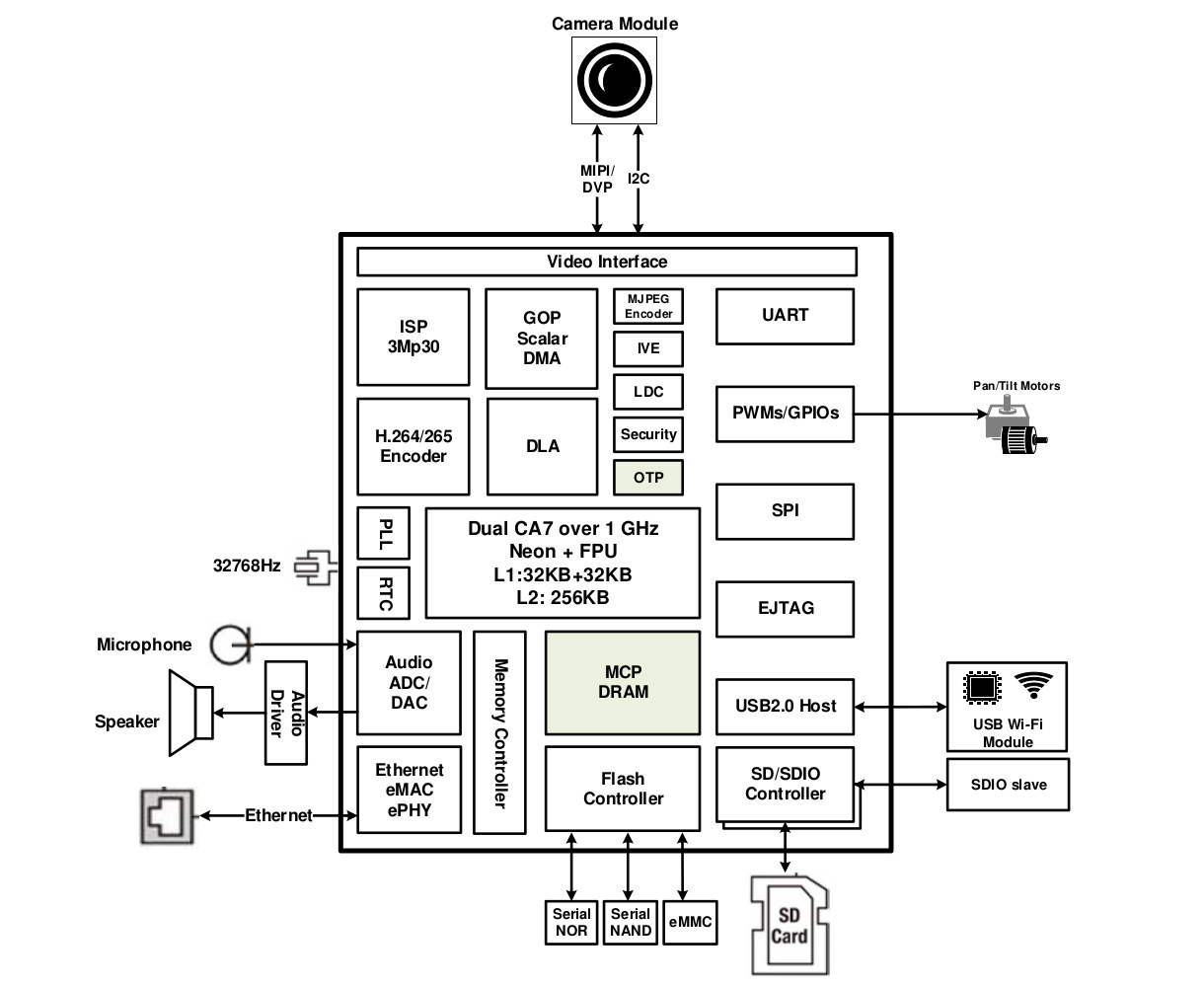

SSC336D/SSC336Q Block Diagram

Let’s take SSC336D/SSC336Q processor as an example since it comes with the AI accelerator and we have a datasheet courtesy of linux-chenxing.com.

SigmaStar SSC336D/SSC336Q camera SoC key features & specifications:

  • CPU – Dual-core Arm Cortex-A7 processor @ 1 GHz with Neon and FPU
  • Embedded Memory – Embedded 1Gbit (128MB) or 2Gb (256MB) 16-bit DDR3 memory up to 2133Mbps
  • Storage
    • NOR/NAND Flash Interface
    • SD Card/eMMC Interface
    • SDIO 2.0 Interface
  • Camera support
    • 8/10/12-bit parallel interface for raw data input
    • MIPI interface with 2/4 data lanes and 1 clock lane
    • Max. 3M (2304×1296) pixels video recording and image snapshot
    • High Dynamic Range (HDR) support
    • Wide Dynamic Range (WDR) support with local tone mapping
    • Advanced Color Engine
  • Video Encoders
    • H.265/HEVC & H.264 up to 3M + HD + D1 30fps
    • MJPEG up to 3M 30 fps
  • Deep Learning Accelerator – 0.5 TOPS Hardwired accelerator with support for various video analysis functions like FD/FR, human detection, MD/OD, object tracking, etc.
  • Audio
    • 1x stereo ADC for microphone input
    • 2x stereo DMIC inputs
    • 1x stereo DAC for lineout
    • 8K/16K/32KHz/48KHz sampling rate audio recording
    • I2S digital audio input and output with TDM up to 8-ch input and 2-ch output
  • Networking – 10/100M MAC and PHY
  • USB – 1x USB 2.0 host or device
  • Other I/Os & peripherals
    • GPIOs, up to 11x PWM outputs
    • 3x generic UART, 1x fast UART with flow control
    • 2x SPI masters, 3x I2C masters
    • 4-channel SAR ADC
    • 3x generic timers, 1x watchdog timer
  • Security – AES/DES/3DES/RSA/SHA-I/SHA-256, secure booting
  • Misc – Real-Time Clock (RTC), internal temperature sensor
  • Operating Voltage
    • Core: 0.9V
    • I/O: 1.8 ~ 3.3V
    • DRAM: 1.5V (DDR3) or 1.35V (DDR3L)
  • Package – QFN with 128 pins, 12.3mm x 12.3mm
SSC336 module

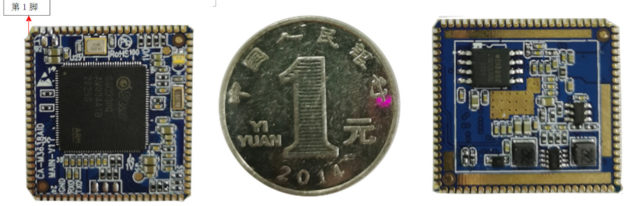

SigmaStar SSC336D/Q module

BR16.com has a comparison table of the different SSC (SigmaStar Camera) chips which we’ve translated into English.

ProcessorCoresEmbedded MemoryCameraAI AcceleratorProcess Compatible Hisilicon SoC
SSC333Cortex-A7512 Mbit1080p30, 3MP @ 20 fpsNo28nmHi3518EV300
SSC335Cortex-A7512 Mbit3MP @ 30 fpsNo28nmHi3518EV200
SSC333DCortex-A71 Gbit1080p30, 3MP @ 20 fpsNo28nm
SSC335DCortex-A71 Gbit3MP @ 30 fpsNo28nm
SSC337DCortex-A71 Gbit1080p60, 5MP @ 20 fpsNo28nmHi3516EV300
SSC336D2x Cortex-A71 Gbit3MP @ 30 fps0.5 TOPS22nmHi3516CV500
SSC336Q2x Cortex-A72 Gbit3MP @ 30 fps0.5 TOPS22nmHi3516CV500
SSC338Q2x Cortex-A7 (TBC)2 Gbit4K @ 20 fps0.5 TOPS22nmHi3516DV300
SSC338G2x Cortex-A7 (TBC)No4K @ 20 fps1 TOPS22nmHi3516DV300
SSC339G2x Cortex-A7 (TBC)No4K @ 30 fps1 TOPS22nm

There’s very limited public information about the chips, at least in English. The Linux SDK and DLA SDK can be acquired from SigmaStar after signing an NDA. BR16 lists some SSC33x modules and expensive development boards, but SigmaStar SS336D/SSD336Q camera SoC itself can also be purchased on Taobao for 49.5 RMB (about $7.6 US), while an SSC338Q module is offered for 108 RMB (~$17.6 US).

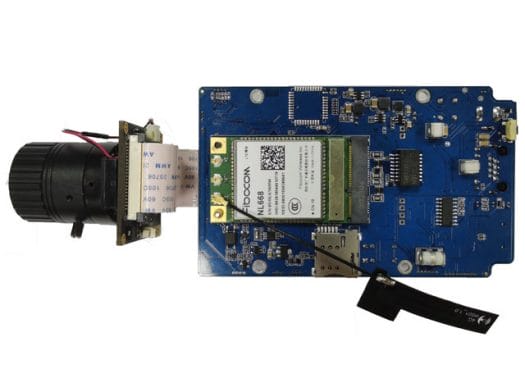

SSC336Q development kit
SSC336Q development board

Thanks to dgp for the tip.
