GIGABYTE GB-BMCE-4500C fanless mini PC features Celeron N4500 Jasper Lake processor

We’ve previously covered a couple of Jasper Lake mini PC’s with the upcoming actively-cooled Intel Atlas Canyon NUC and AC8 fanless mini PC from Newsmay Technology.

If you prefer a fanless model but would rather not purchase a model from a little-known company, there will soon be another option with GIGABYTE GB-BMCE-4500C mini PC equipped 6W dual-core Celeron N4500 Jasper Lake SoC, support for up to 16GB RAM, an NVMe/SATA M.2 drive, one 2.5-inch SATA drive, as well as dual 4K video output via HDMI and miniDP ports.

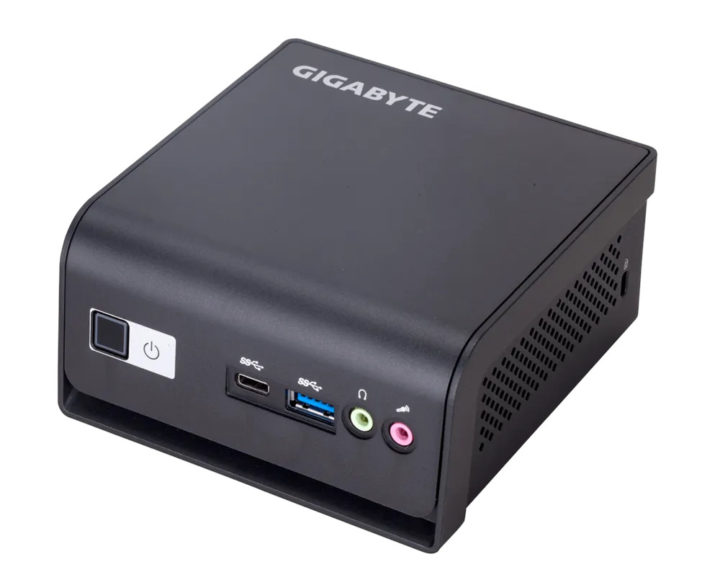

Gigabyte GB-BMCE-4500CGIGABYTE GB-BMCE-4500C specifications:

  • SoC – Intel Celeron N4500  dual-core processor @ 1.1GHz / 2.8GHz (Burst frequency) with Intel UHD graphics; 6W TDP
  • System Memory – Up to 16GB RAM via 1x SO-DIMM DDR4 slot up to 2933MHz
  • Storage
    • M.2 2280 slot for NVMe (PCI-e x2) or SATA SSD
    • SATA 3 for 2.5-inch HDD/SSD (7.0/9.5mm thick)
  • Video Output
    • 1x HDMI 2.0b support 4Kp60 with HDR10 support
    • 1x mDP 1.4b up to 4Kp60 with HBR2 support
  • Audio – Realtek ALC255 codec, 3.5mm headphone jack, 3.5mm microphone jack
  • Connectivity
    • Gigabit Ethernet via Realtek RTL8111HD PHY
    • Dual-band 802.11ac WiFI 5 and Bluetooth 4.2
  • USB – 4x USB 3.1 ports including one  USB Type-C port
  • Misc – Power button, Kensington lock slot
  • Power Supply – 19V (65W)
  • Dimensions – 116.52 x 103 x 56.22mm
  • Temperature Range – 0°C to +35°C

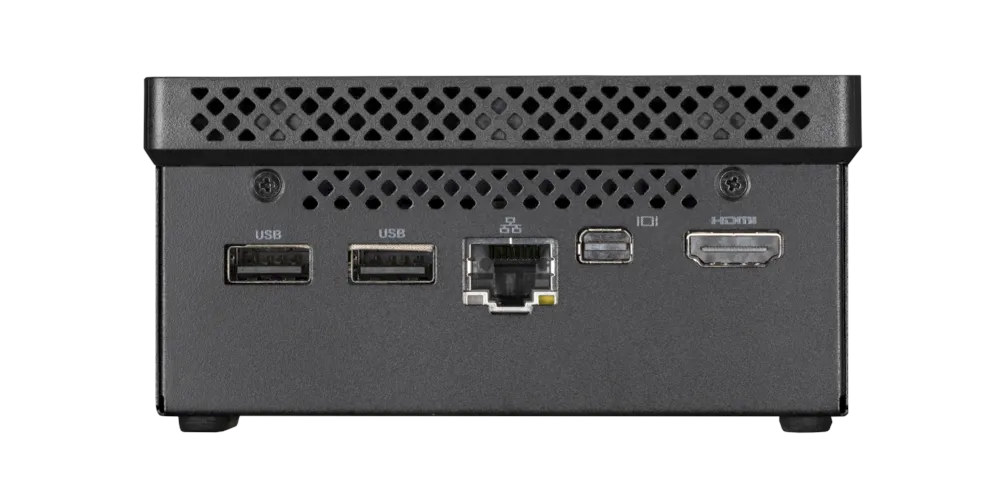

Fanless Jasper Lake mini PCThe mini PC will ship with 75x75mm and 100x100m VESA mounting brackets, and according to FanlessTech, will be sold barebone in a few weeks for 159 Euros, meaning you’d need to add the memory, storage, and operating system to get a complete system. The company expects the mini PC to be used for IoT applications, as a desktop computer, a 4K HTPC, a digital signage, and/or  an entry-level system for education.

Liliputing also pointed out there are two other similar actively cooled models with GB-BMC-5105 and GB-BMPD-6005 equipped with respectively the 10W Intel Celeron N5105 and Pentium Silver N6005 processors, that were announced in a recent press release together with GIGABYTE GB-BMCE-4500C fanless mini PC.

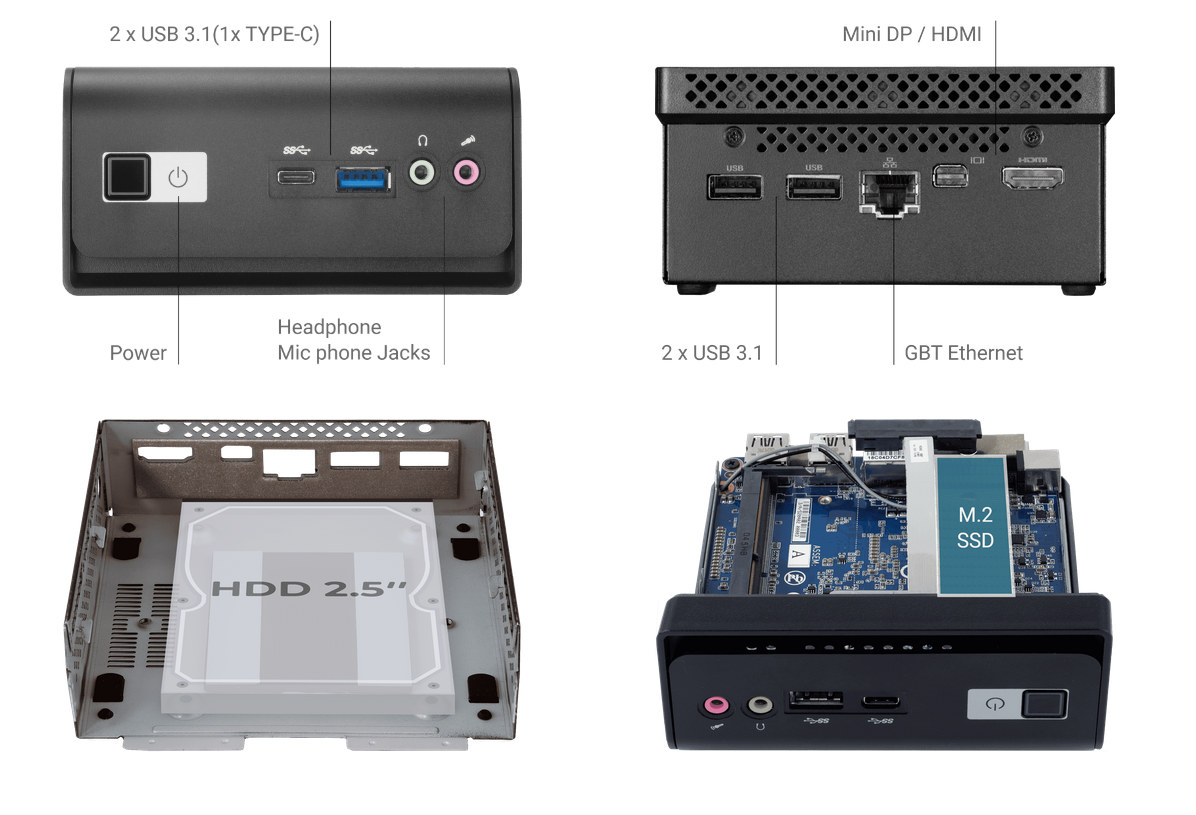

Gigabyte GB-BMCE-4500C specs storage SSD & HDD

More details may be found on the product page.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Notify of
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
2 years ago

I am happy with my passively cooled Gigabyte BRIX i3 8GB RAM, M.2 plus SATA SSD. Easily manages tropical temperatures.

2 years ago

i3 Generation? And what about the price? What I know is BRIX is pricier than intel NUC.

2 years ago

Does anyone know if a Linux distribution like Ubuntu works on the device?

2 years ago

Jasper Lake is known to work. Wrt this specific box simply do a web search for ‘GB-BMCE-4500C linux’ and you’ll end up for example here. If it’s listed on a company’s website specialised in Linux and *BSD then most probably everything works with Linux.

2 years ago

It works fine with Ubuntu 2020.04.3. Only small issue I had was finding the best driver for the built in WLAN (Realtek RTL 8812 CE). Ubuntu will find a working driver. But look here. They develop WLAN sticks for Linux-OS on a RTL 8812 basis and deliver an appropriate driver. Its much better than the one Ubuntu suggests and works perfect with the build in WLAN chip.
