Offline speech recognition MCU module comes with speaker, microphone, and UART connectors

We found out about Unisound US516P6 RISC microcontroller inside an offline voice assistant module last May. The module offers offline speech recognition for just $2 to $4, with good performance, and excellent privacy since no cloud service nor Internet connection is needed.

That module requires some soldering, but if you’d prefer something easier to connect the “SU-10A” offline speech recognition MCU module comes with connectors for a speaker, a microphone, as well as UART connectivity to a host MCU if needed.

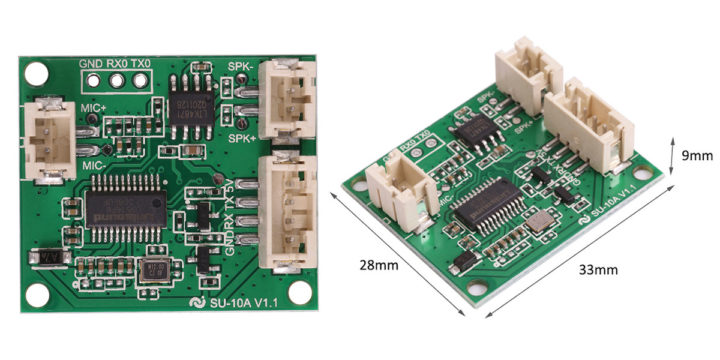

offline voice recognition mcu module“SU-10A” module specifications:

  • MCU – Unisound US516P6 RISC microcontroller @ 240 MHz with FPU, DSP instruction, FFT accelerator, 242KB SRAM, 2MB flash
  • Audio
    • Built-in 3W mono Class AB power amplifier.
    • 2mm pitch connector for speaker (4 Ohms up to 2.9W,  8 Ohms up to 1.8W)
    • 2mm pitch connector for electret microphone
  • Debugging/programming – UART port for serial console (5V or 3.3V supported)
  • Host interface – 2mm pitch 4-pin connector for UART (Tx/Rx) to host MCU
  • Power Supply – 3.6 to 5.5V / 200mAvia 4-pin “Host Interface” connector
  • Average power consumption – 60mA @ 5 V
  • Dimensions – 33 x 28 x 9 mm
  • Temperature Range – 20°C – 85°C
  • Humidity – 5% – 95% RH

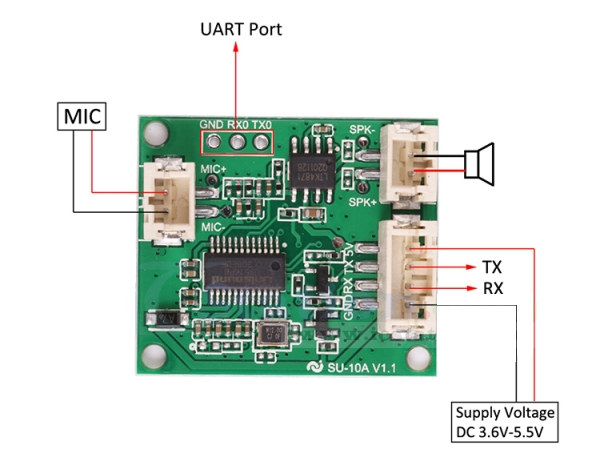

SU-10A connection diagramSadly the module does not expose any of the GPIO from the Unisound microcontroller, at least not through headers or connectors, and eight GPIOs appear to be available under the board.

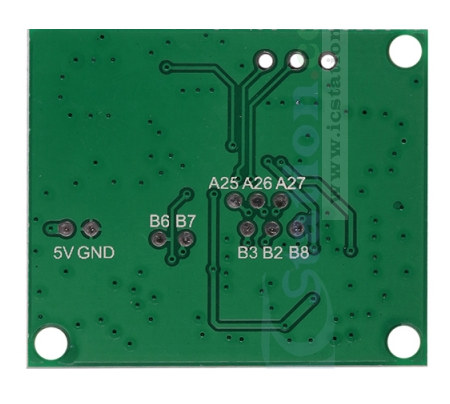

offline voice recognition module GPIO pinThe module is suitable for smart appliances, toys, lights, and devices that require voice control without a network connection. I found the module ICStation where it is sold for $5.03.

But as usual, ICStation is just awful when it comes to documentation and resources for their board, as there isn’t just any. As we mentioned in our previous article about US516P6 MCU, programming is done through Blockly visual programming IDE and should require a hardware programmer. I’ll probably understand how it all works next month, as Wireless Tag/AI Thinker plans to send me a US516P6 module together with some ESP32-C3 boards. Here’s a short demo in the meantime.
