GL.inet GL-S10 – A compact BLE to MQTT IoT Gateway

GL.inet is better known for its WiFi routers, but the company’s latest model, the GL-S10, can not be used as a WiFi access point, and instead, the ESP32 powered device acts as a BLE to MQTT IoT gateway over Ethernet or WiFi.

The gateway will gather data from Bluetooth LE devices such as beacons, and be used in warehouses, shopping malls, airports, exhibition halls, tourist attractions, etc… for personnel management, asset management, environmental monitoring, indoor navigation, and more.

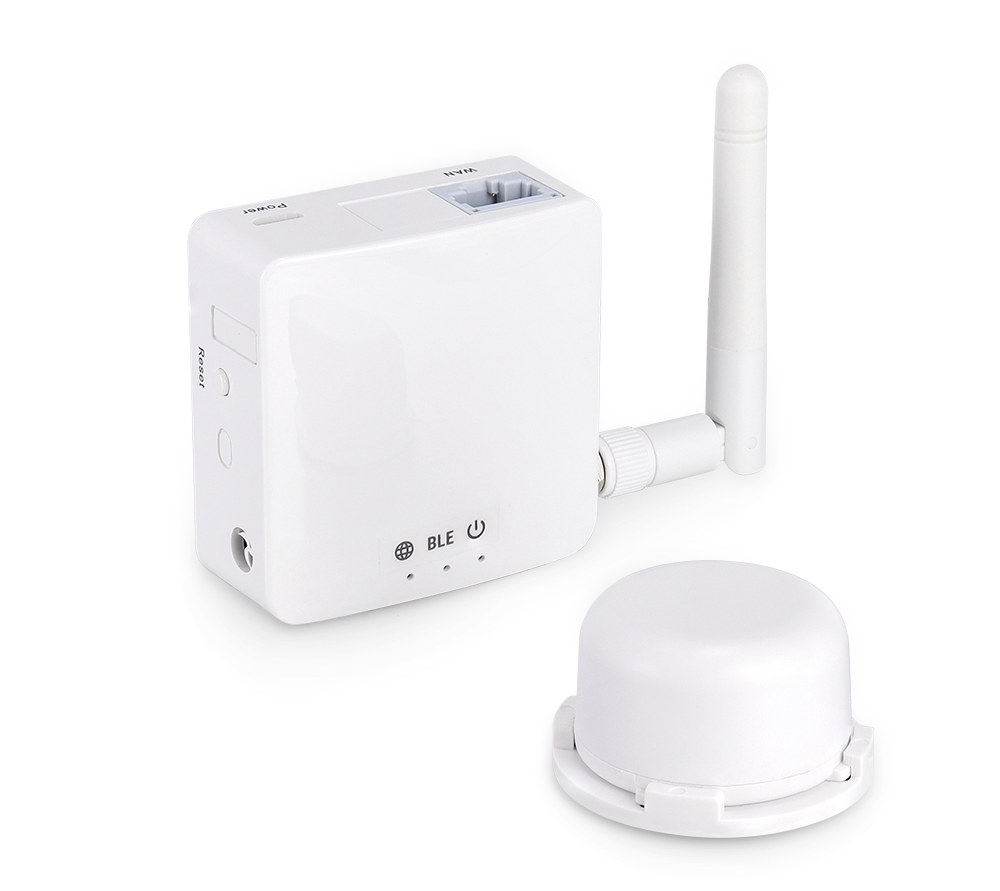

GL.inet GL-S10GL.inet GL-S10 specifications:

  • SoC – Espressif ESP32-D0WD dual-core processor with WiFi and BLE connectivity
  • System Memory – 8MB RAM (PSRAM)
  • Storage – 4MB NOR flash
  •  Connectivity
    • 10/100M Ethernet port
    • IEEE 802.11 b/g/n WiFi 4 @ 2.4 GHz up to 150 Mbps; station mode only
    • Bluetooth 4.2 LE with GAP and GATT support, can act as GATT server or GATT client
    • MQTT connectivity to the cloud
  • Misc – 3x LEDs (Power, Internet. BLE), 1x Reset button
  • Power Supply – 5V/1A via Micro USB port or 802.3at/af standard PoE Power Input
  • Power Consumption – Typ: <0.5W, max: <1.5W
  • Dimensions – 57 x 57 x 25mm
  • Weight – 53.6 grams
  • Temperature Range – Operating: 0~40°C; storage: -20~70°C

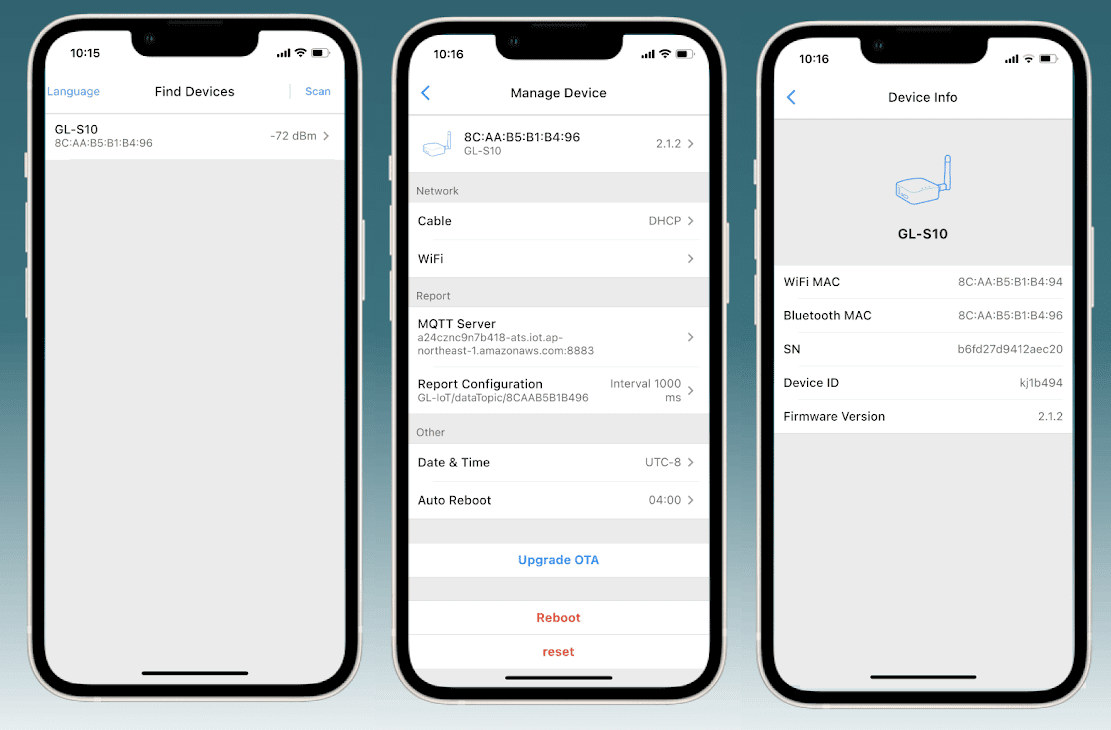

GL-S10 Tool App
GL-S10 Tool App

There’s no typical web interface in the device, and instead, you’d be asked to use GL-S10 Tool App for Android or iOS to configure the gateway’s settings including reporting intervals, MQTT servers, DHCP/Static IP,  OTA firmware upgrades, and more. Alternatively, the company lets you rebuild the firmware with your own default settings for WiFi and MQTT server, and whatever you’d like to change, which you’d then be able to flash accordingly.

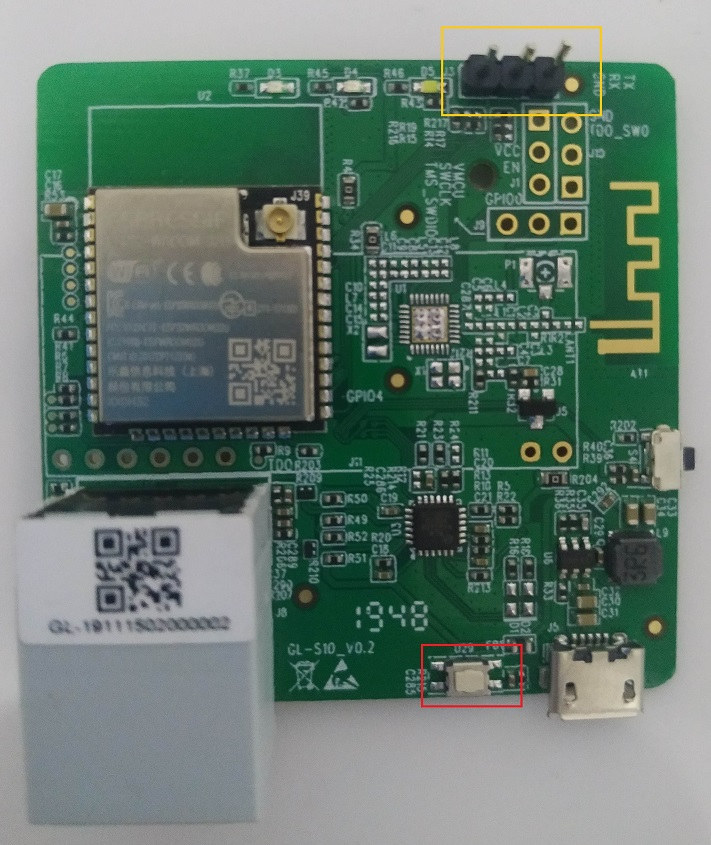

GL-S10 board ESP32 BLE to MQTT gateway

GL.inet GL-S10 is sold for $24.99 with its external antenna, a USB power cable, and a user manual, but you can also add $5 to get a BLE beacon shipped with the gateway.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
Jacques
3 years ago

I’m a bit surprised that this supports PoE, as it would generally imply the presence of some large components not visible on the board. Probably lacks any form of isolation?

Mark Birss
Mark Birss
3 years ago

Here are some more pictures of the inside, showing more components
https://github.com/gl-inet/s10

Ray Knight
Ray Knight
3 years ago

Picture above is not showing the PoE transformer which is on a separate board and appears identical to that used when ordering a GL-AR150 with PoE. It is also available separately at https://store.gl-inet.com/products/mini-poe-module.

Barbu Dor
3 years ago

So the POE is an option ? not included at the announced $25 price ?

savikko
savikko
2 years ago

PoE is included on 25USD price.

Jacques
3 years ago

Thanks both for the additional pictures, it makes a lot more sense that way. That makes it an interesting PoE ESP32 board which has probably a lot more applications than just BLE to MQTT…

Doyle
Doyle
2 years ago

This is cool can it be used as ble positioning tracking using multiple setup as anchors?
