CaribouLite RPi HAT open-source SDR Raspberry Pi HAT tunes up to 6 GHz (Crowdfunding)

CaribouLite RPi HAT is an open-source dual-channel software-defined radio (SDR) Raspberry Pi HAT – or rather uHAT – that works in the sub-GHz ISM range and optionally the 30 MHz – 6 GHz range for the full version.

Developed by Israel-based CaribouLabs, the micro HAT is equipped with a Lattice Semi ICE40LP1K FPGA, a Microchip AT86RF215 RF transceiver, two SMA antenna connectors, a Pmod expansion connector, and designed for any Raspberry Pi board with a 40-pin GPIO header.

Raspberry Pi HAT SDR 6 GHz

CaribouLite RPi HAT specifications:

  • FPGA – Lattice Semi ICE40LP with 1.28 kLE
  • RF Chipset – Microchip AT86RF215 Sub-GHz / 2.4GHz transceiver
  • Qorvo’s RFFC5072 integrated Mixer IC (for full version only)
  • Tuning Range
    • CH1
      • Full version – 30 MHz – 6 GHz
      • ISM version – 2.4 – 2.4835 GHz
    • CH2 – Sub-1GHz
  • Max Sampling Rate – 4 MSPS
  • ADC/DAC Resolution – 13-bit
  • Max RF Bandwidth – 2.5 MHz
  • Transmit Power – up to 14 dBm @ISM frequencies
  • Frequency Stability – <±2 ppm
  • Dual-half Duplex operation
  • Clock – 26 MHz TCXO
  • 2x SMA antenna connector
  • Host interface – SMI (Secondary Memory Interface) interface to Raspberry Pi
  • Optional GPS support with add-on
  • Expansion – 8-bit PMOD connector for GPIOs, GND, 3.3V
  • Misc – User switch and user LEDs, RF activity indication LEDs
  • Power Supply – 5V via Raspberry Pi header; LDOs delivering 3.3V, 2.5V, and 1.2V signals
  • Dimensions – 65 x 30 mm
  • OSHWA certification – IL000002
Raspberry Pi HAT Block Diagram
Block Diagram

CaribouLite HATThe HAT also includes an EEPROM with board information, device tree overlay, and drivers to be automatically recognized and configured by the Raspberry Pi board attached to it. The company also provides libcariboulite library, SoapySDR drivers, device-tree overlays, sample code, firmware, and hardware design files (PDF schematics only) on Github. The software enables the board to be used with SDR programs such as SDR-PlusPlus, GQRX, CubicSDR, GNU-Radio, and more.

The uHAT interfaces with the Raspberry Pi through the SMI (Secondary Memory Interface) of the Broadcom BCM2xxx processor which I don’t think I ever heard of, and CaribouLabs confirms the ” interface had not been fully investigated previously”. You can find more details on the Caribou-SMI API Driver page.

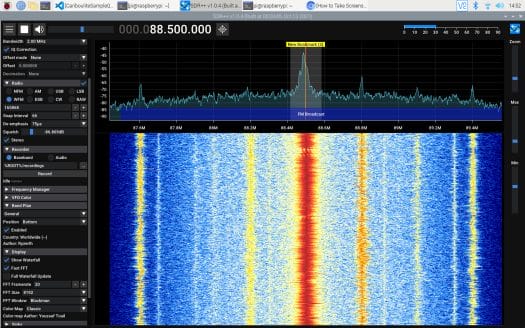

SDR-PlusPlus Raspberry Pi
SDR++ running on Raspberry Pi

CaribouLabs has launched the CaribouLite RPi HAT on Crowd Supply with a $112,500 target. Rewards start at $69 for the CaribouLite-ISM (Sub-Ghz + 2.4 GHz), and $119 for the model supporting up to 6 GHz tuning. Shipping adds $8 to the US, $18 to the rest of the world, and deliveries are scheduled to start at the end of May 2022.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 Comments
oldest
newest
MarKo
MarKo
2 years ago

Can you use this to turn a PI in to a fully fledged wireless router?

itchy n scratchy
itchy n scratchy
2 years ago

Not really, it is more for experimenting with radio technology.

After all why should you use a $65 SDR instead of a usb or PCIe attached wifi card for a fraction of this price, if you just want a router. Not even going to the point of cheap routers needing neither a pi nor an SDR…

Donald William Gillies
Donald William Gillies
2 years ago

It would be more fun if it could do 40 MSPS so that it could decode 4G cellular.
