BeagleBone AI-64 SBC features TI TDA4VM Cortex-A72/R5F SoC with 8 TOPS AI accelerator

BeagleBone AI-64 is a single board computer (SBC) powered by a Texas Instruments TDA4VM dual-core Cortex-A72 + hexa-core Cortex-R5F processor which also embeds an 8 TOPS AI accelerator, plus three DSP, as well as plenty of I/Os that makes it ideal for advanced AI industrial applications.

It follows the BeagleBone-AI SBC launched in 2019, but with much higher specs including a 64-bit Arm processor, 4GB RAM, three USB 3.0 ports, an M.2 E-Key socket with PCIe, USB and SDIO, plus the usual expansion headers that keep compatibility with existing BeagleBone cape add-on boards.

BeagleBone AI-64



BeagleBone AI-64 specifications compared to BeagleBone-AI and BeagleBone Black boards:

BeagleBone AI-64BeagleBone AIBeagleBone Black (or BeagleBone Black Wireless)
SoCTexas Instruments Jacinto TDA4VM
2x ARM Cortex-A72
Texas Instruments Sitara AM5729
2x ARM Cortex-A15
Texas Instruments Sitara AM3358
ARM Cortex-A8
Max CPU clock2 GHz1.5 GHz1 GHz
Co-processorsC7x+MMA, 2xC66x, 12xPRU, 6xARM Cortex-R5, PowerVR Rogue 8XE GE8430, H.264 encode, H.264/H.265 decode2xC66x, 4xPRU, 4xARM Cortex-M4, 4xEVE, 2xPowerVR SGX544, IVA-HD2xPRU, ARM Cortex-M3, PowerVR SGX530
Analog Pins7 (3.3V)7 (4-wire touchscreen capable) (3.3V)7 (4-wire touchscreen capable) (1.8V)
Digital Pins
72 (including 7 analog pins which are digital capable)
65
Memory4GB LPDDR41GB DDR3L512MB DDR3
Storage
16GB eMMC flash on-board
microSD card slot
4GB eMMC flash on-board
microSD card slot
USB USB 3.0 Type-C 5Gbps
2x USB 3.0 Type-A Host Ports
USB 3.0 Type-C 5Gbps
USB 2.0 Type-A Host Port
USB 2.0 microUSB 480Mbps
USB 2.0 Type-A Host Port
Network1 Gigabit Ethernet
M.2 E-key w/ PCIe/USB/SDIO
1 Gigabit Ethernet
2.4/5GHz WiFi
Bluetooth 4.2/BLE
10/100M Ethernet (Black-only)
2.4GHz WiFi (Wireless-only)
Bluetooth 4.2/BLE (Wireless-only)
VideominiDP
MIPI DSI (w/ I2C)
Cape add-on boards
micro HDMI
Cape add-on boards
AudiominiDP
cape/USB add-ons
MikroBUS Shuttle connector
micro HDMI
cape/USB add-ons
Bluetooth
micro HDMI
cape/USB add-ons
Bluetooth (Wireless-only)
Camera2x MIPI CSI (4 lane)
N/A
Supported Expansion Interfaces
4x UART
16-bit LCD interface
2x I2C
2x SPI
8x PWM
4x Timer
A/D (3.3V)
CAN
Pulse Capture
Quadrature Encoder
PRU GPIO
PRU UART
PRU Pulse Capture
...
4x UART
16-bit LCD interface
2x I2C
2x SPI
8x PWM
4x Timer
A/D (1.8V)
CAN
Pulse Capture
Quadrature Encoder
PRU GPIO
PRU UART
PRU Pulse Capture
...
On-board Sensors
On-die processor temperature sensors
N/A

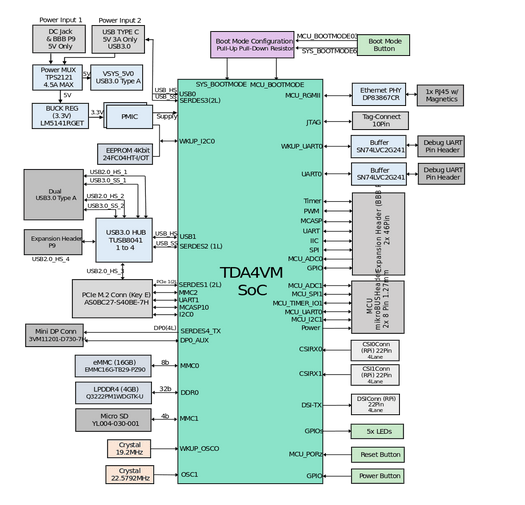

BeagleBone AI-64 Block Diagram
Block Diagram

Another notable change is that a mini DisplayPort has now replaced the micro HDMI port found in earlier boards. The TDA4VM SoC comes with many co-processors, so it will be interesting to see how well those are supported in the software. BeagleBoard.org provides Debian 11.3 with XFCE desktop environment for the BeagleBone AI-64 bootable either from the internal flash or a microSD card, and the instructions to get started are the same as for earlier BeagleBone or BeagleBoard boards.

The BeagleBone AI-64 is open-source hardware with the hardware design files, documentation, and some software, available in a dedicated git repository. You may also find additional information on the product page. The board is available through three distributors namely Digi-Key, Element14 (Asia), and OKdo for about $187.

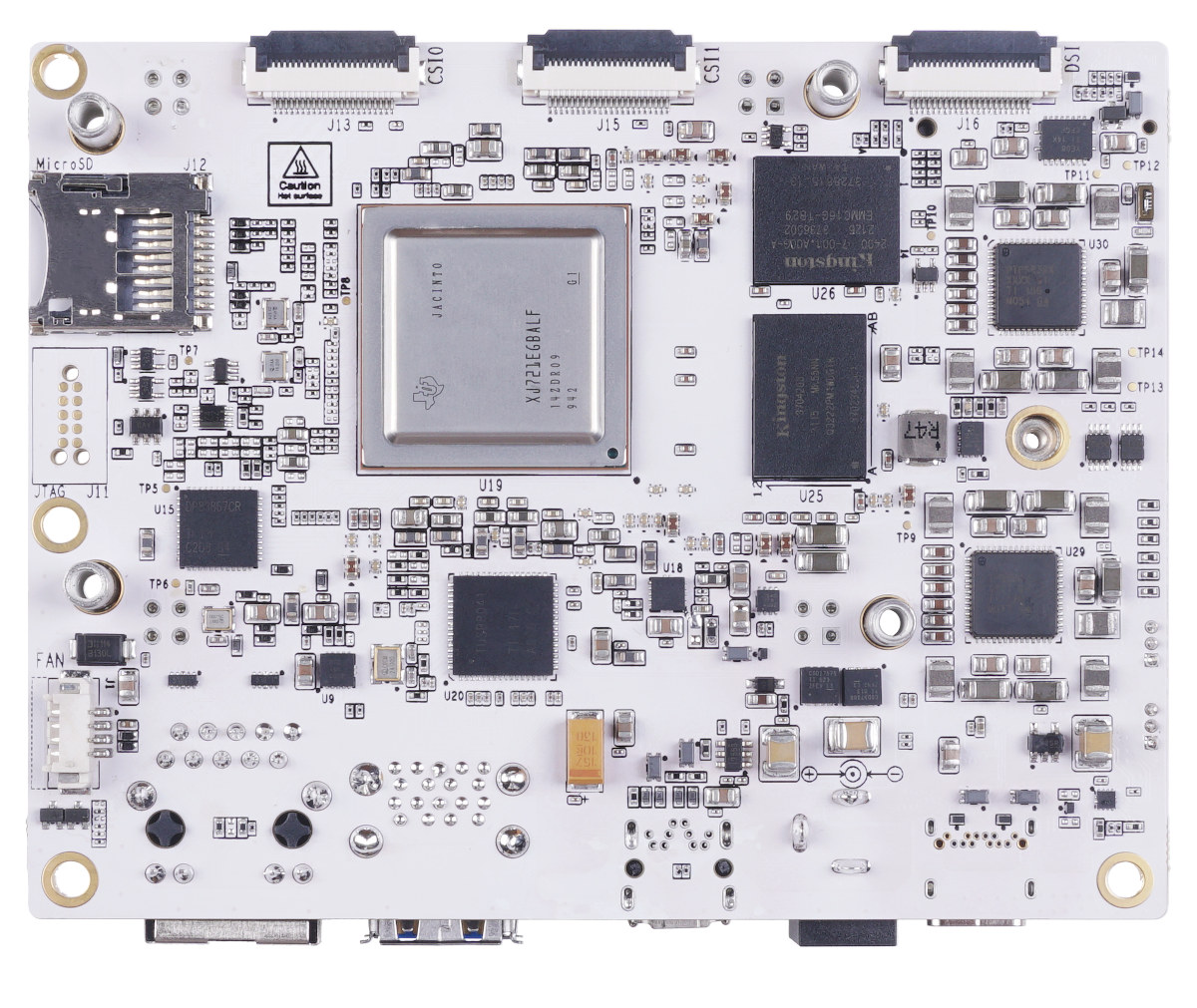

Jacinto 7 TDA4VM SBC BeagleBone AI-64 Heatsink
