MaxLinear unveils MxL31712 & MxL31708 Wi-Fi 7 chips for gateways, routers and access points

MaxLinear has unveiled its first Wi-Fi 7 SoCs with the MxL31712 and the MxL31708 single-chip solutions targeting service provider gateways, Wi-Fi routers, and access points, and delivering more than 70% higher tri-band throughput compared to Wi-Fi 6.

The MxL31712 aims at the premium 4×4 tri-band market with a throughput of up to 18.6 Gbps and up to 12 spatial streams, while the MxL31708 will be integrated into mid- to high-range 4×4 dual-band access points and gateways with a throughput of up to 17 Gbps, and up to 8 spatial streams.

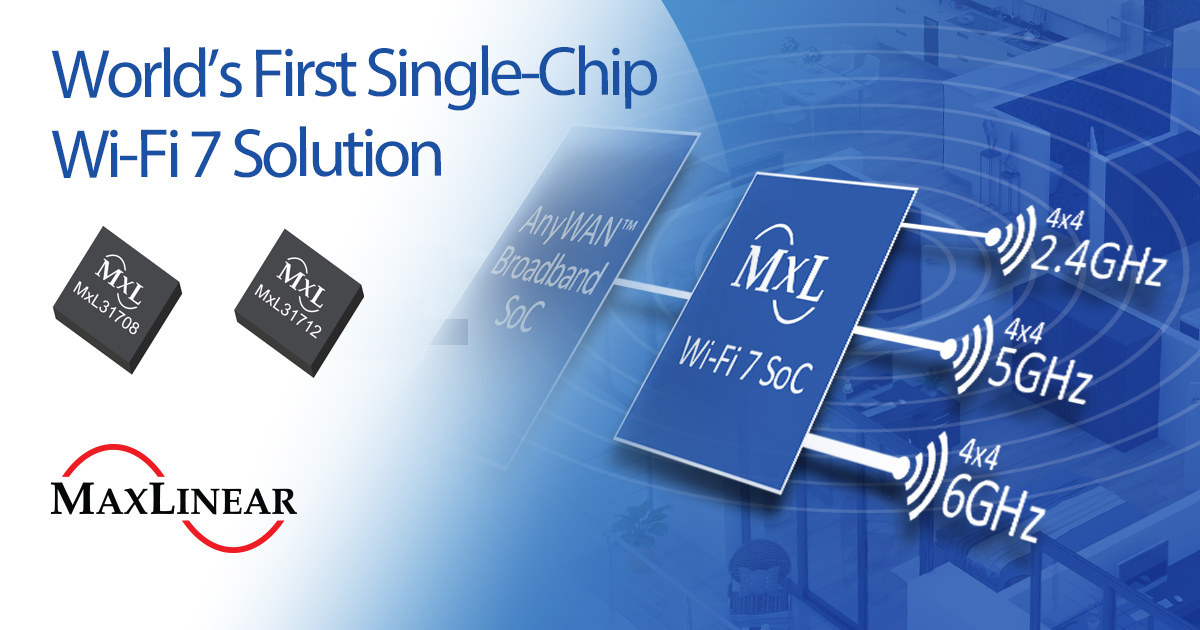

Maxlinear Wi-Fi 7 chip



MaxLinear MxL31712 and MxL31708 share the following features:

  • Single-chip WFA Wi-Fi 7 R1 certifiable
  • Based on IEEE 802.11be (aka WiFi 7 or Extremely High Throughput “EHT”) backward compliant to IEEE 802.11a/b/g/n/ac/ax WiFi 6
  • Wi-Fi 7 features:
    • Bandwidth up to 320MHz
    • 4096 QAM modulation
    • Multi-Link Operation (MLO)
    • Multi Resource Unit (MRU)
  • Dedicated antenna for Zero Wait DFS (ZWDFS)
  • Enhanced Network Efficiency
  • Digital Pre-Distortion (DPD)
  • Automatic Frequency Coordination (AFC) support
  • Fully offloaded Wi-Fi traffic
  • Coexistence support for PAN radios
  • Host Interface – PCIe Gen4

Both chips are optimized to interface with MaxLinear’s AnyWAN URX broadband SoCs and will be found in gateways with cable, fiber, copper, Ethernet, 2-Box (CNXSoft: not sure what this is…), and/or 5G FWA connectivity, as well as Wi-Fi 7 routers, access points, extenders, repeaters, and mesh networking solutions.

Since the WiFi 7 chips are coprocessors there’s no information about software support, but we previously reported that MaxLinear’s AnyWAN URX SoC could run the Yocto-based prplOS (formerly known as prplWRT), RDK-B, or MaxLinear’s UGW (Universal Gateway Software) based on OpenWrt.

MaxLinear MxL31712 and MxL31708 Wi-Fi 7 chips are at the pre-production stage with some samples available to selected partners, and mass production is scheduled to start next year. More details can be found on the respective product pages and the press release.

Thanks to TLS for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 Comments
oldest
newest
Arnd Bergmann
Arnd Bergmann
1 year ago

I’m still confused about what this actually is. They call it a SoC, but from the description it sounds like PCIe wifi chip that can act as an AP. Does it run Linux (or another full-featured OS) in a way that would make it a SoC? I can see that the older Wi-fi-6 chips from Maxlinear (Intel WAV600) are also called SoCs, but not the Wi-fi-5 generation (WAV500). prplos comes with a driver for these at https://gitlab.com/prpl-foundation/intel/iwlwav-dev/-/tree/ugw-8.5.2/drivers/net/wireless/intel/iwlwav but that has been dormant for a year and doesn’t contain any reference to the new chips. The WAV600 driver code suggests that… Read more »

Nicolò
1 year ago

Uhm no open drivers no party. For wat I’ve herad in Openwrt IRC maxlinear is not that friendly as Lantiq was.
