Toradex Verdin AM62 – An entry-level Sitara AM623/AM625 SoM for Industry 4.0, Smart Cities, Healthcare…

Toradex Verdin AM62 is a system-on-module based on Texas Instruments AM62 Cortex-A53/M4 processor with up to 1GB LPDDR4 RAM and 8GB eMMC flash that is the most affordable system-on-module from the company’s Verdin family.

The module also comes with a Gigabit Ethernet PHY and an optional WiFi 5 and Bluetooth 5 module and exposes various interfaces through its edge connector such as dual Gigabit Ethernet, MIPI DSI and LVDS display interfaces, a MIPi CSI-2 camera interface, and CAN FD, and more.

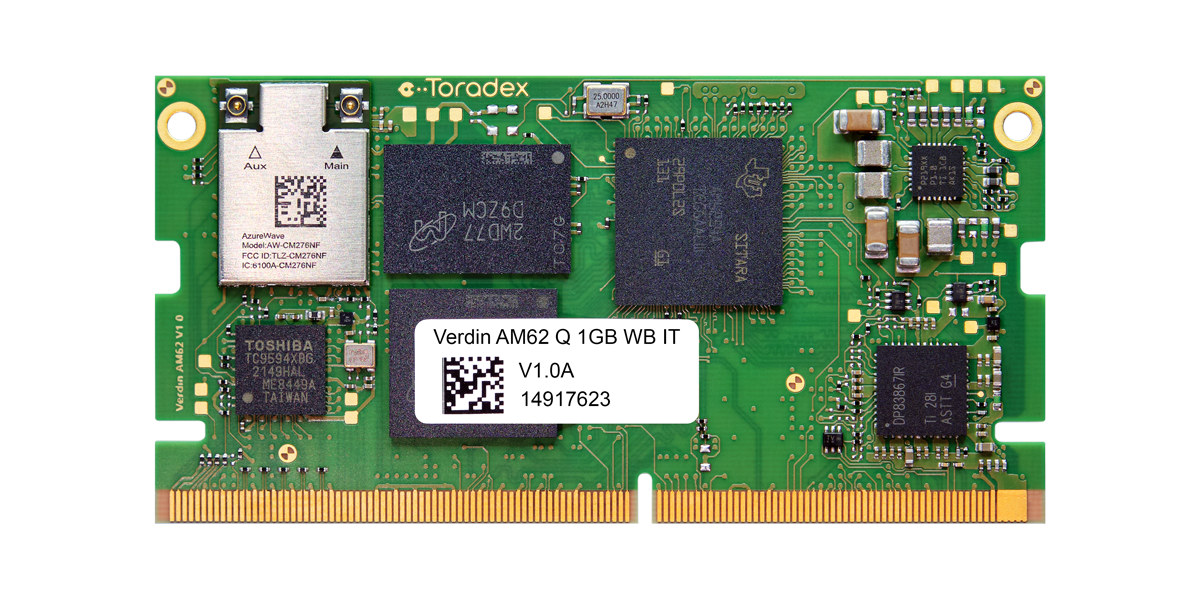

Toradex Verdin AM62Toradex Verdin AM62 specifications:

  • SoC – Texas Instruments Sitara AM623/AM625 with up to 4x Arm Cortex-A53 cores @ 1.4GHz, 1x Arm Cortex-M4F @ 400MHz, optional 3D GPU with support for OpenGL 3.x/2.0/1.1 + extensions, Vulkan 1.2 (AM625 only)
  • System Memory – Up to 1GB LPDDR4 (16-bit)
  • Storage – Up to 8GB eMMC flash
  • Networking
    • Texas Instruments DP83867IRRGZR industrial-grade Gigabit Ethernet PHY
    • Optional Wi-Fi 5 and Bluetooth 5 module (AzureWave AW-CM276NF)
  • Edge connector with
    • Storage – Up to 2x SDIO/SD/MMC, 1x QSPI
    • Display I/F
      • 4-Lane MIPI DSI
      • LVDS up to 1920×1080
      • Optional HDMI via adapter
    • Audio – 3x I2S/TDM
    • Camera – 4-lane MIPI CSI-2
    • Networking – Up to 2x Ethernet Gigabit with TSN (TI PHY + extra RGMII interface)
    • USB – 1x USB 2.0 Host, 1x USB OTG
    • Serial – Up to 9x UART, 3x CAN bus
    • Low-speed I/Os – Up to 4x I2C, 5x SPI, 6x PWM, 104x GPIO
    • Analog – 4x analog inputs
    • Debugging – JTAG
  • Misc – RTC
  • Supply Voltage – 3.135 – 5.5V DC
  • Dimensions – 69.6 x 35.0 x 6.0mm
  • Temperature Range  – Up to IT: -40°C to +85°C
  • Vibration/Shock – EN 60068-2-6/50g 20ms

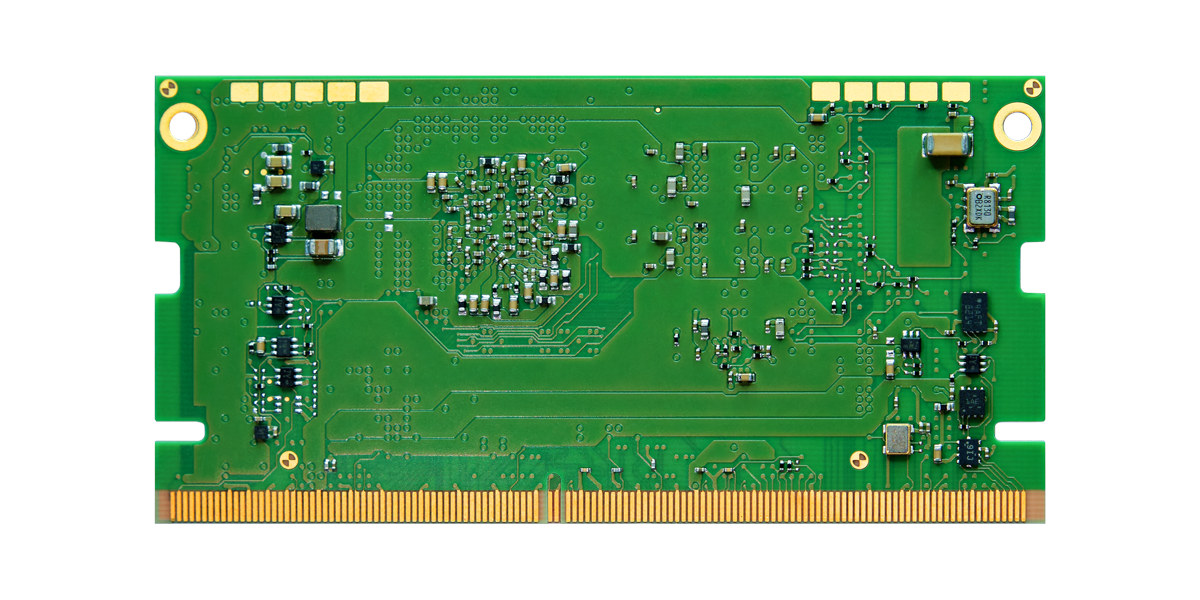

Toradex Verdin AM62 bottom

Torax provides support for its own TorizonCore IoT Linux distribution, Yocto Project for custom Linux image development, and Android. FreeRTOS is also coming soon for the Cortex-M4 real-time core. The company also offers a range of carrier boards to get started. You’ll find those along with preliminary software documentation on the developer’s website.

The Toradex Verdin AM62 SoM targets industrial automation, healthcare, Smart City, transportation, and test & measurement applications, and was designed after Toradex received input from their customer who wanted a lower power and lower cost SoM compatible with NXP i.MX 8M Mini and NXP i.MX 8M Plus Verdin system-on-modules.

Verdin AM62 samples are available to early-access customers and will also offer long-term availability until at least the year 2033. Further details may be found on the product page.

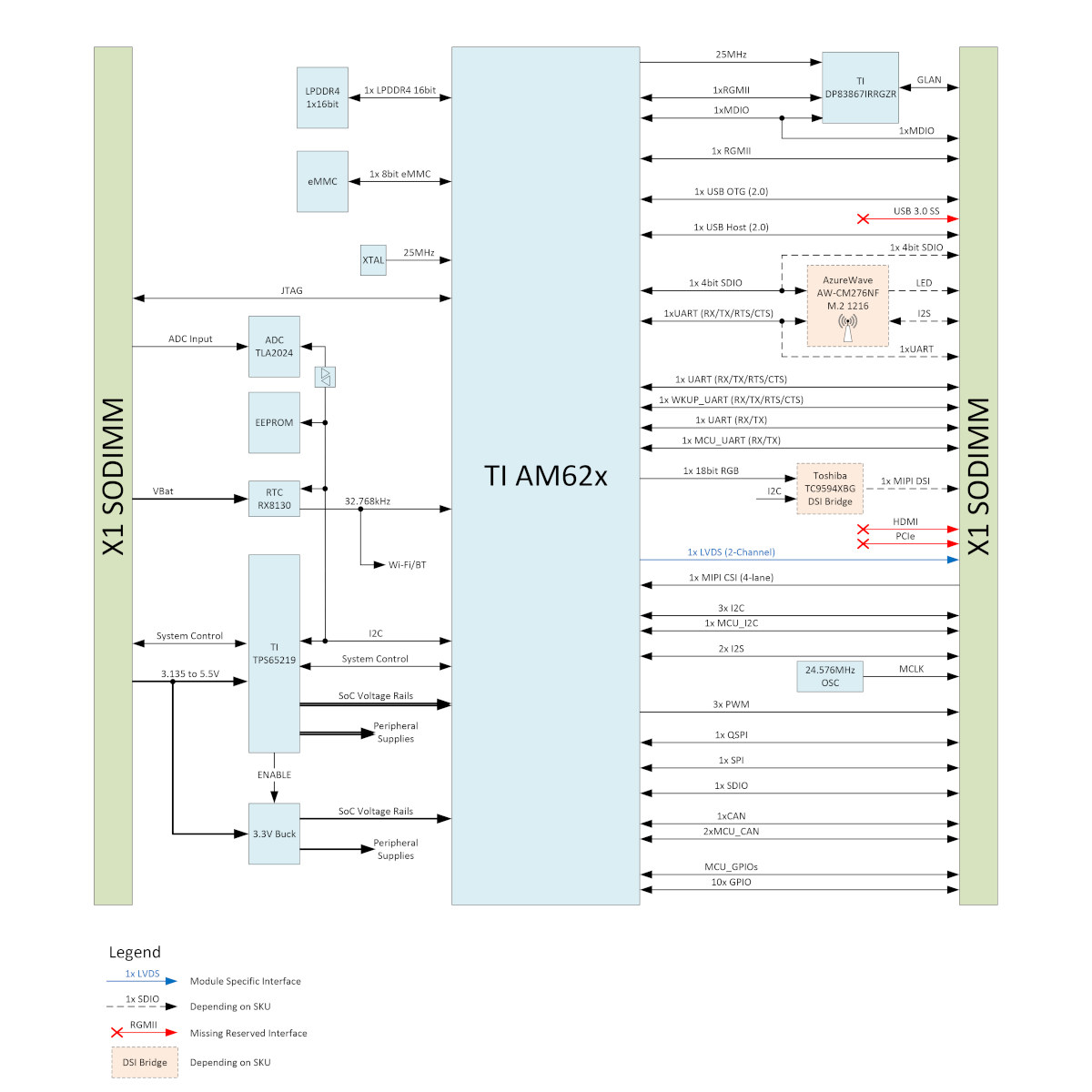

Toradex Verdin AM62 block diagram
Block Diagram
