Synaptics SYN4382 SoC supports Wi-Fi 6E, Bluetooth 5.3, and 802.15.4 connectivity

Synaptics SYN4382 is a triple combo SoC with Wi-Fi 5/6E, Bluetooth 5.3, and IEEE 802.15.4 (Zigbee/Thread/Matter) radios, and manufactured with a 16nm process to lower power consumption for IoT and multimedia applications.

The chip can deliver up to 1,200 Mbps WiFi throughput, supports dual-band (RSDB) 2.4 and 5 or 6/6E GHz operation to combine the links at different frequencies, as well as features such as LE Audio for multiple concurrent audio streams in a multi-device environment.

Synaptics SYN4382

Synaptics SYN4382 key features:

  • Wireless
    • Triband 2×2 Wi-Fi 6E (802.11ax) with 1200 Mbps throughput, RSDB, and support for legacy 802.11a/b/g/n/ac WiFi
    • Bluetooth 5.3 with LE Audio,  Channel Sounding (HADM = High Accuracy Distance Measurement) for accurate positioning
    • 802.15.4 radio for Thread and Zigbee
    • Matter interoperability
    • Smart Co-Ex for coexistence in the 2.4 GHz band
    • Multipoint external coexistence interface for LTE, GPS
    • On-chip power amplifiers (PAs) and low-noise amplifiers (LNAs) with support for external PAs and LNAs
  • Process – 16 nm process

We don’t have much more information, except the SYN4382 is expected to be found in automotive infotainment systems, OTT TV boxes and set-top-boxes, and TV/home theater audio systems. It’s an update to the SYN4381 limited to 600 Mbps throughput and Bluetooth 5.2 for which we have a block diagram.

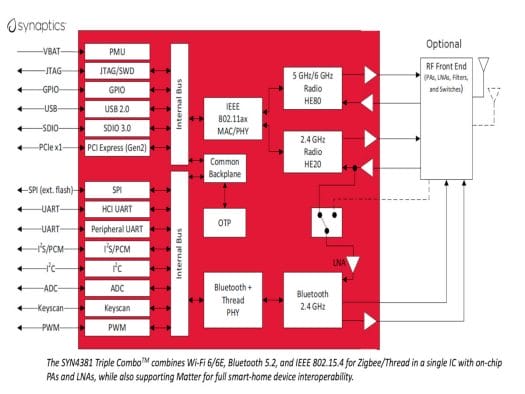

SYN4381 block diagram
SYN4381 block diagram

[Update: Synaptics emailed us the block diagram SYN4382 block diagram as well
SYN4382 Block Diagram]

So the SYN4381/SYN4382 will have to be connected to a host processor via USB, SDIO, or PCIe x1 Gen 2 interfaces, and the chips are supported by Synaptics’ SynFi software tools.

The SYN4382 Triple Combo SoC is available now, and so is a “Triple Combo EVK”, but few details have been made public on the product page. The press release may have a few extra tidbits of information.

Thanks to TLS for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
8 Comments
oldest
newest
Jacques
1 year ago

If it doesn’t have an actual CPU it’s hardly an SoC, but there are quite a few interfaces which don’t make much sense if it doesn’t. Weird block diagram and weird specs…

KellyC
KellyC
1 year ago

Had no idea Synaptics made radios. I’ve only ever heard of their touchpads…

tkaiser
tkaiser
1 year ago

According to this PDF they also do Application/Multimedia processors with Cortex-A7/A53/A55/A73 cores.

TLS
TLS
1 year ago

They’ve been busy acquiring several competitors or at least parts of competitors over the past decade. They bought DisplayLink, Conexant, Validity Sensors, part of Renesas, specifically their display driver BU, part Marvell’s chip business, i.e. the stuff that was used by Google in the Chromecast and Broadcom’s wireless IoT BU as well as a company called DSP Group that made WiFi and DECT chips and so on. As such, very few of the products they sell are their own tech from the begining.

Ray Knight
Ray Knight
1 year ago

Synaptics acquired of Marvell’s Multimedia Solutions Business (Armada 1500) back in 2018.
