iKOOLCORE R1 review

When I first saw the iKOOLCORE R1 I was fascinated that a mini PC of similar size to the smallest fully functional ones available (think Chuwi LarkBox, GMK NucBox or ECS LIVA Q Series) could be equipped with four 2.5 gigabit Ethernet (2.5GbE) ports. I approached iKOOLCORE who kindly provided an R1 for review and I’ve looked at performance running both Windows 11 and Ubuntu 22.04 and dabbled with using hypervisors on this mini PC through Proxmox virtual environment.

iKOOLCORE R1 specifications

iKOOLCORE list the R1 specifications on their website as:

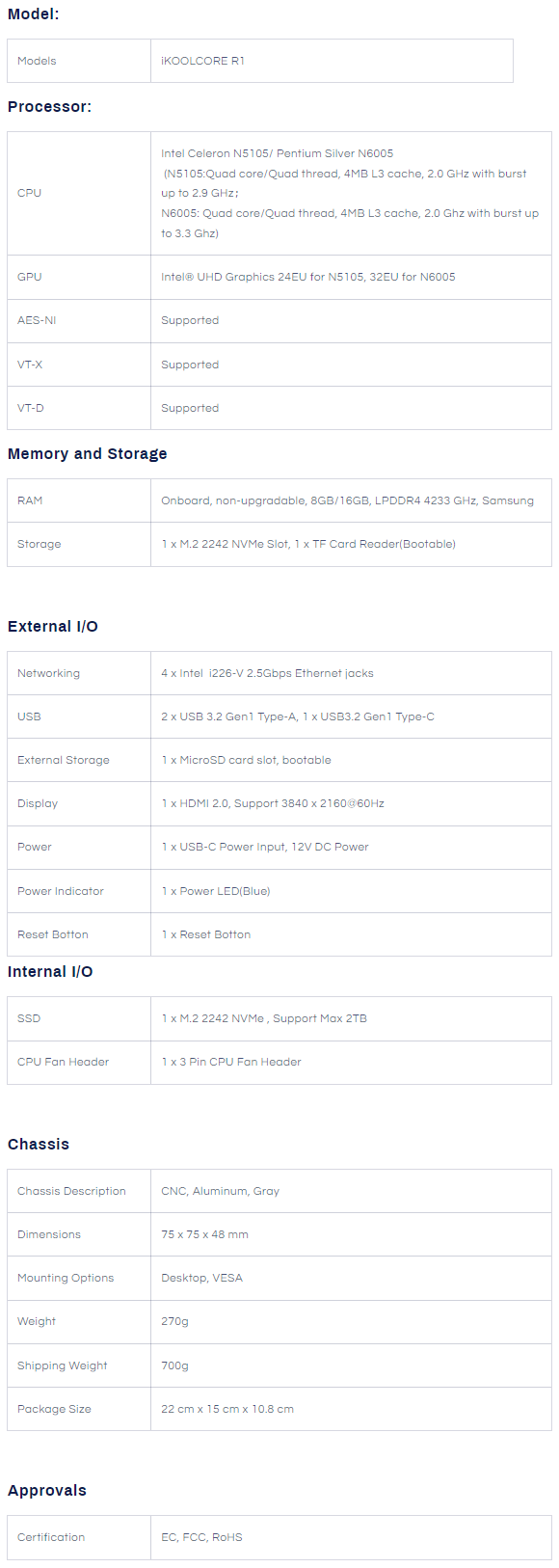

iKOOLCORE R1 specifications

Of note are the ‘EC, FCC, RoHS’ certifications indicating both European conformity and approval for use in the US.

Technically ‘EC’ refers to an ‘EC declaration of conformity’ which is not a certificate, however, the ‘EC declaration of conformity’ is called a ‘CE statement’ or ‘CE certificate’ which is why you often see this abbreviated as ‘CE’.

The rest of the specifications are aligned to the physical device with the possible exception of the data-only Type-C USB port (see below):

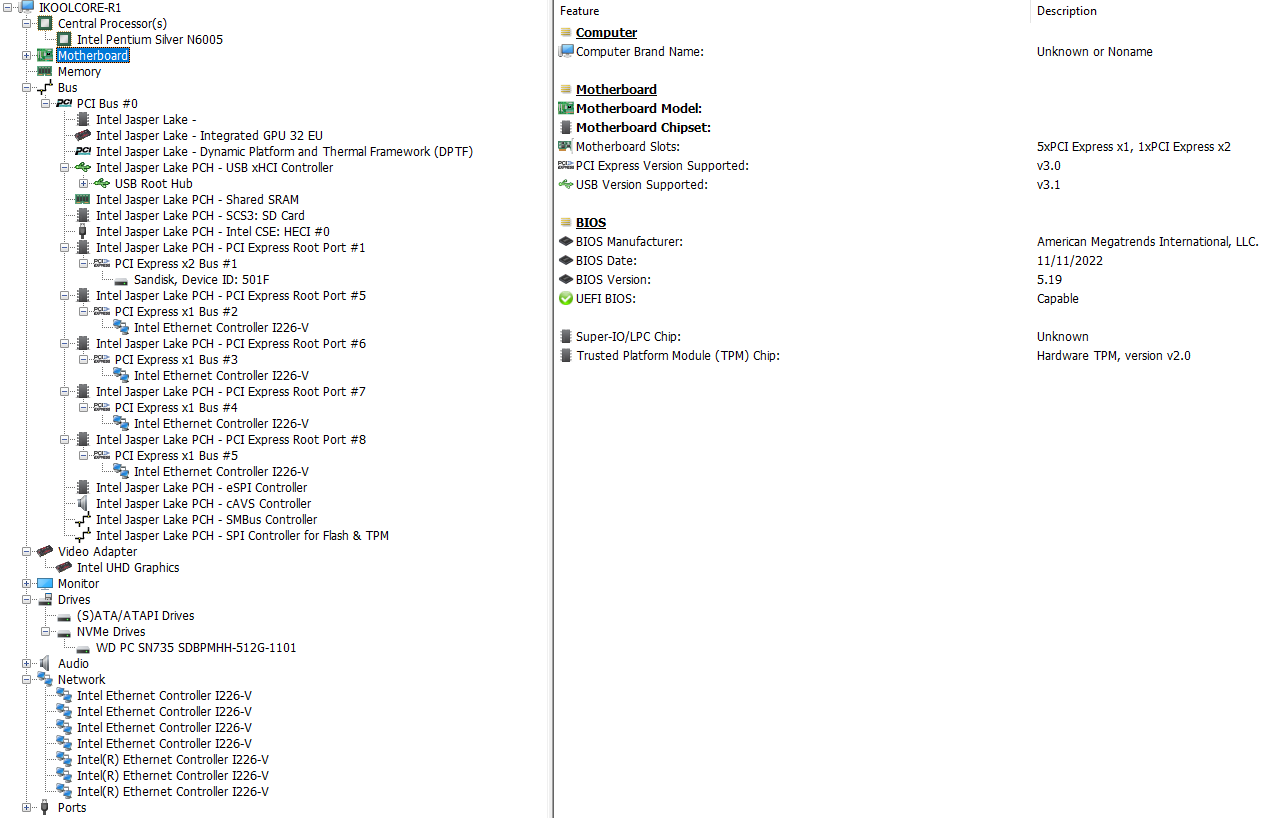

iKOOLCORE R1 Windows 11 System Info

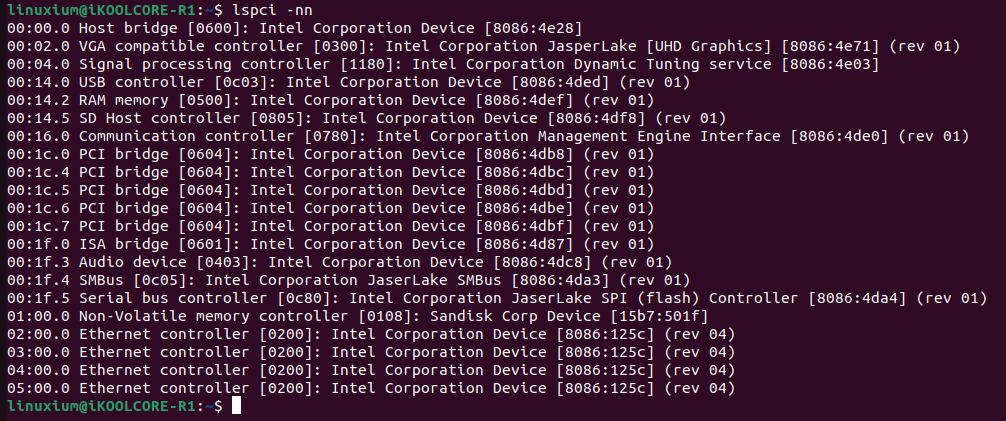

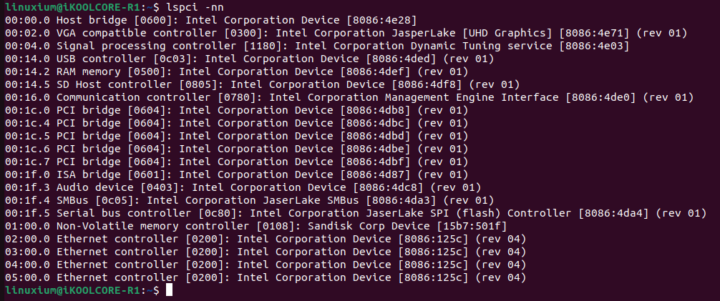

iKOOLCORE R1 Linux System Info

iKOOLCORE R1 overview

Overview of hardware

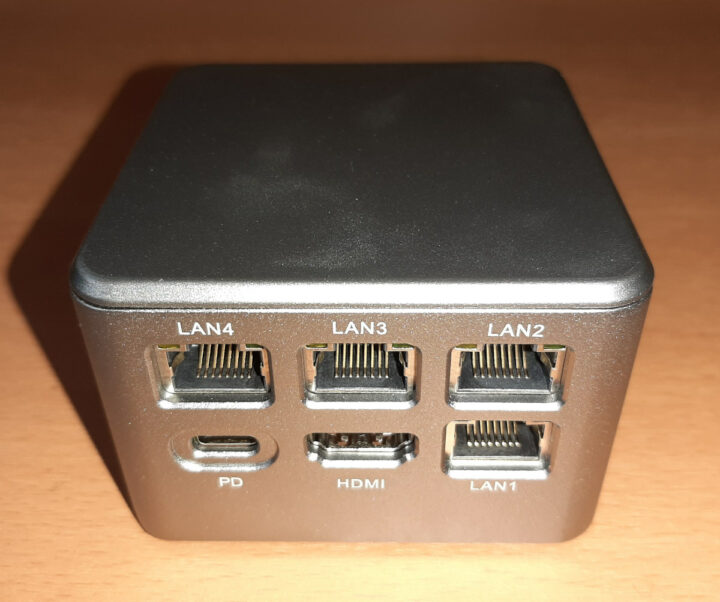

The iKOOLCORE R1 physically consists of a 75 x 75 x 48mm (2.95 x 2.95 x 1.89 inches) square metal case which has a removable plastic top. As an actively cooled mini PC, the R1 uses either an Intel Jasper Lake Pentium Silver mobile N6005 processor (as in the review unit) which has 4 cores and 4 threads and can boost to 3.3GHz together with Intel UHD Graphics, or it is available with a Celeron 5105 processor.

The front panel has a power button and two USB 3.1 ports. On the left panel are a Type-C USB port and a microSD card slot. The rear panel includes four Intel I226-V 2.5 gigabit Ethernet ports, an HDMI 2.0 port, and a Type-C USB port for Power Delivery. Internally, storage is a 42mm M.2 NVMe (‘M’ key) PCIe Gen 3.0 SSD drive which is accessed by ‘popping’ off the top, and the review sample included a Western Digital SN735 NVMe SSD 512GB M.2 2242 drive.

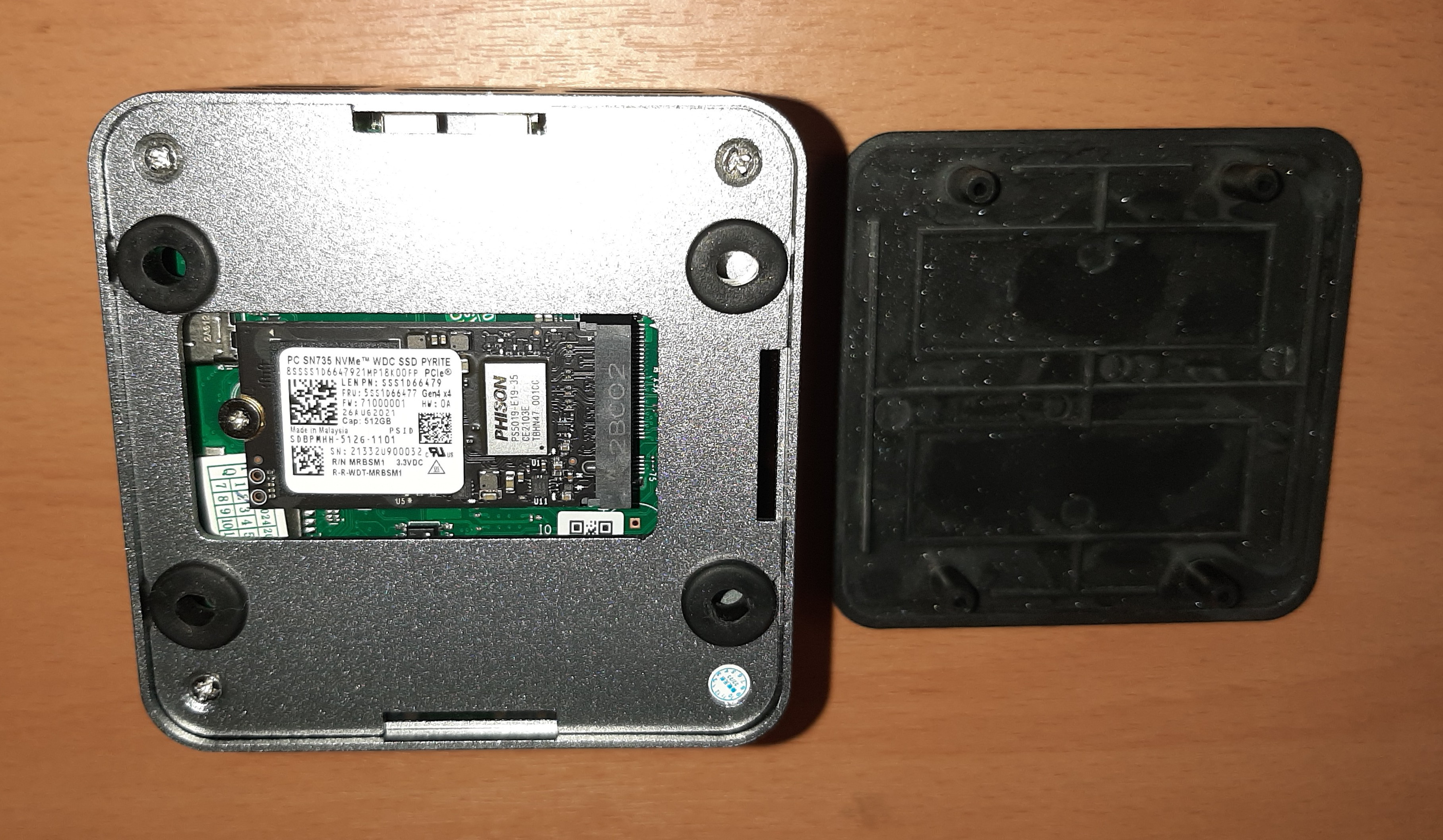

iKOOLCORE R1 NVMe SSD

Due to the R1’s size, there is soldered-on LPDDR4 memory and the review sample included dual-channel 16GB 2933MHz memory although 8GB is also available. Also included in the box are a VESA mounting bracket and screws, a 30W (12V 2.5A) Type-C USB power supply, and a ‘DC 5.5 x 2.1mm female to USB Type-C male power cable adapter’ allowing the use of a more typical mini PC power supply with a barrel connector if required.

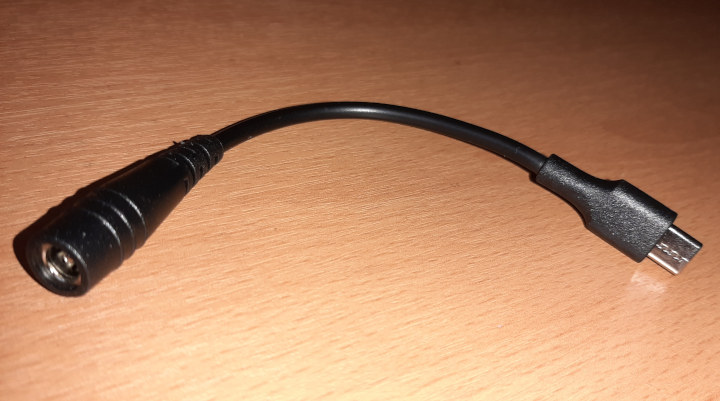

DC 5.5x2.1mm female to USB Type-C male power cable adapter

The R1’s power chip supports an input voltage of between 12 and 20V with the current varying depending on the device’s power consumption. It can use either a DC power supply with the included adapter or Power Delivery (PD) using the rear Type-C USB port and the included power supply. Additionally, the R1’s motherboard has hardware protection to prevent any issues from arising if the power supply is plugged into the side Type-C USB data port.

Overview of software

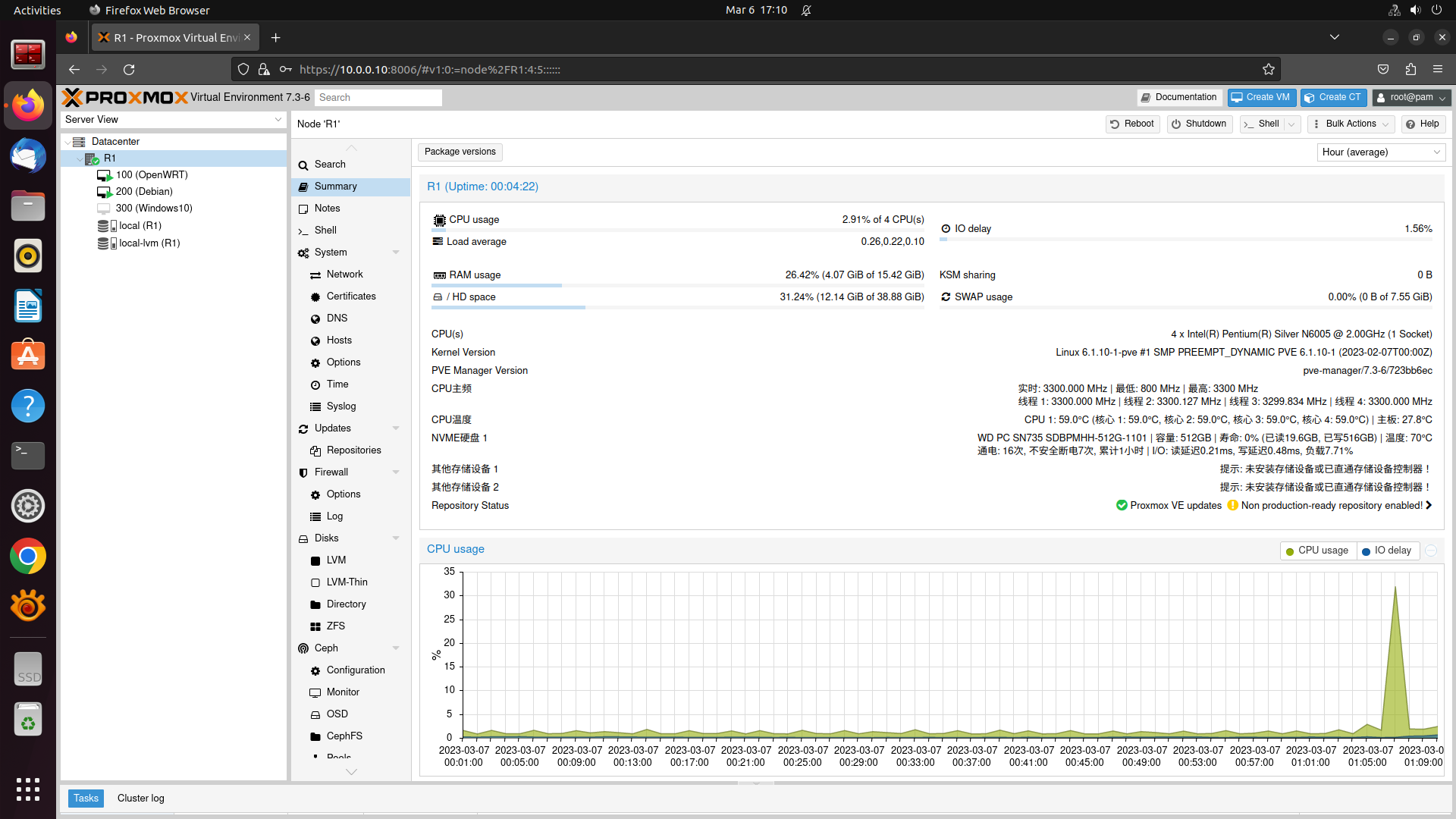

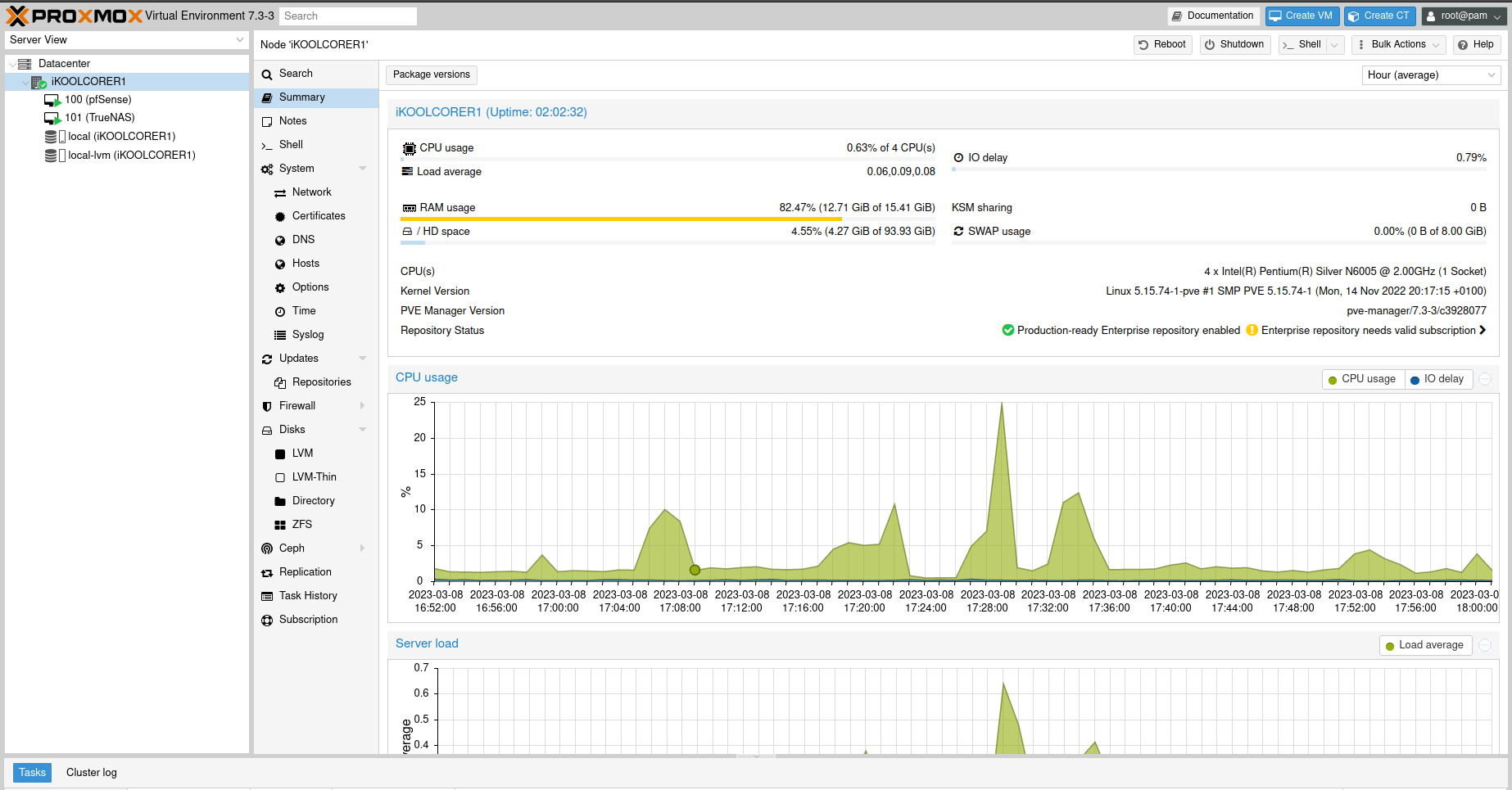

The iKOOLCORE R1 came pre-installed with Proxmox 7.3-6:

Proxmox Virtual Environment mini PC

and included VMs of OpenWRT in Chinese:

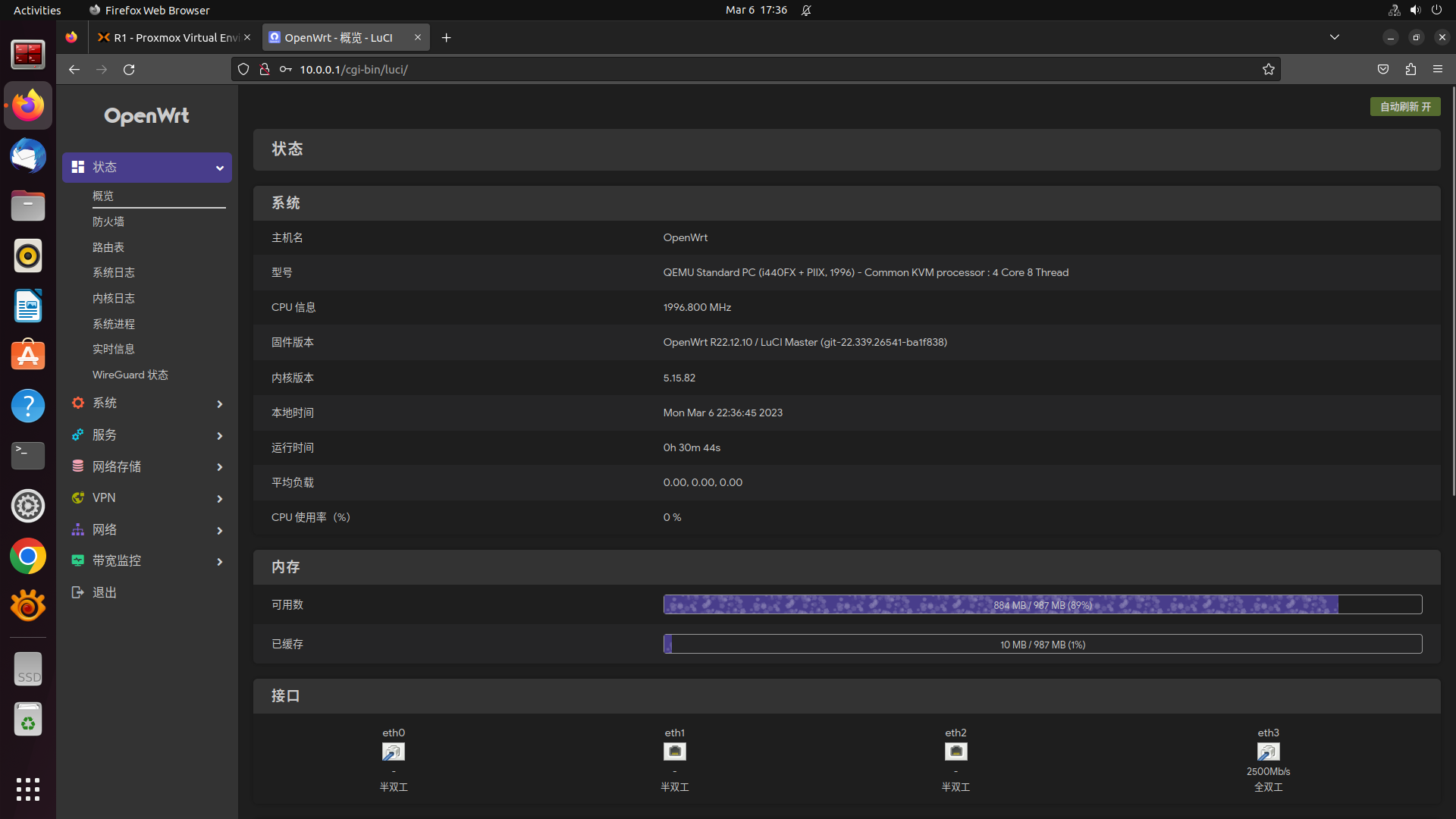

iKOOLCORE R1 OpenWrt

or when the language is switched to English:

iKOOLCORE R1 OpenWrt English

a VM of Debian 11:

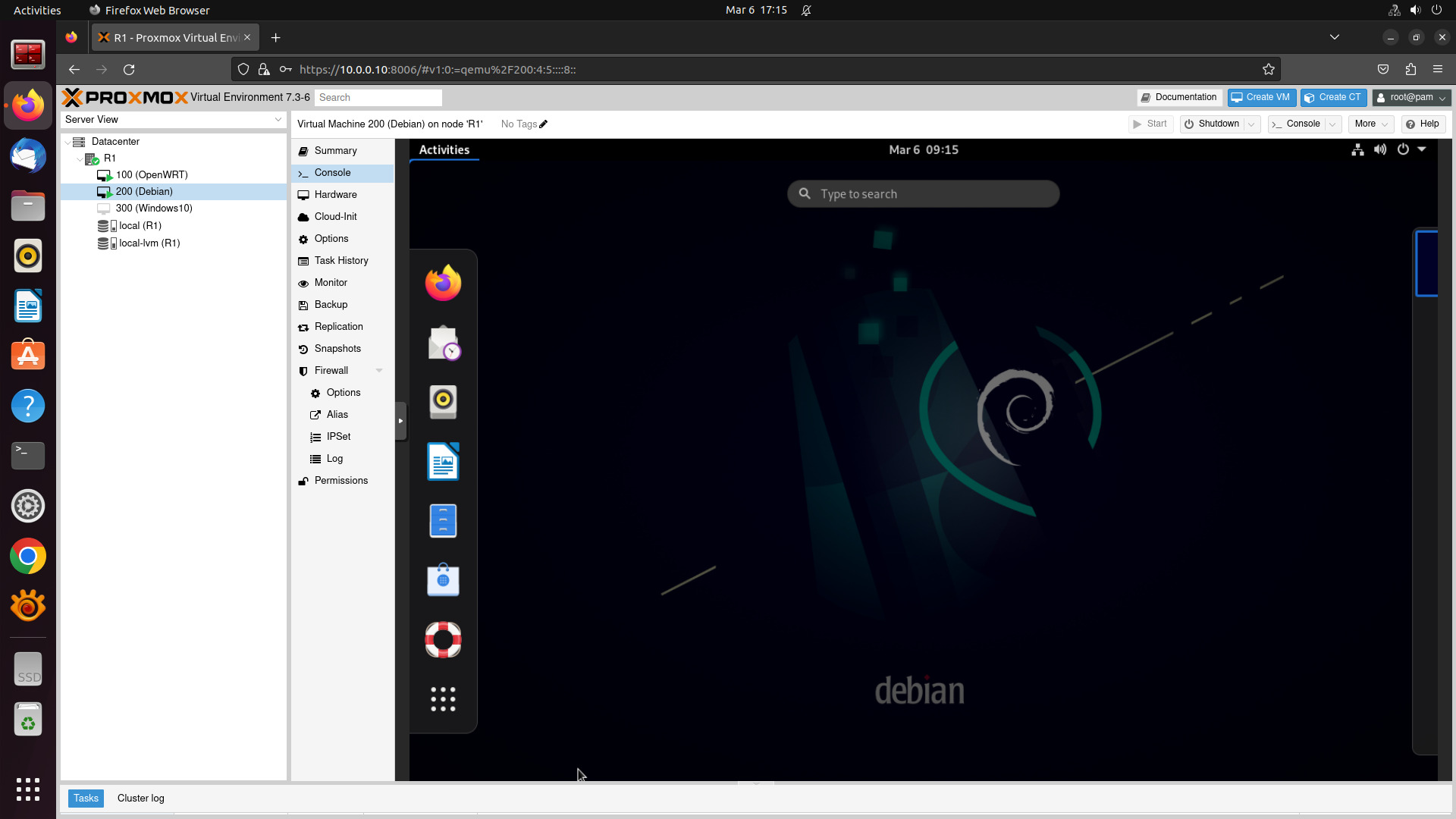

Promox Debian 11

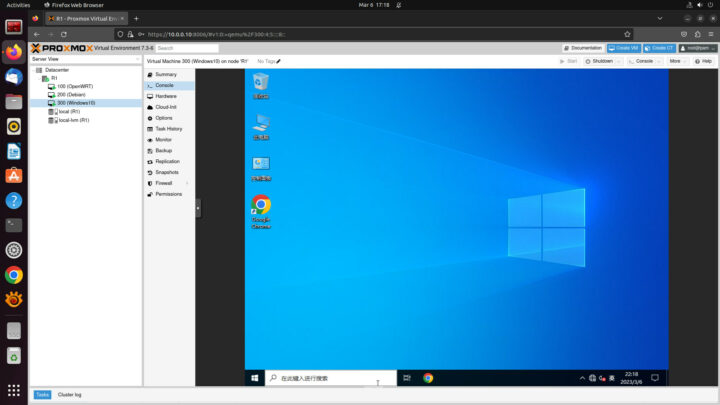

and Windows 10 Enterprise LTSC VM also in Chinese:

iKOOLCORE R1 Proxmox Windows 10 Enterprise LTSC

and to prove it really is Windows:

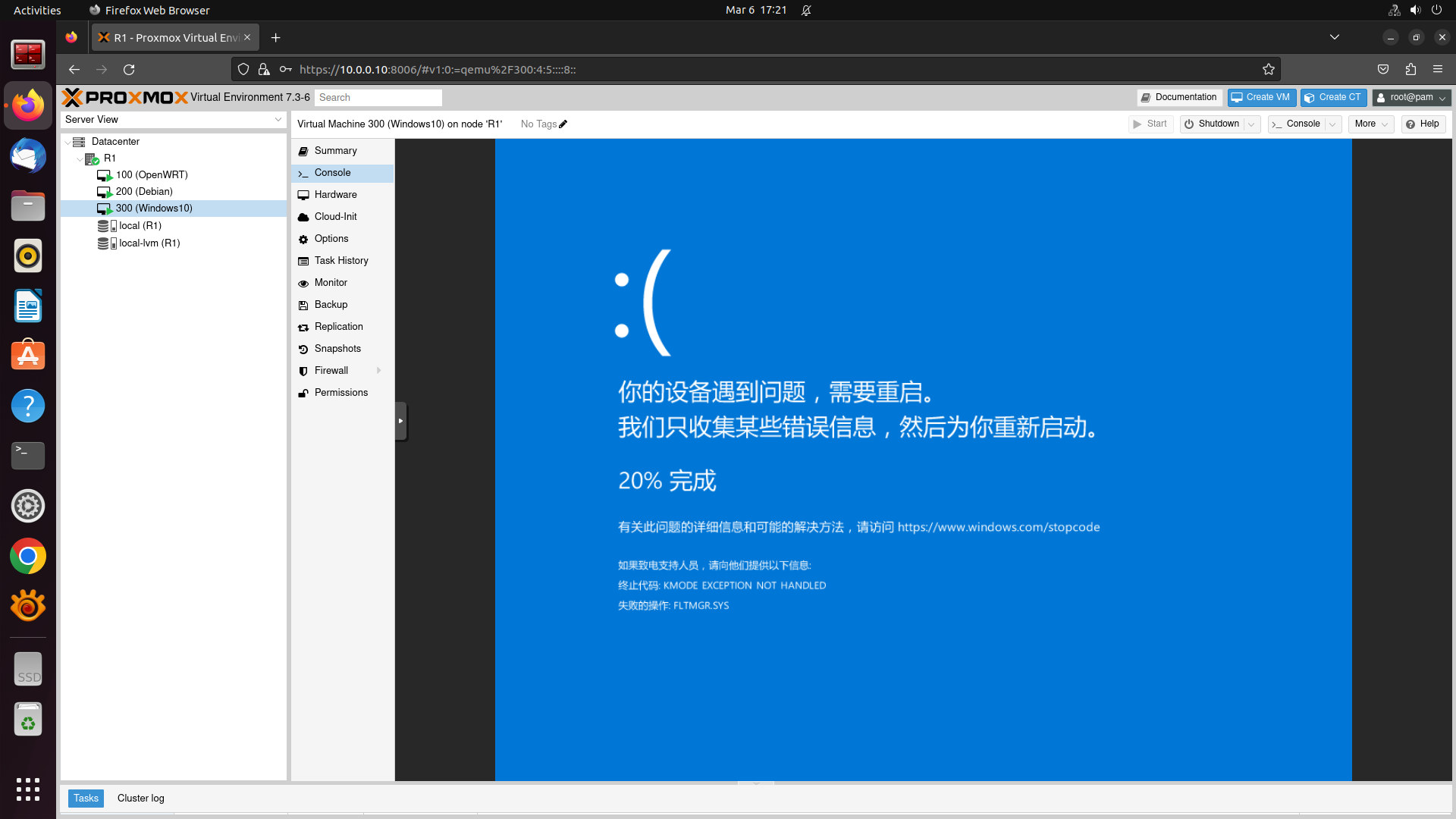

Windows 10 Blue Screen of Death

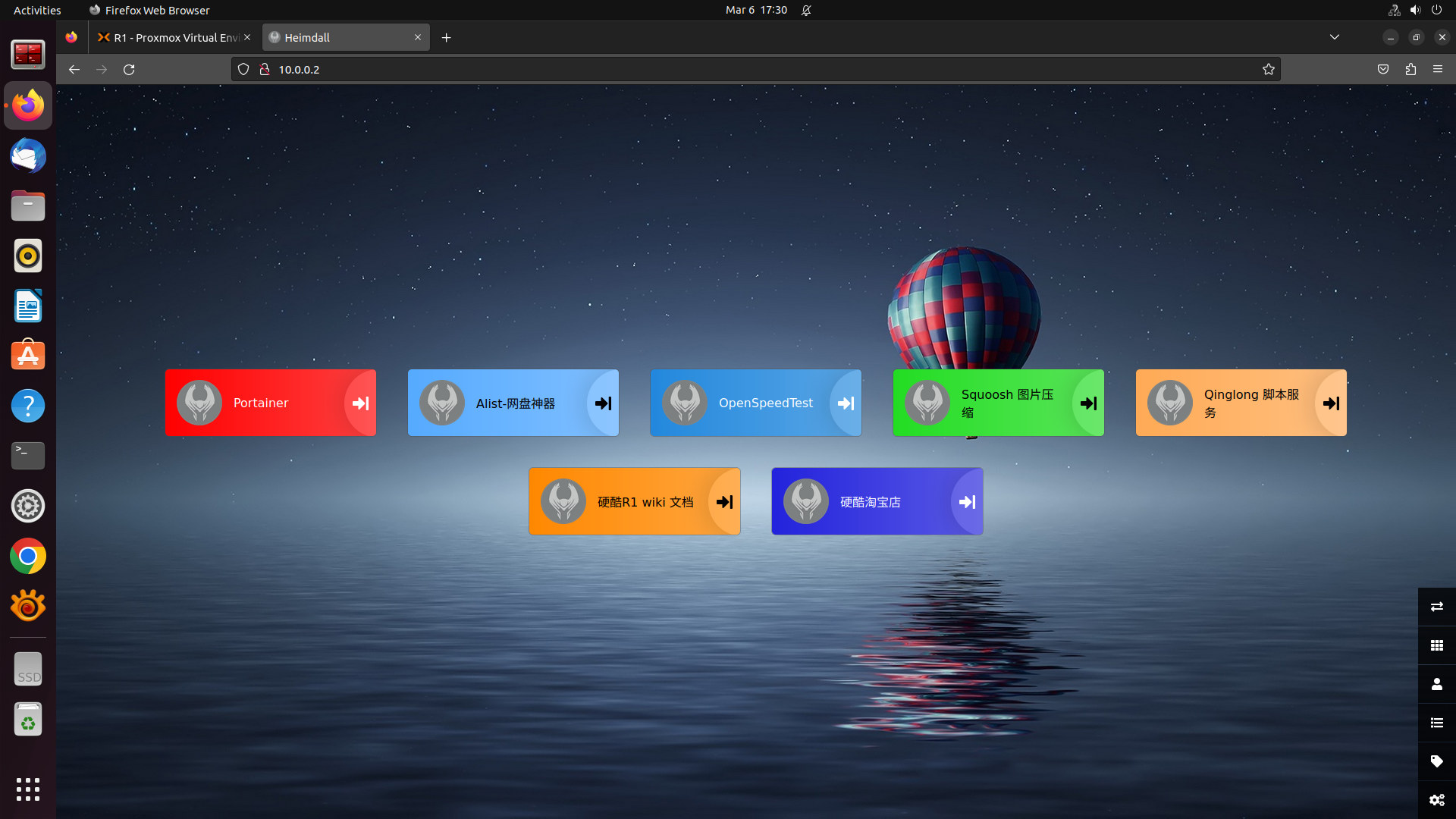

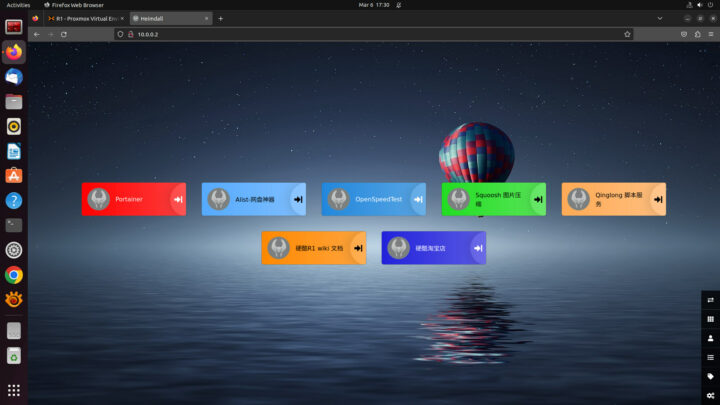

Docker is also running on the Debian VM with various containers including Heimdall:

Proxmox Docker Heimdall

and OpenSpeedTest:

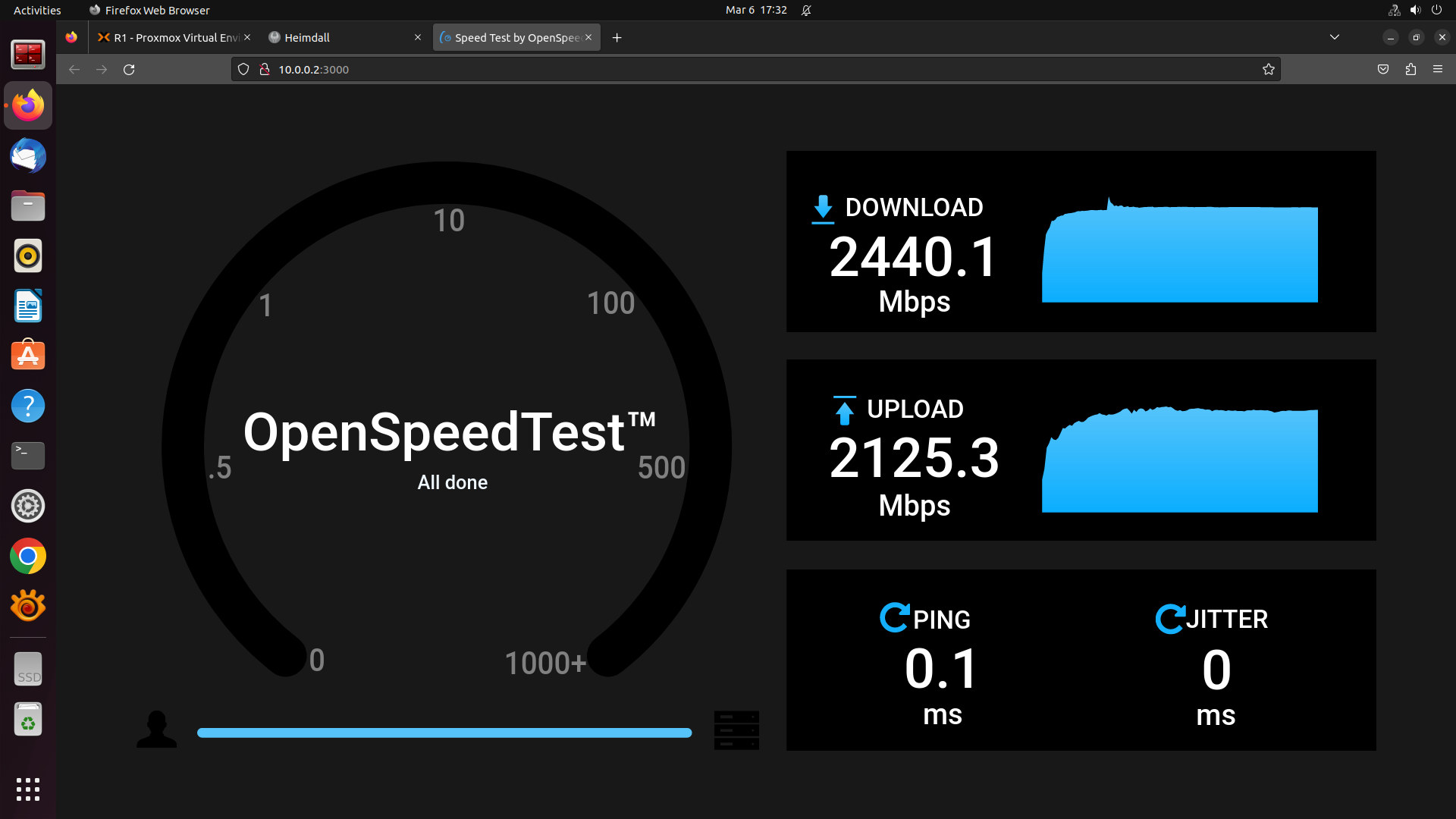

iKOOLCORE R1 OpenSpeed Test

together with some others which are covered in detail in the wiki.

I pottered around the demo installation and looked at the Ethernet connection speed between the R1 and a Windows PC on the same network:

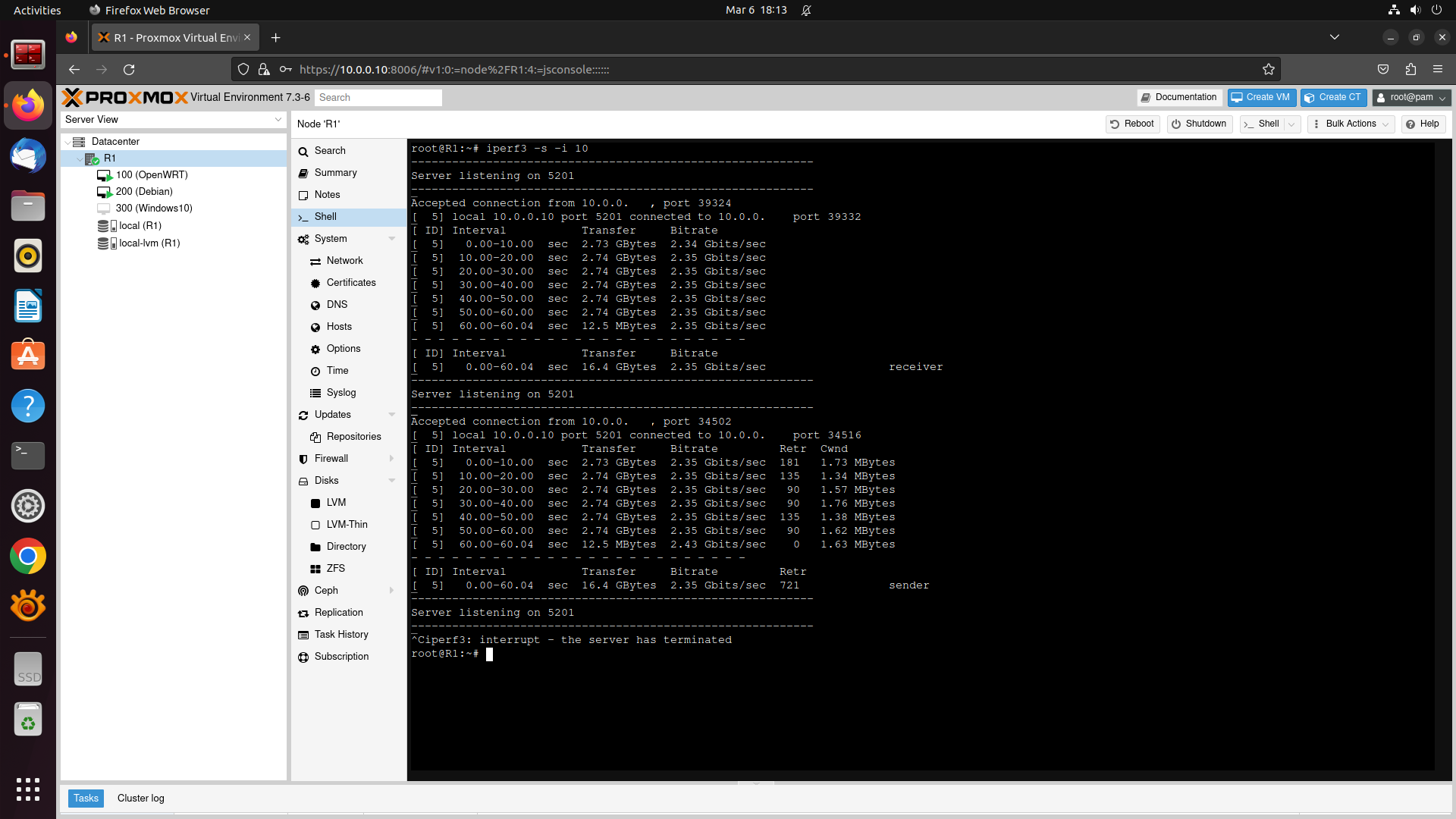

iKOOLCORE R1 iperf3

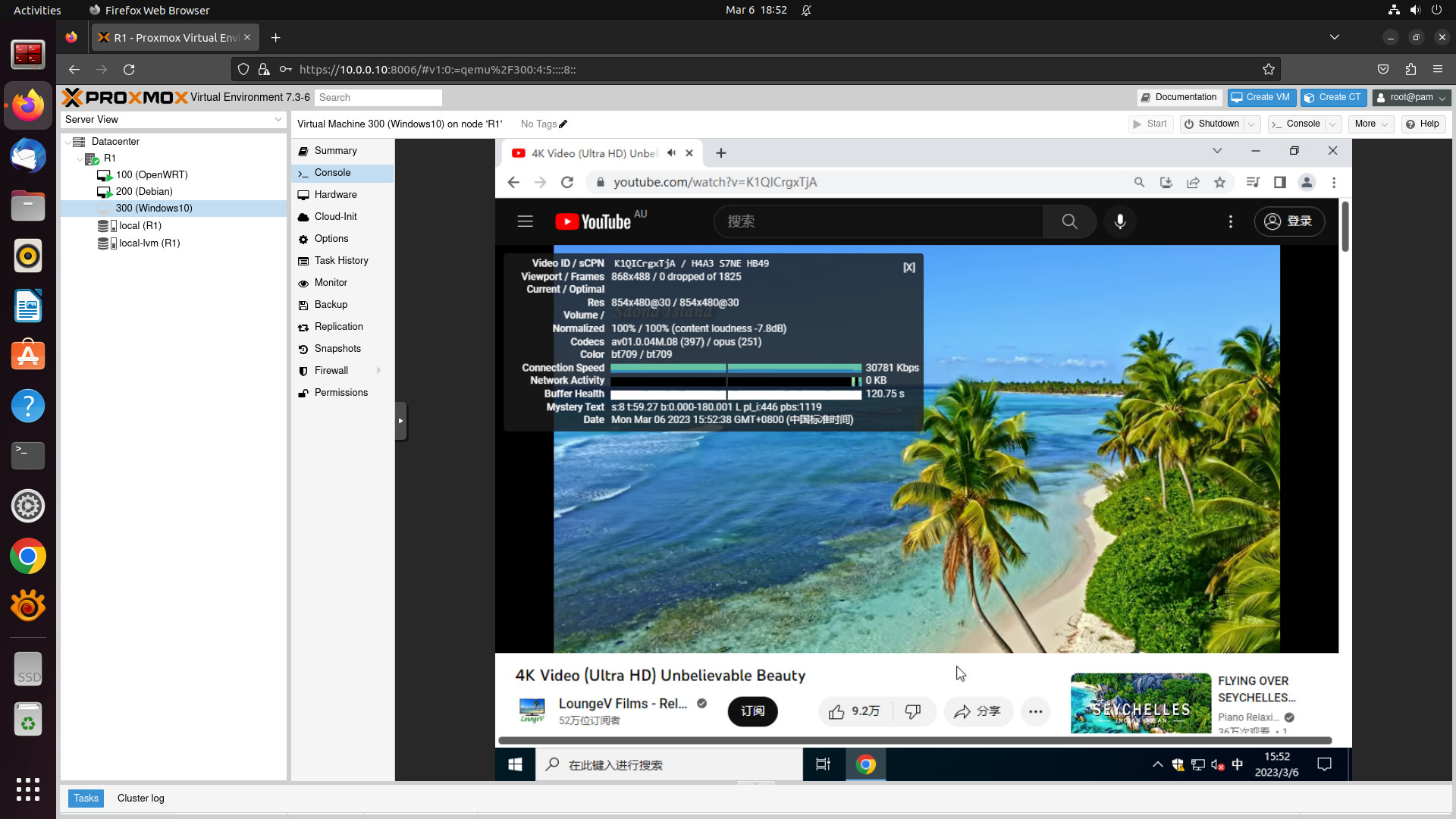

I also tried playing some videos in the Windows 10 VM:

Windows 10 Proxmox YouTube Video

To prepare for my performance testing I then ‘wiped’ the demo installation by performing a clean installation of Windows 11 Pro version 22H2 and upgraded it to the latest the build 22621.1413:

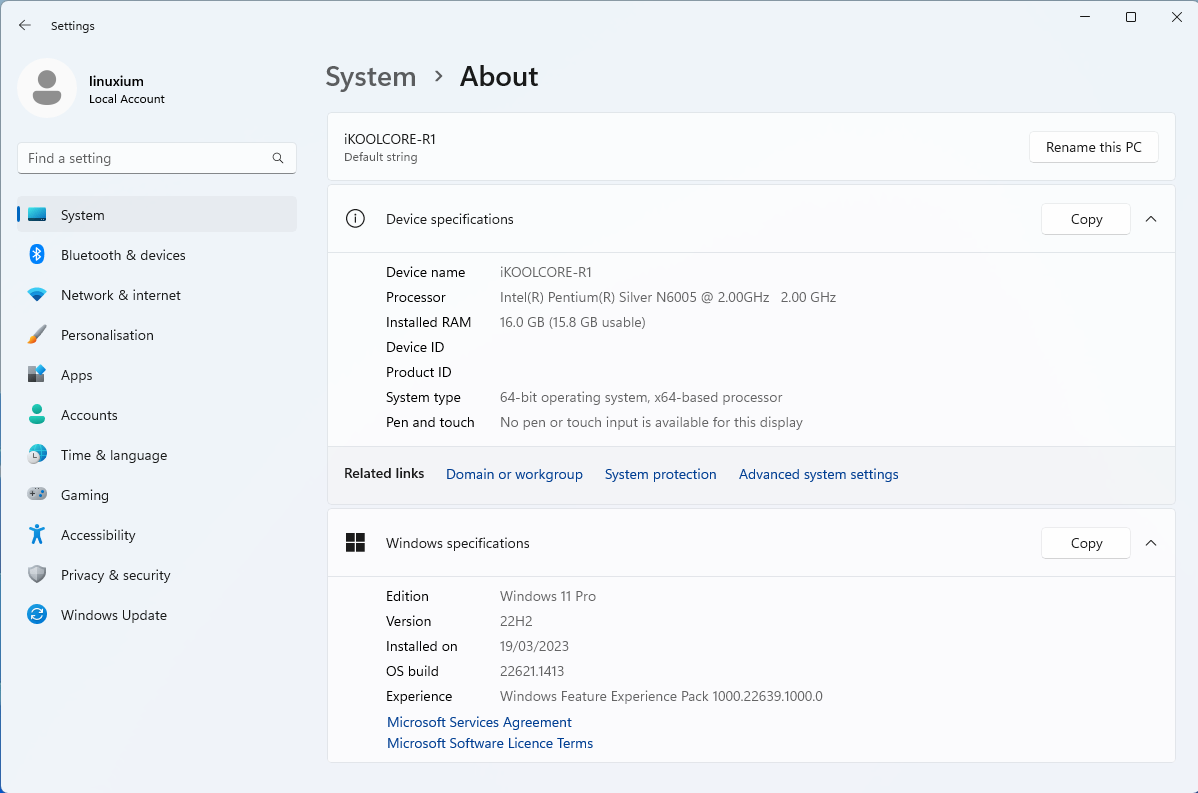

iKOOLCORE R1 Windows 11 Pro

I also shrank the Windows partition in half to create a new partition into which I installed Ubuntu as dual boot using an Ubuntu 22.04.2 ISO and applied all available updates:

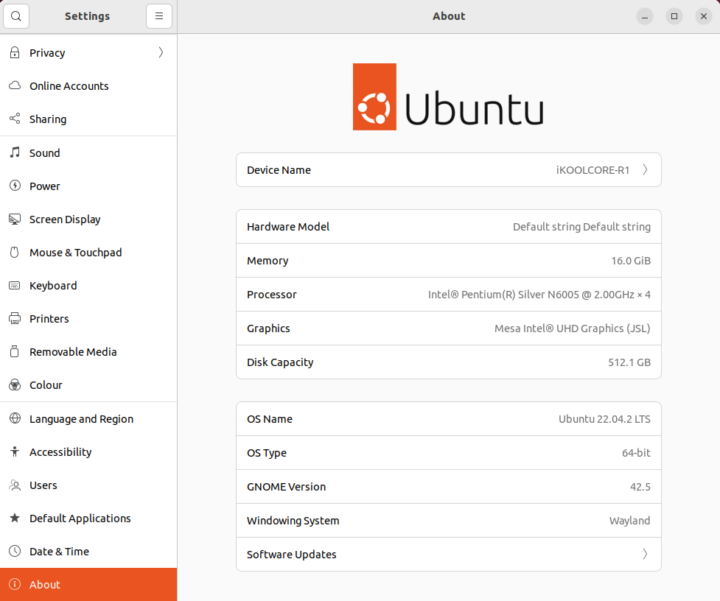

iKOOLCORE R1 Ubuntu 22.04

Because of the simplicity of accessing the internal storage, I also swapped out the included M.2 2242 512GB drive for a 2TB drive onto which I installed ESXi version 8.0 build 21203435 which recognized the Intel NICs without issue. I then installed Proxmox version 7.3-1 and created VMs for pfSense Community Edition 2.6.0 and TrueNAS CORE 13.0-U3.1 which all worked without issue:

Proxmox iKOOLCORER1

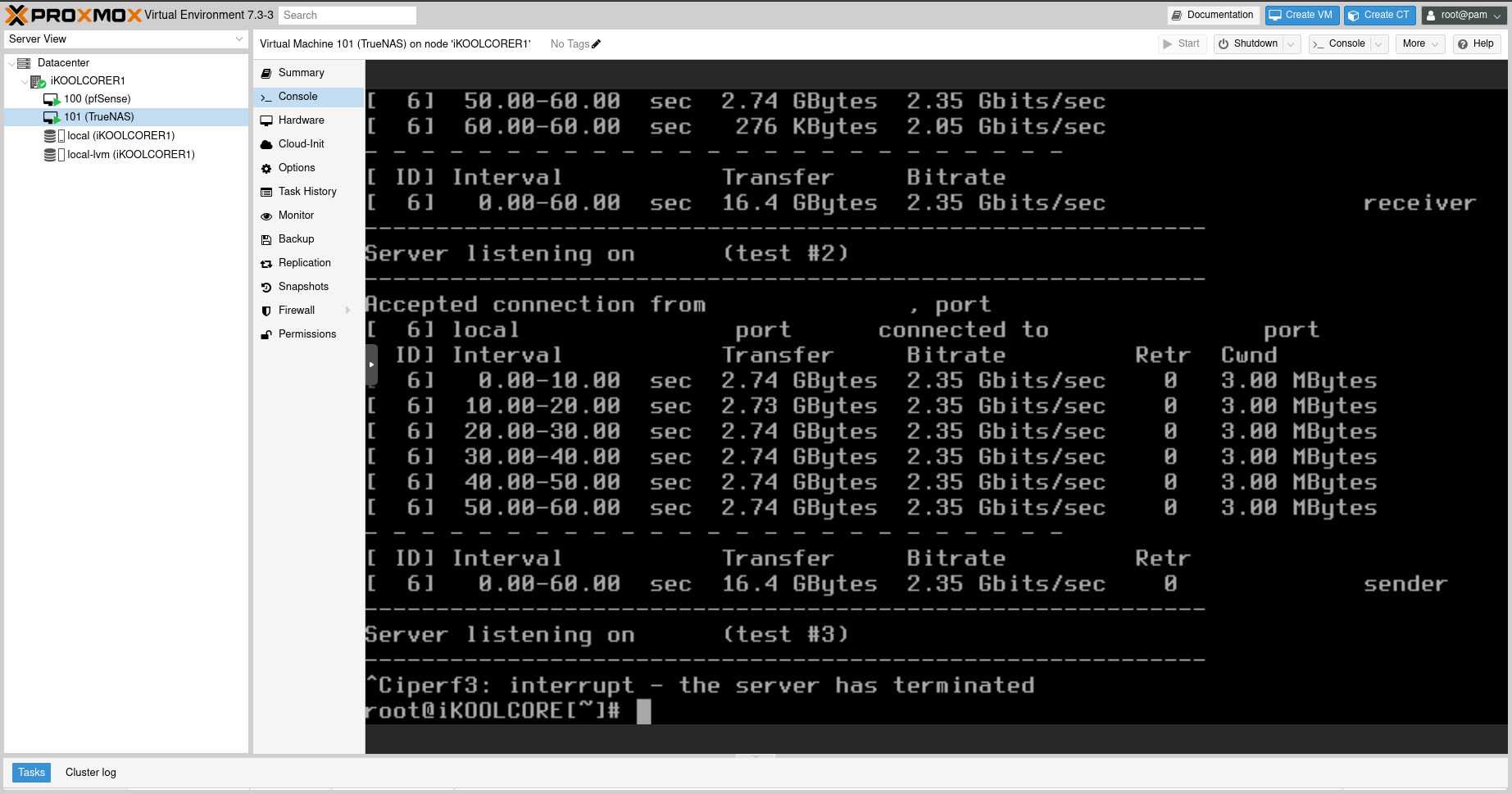

As a final verification test, I measured the network throughput from a Windows PC connected to the same network as the R1 to my TrueNAS VM using ‘iperf3’:

TrueNAS iperf3 benchmark

which confirmed that the 2.5 gigabit Ethernet ports functioned as expected.

Key Observations – Drivers, USB-C, System Stability

Immediately after installing Windows from its ISO, there were missing drivers including the one for the Ethernet controller:

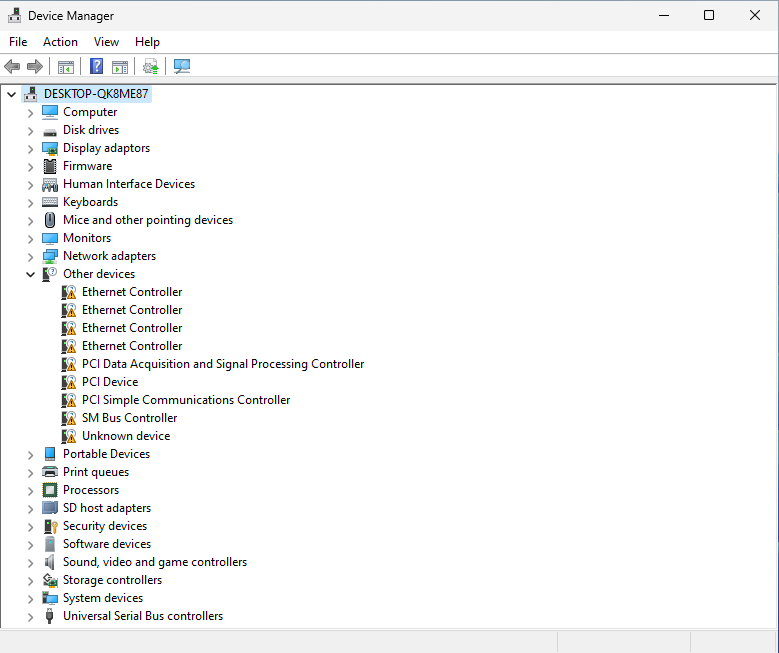

iKOOLCORE R1 Windows 11 missing Ethernet drivers

This driver can be downloaded from the iKOOLCORE website under Downloads, then ISOs(OpenSource only), then Driver, then iKOOLCORE R1, and finally Wired_driver_27.6_x64.zip.

Even after fully updating Windows and using Intel’s Driver & Support Assistant there are still missing drivers:

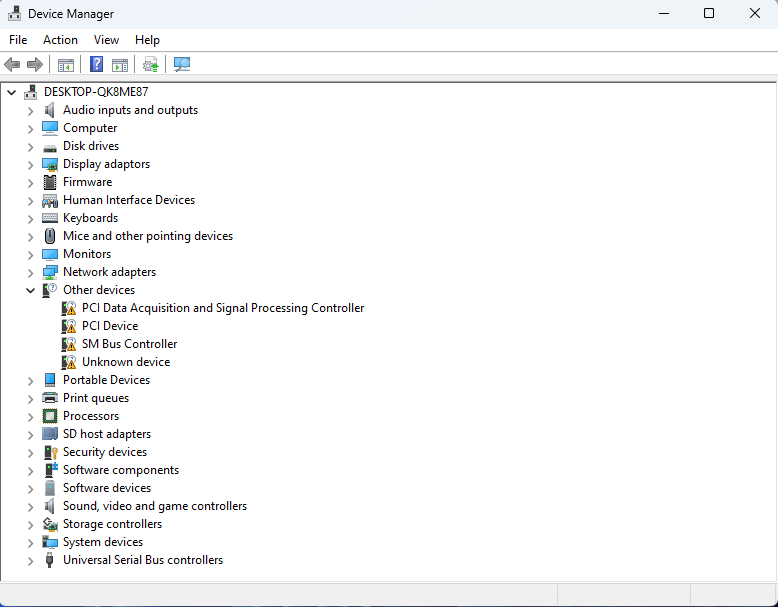

iKOOLCORE R1 Windows 11 missing PCIe SMBus drivers

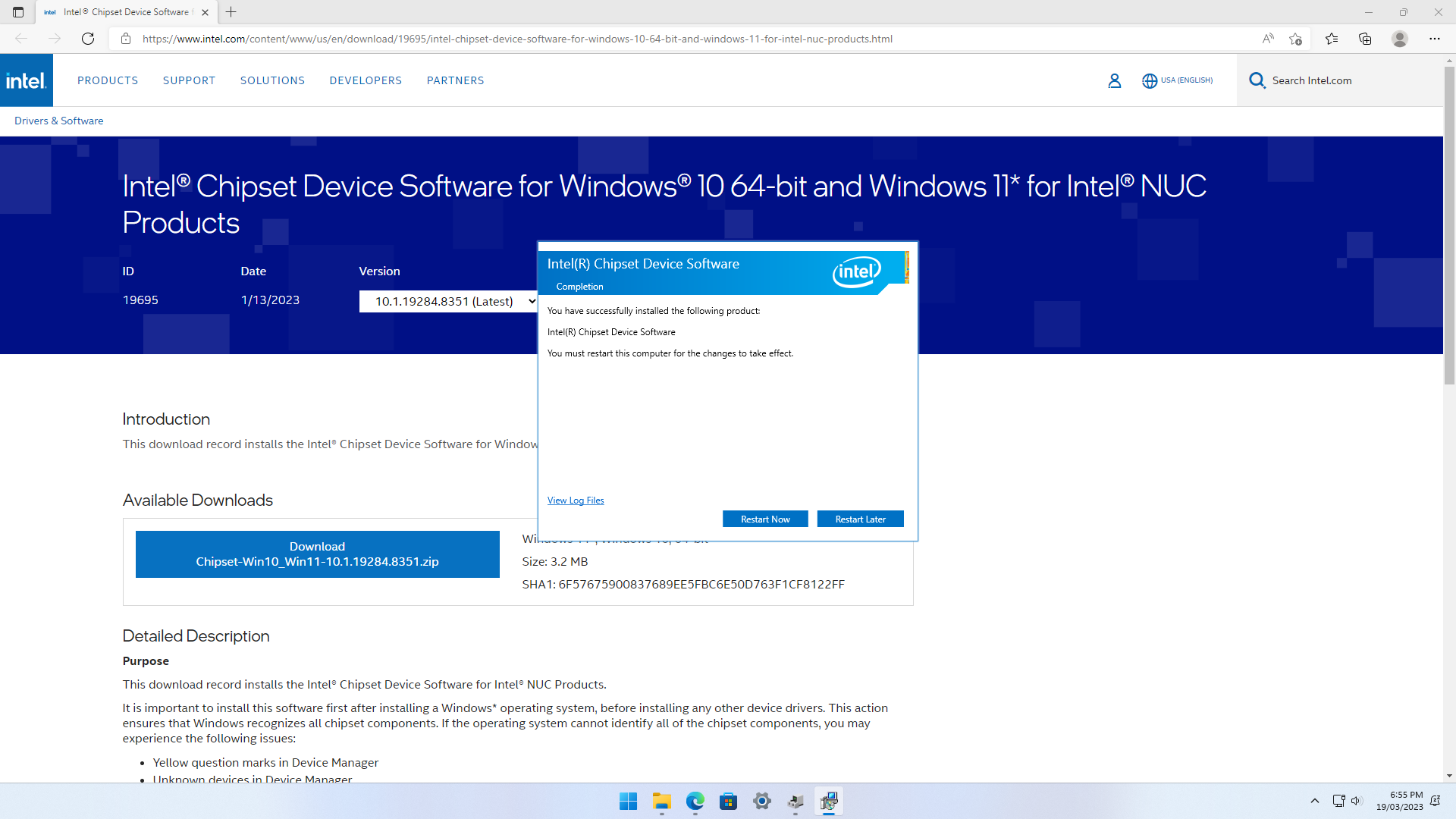

These can be resolved by first downloading and installing the Intel Chipset Device Software for Intel NUC products:

Intel Chipset Device Software Windows 11

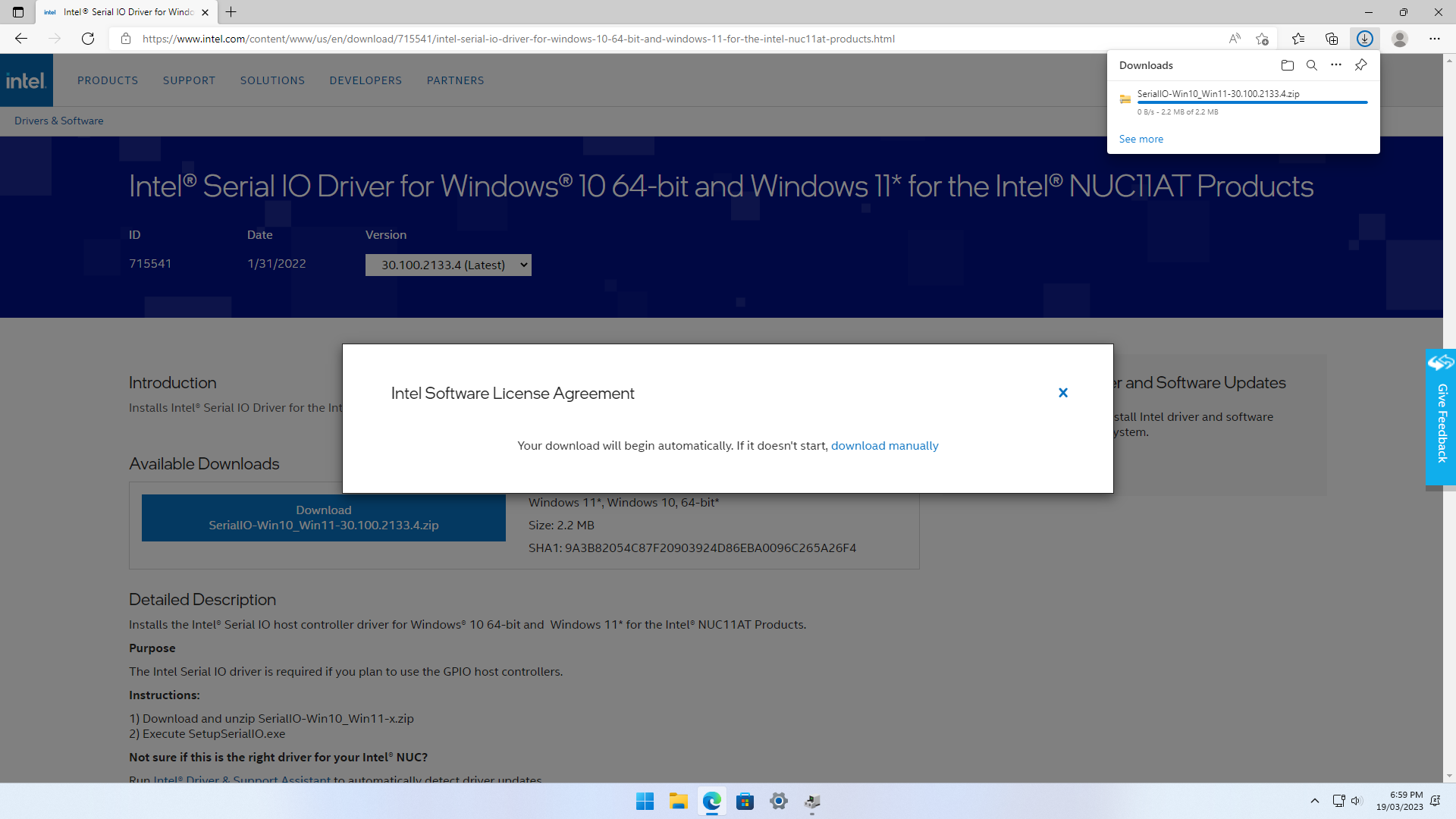

followed by the Serial IO Driver for Intel NUC11AT products:

Serial IO Driver for Intel NUC11AT products

Installing Ubuntu went without issue. However, when booting Ubuntu there are several error messages being reported in the ‘dmesg’ about ‘Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND’ which are relatively widely reported on the internet and appear not to be an issue.

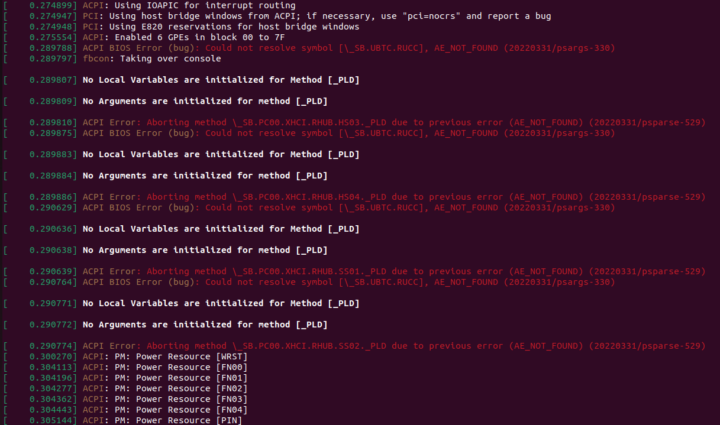

_SB.UBTC_.RUCC AE_NOT _FOUND

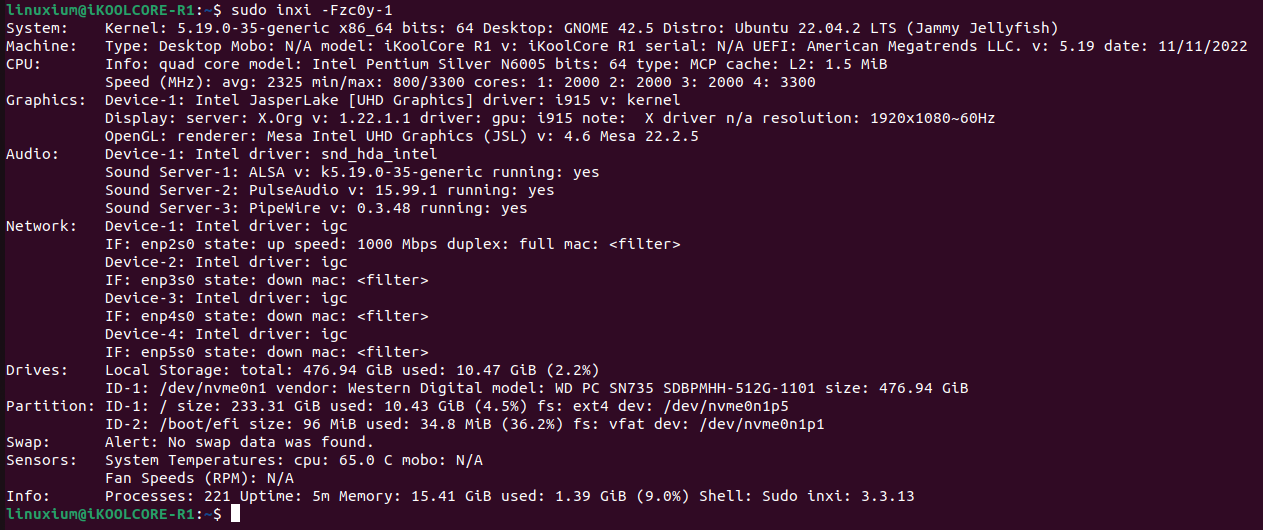

A quick look at the base hardware information shows it is aligned with the specification:

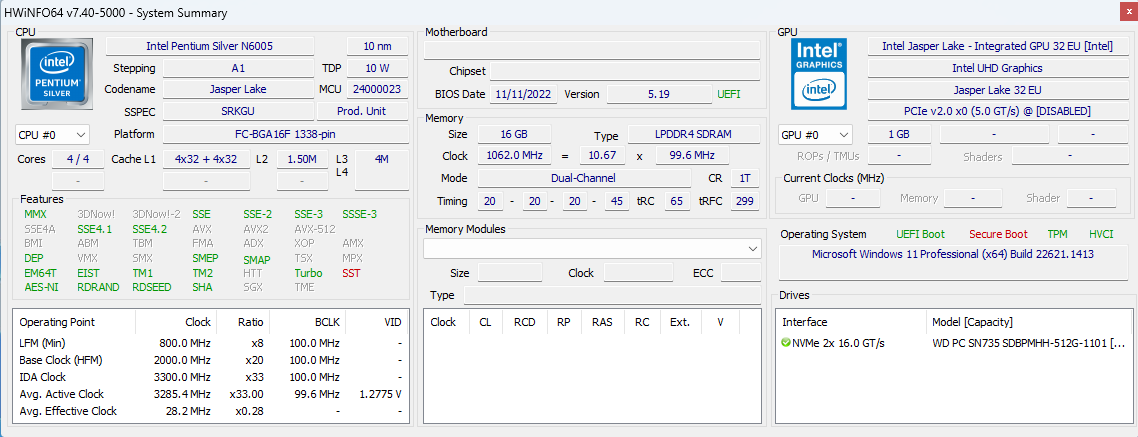

HWiNFO64 Intel Pentium Silver N6005 GPU-Z 4E71 GPU iKOOLCORE R1 Ubuntu inxi

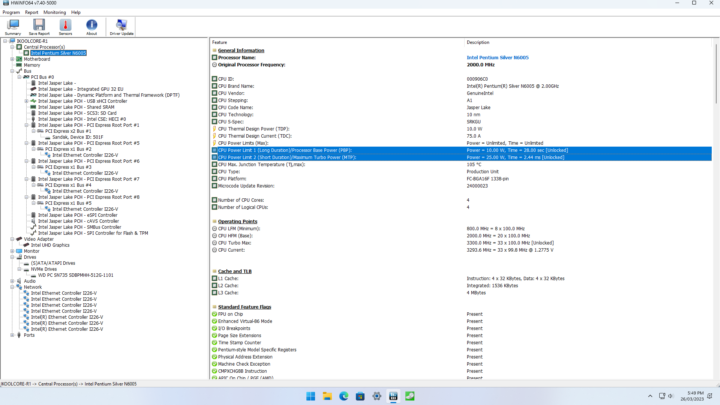

The processor’s ‘Power Limits’ (PL) are configured. For Windows ‘PL1’ and for Ubuntu under ‘Constraint 0’ they are set to 10 watts. For Windows ‘PL2’ and for Ubuntu under ‘Constraint 1’ they are set to 25 watts:

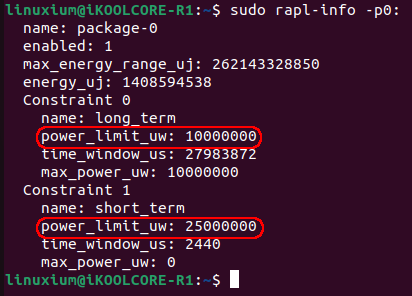

iKOOLCORE R1 PL1 PL2 Windows 11 iKOOLCORE R1 rapl info ubuntu

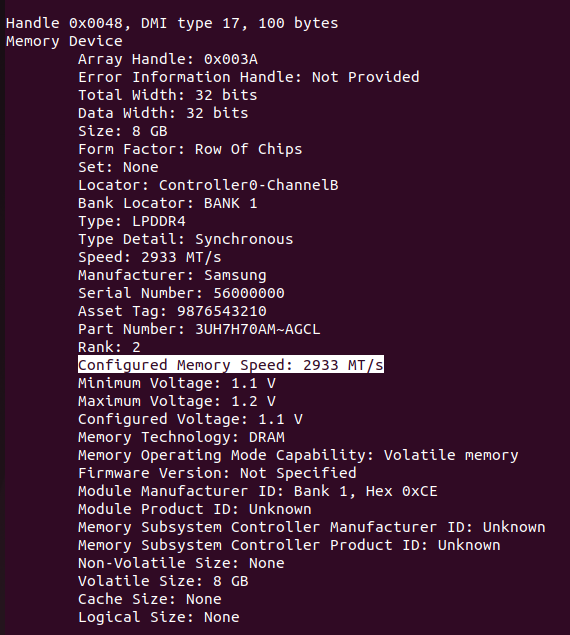

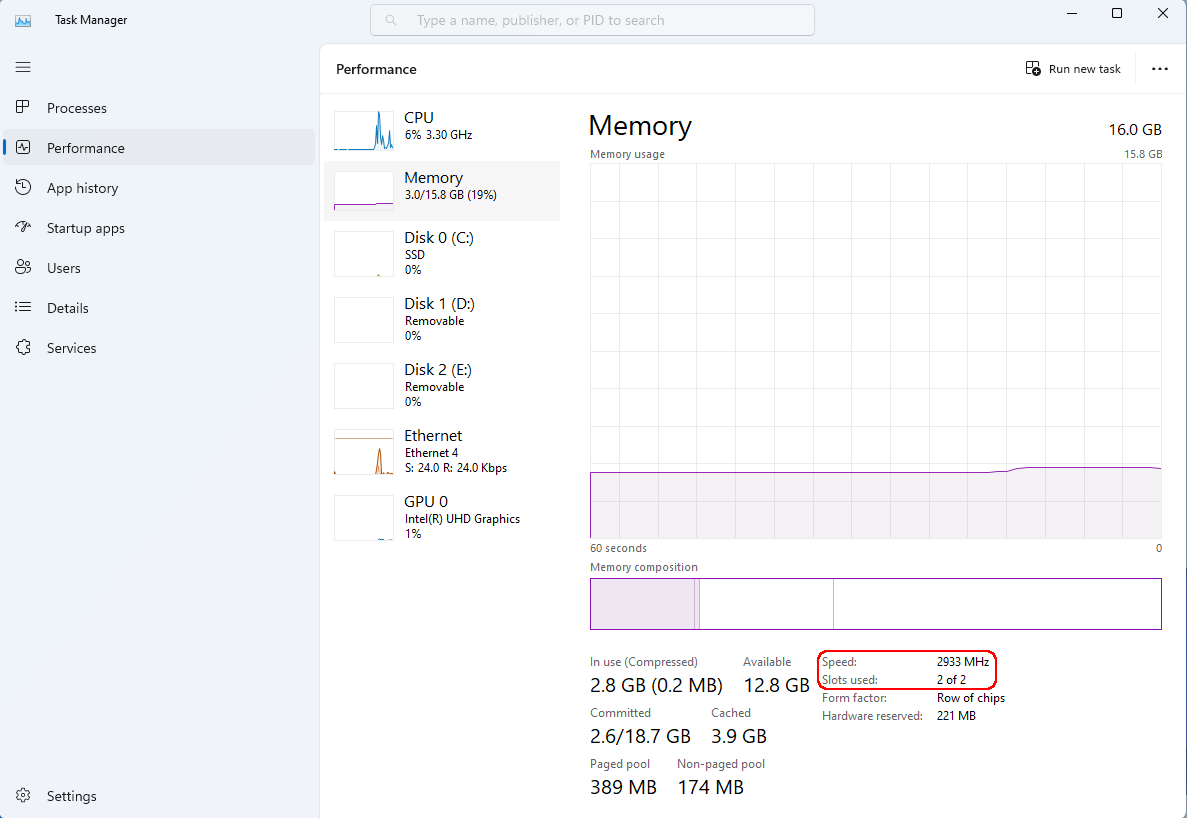

The memory is configured to run at its maximum speed of 2933MHz:

Windows 11 Memory Speed 2933 MHz Ubuntu 22.04 Memory Speed 2933 MTs

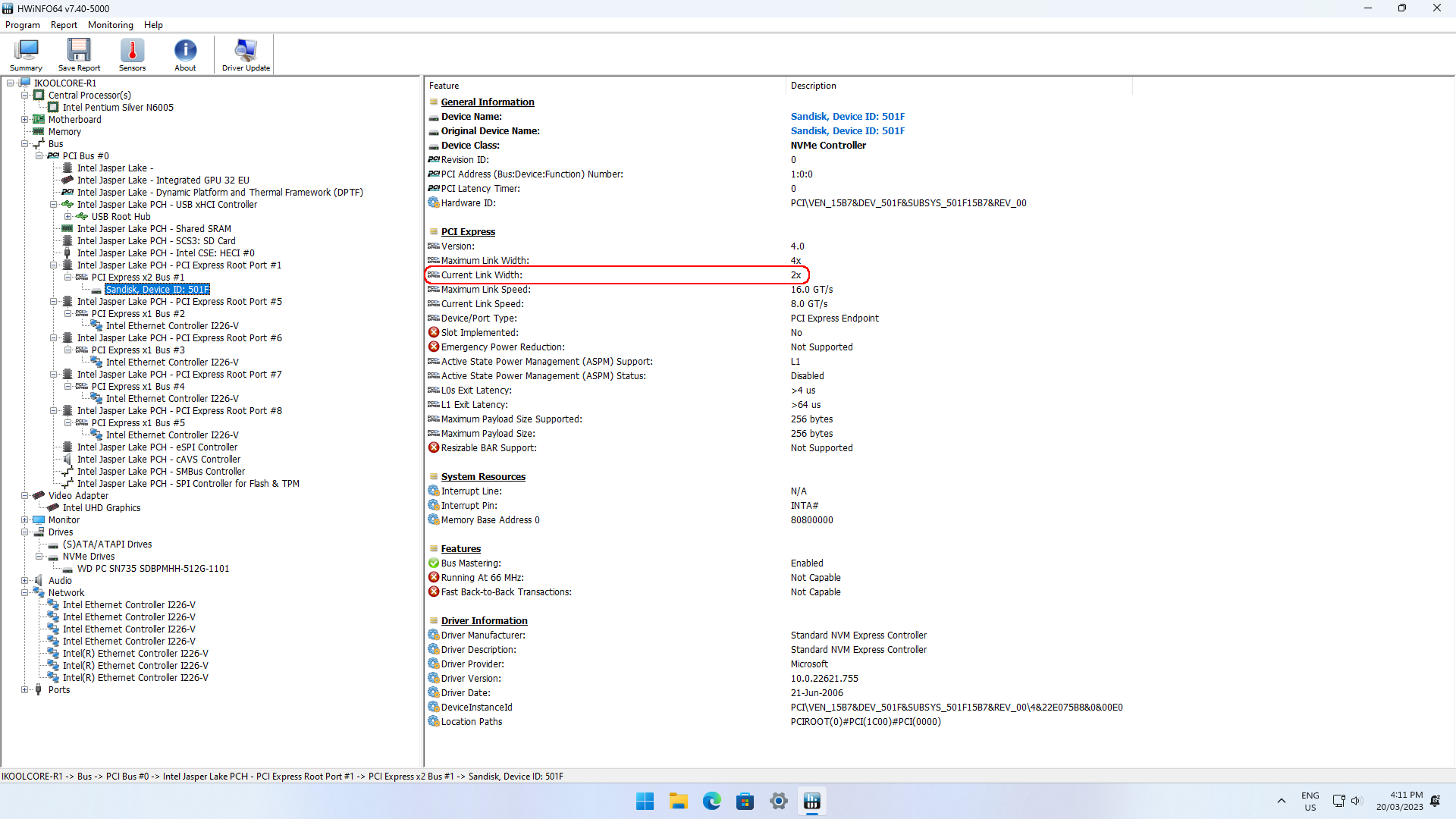

The M.2 2242 drive, whilst PCIe Gen 3, is only running at x2 meaning two data lanes resulting in a theoretical maximum throughput of 1.969GB/s:

Sandisk NVMe 2x Windows 11

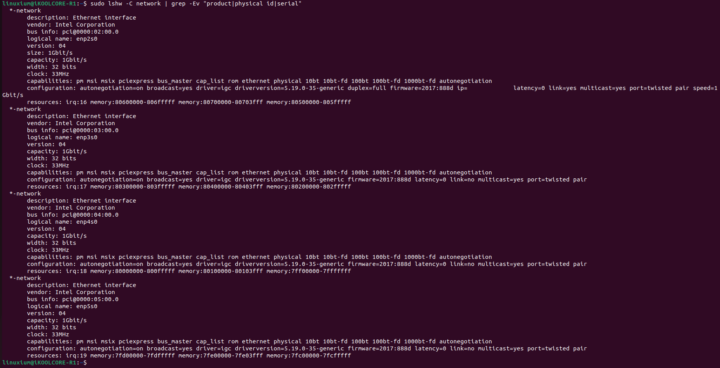

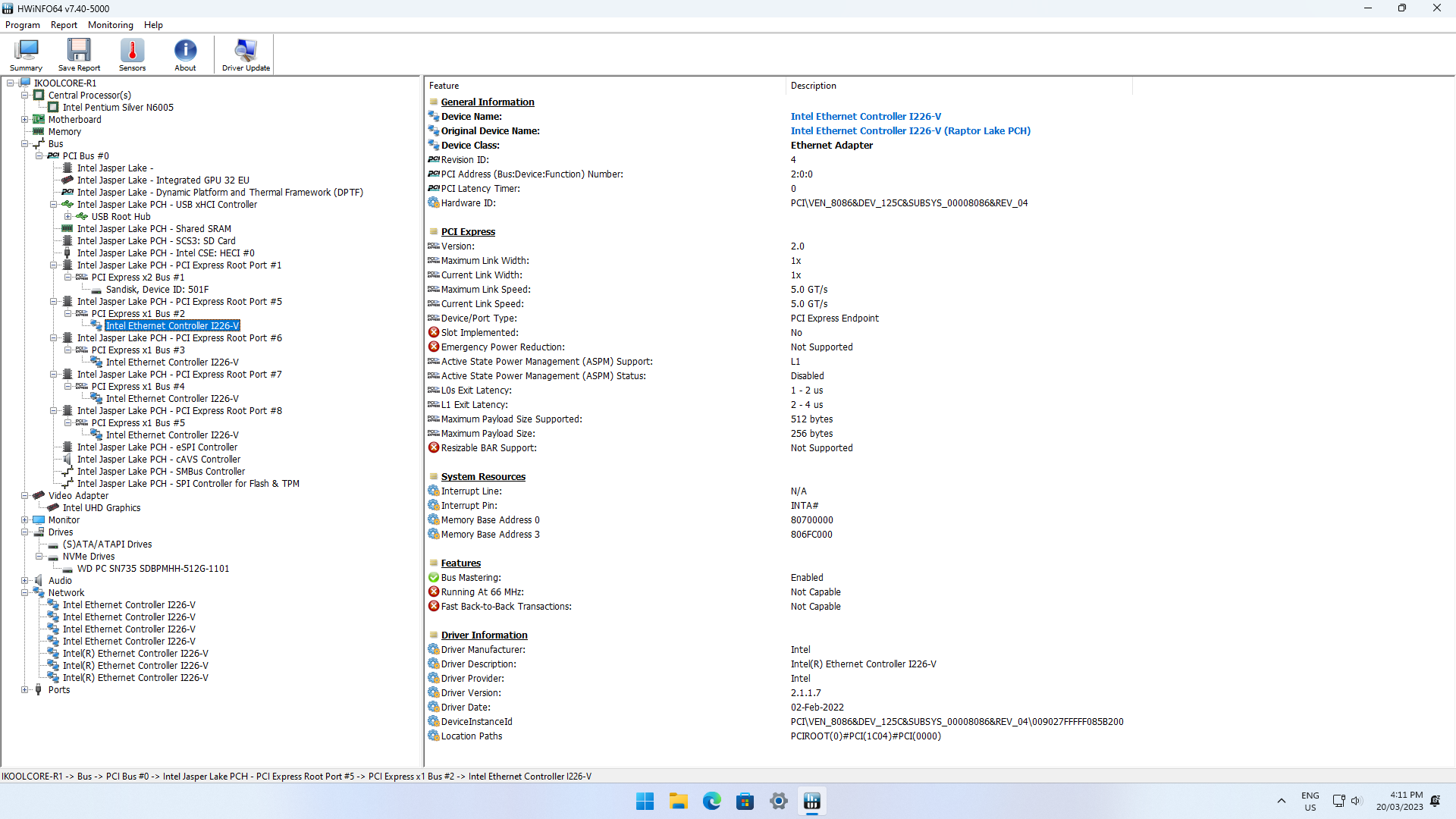

The quad 2.5 gigabit Ethernet ports use Intel I226-V network interface controllers:

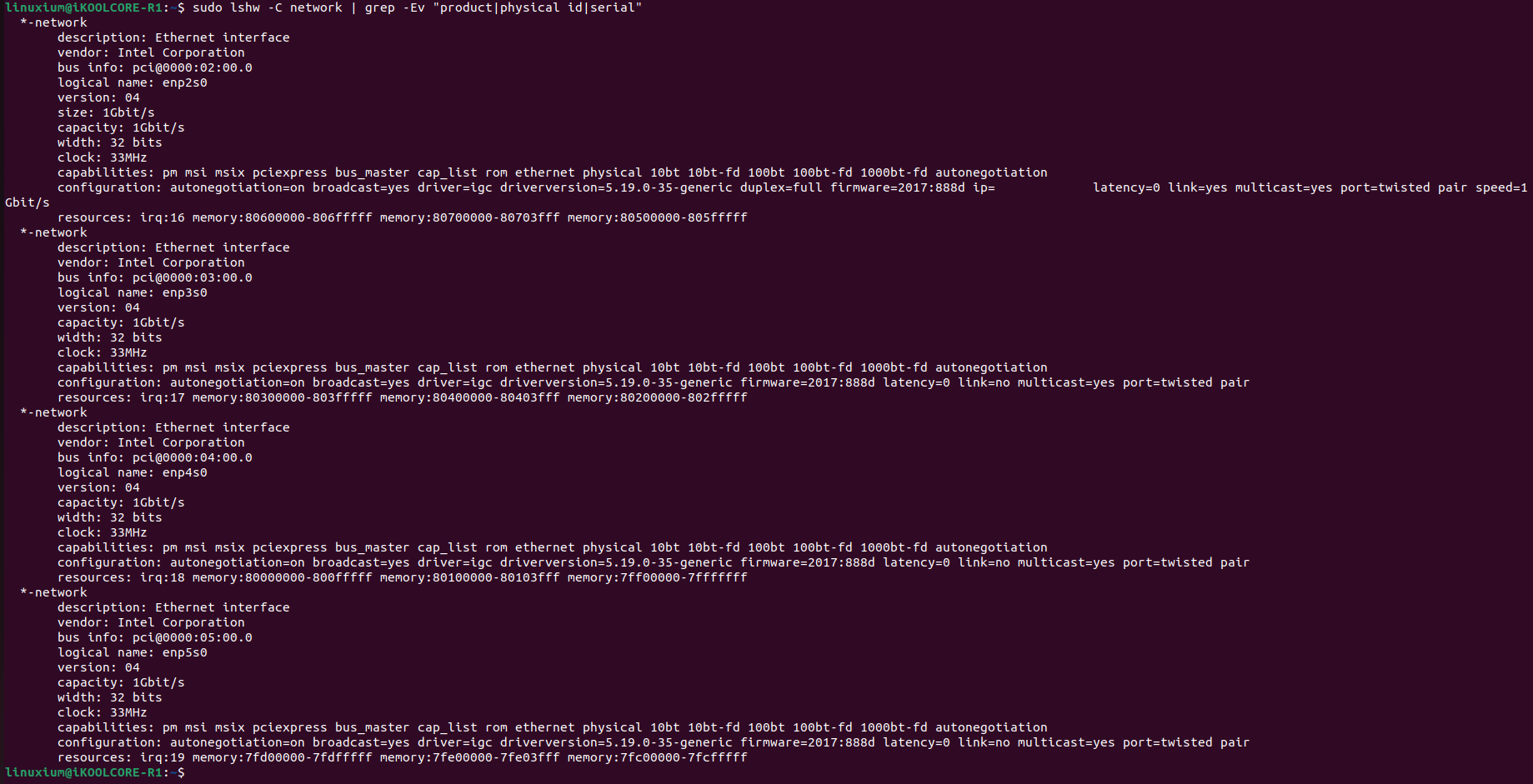

Intel I226-V Windows 11 iKOOLCORE R1 Ubuntu 22.04 Intel 2.5GbE controllers iKOOLCORE R1

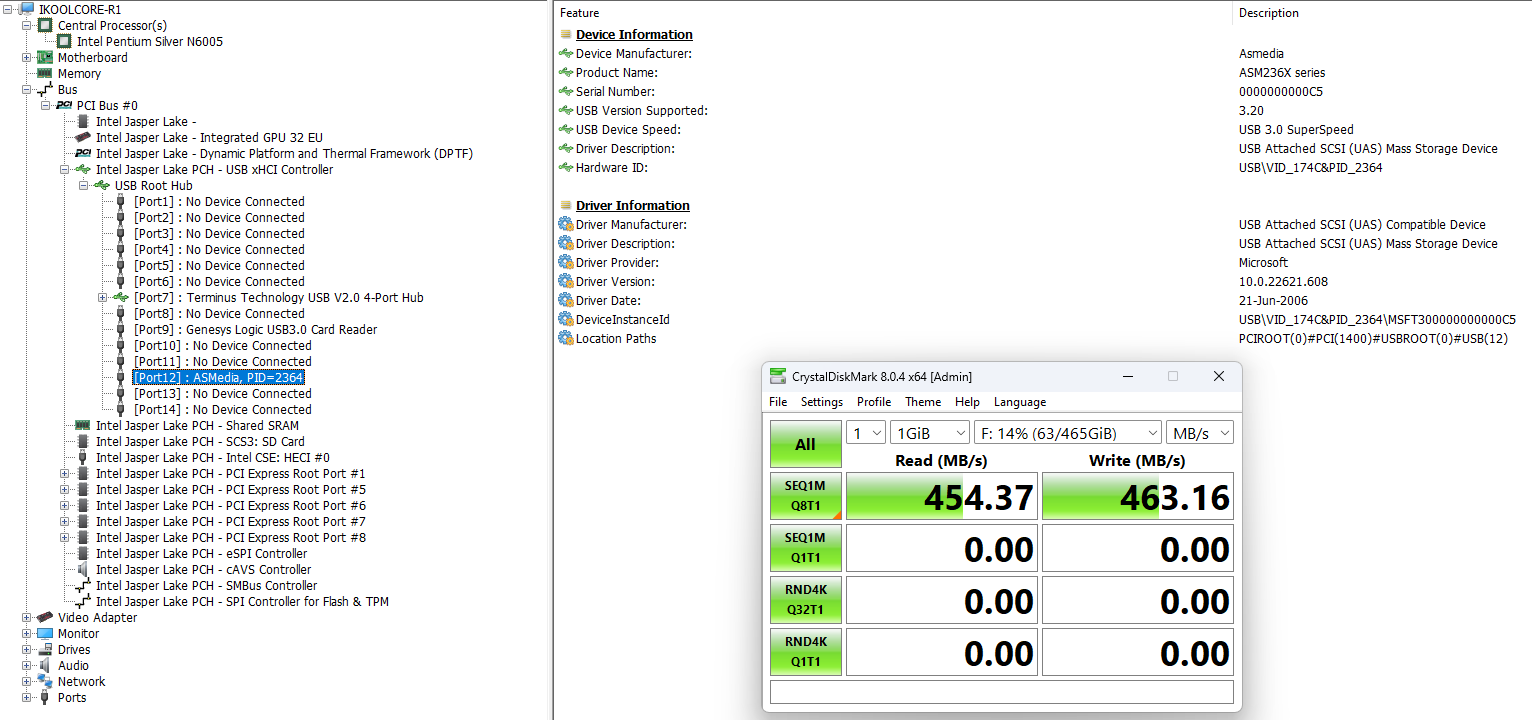

With regard to the USB ports, the specification lists both the Type-A USB ports as ‘USB 3.2 Gen1’ so I tested them using a Samsung 980 PRO PCle 4.0 NVMe M.2 SSD housed in an ‘USB to M.2 NVMe adapter’ (ORICO M2PAC3-G20 M.2 NVMe SSD Enclosure) which confirmed that the front ‘blue’ USB ports were indeed ‘USB 3.2 Gen 1×1’ i.e. 5Gbit/s as per the specification:

iKOOLCORE R1 USB 3.0 SuperSpeed Windows 11

and this was also confirmed in Ubuntu:

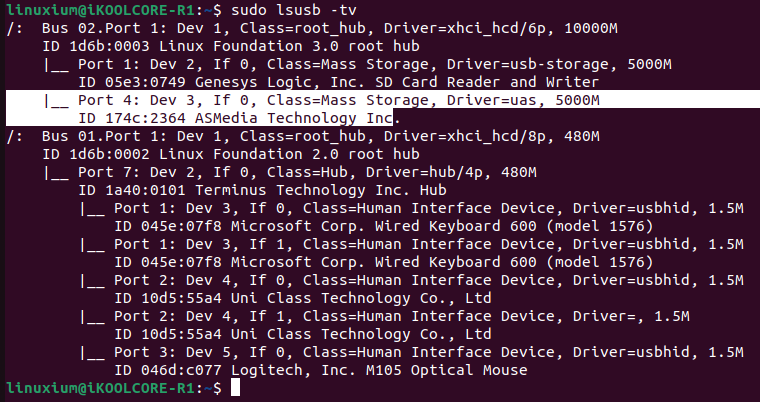

iKOOLCORE R1 USB 3.0 5Gbps Ubuntu

I then turned my attention to the side Type-C USB port. First I confirmed that it was data-only as ‘Alternate Mode’ was not supported:

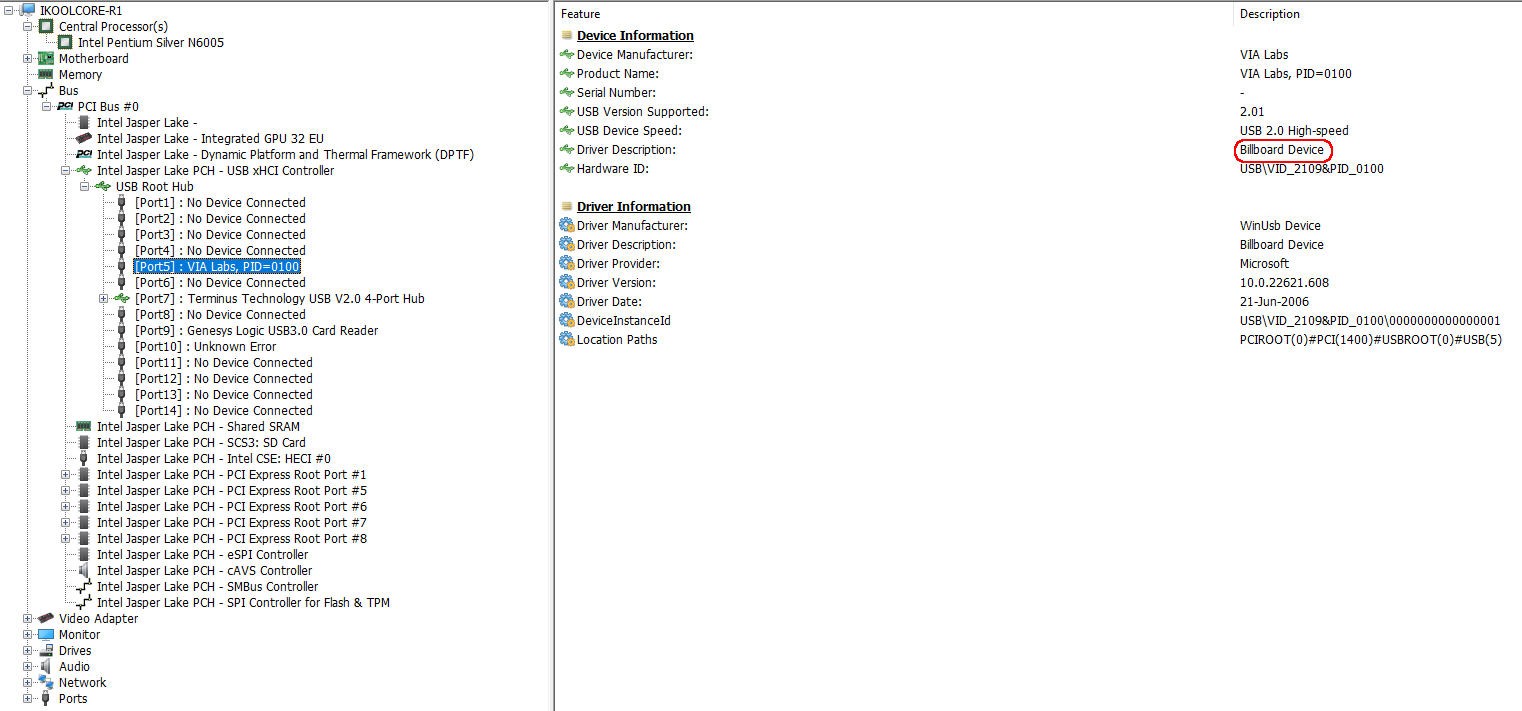

USB Billboard Device USB C No DisplayPort

I then tried testing the speed of the Type-C USB port using my ORICO enclosure which has an ASMedia ASM2364 device controller and whilst it showed up as a ‘USB 3.2 Gen 2×1’ i.e. 10Gbit/s port, most of the time it just ‘hung’:

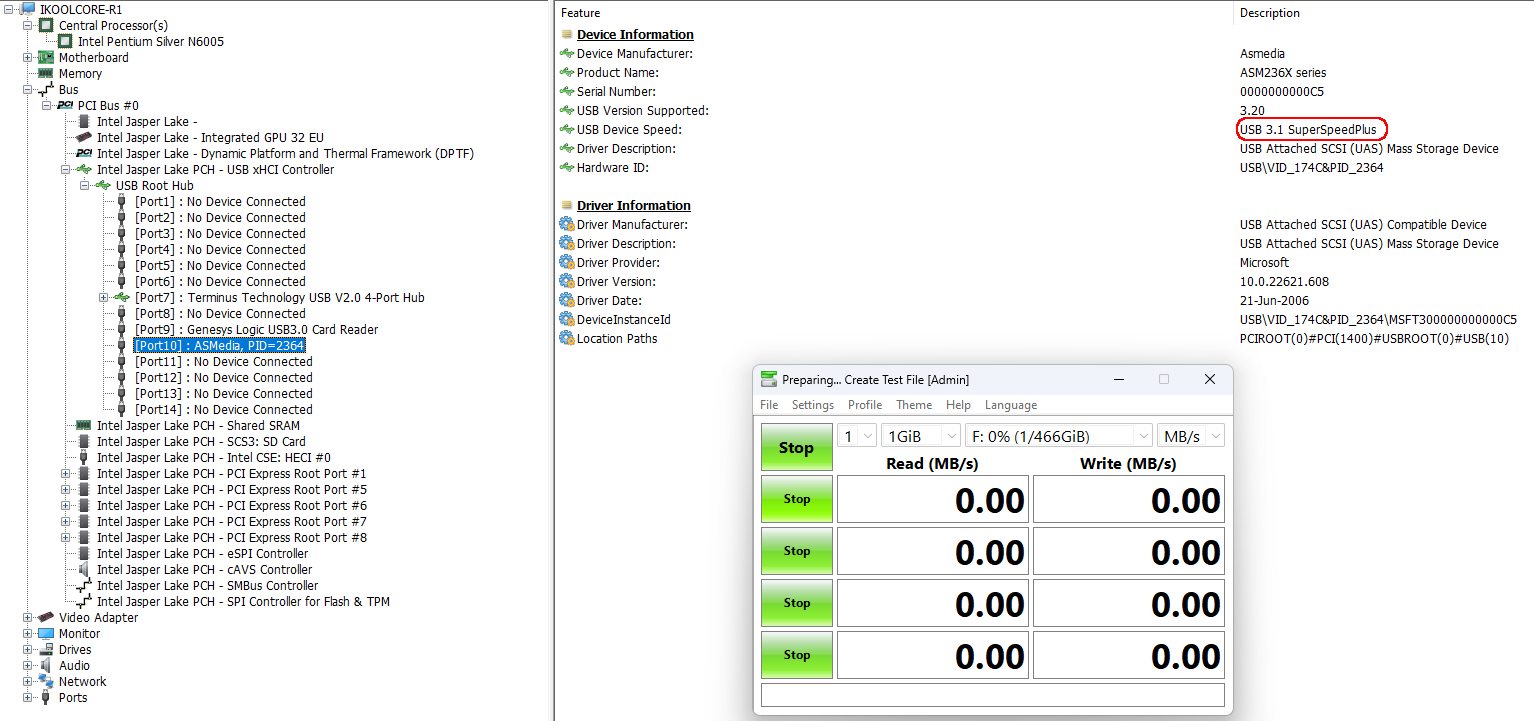

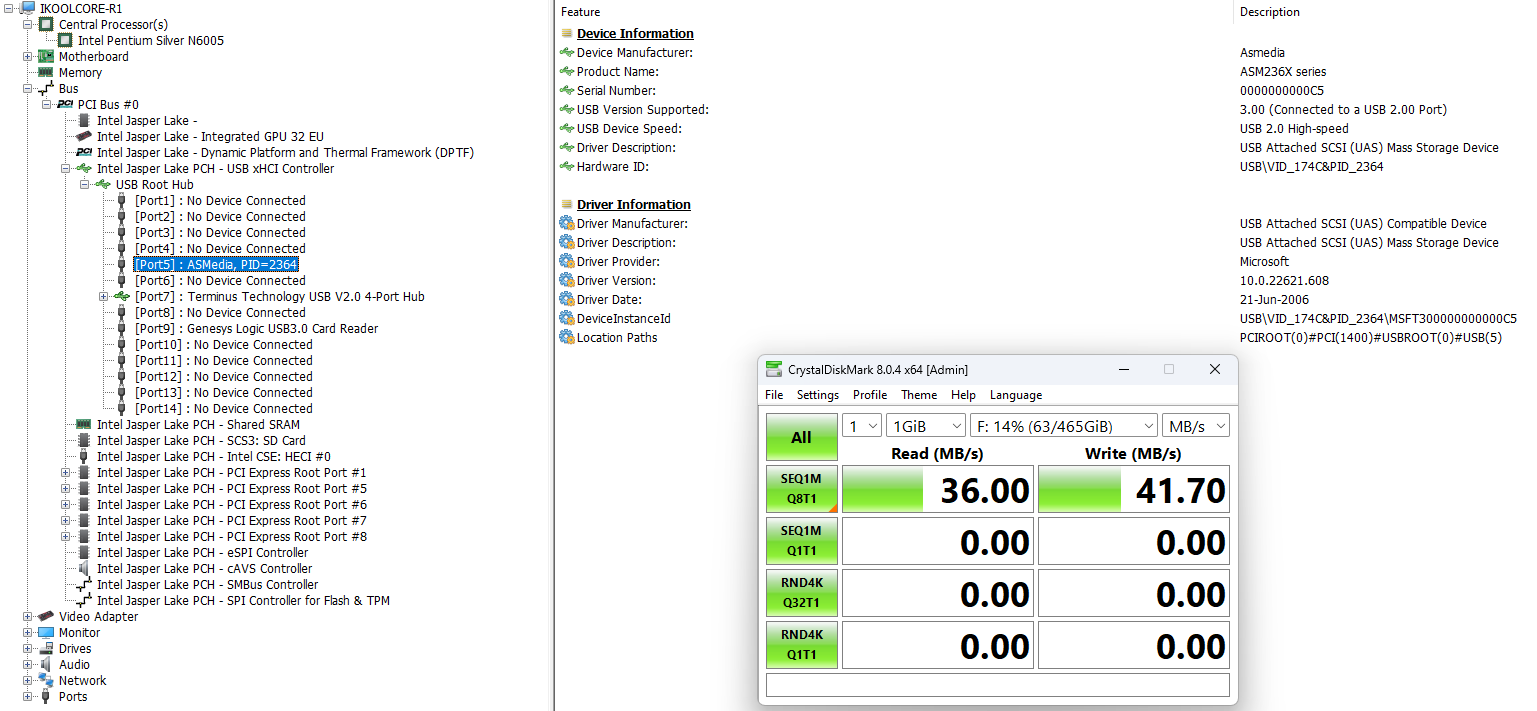

Windows 11 ASM263X Stuck transfer CrystalDiskMark

The one time I did manage to get it to both connect and run ‘CrystalDiskMark’, for some unknown reason it connected as a USB 2.0 device using the same port that the Billboard device uses (Port5) and not the Type-C USB port (Port10):

iKOOLCORE R1 USB Storage CrystalDiskMark

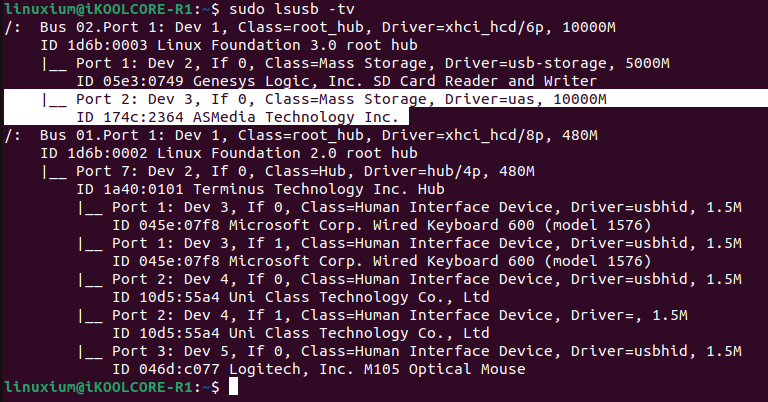

I also tried testing the port in Ubuntu which, like Windows, showed the Type-C USB port as ‘USB 3.2 Gen 2×1’ i.e. 10Gbit/s rather than the 5Gbit/s noted in the specification:

Ubuntu USB Storage 10Gbps

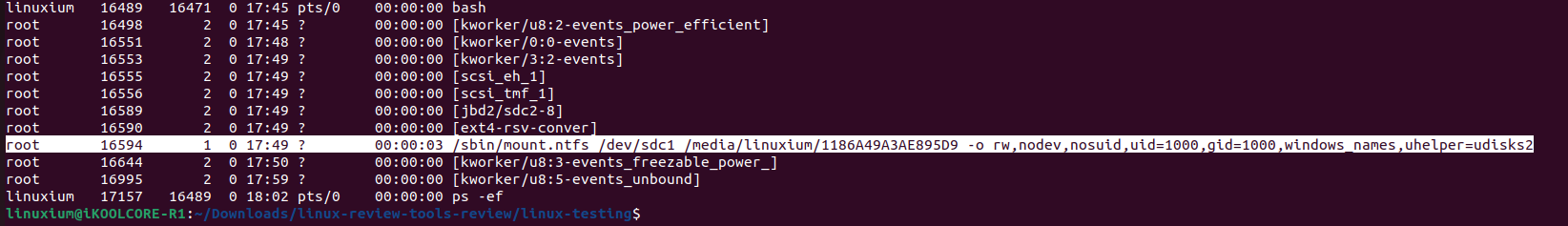

One possible reason why the drive was ‘hanging’ on Ubuntu was suggested after looking at the running processes, which showed it was still trying to mount the NTFS partition of the drive:

Ubuntu NTFS mounting loop

So I tried ruling this out by formatting the drive with only an ‘ext4’ partition however it still ‘hung’ on Ubuntu as it did in Windows when formatted just with an ‘NTFS’ partition.

Assuming that the R1’s Type-C USB port just had a problem recognizing the Orico enclosure, I tried using Samsung portable SSD drives. On Ubuntu I tested the speed using ‘fio’ of a 1TB Samsung T7 with one ‘ext4’ partition and which, according to the specifications, is USB 3.2 Gen.2 (10Gbps) with Sequential Read of up to 1,050MB/sec and Sequential Write of up to 1,000MB/sec:

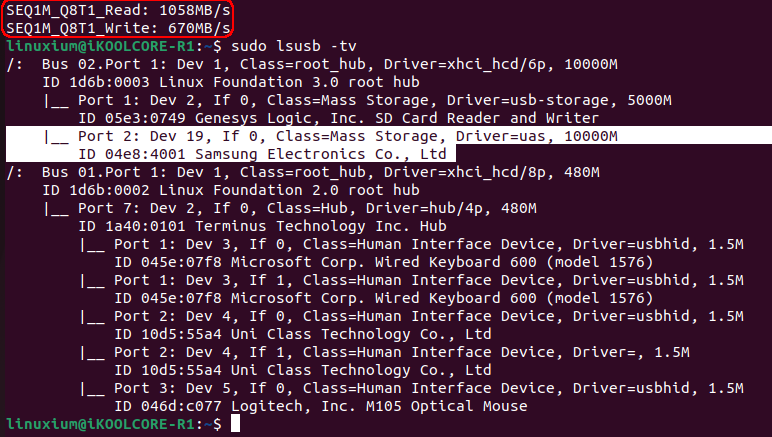

iKOOLCORE R1 USB 3.0 Storage Speed Ubuntu 22.04

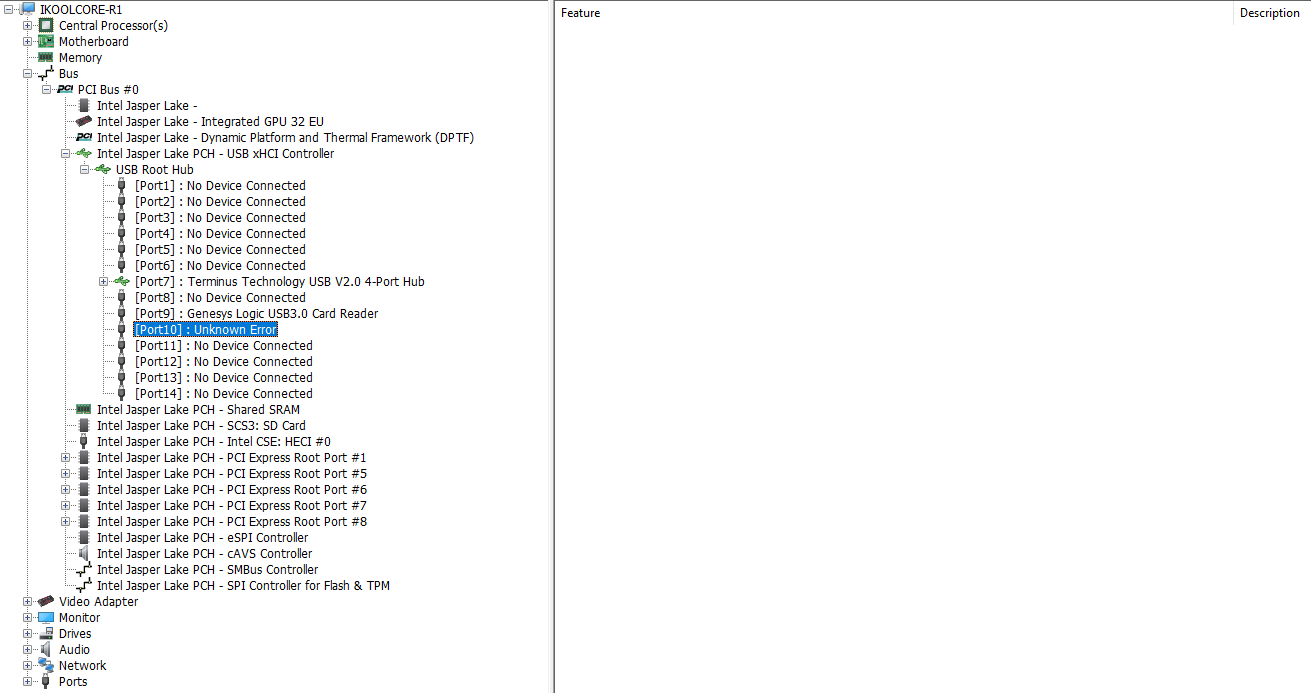

However, I couldn’t consistently get the Samsung T7 to be recognized after connecting it. This was also the case on Windows where connection success was extremely variable. For Windows testing, I used ‘CrystalDiskMark’ on a 1TB Samsung T5 with one ‘NTFS’ partition and which, according to the specifications, is compatible with USB 3.2 Gen.2 (10Gbps) and has Sequential Read/Writes of up to 540MB/sec. Sometimes it ‘hung’, other times it didn’t connect but showed an error:

iKOOLCORE R1 USB Storage Unknown Error

and the times it did connect, whilst the read speed seemed correct, the write speed was nowhere near the expected 5Gbit/s but more like it was writing at USB 2.0 speeds:

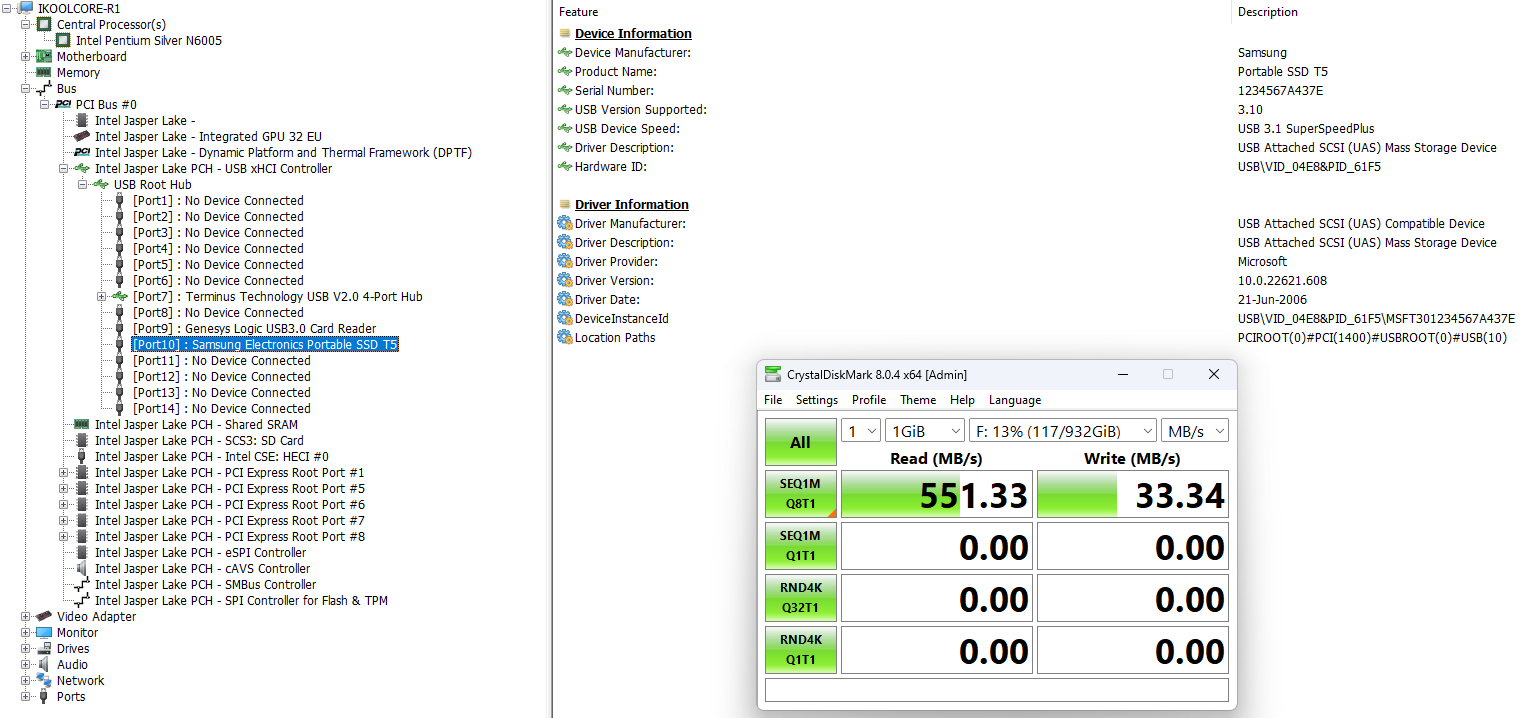

iKOOLCORE R1 USB 3.1 Storage CrystalDiskMark

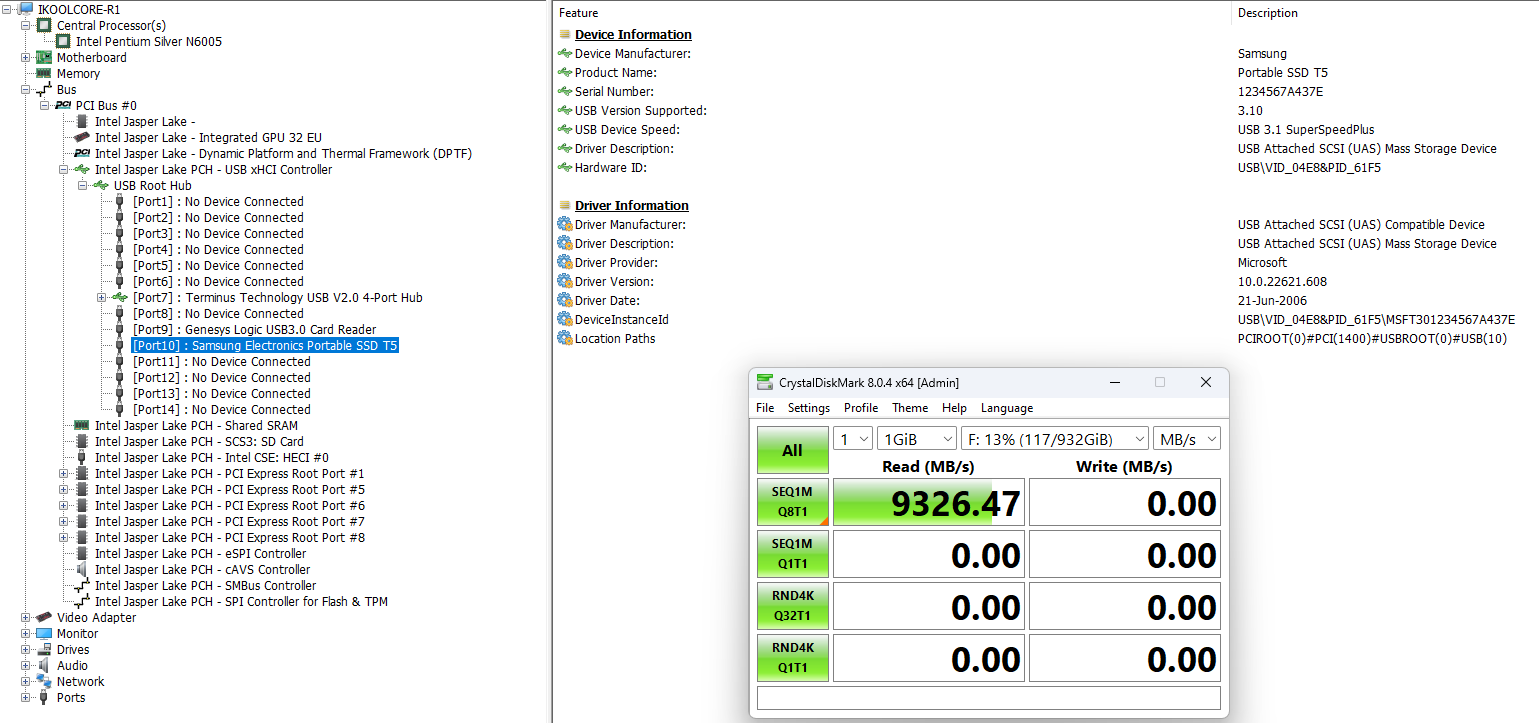

However, sometimes it connected and produced unbelievable results:

Samsung Portable SSD T5 9326MB per second

On balance, it seems like there is currently an underlying issue with the data Type-C USB port. This may just be a problem with this review sample or because it might be a pre-production sample.

Unfortunately, this was not the only issue encountered. When I was installing the ‘Fire Strike’ benchmark on Windows the device crashed a couple of times. Interestingly each time after just pressing the power button, Windows resumed and the installation continued. Fortunately, I had HWiNFO64 running but the only indicator of concern was the M.2 SSD drive temperature:

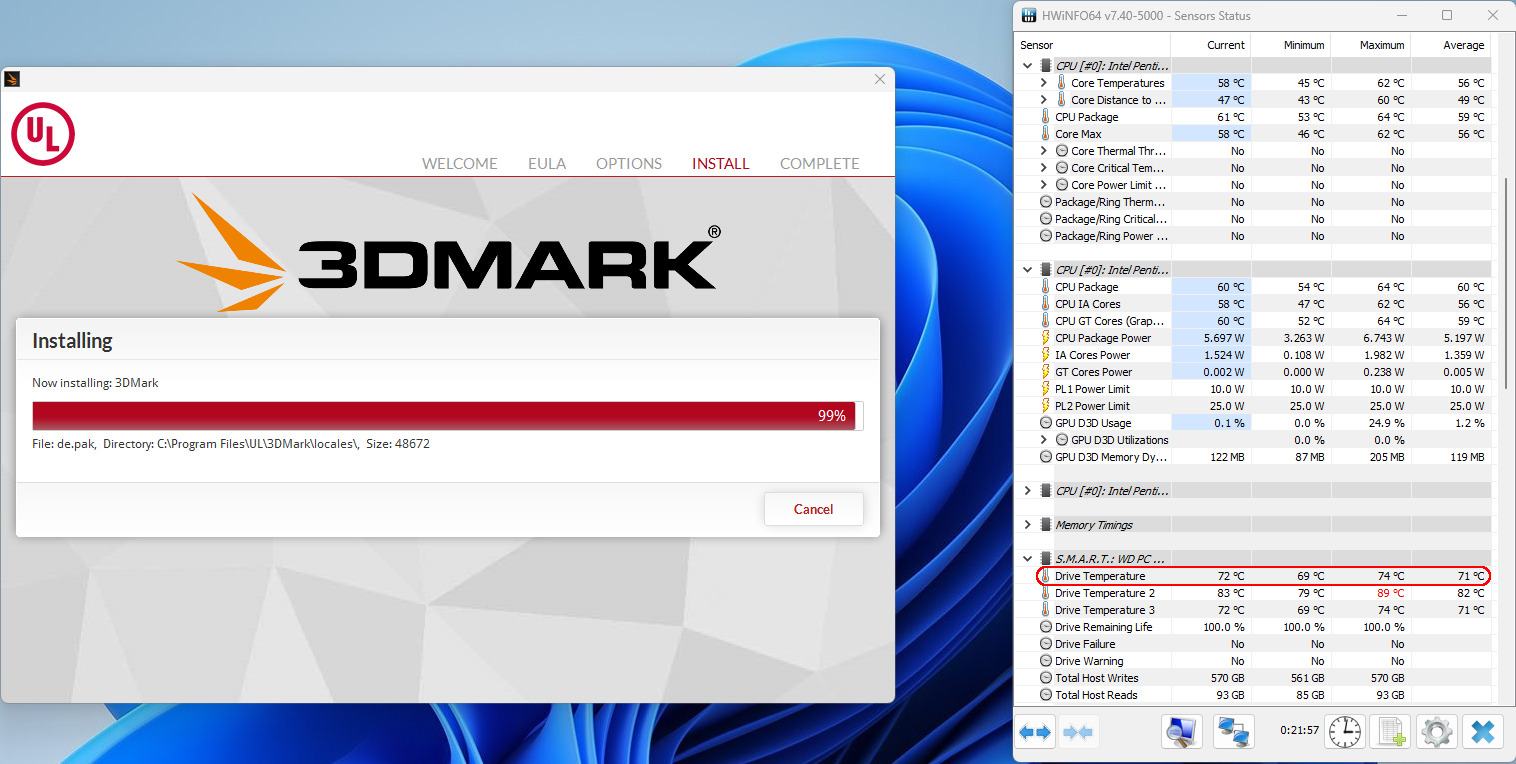

iKOOLCORE R1 SSD drive temperature

I removed the top cover and let the drive cool down but the resumed installation still crashed suggesting this was not the root cause. After the next power toggle, the installation succeeded.

But later, when running the Fire Strike benchmark, the mini PC crashed towards the end of the benchmark.

As I was using the included 12V 2.5A (30W) power supply I replaced it with my own 65W Type-C USB power supply that outputs of 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A (15W 27W 36W 45W 65W). However, Fire Strike continued to crash. Looking at the monitoring provided by the benchmark indicated that the CPU temperature was frequently exceeding 70°C:

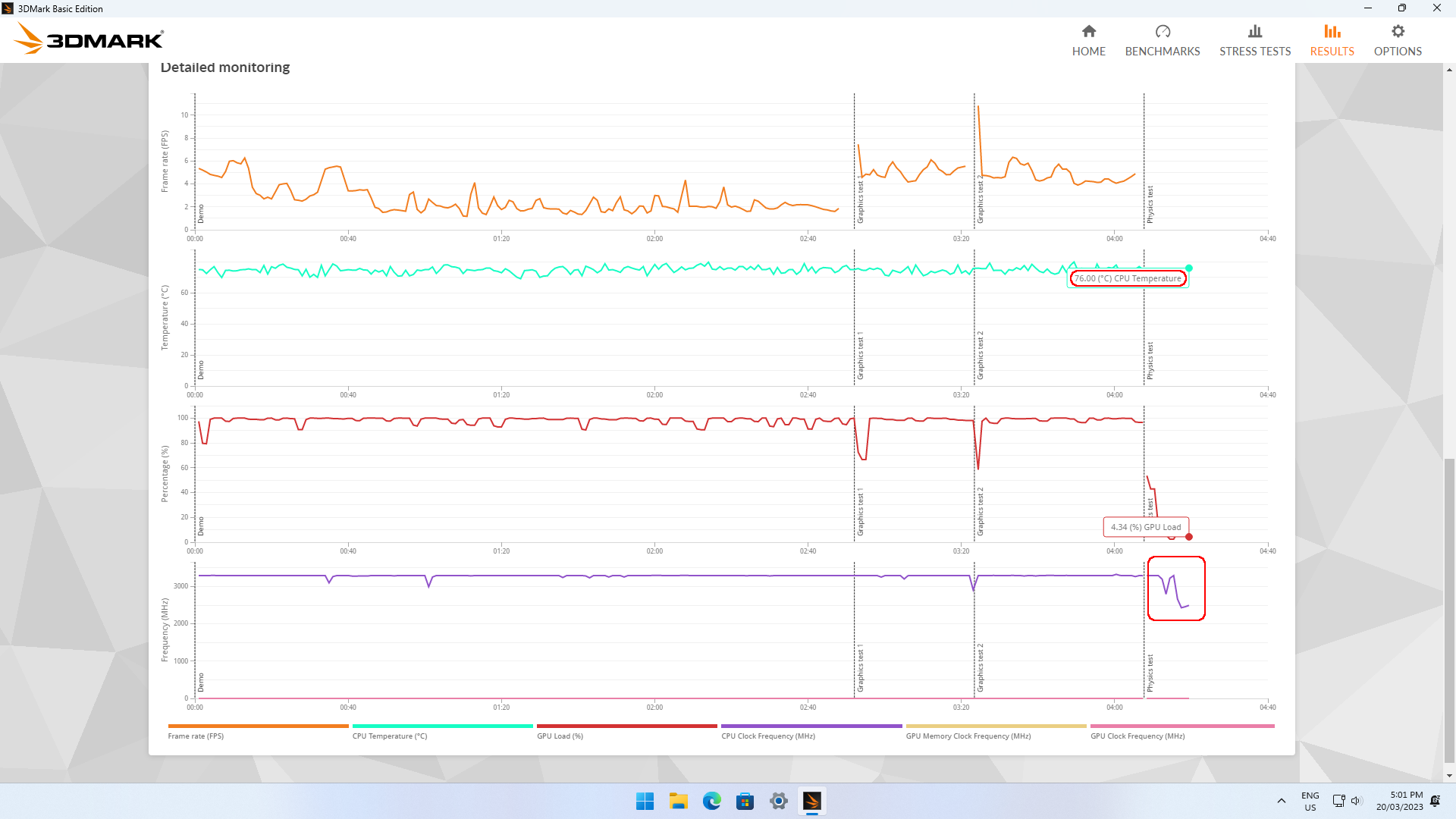

iKOOLCORE 3Dmark CPU temperature

which should have triggered CPU throttling as the UEFI (BIOS) ‘Tcc Activation Offset’ was set at ‘30’ i.e. when the CPU reaches 70°C a PROCHOT# condition will be triggered to cool the CPU down:

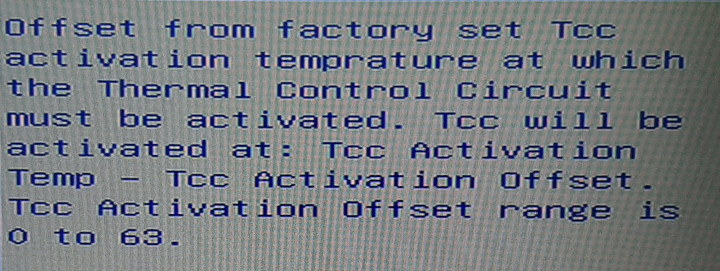

iKOOLCORE R1 BIOS Temperature Offset

So I modified the UEFI (BIOS) setting to ‘15’ which would allow the CPU to reach 90°C without throttling. Despite the higher temperatures and without obvious throttling, Fire Strike continued to crash:

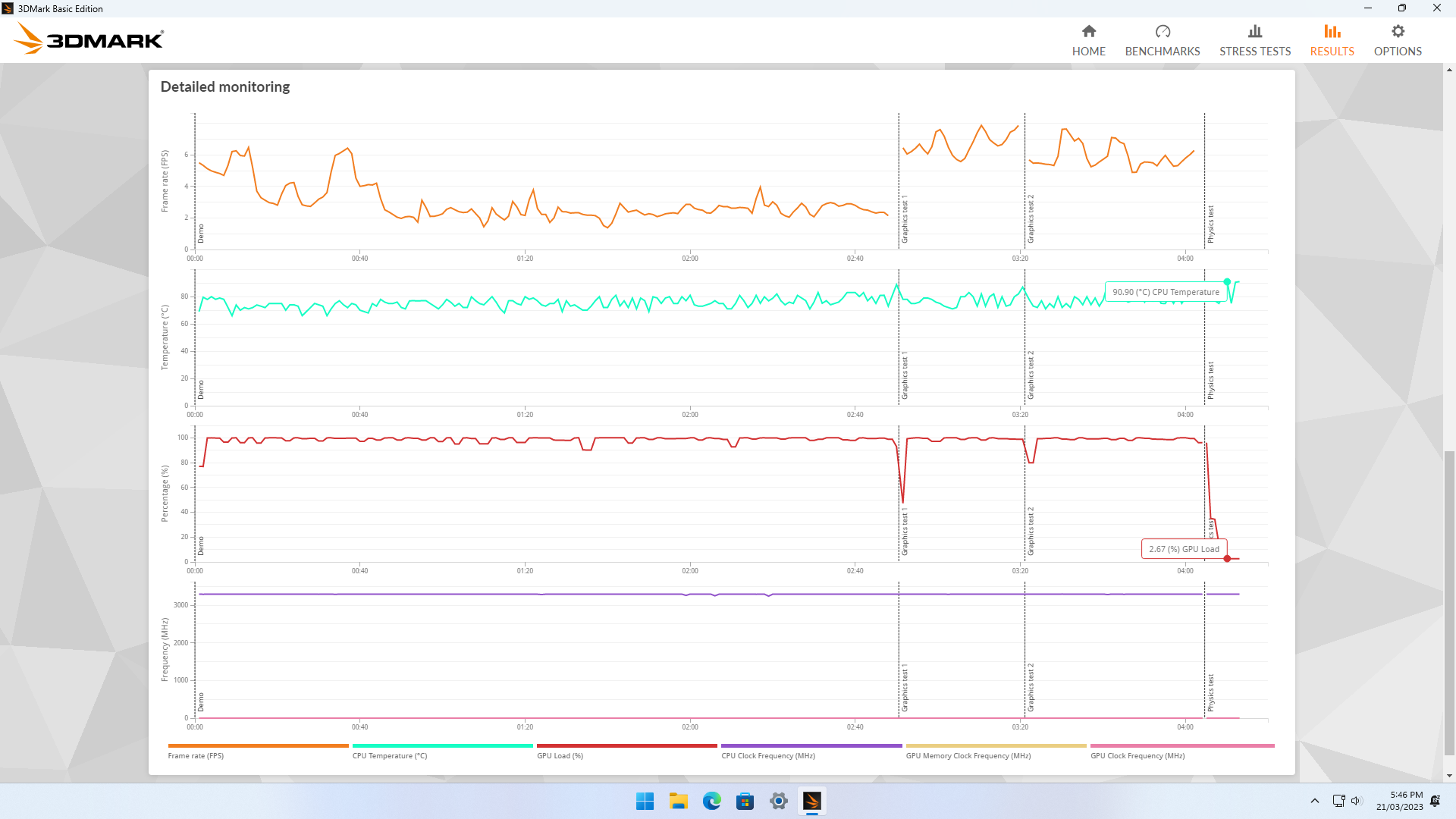

iKOOLCORE R1 CPU Temperature 90 degres

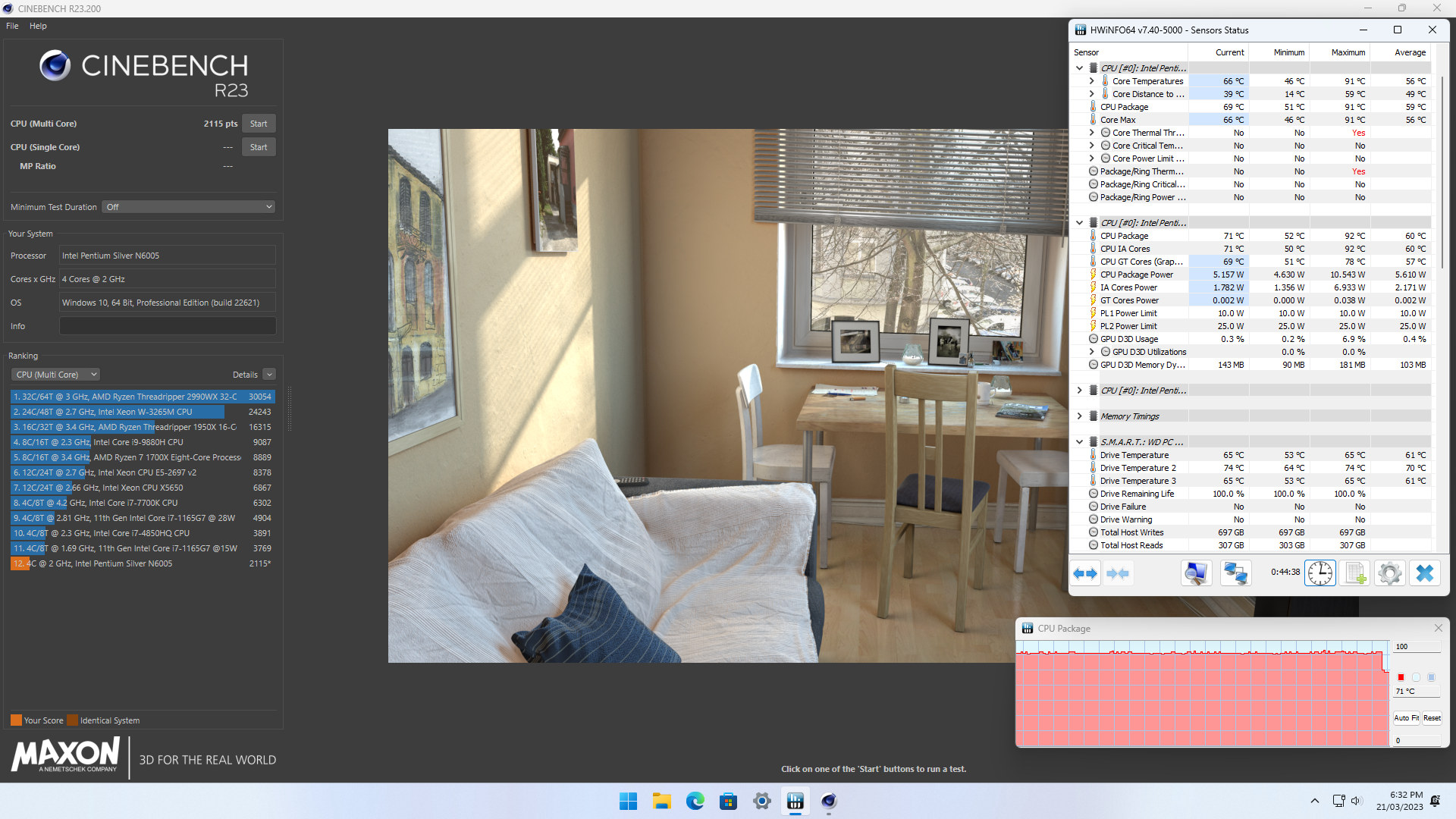

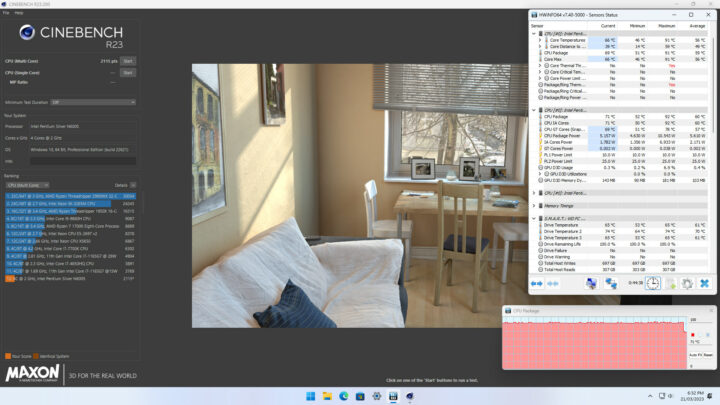

Similarly, Cinebench R23 had also been crashing however by allowing the higher CPU temperature the benchmark now completed:

iKOOLCORE R1 Cinebench R23

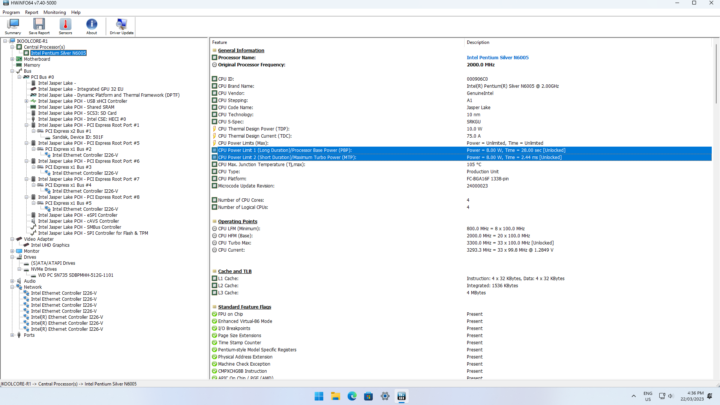

I then experimented with adjusting the ‘Power Limits’, first by reducing PL2 and then both PL1 and PL2 until I got Fire Strike and Cinebench R23 to both complete and produce semi-respectable results. The final values for PL1 and PL2 were both set to 8W:

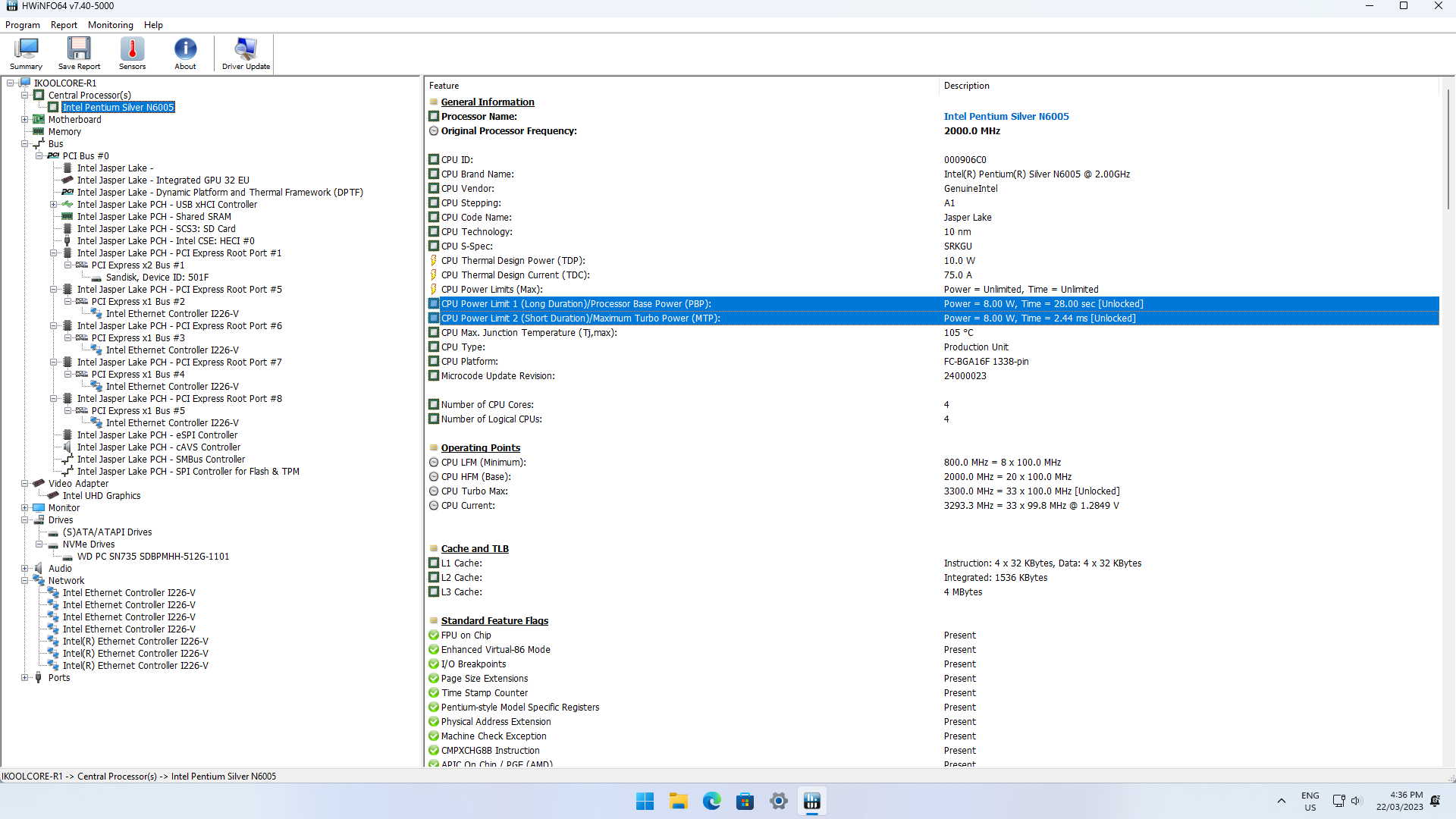

iKOOLCORE R1 Windows 11 PL1 PL2 8 Watts

which is probably a little on the conservative side but at this point I just wanted to get some results.

I reset the UEFI (BIOS) to the default settings to perform the Ubuntu benchmarking which ran without incident. Afterward I then tried repeating the Windows benchmarks as I wanted to re-check my initial findings. Whilst Fire Strike crashed a couple of times, it also managed to complete as did Cinebench R23. As a result, I ran the remaining benchmarks used in my ‘Windows Performance’ testing and I’ve included a comparison chart against the lower PL values further below.

Finally, a brief check showed working audio, Ethernet ports, and the microSD card reader in both Windows and Ubuntu.

iKOOLCORE R1 performance in Windows 11 Pro

I first set the power mode to ‘High performance’ and ran some well-known benchmarking tools to look at performance under Windows. Note, these are the results using the ‘riskier’ default UEFI (BIOS) settings.

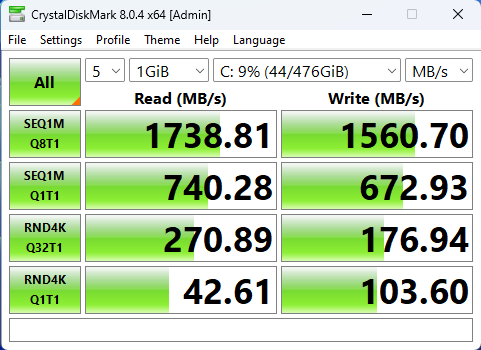

Storage performance from the M.2 NVMe was:

iKOOLCORE R1 SSD CrystalDiskMark

The overall Windows performance was:

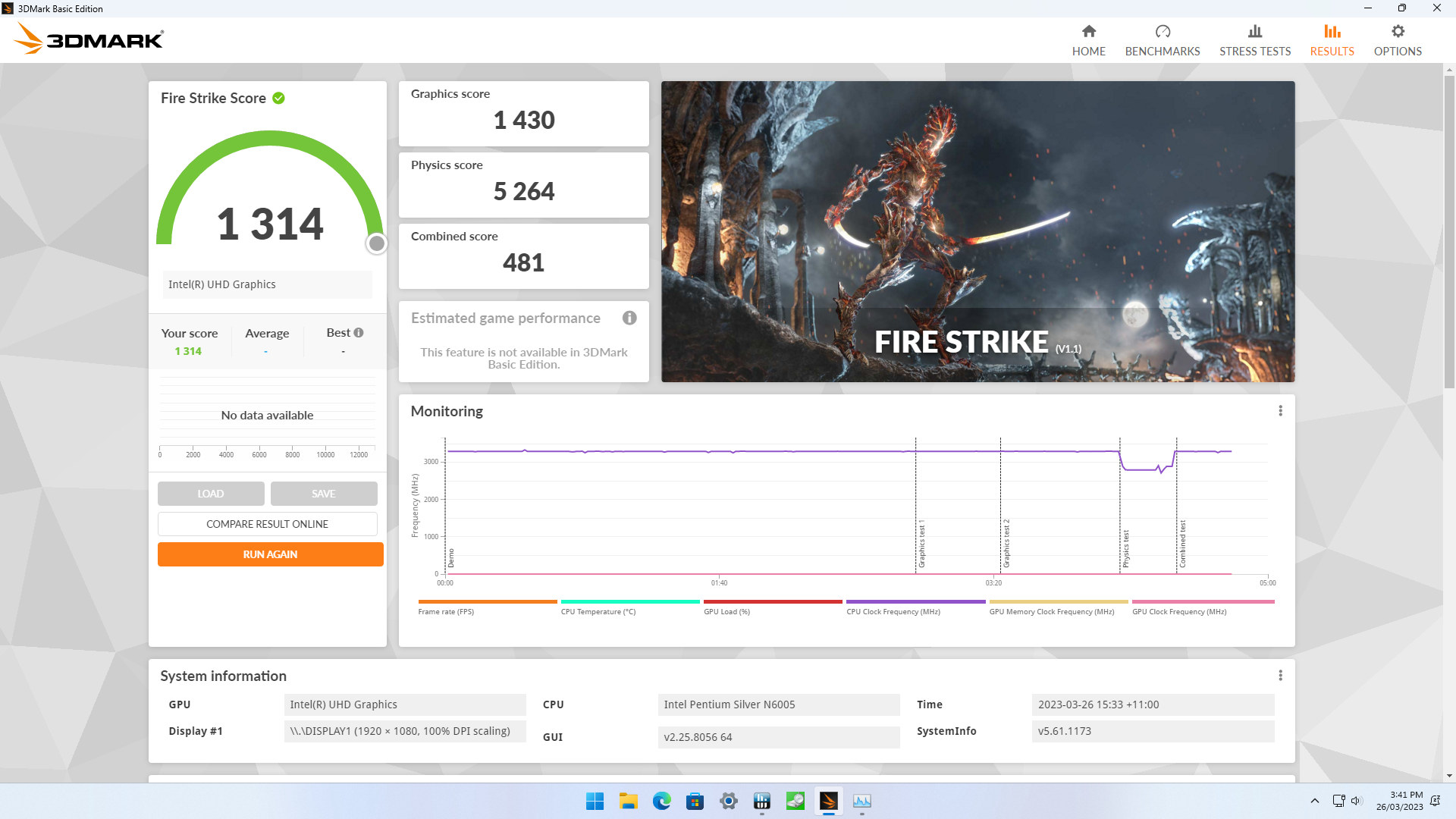

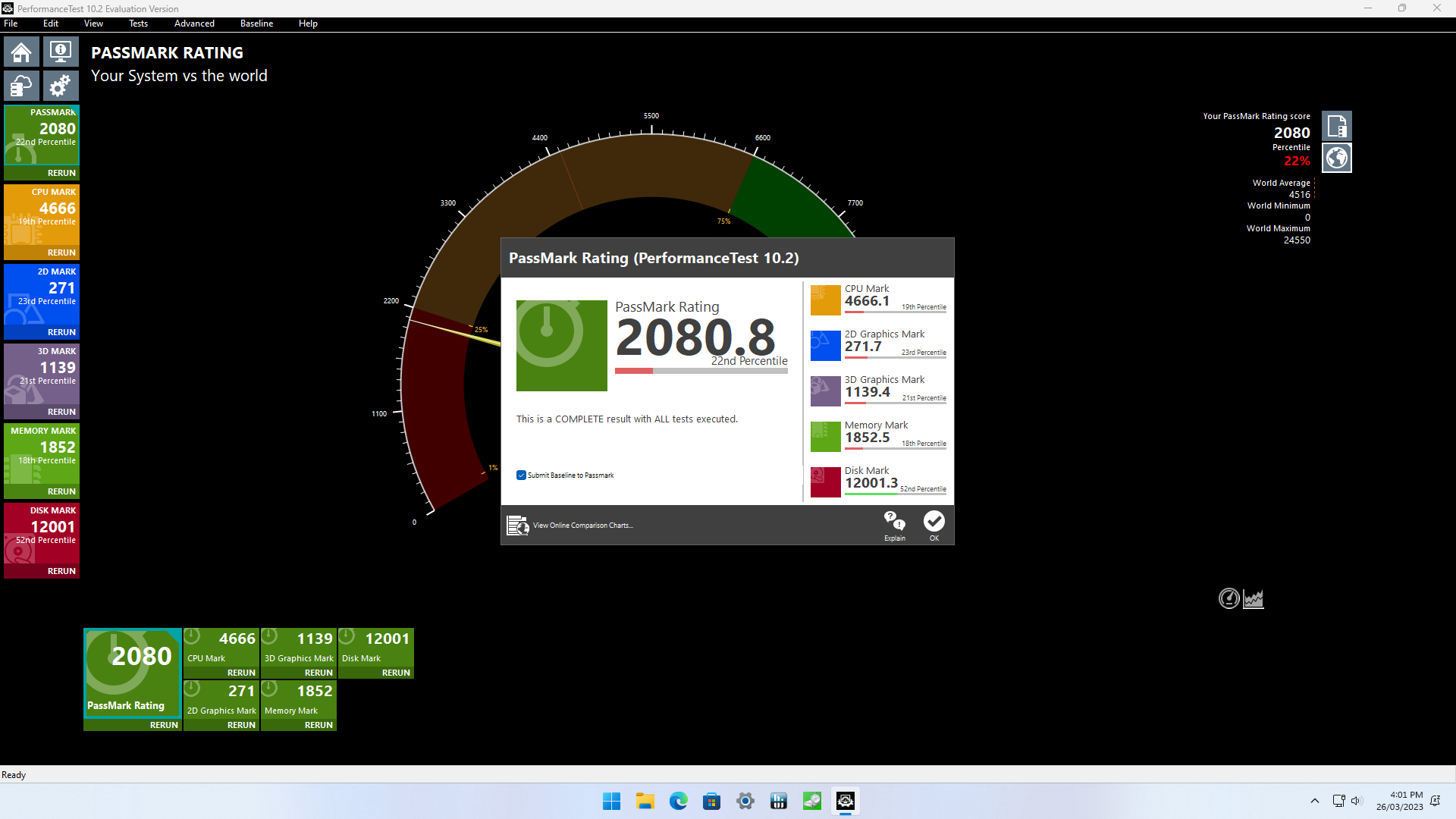

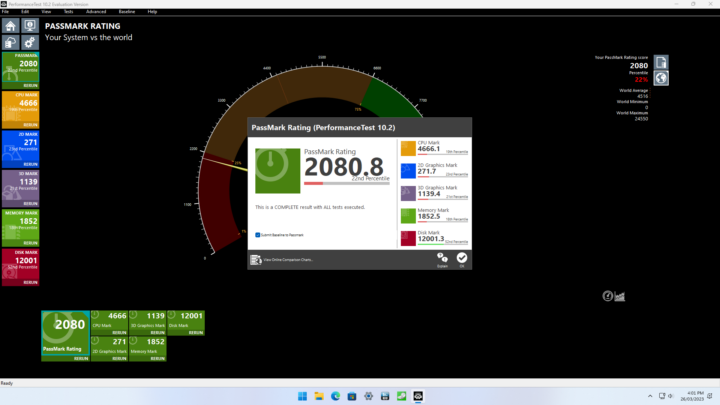

iKOOLCORE R1 3Dmark Fire Strike Benchmark iKOOLCORE R1 PassMark PerformanceTest 10.2 Benchmark

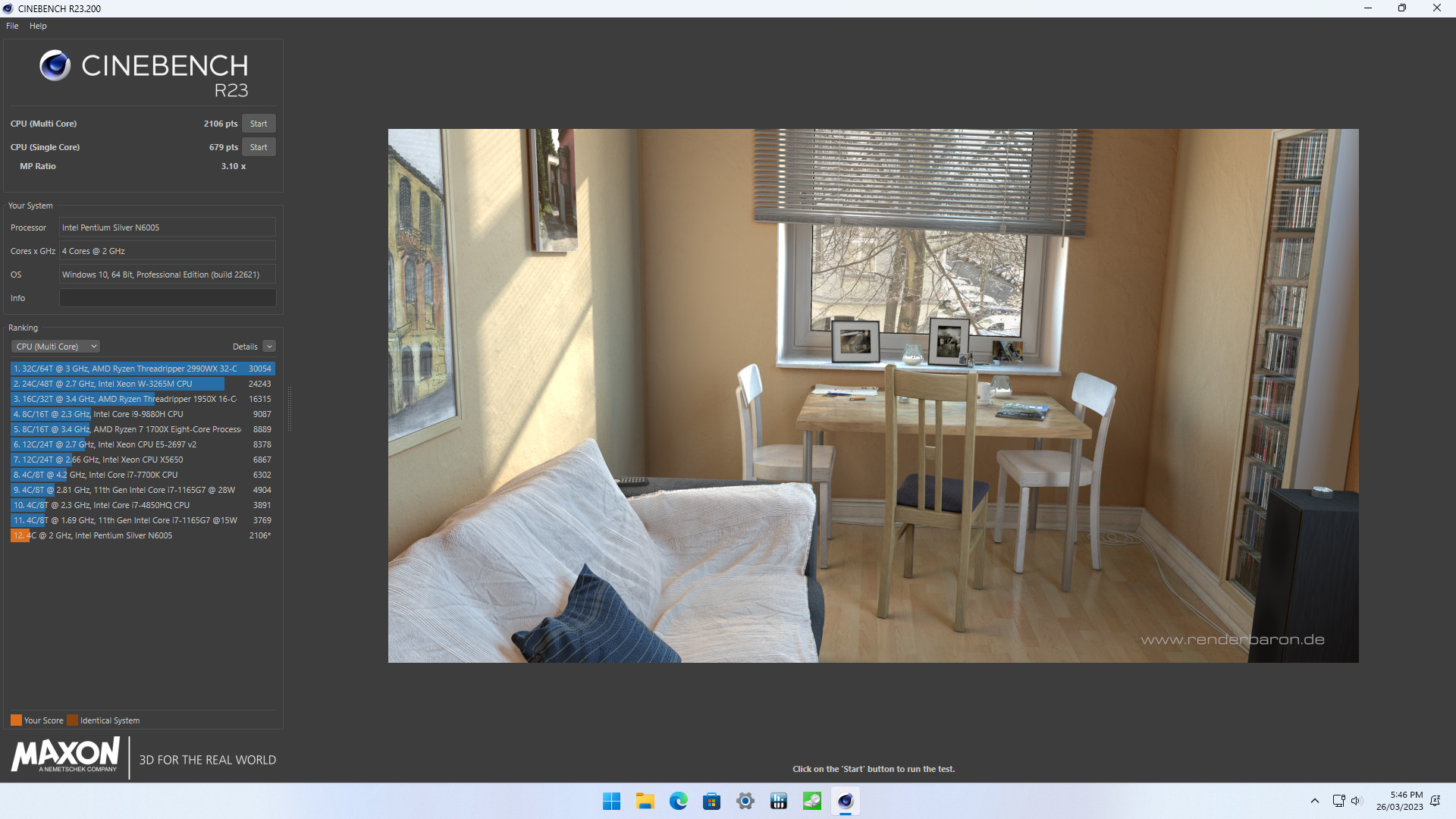

with CPU performance measured as:

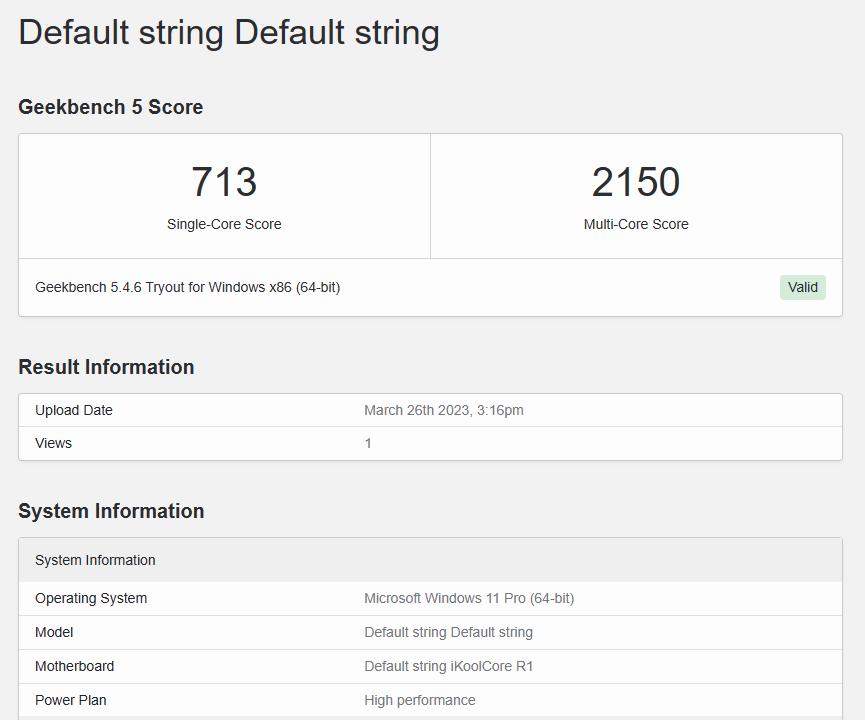

iKOOLCORE R1 CineBench R23 Benchmark iKoolCore R1 GeekBench 5

and iGPU performance measured as:

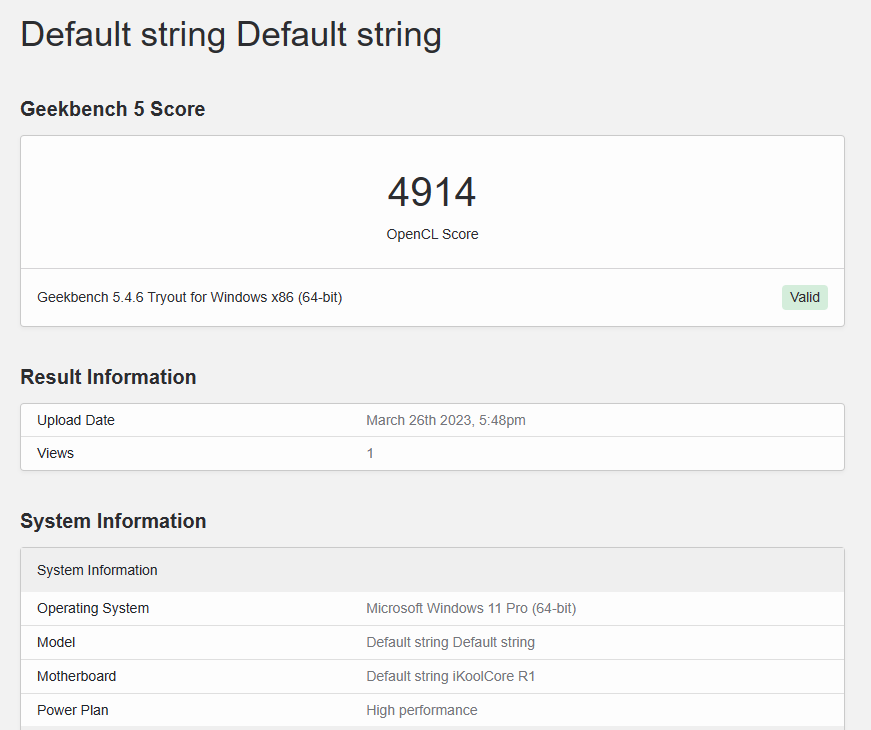

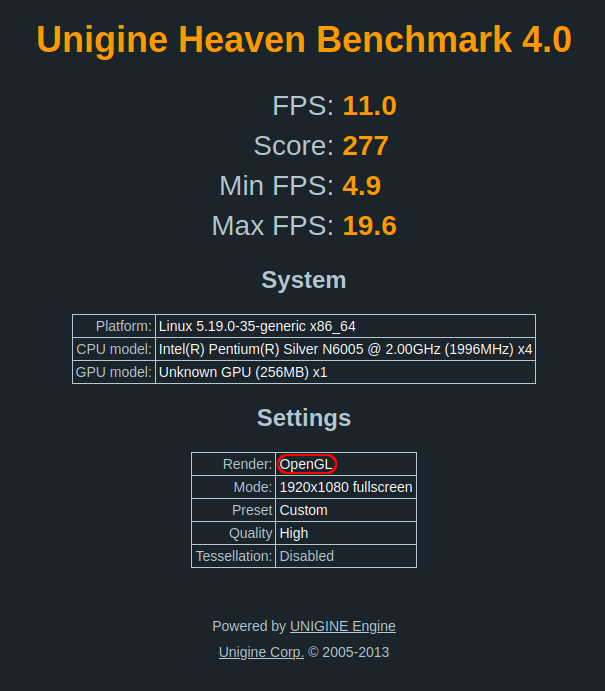

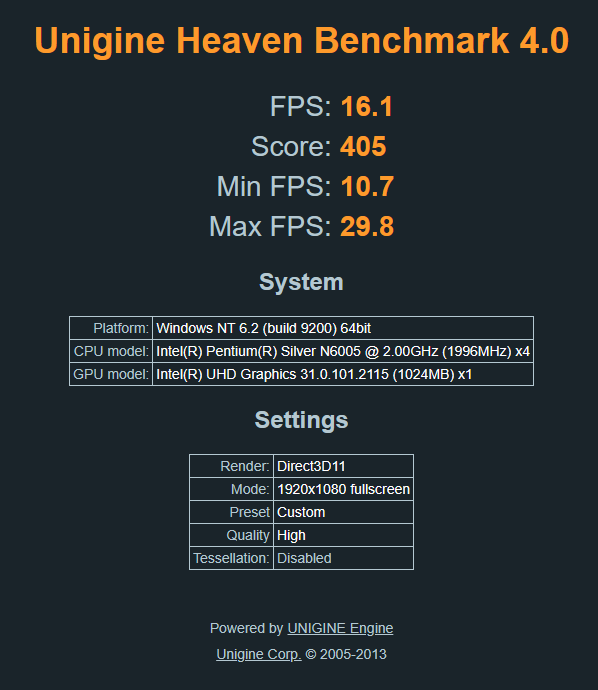

iKoolCore R1 GeekBench 5 OpenCL Pentium Silver N6005 Unigine Heaven Benchmark 4.0

In comparison, the following table shows the results for the above test runs together with the results for when the values of both PL1 and PL2 were set to 8 watts:

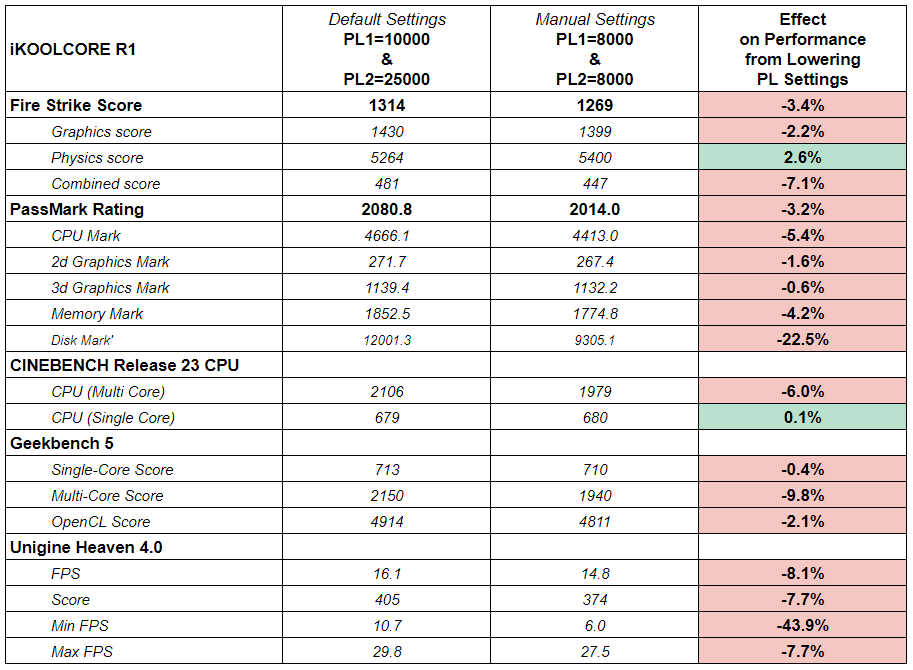

Mini PC Power Limits PL1 PL2 Benchmarks

Whilst the overall performance loss is not particularly significant, the ‘Physics Score’ for Fire Strike is interesting given that it measures CPU performance and it was during this part of the benchmark the mini PC kept crashing. Achieving a high score with less power indicates less thermal throttling as there isn’t such a need to throttle. Revisiting the monitoring when Fire Strike crashed shows there was a significant drop in CPU frequency prior to each crash suggesting that throttling couldn’t happen fast enough to prevent a failsafe ‘crash’.

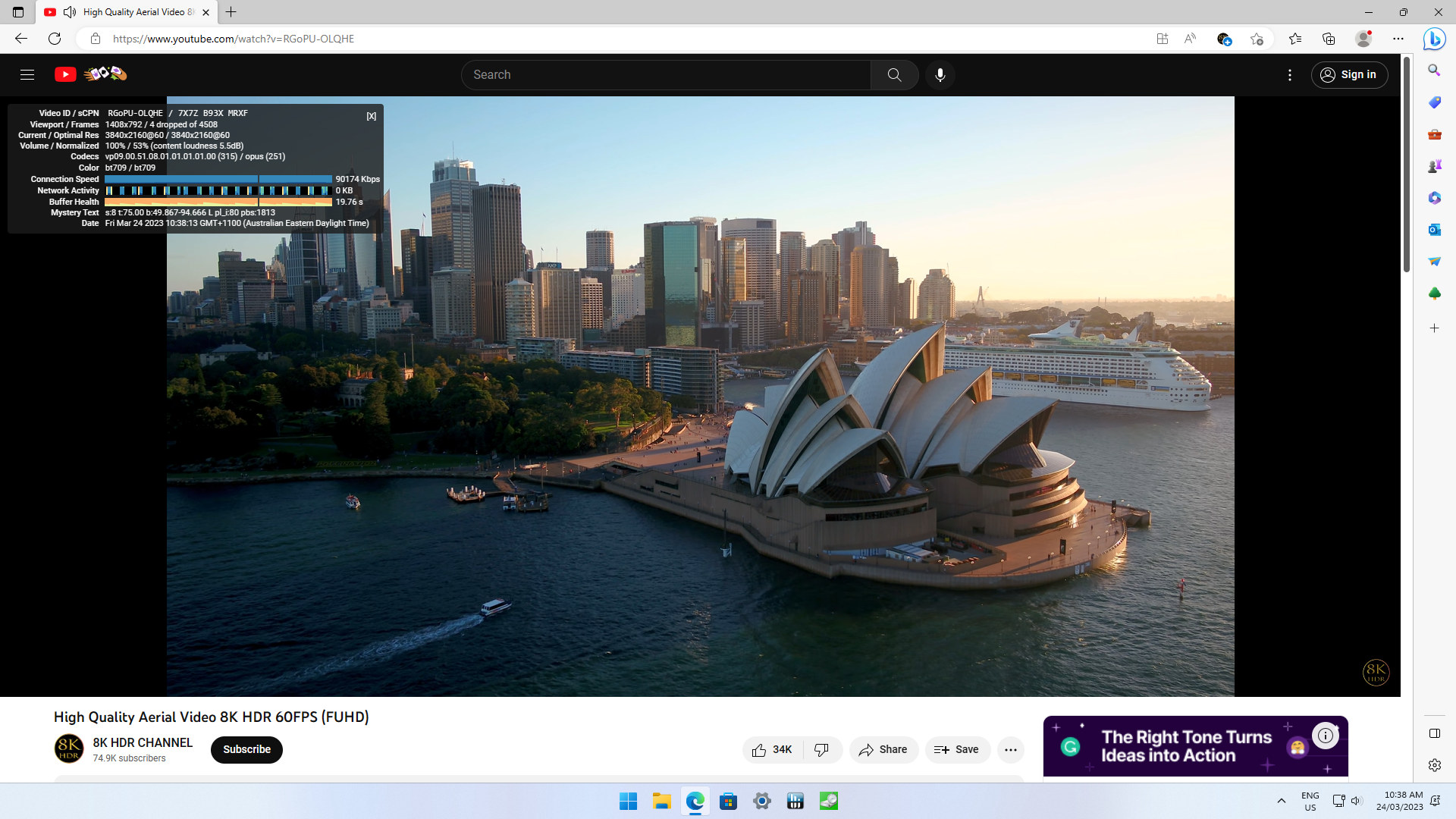

For real-world testing of the iGPU, I played various videos in Edge and there were no issues encountered playing videos up to 4K 60FPS with only the occasional frame dropped at this highest resolution:

iKOOLCORE R1 Review 4K YouTube Chrome

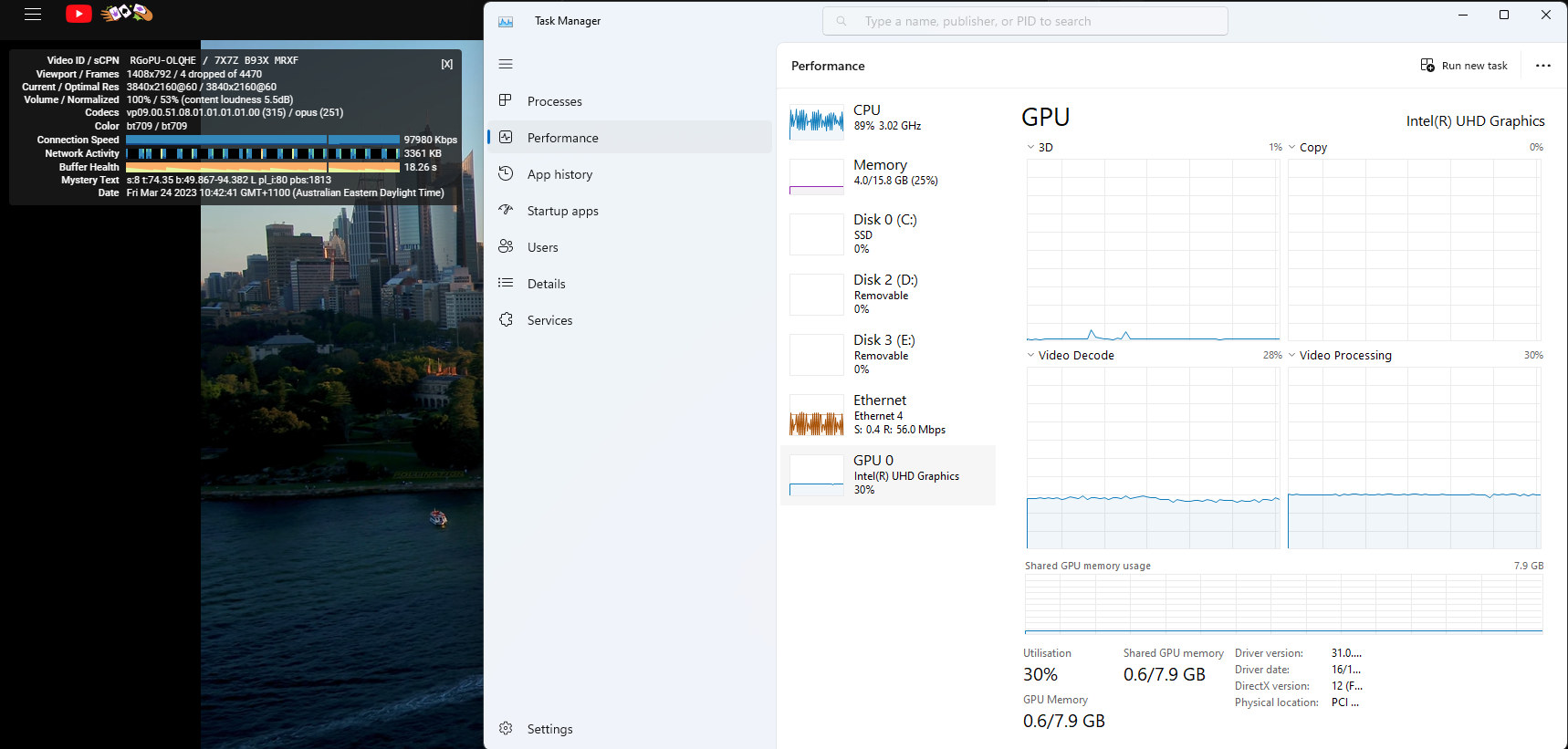

with CPU usage reasonably intensive:

4K YouTube Chrome CPU Usage GPU Usage



Ubuntu 22.04 performance

I first set the CPU Scaling Governor to ‘performance’ and ran some of my Linux benchmarks:

Storage performance from the M.2 NVMe was:

iKOOLCORE R1 Ubuntu 22.04 FIO SSD benchmark

The overall Ubuntu performance was:

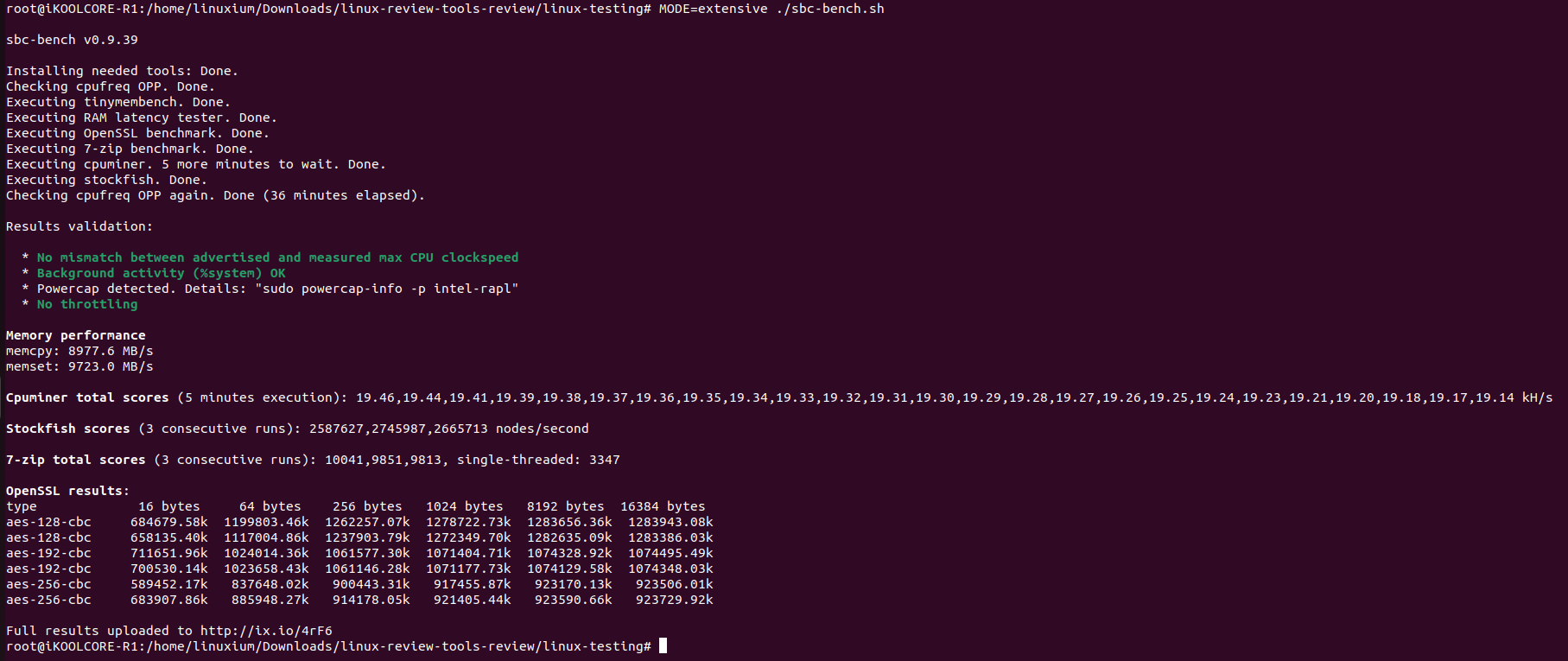

iKOOLCORE R1 SBC Bench
SBC-Bench.sh

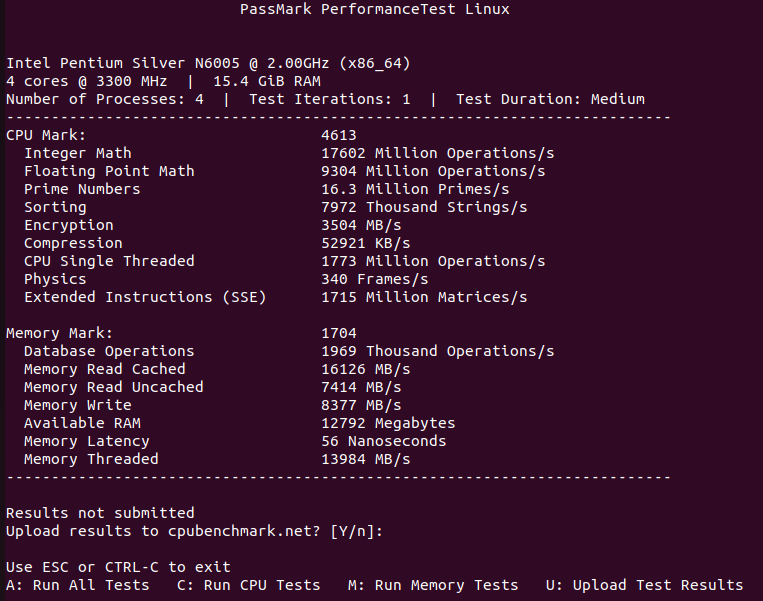

iKOOLCORE R1 Ubuntu 22.04 PassMark PerformanceTest Linux benchmark

with CPU performance measured as:

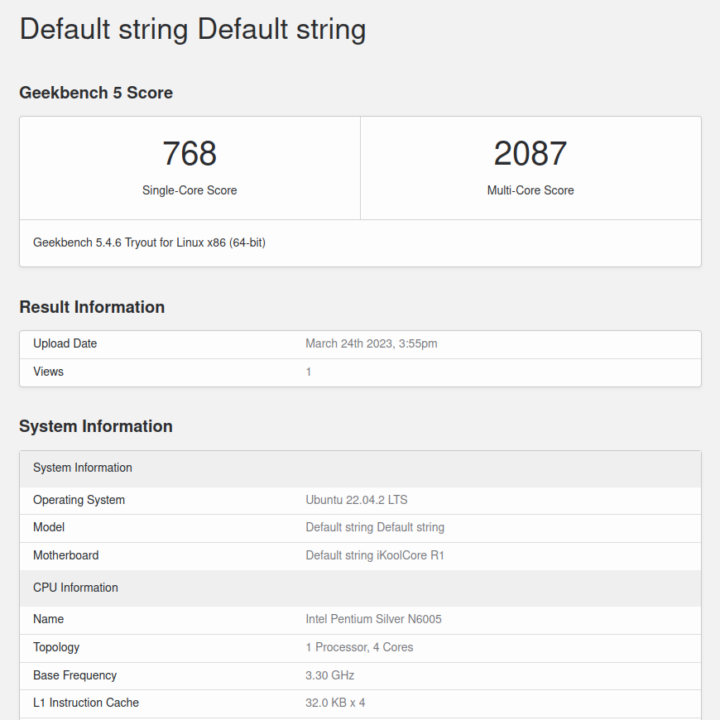

iKOOLCORE R1 Geekbench 5 Ubuntu 22.04

and iGPU performance measured as:

R1 Ubuntu Unigine Heaven Benchmark 4.0

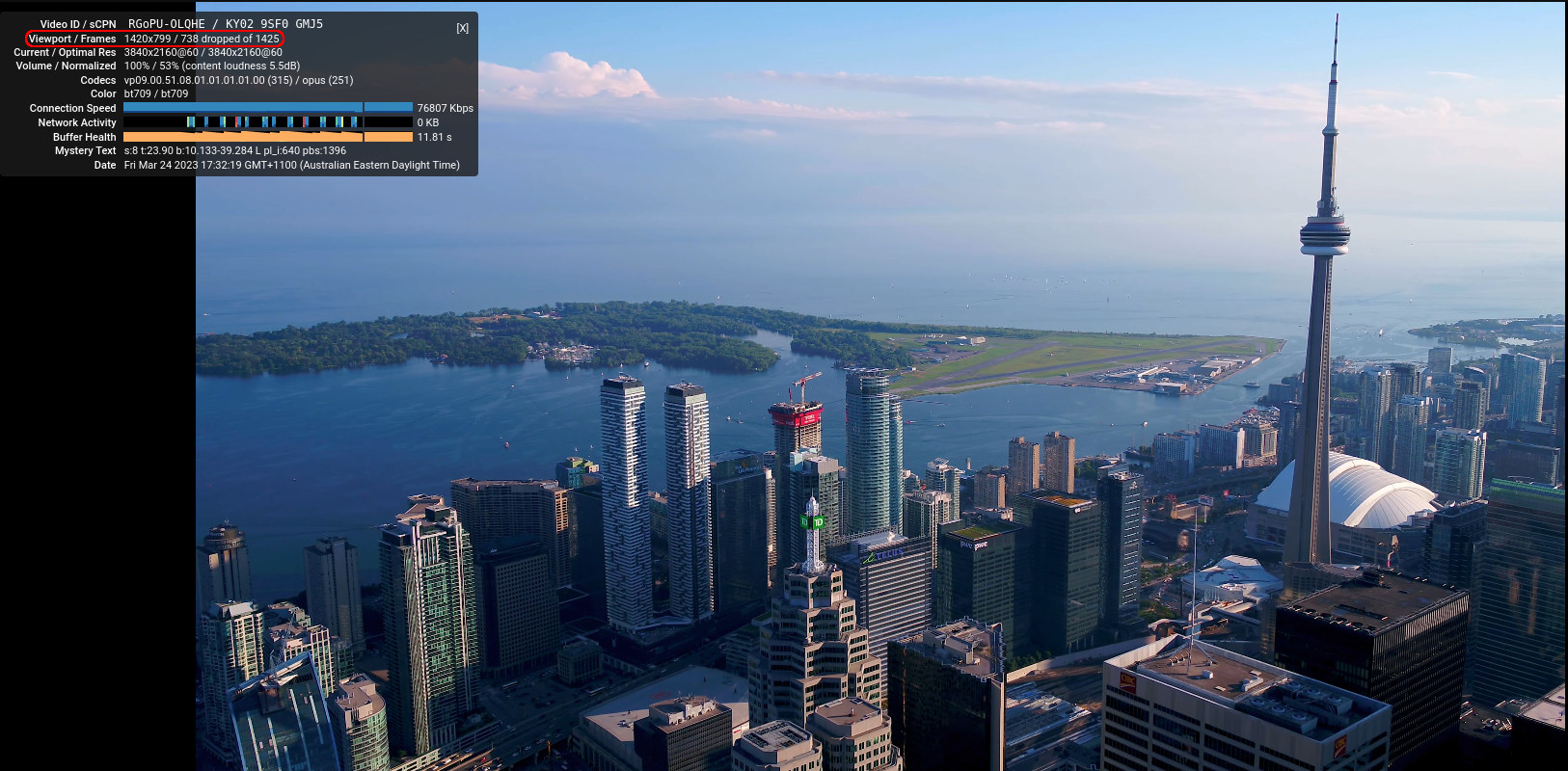

For real-world testing of the iGPU, I played various videos in Firefox. Playing videos at 4K 60FPS resulted in momentary stalls and frequent dropped frames:

iKOOLCORE R1 Review Ubuntu 22.04 4K YouTube

Decreasing the resolution to 1440p substantially improved the playback and only the occasional frame was dropped:

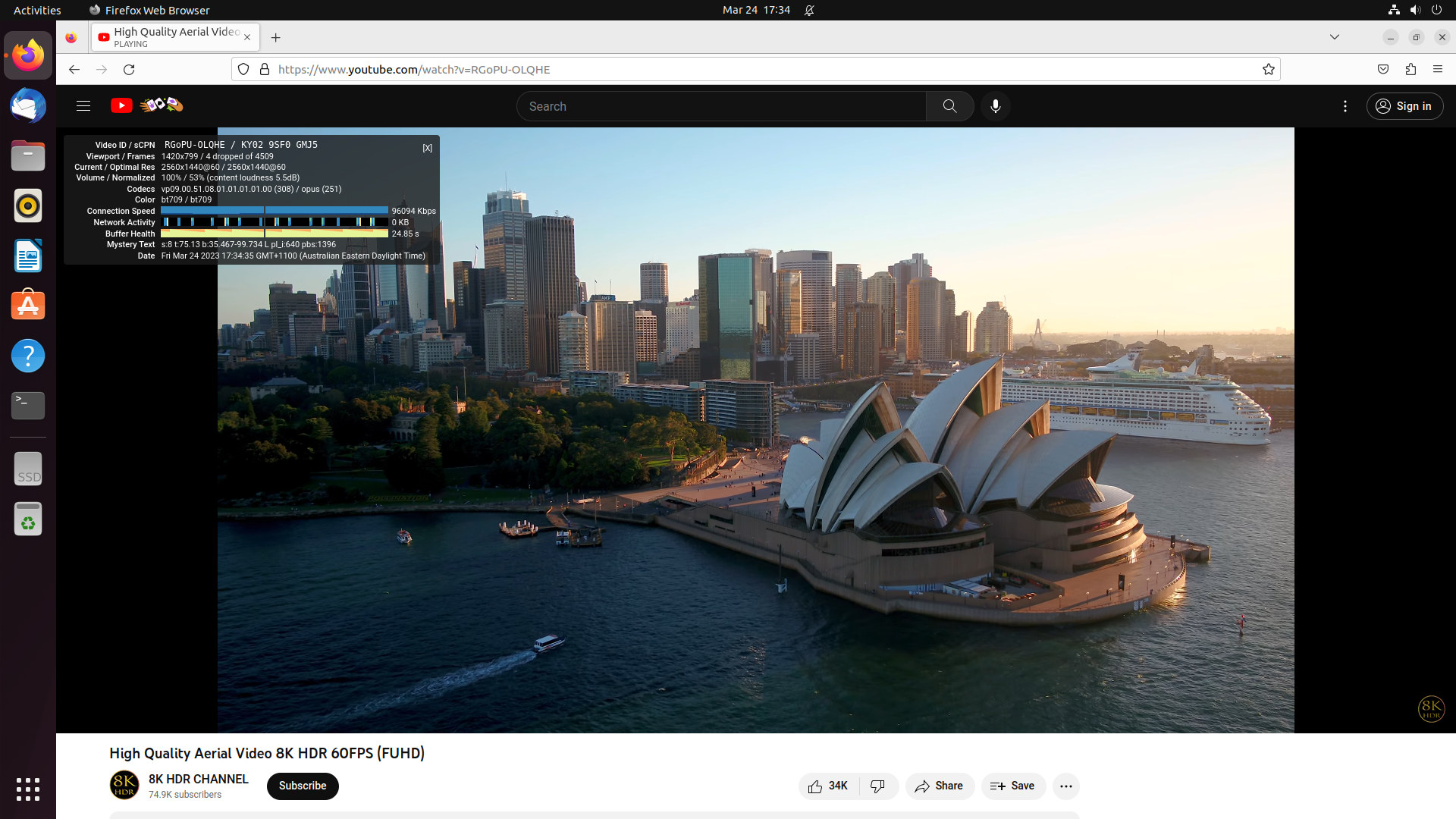

iKOOLCORE R1 1440p YouTube Ubuntu

but, like Windows, the CPU usage was reasonably intensive:

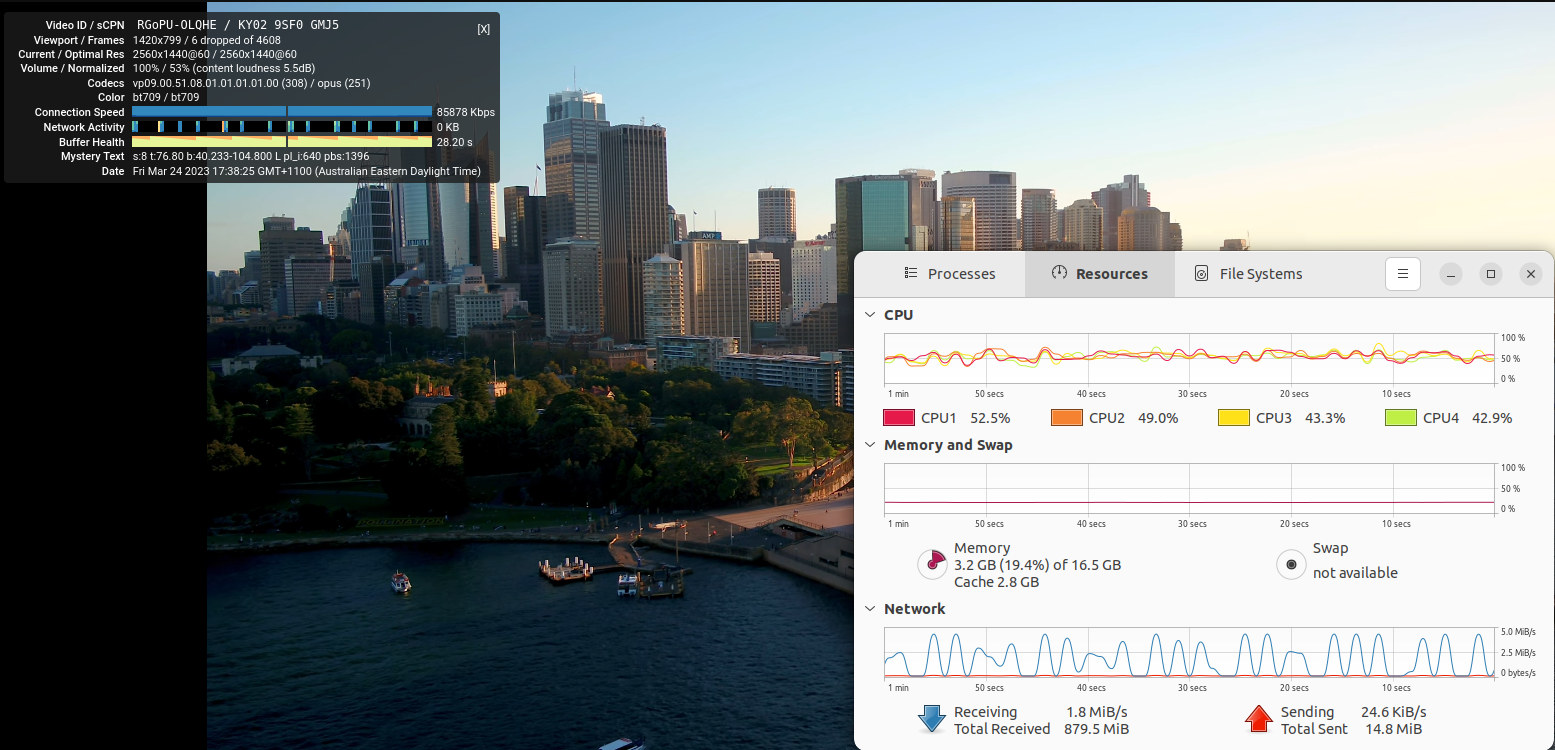

Ubuntu YouTube CPU GPU Usage

Network Performance (2.5GbE and USB WiFi dongle)

Network connectivity throughput was measured using ‘iperf3’. The 2.5 gigabit Ethernet ports performed as expected at around 2.35 Gbits/s in Windows:

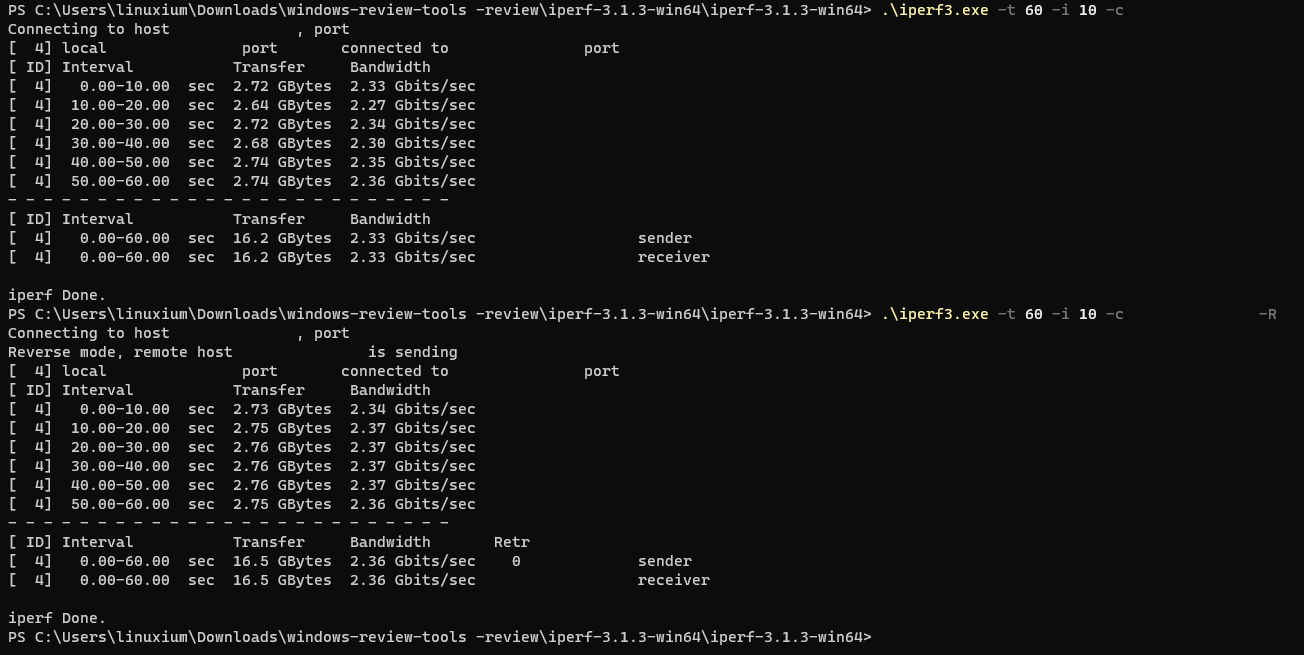

iKOOLCORE R1 Windows 11 iperf3

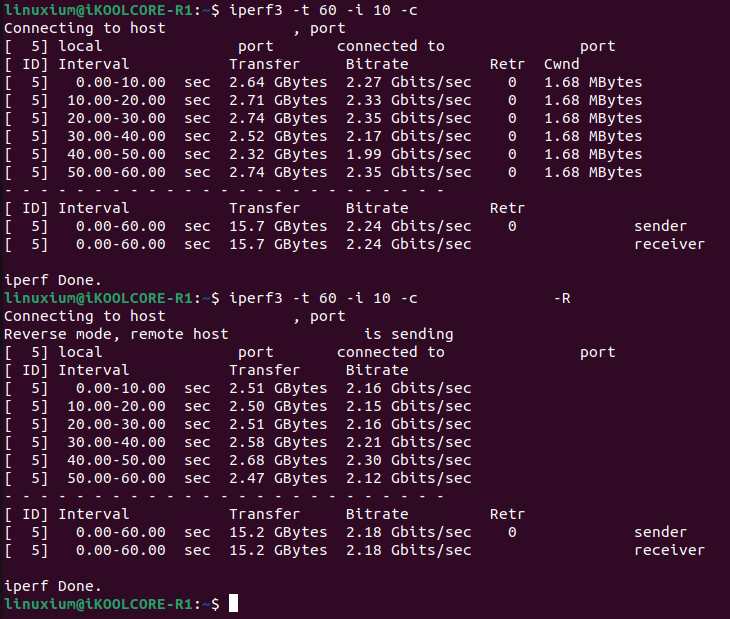

and at around 2.21 Gbits/s in Ubuntu:

iKOOLCORE R1 Ubuntu 22.04 iperf3 1

Whilst the R1 does not include a WiFi card, it is possible to use a ‘Wireless USB Adapter’. I tested this by using TP-Link’s Archer T3U Plus which is rated for up to 400Mbps on the 2.4GHz band and up to 867Mbps on 5GHz:

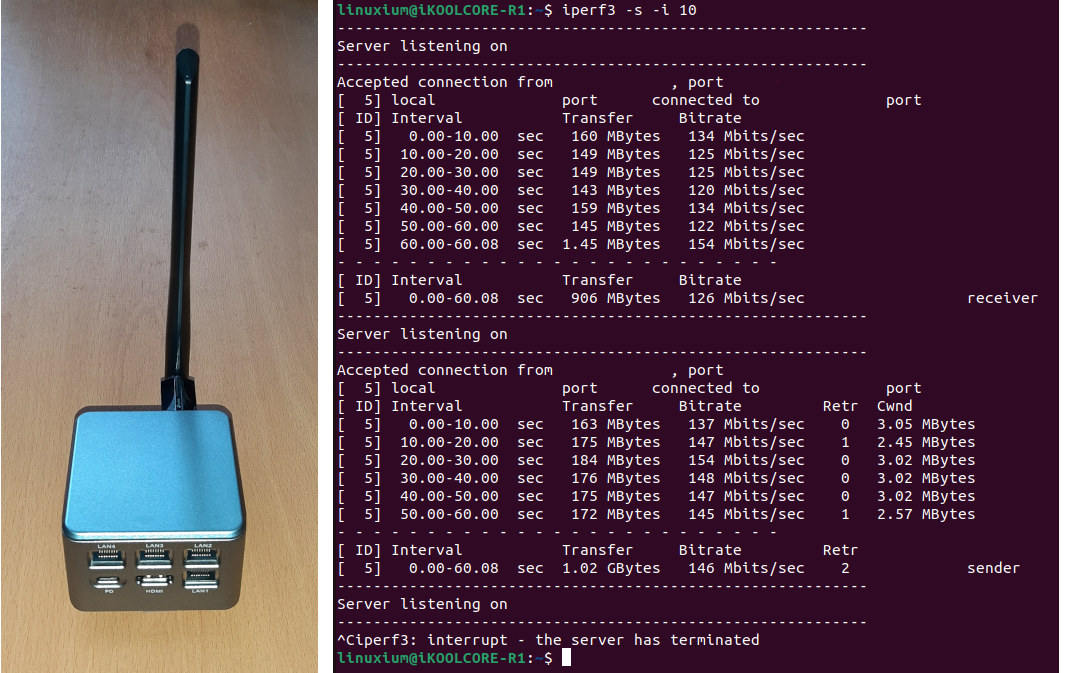

iKOOLCORE R1 WiFi 5 USB Dongle
The aerial highlights the diminutive size of the R1

As expected, I didn’t get anything like that and on Ubuntu, throughput only averaged around 136Mbps on the 5GHz band.

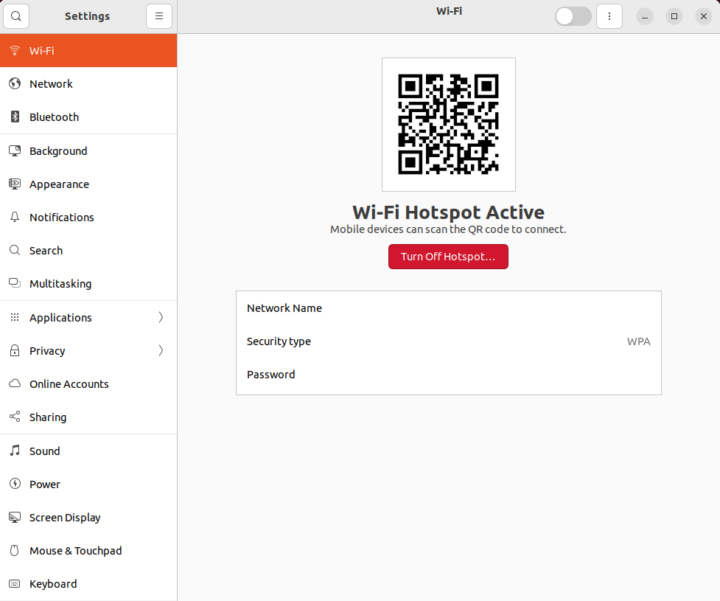

However, one feature that may be useful is using the adapter to create a WiFi ‘hotspot’ for use in remote management:

Ubuntu WiFi Hotspot

Thermal Performance

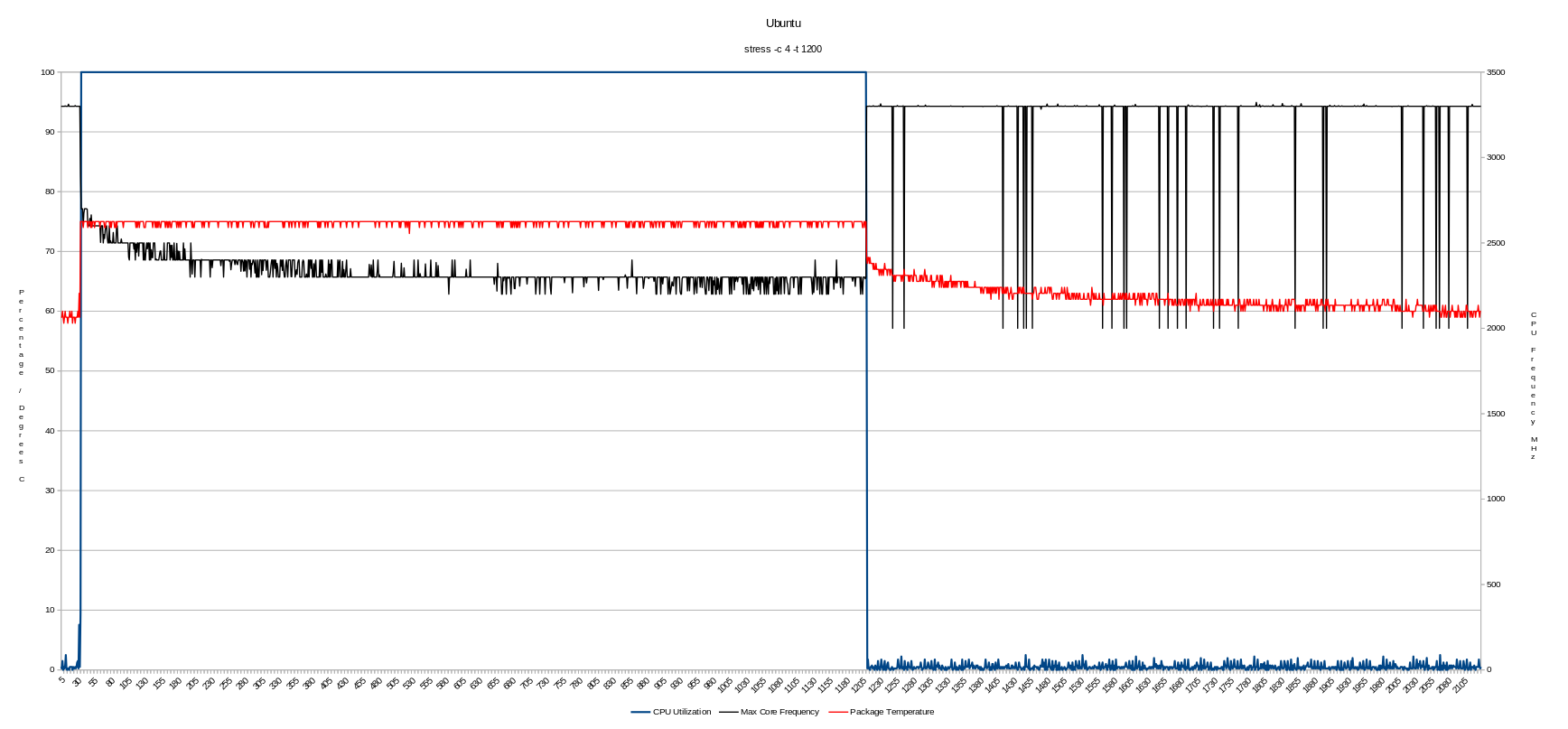

I’ve briefly touched on thermal performance already but to look in more detail I ran a stress test in Ubuntu which saw the CPU temperature climb immediately to 75°C and then maintained an average of 74.8°C for the duration of the test. Prior to the start of the test, the frequency of the CPU was 3300MHz. When the test started the frequency immediately dropped to 2700MHz and then continued to step down by 100MHz to around 2300MHz for the rest of the test to maintain the CPU temperature of 75°C :

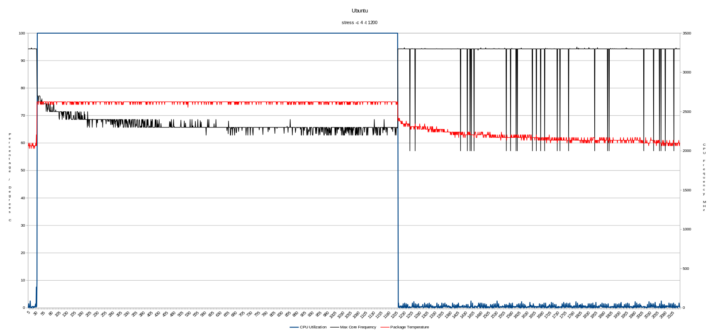

iKOOLCORE R1 Stress Test Ubuntu

This temperature was also seen whilst running Cinebench in Windows (with the ‘riskier’ default settings):

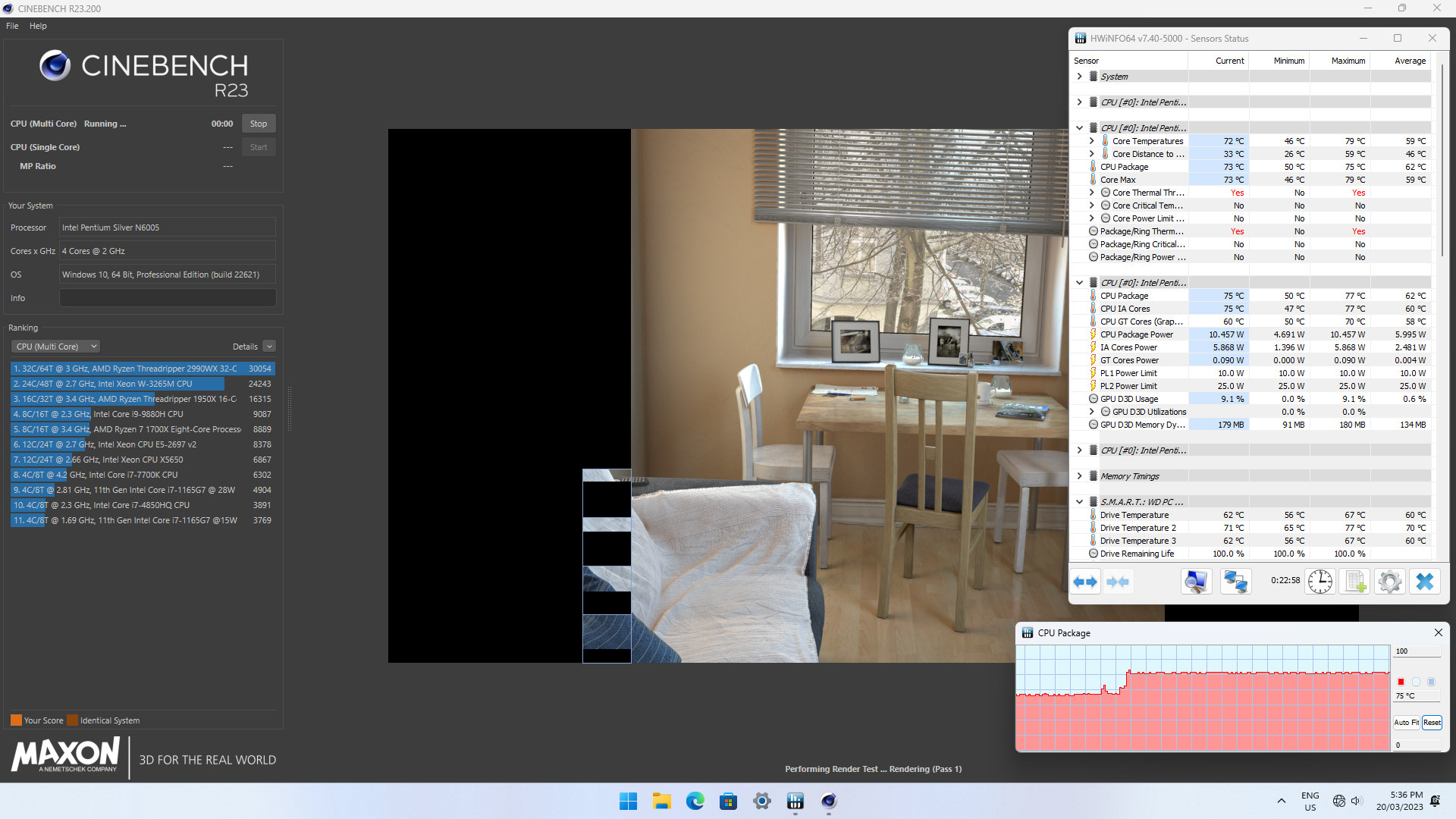

Cinebench R23 CPU temperature

Although a slightly higher maximum temperature was seen when running Fire Strike in Windows (when it ran that is):

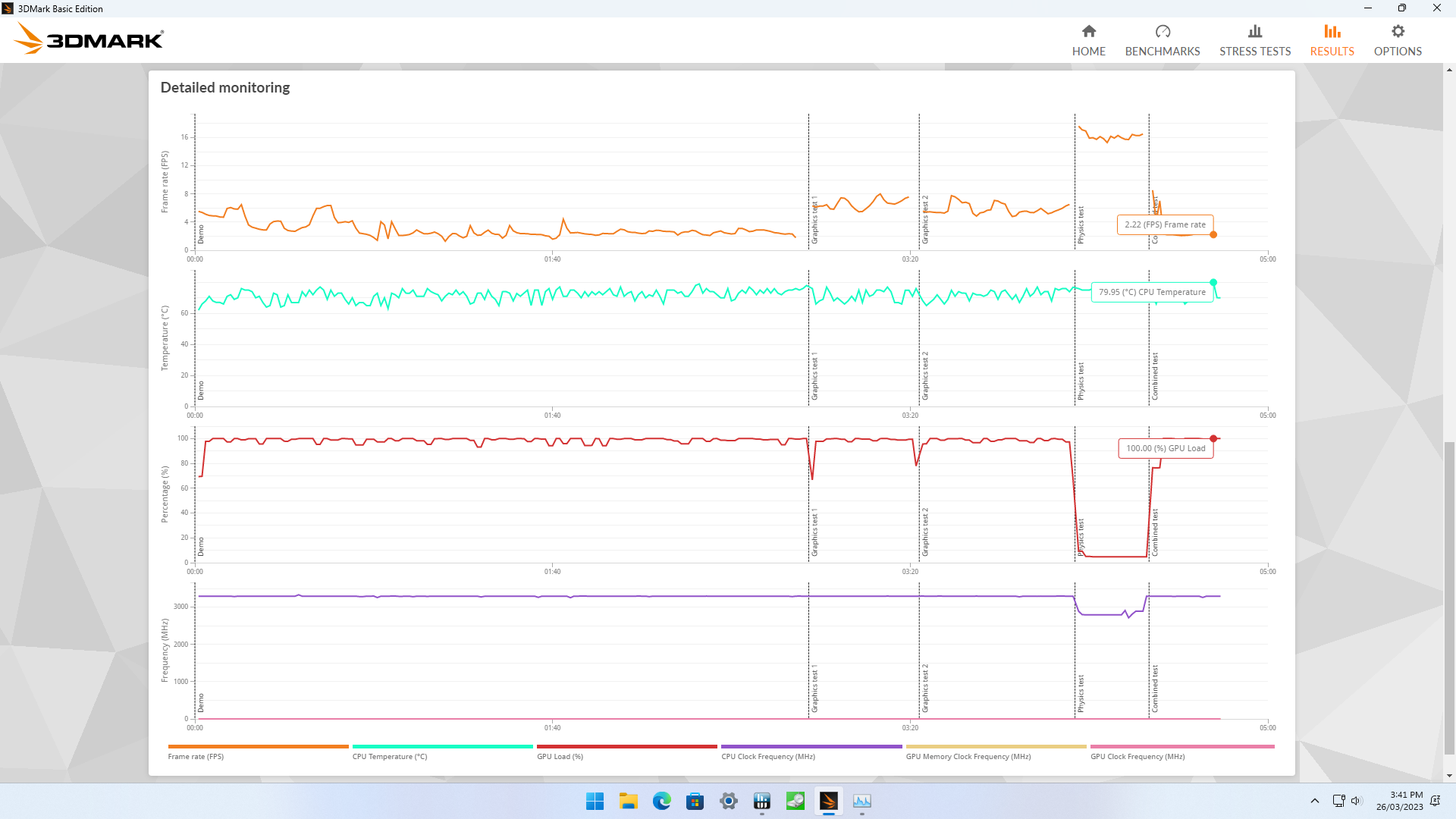

3DMark CPU temperature

The CPU temperature of 75°C was also the maximum average temperature seen when running sbc-bench in Ubuntu:

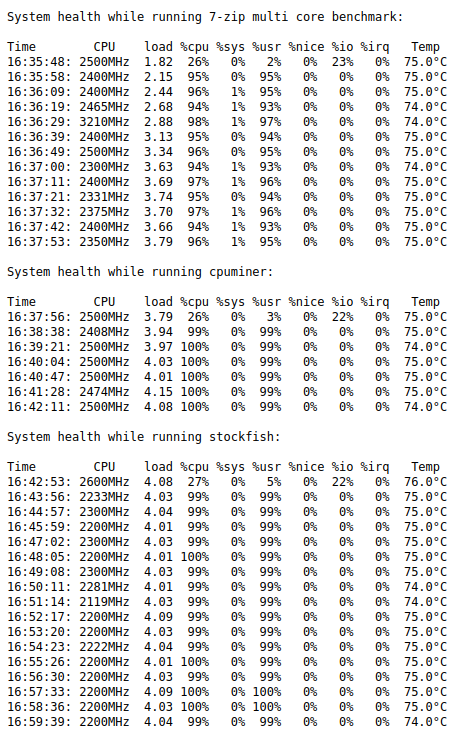

iKOOLCORE R1 SBC Bench Temperature

The iKOOLCORE R1 uses active cooling and has, at the base of the device, a fan. Unfortunately, this is the biggest drawback of an otherwise very good device as the fan cannot be controlled and runs at full tilt continuously whilst the device is switched on. And it is not exactly quiet. On my sound meter next to the device I measured 40.9dBA which isn’t necessarily that high however it is the pitch of the noise which makes it noticeable. It could be said that not only does the R1 act like a server, but it also sounds like one too!

Fortunately, a new fanless case for the R1 is under preparation which, according to the renderings, will look something like this:

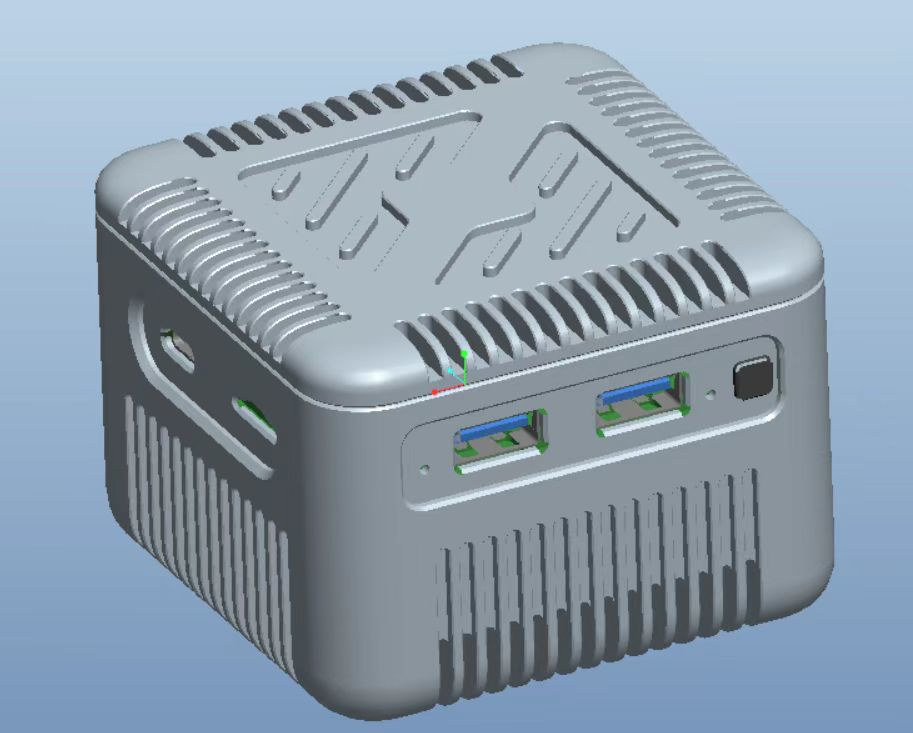

iKOOLCORE R1 Fanless Case iKOOLCORE R1 Fanless Enclosure

Power Consumption

Power consumption was measured as follows:

  • Powered off (shutdown) – 1.6 watts
  • UEFI (BIOS) – 18.3 watts
  • Idle – 11.8 watts (Windows) and 13.1 watts (Ubuntu)
  • CPU stressed* – 24.5 watts peak dropping to 20.0 watts (Windows ‘Cinebench’) and 20.5 watts peak dropping to 17.5 watts (Ubuntu ‘stress’)
  • Video playback* – 17.1 watts (Windows Edge 4K60FPS) and 20.5 watts (Ubuntu Firefox 1440p60FPS)

*The power figures fluctuate in part due to the fan so the value is the average of the median high and median low power readings.

Summary

The iKOOLCORE R1 is an exciting advancement for mini PCs. To miniaturize a quad-LAN server into such a small footprint is quite an achievement. Given that mini PCs are only recently being upgraded to include 2.5 gigabit Ethernet ports, the R1 includes four of them and they are Intel and not Realtek. It also manages to include multiple USB ports and extendable storage through a ‘bootable’ microSD card. The current relatively loud fan will be addressed with a forthcoming passive case. One further enhancement that could be considered is putting rubber feet on the base of the device to prevent it from sliding off a desk under the weight of the attached cables. Overall performance is impressive even after dropping the Power Limits to minimize any thermal issues under Windows and the R1 offers good value for money. Further details on the R1 can be found on their bilingual wiki.

I’d like to thank iKOOLCORE for providing the R1 for review. It can be purchased from their website for $199 and up depending on the configuration.
