7-inch and 10.1-inch industrial panel PCs feature Raspberry Pi 5 SBC

After introducing several Raspberry Pi CM4-based panel PCs over the years, EDATEC has launched its first industrial panel PCs based on the Raspberry Pi 5 SBC with the HMI3010-070C and HMI3010-101C equipped respectively with a 7-inch and 10.1-inch touchscreen display.

Both HMI displays expose most I/Os and features from the Raspberry Pi 5 including the two micro HDMI ports, the USB-C port for power, the four USB Type-A connectors, and the gigabit Ethernet RJ45 jack. The company also offers an 8MP front-facing camera and/or PoE as options.

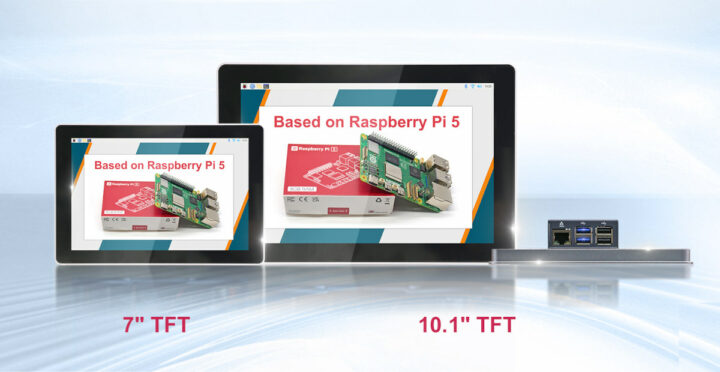

Raspberry Pi 5 industrial Panel PCs

EDATEC HMI3010 specifications:

  • SoC – Broadcom BCM2712
    • CPU – Quad-core Arm Cortex-A76 processor @ 2.4 GHz with crypto extensions, 512KB per-core L2 caches, 2MB shared L3 cache
    • GPU – VideoCore VII GPU @ 800 MHz with support for OpenGL ES 3.1, Vulkan 1.2, 4Kp60 HEVC decoder
  • System Memory – 4GB or 8GB LPDDR4X-4267 SDRAM
  • Storage – Optional 32GB or 64GB MicroSD card
  •  Display
    • HMI3010-070C – 7-inch TFT display with 1024×600 resolution, 16.7M colors, 300 cd/m2 luminance, 160°/160° H/V viewing angles, and 10-point capacitive touch
    • HMI3010-101C – 10.1-inch TFT display with 1280×800 resolution, 16.7M colors, 350 cd/m2 luminance, 160°/160° H/V viewing angles, and 10-point capacitive touch
  • Video Output – 2x HDMI port up to 4Kp60 with HDR support
  • Camera – Optional 8MP front-facing camera
  • Networking
    • Gigabit Ethernet RJ45 port with optional PoE support
    • Dual-band 802.11ac Wi-Fi 5
    • Bluetooth 5.0 / Bluetooth Low Energy (BLE)
  • USB – 2x USB 3.0 ports (5Gbps), 2x USB 2.0 ports
  • Expansion – Internal PCIe 2.0 FPC connector (but probably unusable here…)
  • Misc – RTC
  • Power Supply – 5V/5A via USB Type-C connector
  • Dimensions and Weight
    • HMI3010-070C – 188 x 123 x 39mm | 800 grams
    • HMI3010-101C – 258 x 172 x 38mm | 900 grams
  • Temperature Range – -25°C ~ 60°C
  • Ambient Humidity – 5% ~ 95% (non-condensing)
  • Certifications
    • FCC – FCC 47 CFR Part 15 Subpart B
    • CE
      • EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3
      • EN 55032/EN 55035/
      • EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52
      • EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2

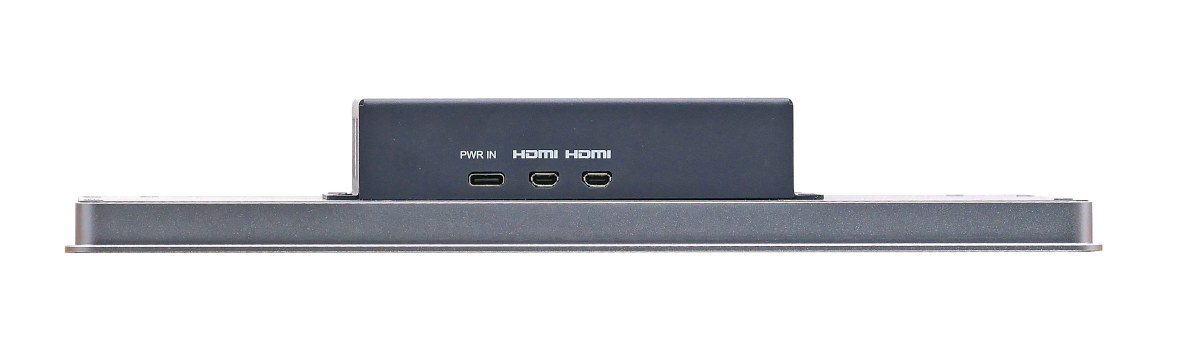

ED-HMI3010-101C panel PC with USB-C and micro HDMI ports

Raspberry Pi 5 HMI display

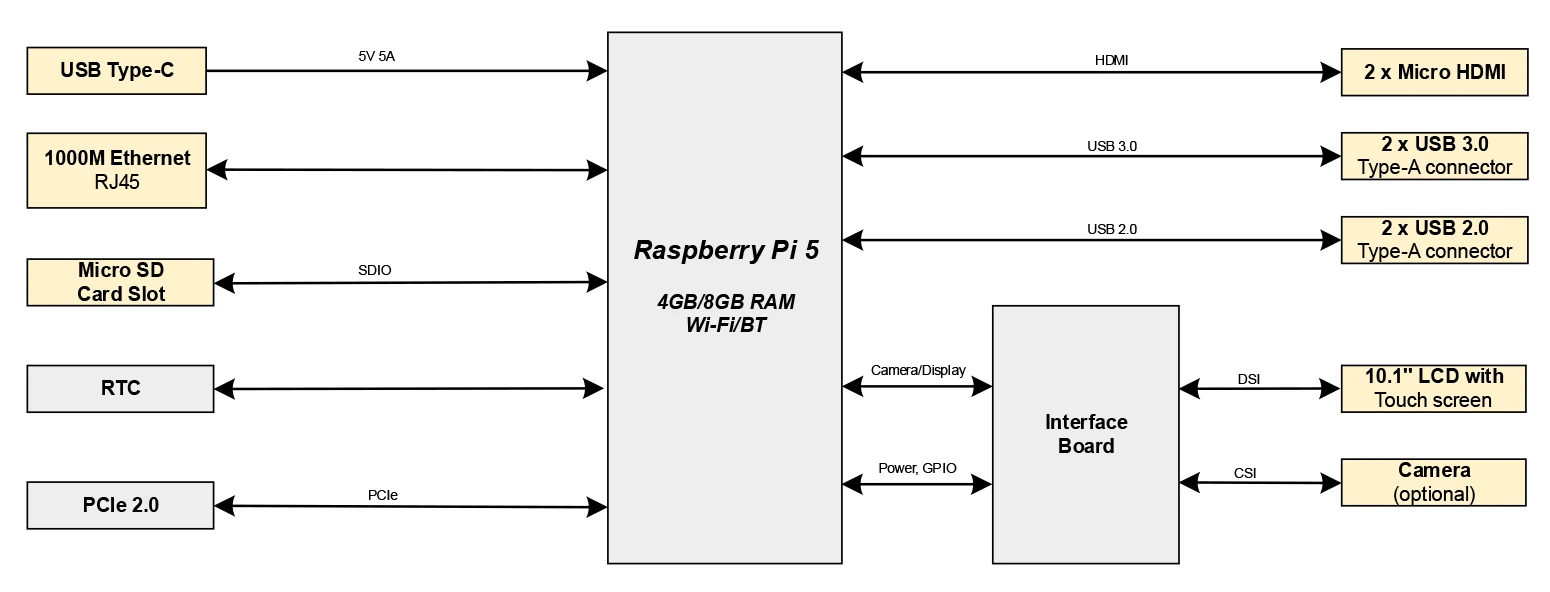

Block diagram

EDATEC says the Raspberry Pi 5 panel PCs can run Raspberry Pi OS Desktop or Lite 32-bit/64-bit operating systems and usually, they provide either full images with the required drivers or let users install the drivers themselves on the official Raspberry Pi OS image with a script.

Both the HMI3010-070C and HMI3010-101C panel PCs appear to be available now, but EDATEC only sells HMI3010-101C samples on Aliexpress for $258 plus shipping (use coupon codes CNXALI20 or USAFF20 during Aliexpress’s Black Friday event). The exact model sold there is the ED-HMI3010-101C-0832 with a Raspberry Pi 5 8GB RAM and a 32GB microSD card preloaded with Raspberry Pi OS. Further details may also be found on the product page.
