Rockchip RK3528 Android 13 TV Box doubles as a Bluetooth speaker

The H96 Max M7 is a Rockchip RK3528 TV box running Android 13.0 that mostly differentiates itself from competitors with the integration of two speakers allowing the box to be used as a Bluetooth speaker.

The rest of the specifications are pretty standard with up to 4GB RAM, 32GB storage, 4Kp60 HDMI video output, video playback up to 4K at 60 fps or 8K at 23 fps, WiFi 5 and Bluetooth 5.1 connectivity, and a single USB port for extension.

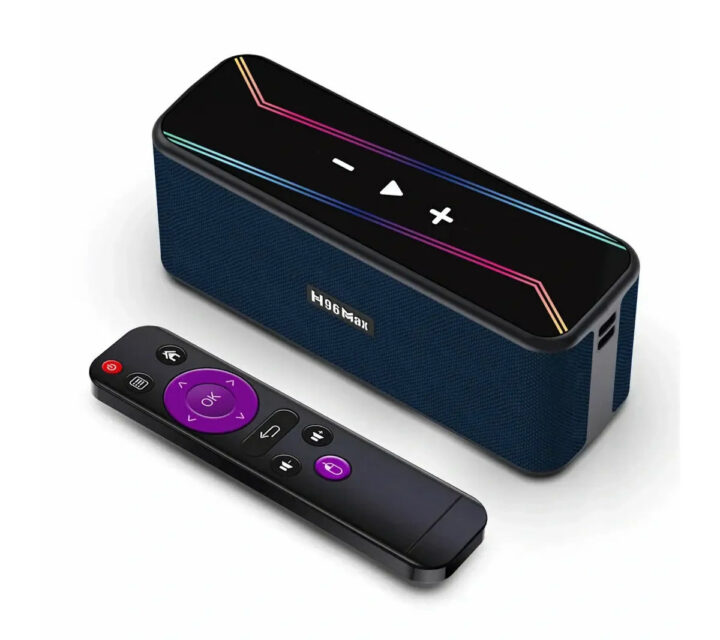

H96 Max M7 Android 13 TV Box Bluetooth speaker

H96 Max M7 specifications:

  • SoC – Rockchip RK3528
    • CPU – Quad-core Arm Cortex-A53 processor
    • GPU – Arm Mali-450 GPU
    • VPU
      • H.264/AVC, H.265/HEVC up to 4Kp60 or 8Kp23
      • AVS2 up to 4Kp60
      • VC1, MPEG-1 MPEG-2, MPEG-4, AVS  up to 1080p60
  • System Memory – 2GB or 4GB RAM
  • Storage – 16GB or 32GB eMMC flash; microSD card slot
  • Video Output – HDMI 2.0 port up to 4Kp60
  • Audio
    • Dual-speaker home theatre system with 52mm full-range speakers, 2x7W output power, and passive bass “disc”
    • Digital audio via HDMI port
  • Connectivity
    • Dual-band 802.11 a/b/g/n/ac WiFi 5
    • Bluetooth 5.1 BR+EDR+BLE via Zhuhai Jieli Technology AC6965A Bluetooth audio chip (see datasheet)
  • USB – 1x USB 2.0 port
  • Misc
    • Capacitive touch buttons for volume and play
    • Blue LED to indicate Bluetooth pairing
  • Power Supply – 12V/4A via DC jack
  • Dimensions – 220 x 73 x 89 mm

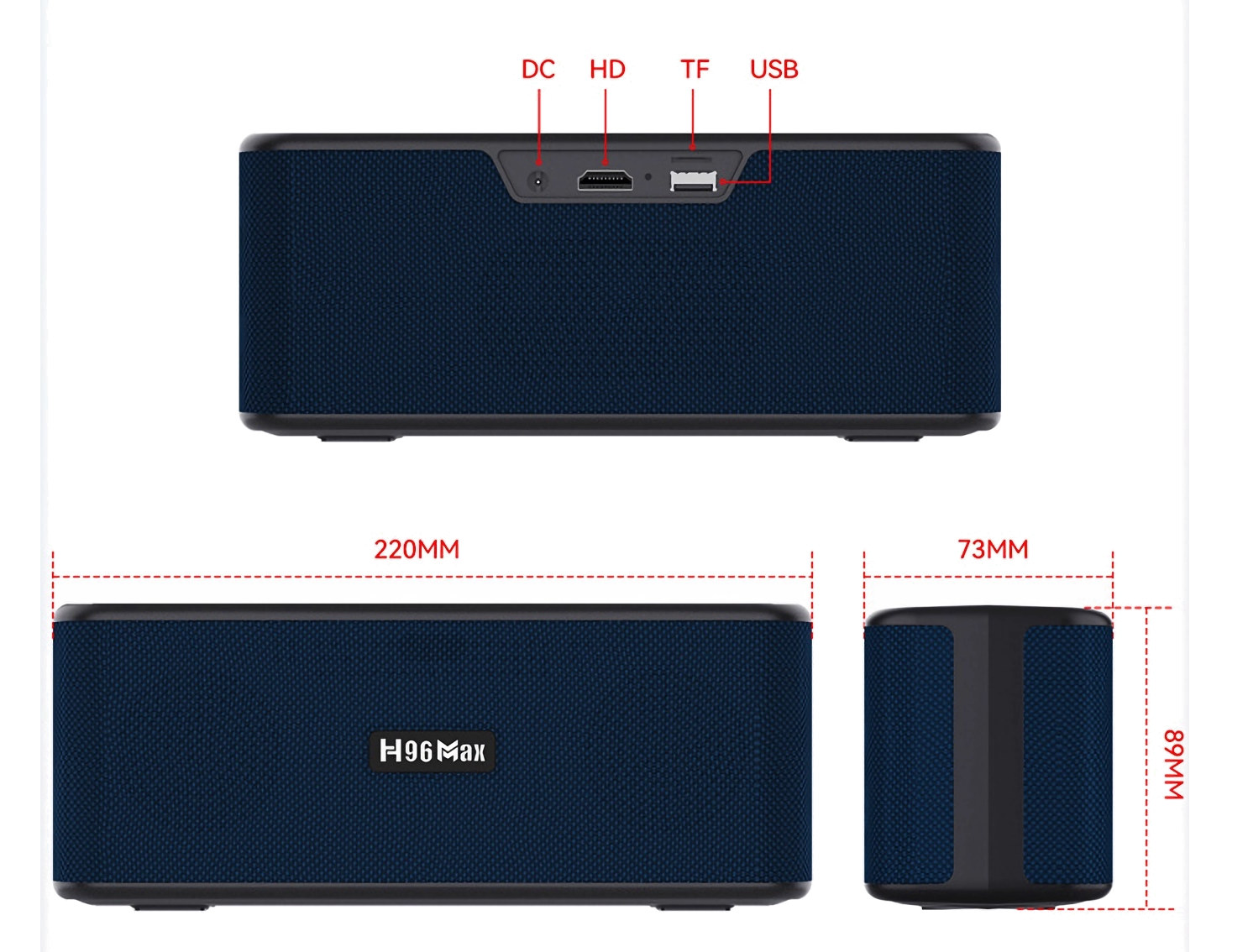

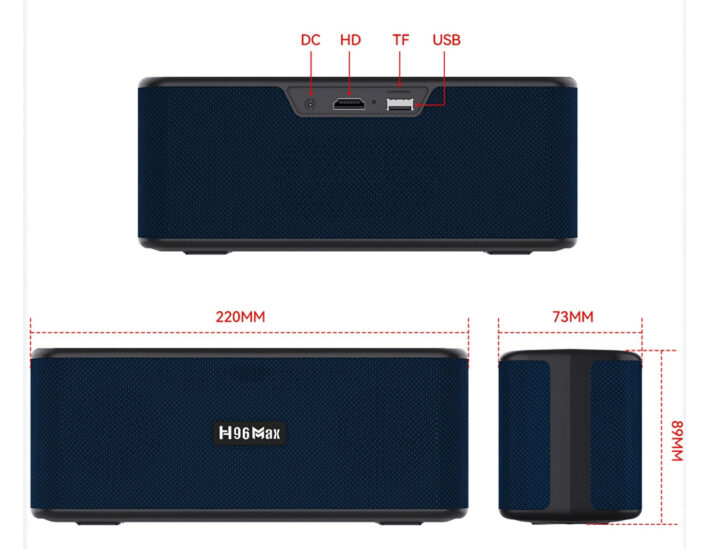

Rockchip RK3528 8K TV Box Speakers

The TV box runs Android 13.0 with the Google Play store and supports OTA firmware upgrades, but it’s unclear whether it’s running Android TV or the standard Android OS for mobile devices. The H96 Max M7 ships with an HDMI cable, an IR remote control, a power adapter, and a user manual.

We previously wrote about TV boxes with built-in speakers such as the MECOOL HomePlus, SEI 520, and MXQ HF10, but those doubled as smart speakers while the H96 Max M7 is simply an Android TV box with stereo speakers.

We first found the H96 Max M7 on Bangood where it is sold for $59.99 in 2GB/16GB configuration or $64.99 with 4GB RAM and 32GB flash, but you’ll also find it on Aliexpress for $34.94 and up including shipping.
