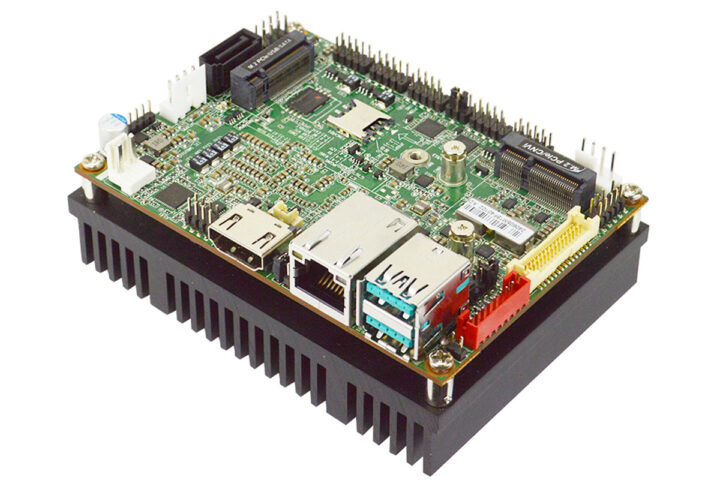

Jetway PIC-ASL1 is a low-power, fanless Pico-ITX SBC built around the Intel Atom x7213RE or x7433RE Amston Lake SoC for industrial use. This SBC is very similar to the Alder Lake-N-based JPIC-ADN1, which Jetway released just last year.

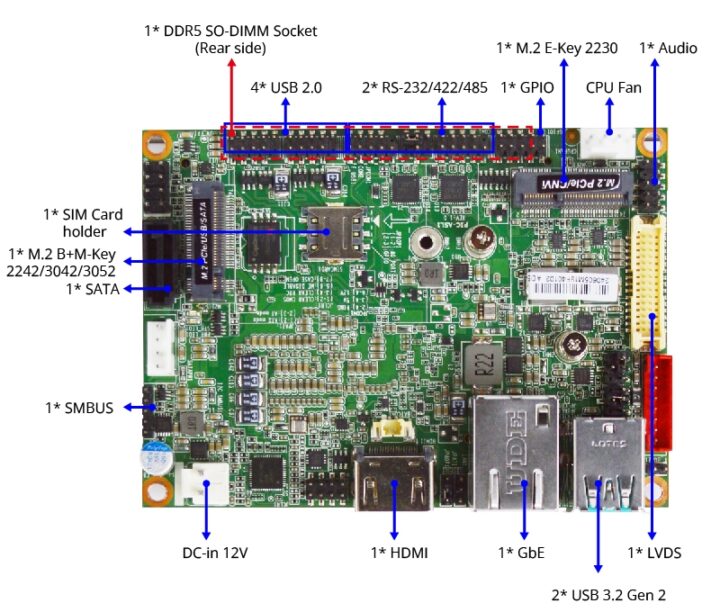

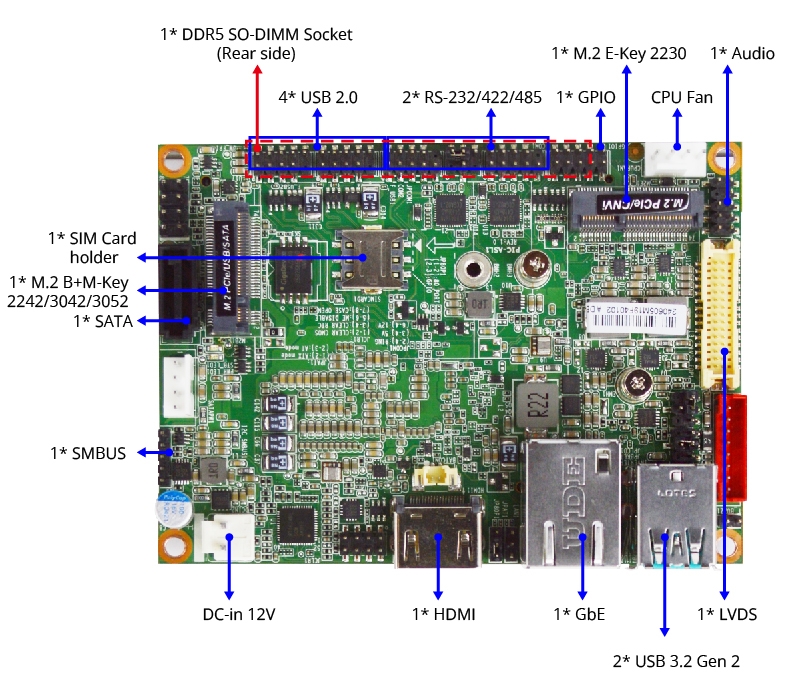

While both boards support up to 32GB DDR5 memory and dual displays via HDMI 2.0b and LVDS/eDP, the PIC-ASL1 adds industrial-grade resilience with shock/vibration resistance, a Nano SIM slot for cellular connectivity, and an Intel PTT for security. It also features a similar I/O layout, including dual USB 3.2 Gen 2, four USB 2.0, serial headers, two M.2 expansion slots, and a SATA III port for storage. Additionally, the PIC-ASL1 complies with various industrial standards, making it more suitable for use in harsh industrial environments compared to the ADN1.
Jetway PIC-ASL1 specifications:
- Amston Lake SoC (one or the other)
- Intel Atom x7213RE dual-core processor @ 2.0 to 3.4 GHz with 6MB cache, 16EU Intel UHD graphics; 9W TDP
- Intel Atom x7433RE quad-core processor @ 1.5 to 3.4 GHz with 6MB cache, 32EU Intel UHD graphics; 9W TDP
- System Memory – Up to 32GB DDR5 4800MHz via single channel SO-DIMM
- Storage
- M.2 B+M-Key socket (See expansion section)
- SATA III port with an onboard SATA power connector
- Display interfaces
- HDMI 2.0b up to 4096 × 2160 @ 60Hz
- 24-bit dual channel LVDS up to 1920 x 1080 @ 60Hz (Co-Lay eDP)
- Supports 2x independent displays
- Audio – Internal header for Line-Out and MIC-In with Realtek Audio CODEC
- Networking
- Gigabit Ethernet RJ45 port (RTL8111H)
- Optional Wi-Fi and Bluetooth via M.2 2230 E-Key (See expansion section)
- Optional 4G/5G cellular via M.2 B+M-Key socket and SIM card slot (See expansion section)
- USB
- 2x USB 3.2 Gen 2 (10 Gbps) ports
- 4x USB 2.0 via internal header
- Serial – 2x RS-232/422/485 via internal header
- Expansion
- M.2 B+M-Key 2242/3042/3052 socket (USB3/SATA/PCIe Gen3 x2)
- M.2 E-Key 2230 socket (USB 2.0/PCIe 3.0 x1)
- 8-bit GPIO header
- Security – Intel PTT (Integrated fTPM)
- Misc
- Watchdog timer (255 levels)
- RTC with lithium battery
- Chassis intrusion header
- AT/ATX mode selection header
- UEFI BIOS
- SMBUS header
- 4-pin Connector for CPU Fan (PWM Mode)
- Front panel header for HDD Active LED, Power LED, Power On/Off, and Reset
- Power Supply – 12V via 2-pin header; AT / ATX (Default) mode

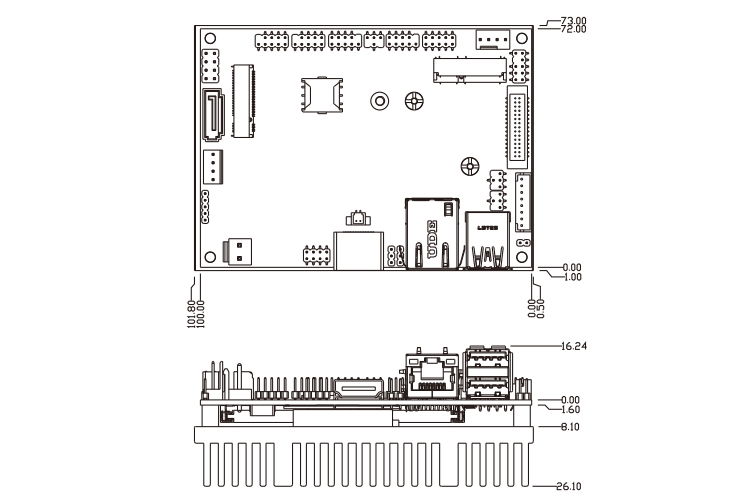

- Dimensions – 100 x 72 mm (Pico-ITX form factor)
- Temperature Range
- Operating – -20°C ~ 60°C
- Storage – -20°C ~ 85°C
- Humidity – 10 ~ 90% @ 40°C, non-condensing
- Certification – CE/FCC Class A, LVD, EU RoHS, China RoHS
- Vibration – 1 Grms (5–500Hz)
- Shock – 15G, 11ms duration
The company provides support for Linux, Windows 10, and Windows 11 operating systems, but at the time of writing, I couldn’t find any drivers available in their download section.
The PIC-ASL1 SBC targets low-power, rugged industrial applications thanks to its fanless compact design, shock/vibration resistance, and a wider temperature rating compared to the JPIC-ADN1. We have also written about other Pico-ITX SBCs like the MSI MS-CF16, AAEON PICO-ASL4, and Kontron 2.5”-SBC-AML/ADN with Atom x7433RE, Atom X7835RE, and other Amston Lake SKUs.
Jetway has not provided any pricing information for the PIC-ASL1 fanless SBC. More details, including a datasheet and order-related information, can be found on the product page.
