Jetway JPIC-ADN1 fanless, industrial Pico-ITX SBC features Intel N97 or N200 CPU, dual display support

Jetway JPIC-ADN1 is a fanless pico-ITX SBC powered by an Intel N97 or N200 Alder Lake-N processor and targeted at industrial robotics applications.

The JPIC-ADN1 supports up to 32GB of memory via a single-channel SO-DIMM slot. The SoC comes with UHD Graphics, supporting dual-display outputs via HDMI 2.0b and a 24-bit dual-channel LVDS interface. For storage, it features an M.2 B+M-Key socket and a SATA 3 port, plus an E-Key 2230 socket for wireless expansion. Gigabit Ethernet networking is handled by the RTL8111H GbE controller. Additionally, it has a serial header, 8-bit GPIO, SMBUS, watchdog timer, and much more.

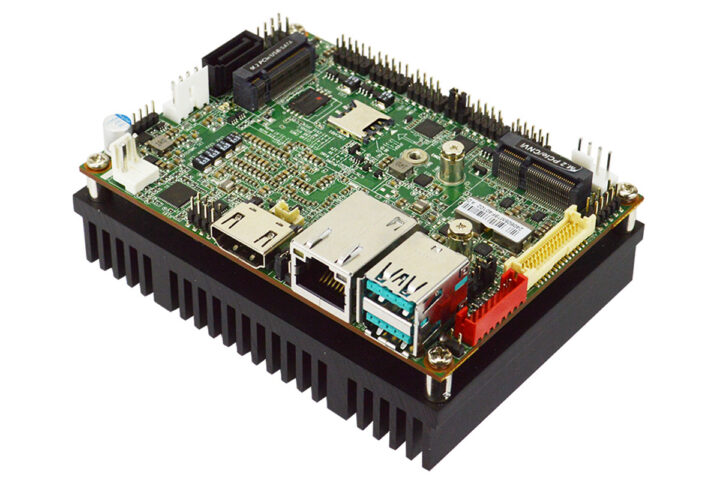

Jetway JPIC ADN1 Pico ITX SBC

JPIC-ADN1 fanless SBC specification

  • Alder Lake-N SoC (one or the other)
    • Intel Processor N97 quad-core Alder Lake N-series processor with Intel UHD graphics; 12W TDP
    • Intel Processor N200 quad-core processor @ up to 3.7 GHz (Turbo) with 6MB cache, 32EU Intel HD graphics @ up to 750 MHz; TDP: 6W
    • Additional compatible CPUs available via regional sales
  • System Memory –  1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
  • Storage
    • M.2 B+M-Key socket (See expansion section)
    • SATA III port
  • Display
    • 24-bit dual channel LVDS (Max. Resolution: 1920 x 1080 @ 60Hz, Co-Lay eDP)
    • HDMI 2.0b (Max Resolution: 4096×2160 @ 60Hz)
    • Supports 2x simultaneous displays
  • Audio – Internal header for Line-Out and MIC-In with Realtek ALC897 CODEC
  • Networking
    • Gigabit Ethernet RJ45 ports (RTL8111H)
    • Optional Wi-Fi and Bluetooth via M.2 2230 E-Key (See expansion section)
    • Optional 4G/5G cellular via M.2 B+M-Key socket and SIM card slot (See expansion section)
  • USB
    • 2 x USB 3.2 Gen 2 (10Gbps)
    • Internal Header for 4 x USB 2.0
  • Serial – 2 x RS-232/422/485 via internal header
  • Expansion
    • M.2 B+M-Key 2242/3042/3052 socket (USB3/SATA/PCIe Gen3 x2)
    • M.2 E-Key 2230 socket (USB 2.0/PCIe 3.0 x1)
    • 8-Bit GPIO header
  • Security – Intel PTT (Integrated fTPM)
  •  Misc
    • Watchdog timer (255 levels)
    • RTC with lithium battery
    • Chassis intrusion header
    • AT/ATX mode selection header
    • UEFI BIOS
    • SMBUS header
    • 4-pin Connector for CPU Fan (PWM Mode)
    • Front panel header for HDD Active LED, Power LED, Power On/Off, and Reset
  • Power
    • 12V via AT / ATX (Default) Mode
    • Internal 2-pin header for power connector
  • Dimensions – 100.0 (W) x 72.0 (D) mm (Pico-ITX form factor)
  • Temperature
    • Operating – -20°C ~ 60°C
    • Storage – -20°C ~ 85°C
  • Humidity – 10 ~ 90% @ 40°C, non-condensing
  • Certification – CE/FCC Class A, LVD

After checking out all the specifications it looks like the Jetway JPIC-ADN1 is a cost-down version of the JNUC-ADN1 4″x4″ Intel N97 “NUC” SBC with a more compact design, fewer expansion options, and lower memory capacity, making it suitable for simpler industrial tasks. We have also written about similar Pico-itx SBCs including the AAEON PICO-ASL4, the DFI RPP051, and many more. Feel free to check those out if you are interested in the topic.

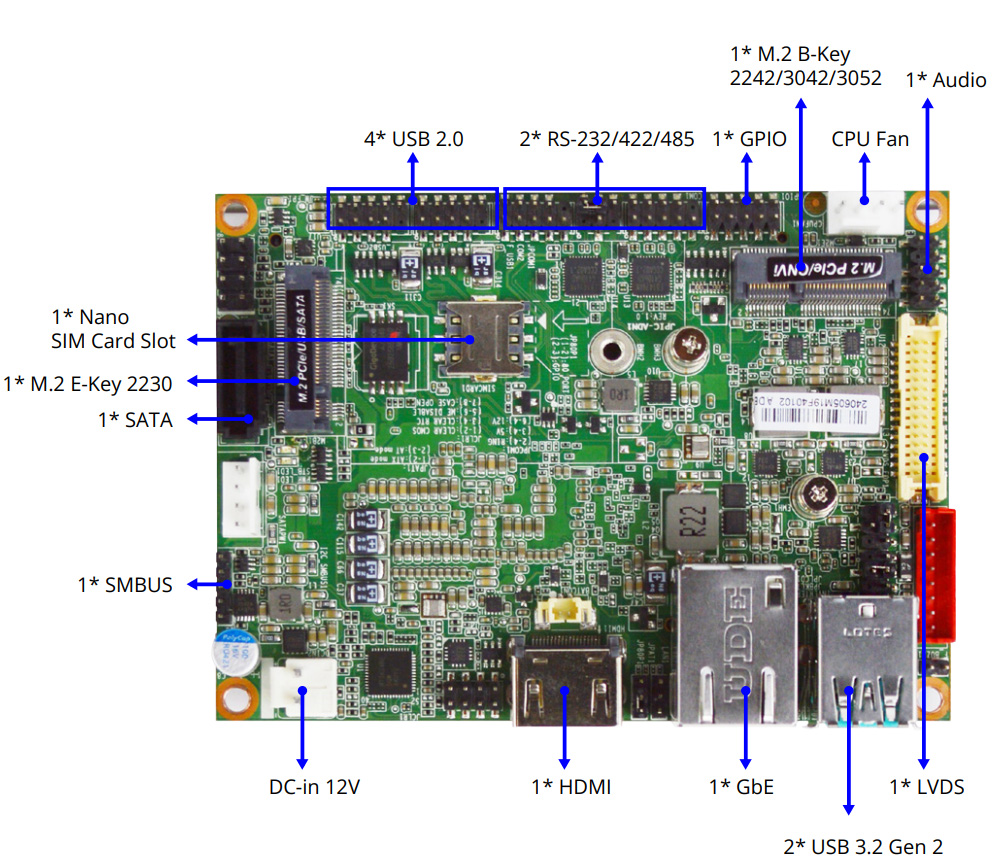

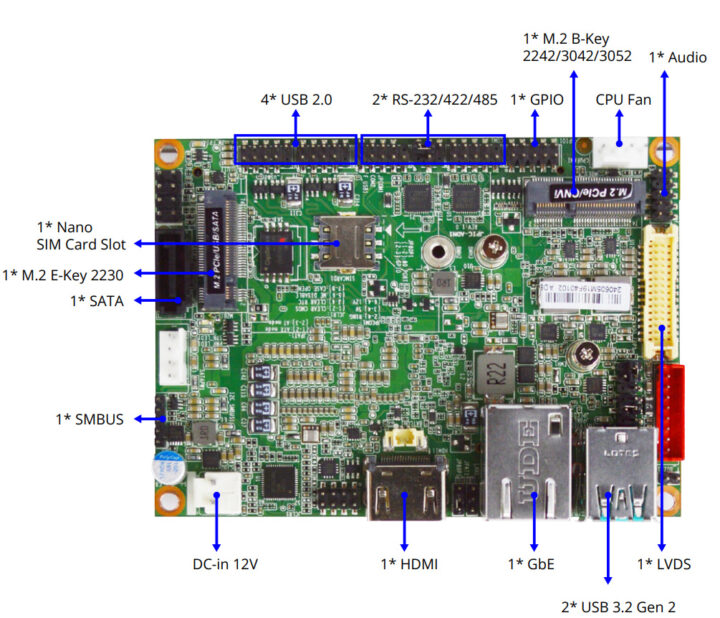

Jetway JPIC ADN1 Pico ITX SBC Specifications

In terms of software, this JPIC-ADN1 fanless SBC supports Linux, Windows 10, and Windows 11 operating systems with relevant drivers available in the download section of the product page along with a datasheet.

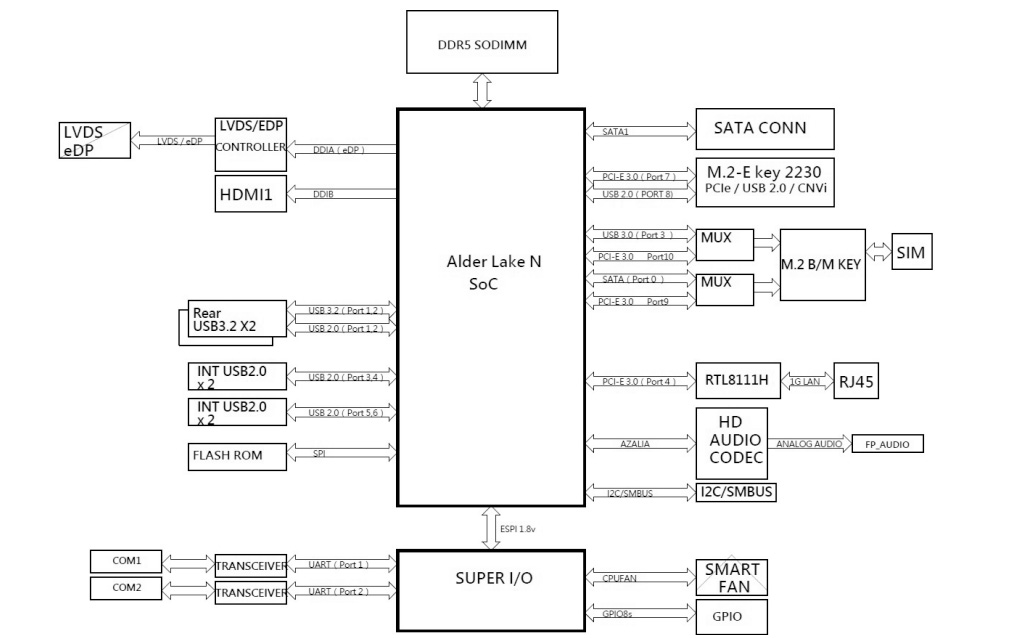

Jetway JPIC ADN1 Pico ITX SBC block diagram

At the time of writing the company has not provided any pricing information for the Jetway JPIC-ADN1 Intel N97/N200 fanless Pico-ITX SBC. More details, including drivers and order-related information, can be found on the product page.
