AllWinner A31 Mele Media Player Pictures, Screenshots and Antutu Benchmark

Mele A1000G Quad is an Android set-top box featuring AllWinner A31 quad core Cortex A7 processor with 2GB RAM and 8GB Flash. You can check the full specifications in my previous post. Eddy Lab got hold of an engineering sample with a similar model but without SATA that looks like A3700 [Update: Model name is apparently G39A04], and he, or they, took a few pictures, and tested the device (Link in Korean). I’ll re-post some of their unboxing pictures, and share some of their screenshots and benchmarks in this post.

Mele A1000G Quad Package Content

Mele  Quad Core Media Player Package Content

The device comes with a 5V/2.4A power adapter, an HDMI cable, and an IR remote.

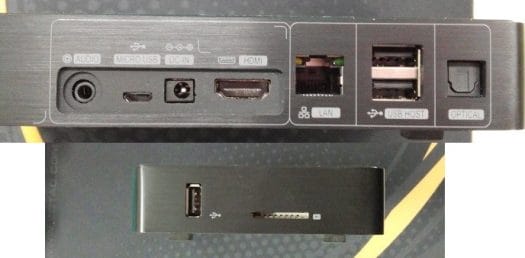

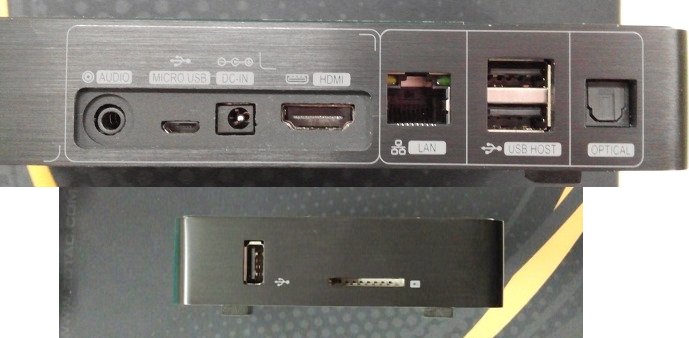

Mele_A1000G_Quad_Connectors

The device features an Audio out jack, a micro USB socket, a power jack, and HDMI connector, an RJ45 Ethernet connectors, 3x USB host ports, SPDIF output (Optical), and an SD card slot. It’s very similar to the original Mele A1000 except VGA and AV ports are missing, as Mele considers it is an high-end STB, and people who buy this device are likely to own an HDMI capable TV. There’s also a hole to access a recovery button on the bottom of the enclosure.

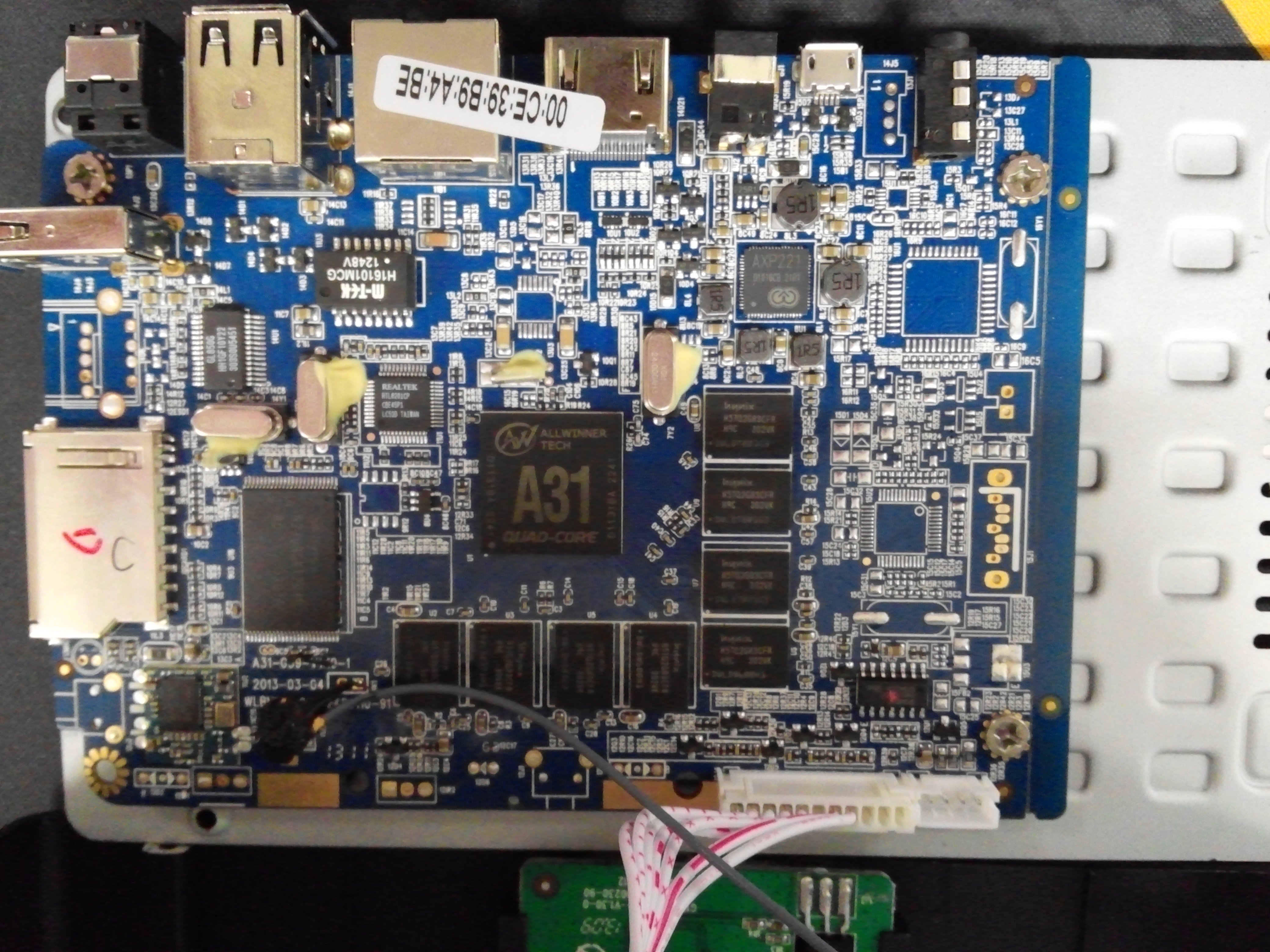

Mele A1000G Quad PCB (Click to Enlarge)

Mele Quad PCB (Click to Enlarge)

They also took several pictures of the actual board, and we find out the Wi-Fi module is based on Relatek 8188EUS, the 2GB RAM is composed of 8 Hynix chipset, the Ethernet phyceiver is Realtek RTL8201CP, the PMIC is AXP221, and according to another poster, the 4-pin connector on the bottom right in the picture is the UART (Left to right: 3v3, Tx, Rx, Gnd). Since u-boot and Linux source code for A31 is available (except some parts), this should make a fun hackable Linux platform to play with.

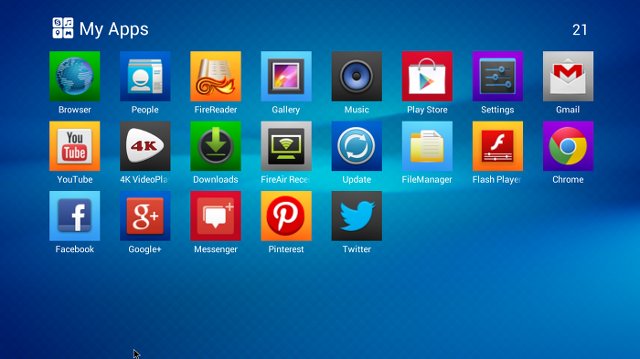

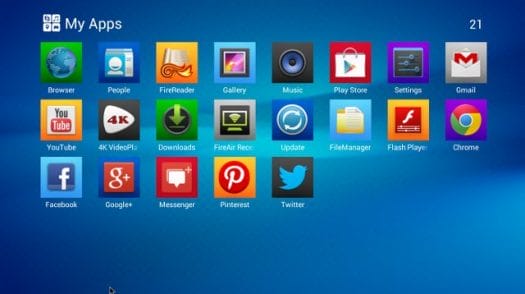

Mele has designed a customized, with a Windows-8 style Home Screen, user interface for their A20 and A31 based media players.

Mele_A1000G_Quad_User_Interface

Eddy Lab then went through all the Settings menu, where we find connectivity options for Wi-Fi including Wi-Fi Direct and WPS, Ethernet, Wi-Fi tethering and hotspot, and more, but there’s no Bluetooth submenu. The Sound menu allows you to select PCM, SPDIF or HDMI pass-through, and the display menu will let you adjust brightness, contrast, saturation, and select several video output modes between 576p and 1080p60.

Mele_AllWinner_A31_AntutuThe “About device” section informs us the “model number” is “softwinner”, and the device runs Android 4.1.1 on top of Linux kernel 3.3.0. Root checker confirms the firmware is rooted.
They also ran several benchmarks including Antutu where the device scores 10758 which is just below Transformer Prime  score (Tegra 3). So not a bad score, although it obviously can’t match the latest RK3188 mini PCs (~14,000 with stock ROM, ~17,500 with finless ROM). 3D graphics score (3068) is however better than MK908 score (2485) thanks to PowerVR SGX544MP2 GPU outperforming Mali-400 MP4 GPU. In Vellamo, the device gets 1094 (HTML 5) and 365 (Metal), and CPU tests such as Linpack (Single thread: 29.46 MFLOPS, Multi-thread: 79.56 MFLOPS) also show the lower performance of the Cortex A7 cores compared to Cortex A9.

They also tested Wi-Fi performance with Benchbee, and achieved 19.2Mbps download speed, and 48.2Mbps upload speed, I assume with the router just right next to the device.

Despite the CPU benchmarks, they report that applications such as the Chrome Browser feels very fast on this device.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. Ian Tester
    May 9th, 2013 at 21:34 | #1

    I think you mean 2GB of RAM and 8GB of flash storage.

  2. May 9th, 2013 at 22:06 | #2

    @Ian Tester
    Yes, sorry. I’ve corrected the error.

  3. The Cageybee
    May 10th, 2013 at 01:03 | #3

    I suspect that the lack of VGA and AV output is more that it isn’t part of the SoC so would require and external solution and increase the cost.

  4. May 10th, 2013 at 09:16 | #4

    @The Cageybee yes, A31 doesn’t have vga and av output.

  5. May 10th, 2013 at 17:04 | #5

    Exact… the SOC dont have direct support for analog output, and no SATA too.
    This pictures look like a early sample unit.
    The final product has been delayed until the end of May.

  6. May 14th, 2013 at 02:50 | #6

    For A2000G its linux compatible?

  7. May 14th, 2013 at 09:35 | #7

    @Israeru
    If you mean A2000G (AllWinner A10 version), then yes, you can install Linux.
