Olimex Announces RT5350F-OLinuXino and Evaluation Boards Availability

Olimex had been working on a small board with Ralink RT5350F processor for over a year, with delays mostly due to software development and undocumented registers. But RT5350F-OlinuXino is now available together with an evaluation board with tow relays, two Ethernet ports, and expansions headers, as well as a DIN EBV still in development.

RT5350F-OLinuXinoRT5350F-OlinuXino specifications:

  • SoC – Ralink / Mediatek RT5350F MIPS24KEc CPU @ 360 MHz
  • System Memory – 32MB SDRAM
  • Storage – 8MB SPI NAND Flash
  • 3x headers with access to
    • USB 2.0 HOST/Device
    • 5x 10/100 Mbps Ethernet port
    • GPIOs, SPI, I2C
    • I2S, PCM
    • UART
    • JTAG
  • Power – 3x external DCDC power converters releasing internal RT5350F vreg and preventing common problem with overheating with this chip.
  • Dimensions – N/A
  • Operating Temperature Range – -10 to +55C

The board is pre-loaded OpenWRT with Linux 3.18.11. You can find builds instructions and other documentation in the Wiki, as well as github.

RT5350F-OlinuXino_EVB
Baseboard for RT5350F-OlinuXino module

The company jointly launch the module with RT5350F-OlinuXino-EVB evaluation board with the following technical specifications:

  • Module – RT5350F-OlinuXino with RT5350F processor, 32MB RAM and 8MB flash
  • Connectivity
    • WIFI 801.11n 150Mb
    • 2x 10/100 Mbps Ethernet ports (RJ45)
  • 2x Relays 15A/240VAC
  • USB – 1x USB 2.0 host port
  • Expansion headers:
    • UEXT connector (I2C, SPI, RS232) for Olimex modules
    • EXT header with 3 remaining Ethernet signals, GPIOs, I2S/PCM, JTAG…
  • Misc – Button
  • Power Supply – 5V DC via power barrel
  • Dimensions – N/A
  • Temperature Range – -10 to +55C

Documentation is available on the same Wiki and Github account as for the module.

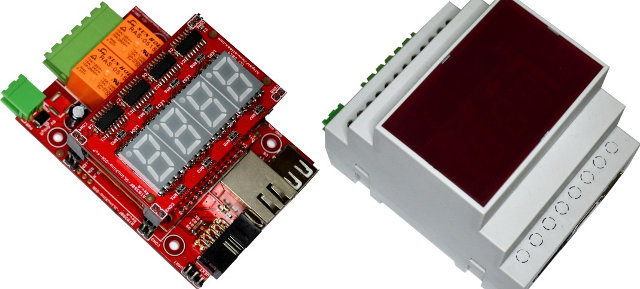

RT5350F_DIN_EnclosureOlimex is working is also working an an other EVB with a single Ethernet port, and an LED display that can fit into a DIN enclosure which should be useful for home automation.

It will cost about 35 Euros once it is available in June or a little later. RT5350F-OlinuXino can be purchased now for 15 Euros in single quantities, while RT5350F-OLinuXino-EVB goes for 24 Euros including the module, and you can purchase both directly on Olimex website.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 Comments
oldest
newest
Pteridium
Pteridium
8 years ago

Cool! For some applications it is a very interesting board.
Also, there is support for the RT5350 since kernel 3.4.

gre
gre
8 years ago

Does the ethernet use a switch chip (or equivalent in the SoC) or are they available as individual interfaces?

Pteridium
Pteridium
8 years ago

@gre
The RT5350 has an internal switch. With OpenWRT you can define port based vlans.
