Since MXQ-4K TV box is not working well enough, even after a firmware update, I’ve decided not to do a full review. But since this is the first Rockchip RK3229 device I’ve received, I’ll still share some system information (CPU-Z) and Antutu benchmark results.
Rorkchip RK3229 is detected as a quad core Cortex A7 processor between 408 MHz and 1.46 GHz with a Mali-400MP GPU. CPU-Z does not know about it, so it only detect RK3066, meaning the manufacturing process (40 nm) is wrongly reported, and RK3229 is manufactured using a 28nm process. The model us MXQ-4K (rk322x) with the board simply called rk30sdk. They’ve also set the framebuffer resolution to 1280×720 probably due to the limited performance of Mali-400MP GPU. Internal storage is shown to be 3.81GB large, but that’s because I modified the firmware, and it’s now 1.44GB with the latest firmware.
Rockchip RK3229 does not support Android 5.x, so all boxes are shipped with Android 4.4.4 running on top of Linux 3.10.0. Based on Build ID, Shenzhen Hotack Technology is likely to be the manufacturer, or at least the company that works on firmware and hardware part.
Then I’ve run Antutu 6.04 in the morning right after booting the device, and in the evening after leaving it running idled most of the day.

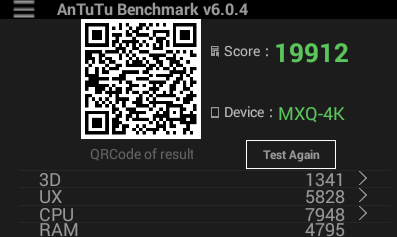

Antutu “morning” results reports a score with 19,912 points, and quite close to the score reported on GeekBuying (21,000 points).

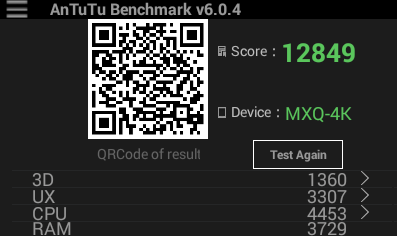

However, the “evening” benchmark shows a different story with only 12,849 points. Actually, I got this score most of the time, so the device must have some serious issues with regards to cooling, although it might be tougher than usual conditions in my location, since it’s summer here, and my office temperature is around 30 C (with aircon) most of the day, and around 25C at 9am. If we look at the score details, 3D graphics results are the same, but UX, CPU and RAM results are all impacted in the second test.
It’s quite possible fixing the throttling issue would also improve video playback, so other Rockchip RK3229 TV box could perform better, and even MXQ-4K might be fixable with some hardware hacking with a larger heatsink or/or fan.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
CSQ HD 4K is another model @ http://www.aliexpress.com/store/product/CSQ-HD-4K-10-bit-60fps-Android-4-4-up-to-6-0-Smart-TV-Box/100017_32627202647.html ,and they claim it will be upgraded to Android 6.0.
bad soc?
@haze
Yeah….why would anyone pick this one? I gets beat by the ancient RK3188 in Antutu and that one doesn’t have heat problems like this crap and sells for about the same price.
@haze
@Hulk Hogan
It’s very cheap, it’s the only one that support 10-bit H.264, and it also supports 4K 10-bit H.265 and VP9. So if a manufacturer manages to release a product with the issues I had on MXQ-4K, it could be a decent player, with far superior video capabilities compared to Rockchip RK3188 processor.
However, it’s only useful if you use the TV box as a media player, as if you plan to run other apps it will be slower than most other products on the market.
Android 4.4.4!?
why!!!!!!
“framebuffer resolution to 1280×720” : \
epic fail product
@Hulk Hogan
HEVC/h265 4k
for media consumption, cpu/gpu is not that important. video decoder gets to priority.
bu then again crappy res defeat its true purpose
Rockchip RK3229 based MX4 TV System has the same disadvantages as the Rockchip RK3229 based MXQ 4K Systems ???????
@milkboy
The videos are not rendered on the framebuffer (except when they use software decode), but instead on some hardware scaler that definitely support 4K resolutions.
Rockchip RK3229 based MX4 TV System – Shenzhen Excel Digital Technology Co., Ltd.?
@Andre
I’m not sure, this would need to be tested.
I’ve also seen people say MXQ-4K worked just fine, so YMMV.
@Jean-Luc Aufranc (CNXSoft)
Well, I’m one of those people. MXQ 4K works flawlessly. For those who complain: it costs only 30$, so adjust your expectations, for crying out loud.
Cooling is an issue though. That pathetic little excuse of a heatsink on the CPU does pretty much nothing. Combined with a few wee slots on the case for the ventilation equals funny running temperatures when using CPU intensive apps. So I got me a proper heatsink and glued it to the CPU using silicone thermal adhesive. Success.
Here the end result: http://i68.tinypic.com/qyz8lj.jpg and http://i66.tinypic.com/23ts8lw.jpg
@f_s
which silicone thermal you used
I ordered an Mx4 – but in the test, it is shown that highest resolution android offers is 1920×1080.
How could you get Uhd resolution for youtube for example?
My uhd tv offers a youtube app, but has no vp9 support, so I cant watch youtube uhd videos.
But I guess, with a max resolution of 1920×1080 this box cant deliver that either – or am I wrong?
@okay
You should be able to set the video output to 3840×2160 or 4096×2160 if your TV supports it. This is only really used for video playback, as the user interface will be 1920×1080.
I’m not sure what the requirements are for YouTube UHD video playback.
@Jean-Luc Aufranc (CNXSoft)
Thanks for your quick reply.
Youtube offers uhd videos from 2015 on, with their own vp9 codec only.
My LG uhd tv is from 2014 and doesnt support it – so I’m curious, if that works via the box now.
I will report back.
I really just ordered the mx4, because I got carried away 😉 22 $ is really cheap, but really
the most samsung and lg Tvs play most of the videofiles and have good apps and mirrorcast functionality now.
And kodi works great with my mk808b plus already.
@Hulk Hogan
It is supposed to support Hi10P. Which makes it the only chip that does… not even the Tegra in the Shield TV can (perhaps in software, but that depends on the frame rate). The next up option is to go for an i3 or i5… which consumes a lot more power, and is much more expensive.
So if these decoding capabilities would appear in a decent device, that’d be awesome.
Got MXQ-4k this week, seems to have more recent firmware, 20160321.152503 test-keys
Antutu 21272, not getting warm, working well overall.
@f_s
Details please?
From where we can get the Evaluation board/ Development board of RK3229 for doing POC?
Please help me.
@Nikhil
I don’t know what POC is. I have yet to find an RK3229 board. Maybe you could consider RK3128 board instead like FirePrime @ http://www.cnx-software.com/2015/06/10/fireprime-board-features-rockchip-rk3128-quad-core-cortex-a7-processor/.
Thanks @Jean-Luc Aufranc (CNXSoft)
I want to test my application on development board of RK3229 and afterwards We have planned to manufacture 10K units. Here the image of it is shown @ https://androidtvbox.eu/rockchip-rk3229-and-rk3399-new-chips-from-rockchip-support-4k-10-bit-h-265-and-hdmi-2-0/
Can you help me to find out the same?
@Nikhil
That board is Rockchip RK3229’s own development board. It’s not optimized for cost at all. In case you want it then you’d have to contact Rockchip. It will not be cost effective for mass production. If you have 10K order, you may try to find a TV box board, and purchase that instead.
you could try to identify and contact the chinese pcb maker that is featured in scishion v88 4k (rk3229 version) : maybe ask gearbest
personnally I am dreaming of a pcb of rk3229 actually routing (to available pads or pins) the 4 i2s out datalines for 8channel out i2s as the rk3229 is featuring itself
